USB 32Ch Servo Motor Controller Board, support PS2 WIFI with USB Cable

Specifications:

Baud rate (USB): 115200
Baud rate (Bluetooth, UART): 9600
Storage Flash capacity: 16M
Mode to choose: 4 types
Simultaneous controlling servo number: 32 channel
Max action groups: 256 groups
Communication agreement: UART
Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux,FreeBsd, MAC OS, Android

SKU: RDNA-C3.43

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹3,597.82 (Inc. GST)
₹3,049.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

15 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

USB 32Ch Servo Motor Controller Board, support PS2 controller WIFI V7.2 support online upgrade firmware perfectly now, it means that in the future if there is a new function, the user can upgrade easily, so as to ensure the user has the latest firmware. Up to 32 servo motors can control at the same time, either by using a software on a PC, or UART communication ( TTL serial port) of MCU (Arduino, 51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering.

You can also download instructions to the servo motor controller for offline operation. The biggest advantage is that you can use the computer software to control the robot or control your servo steering. It can control 32 servo motors at the same time, with high precision (1 μs), and adopt the 32-bit original package CPU, internal integration USB communication interface, high stability, and precision.

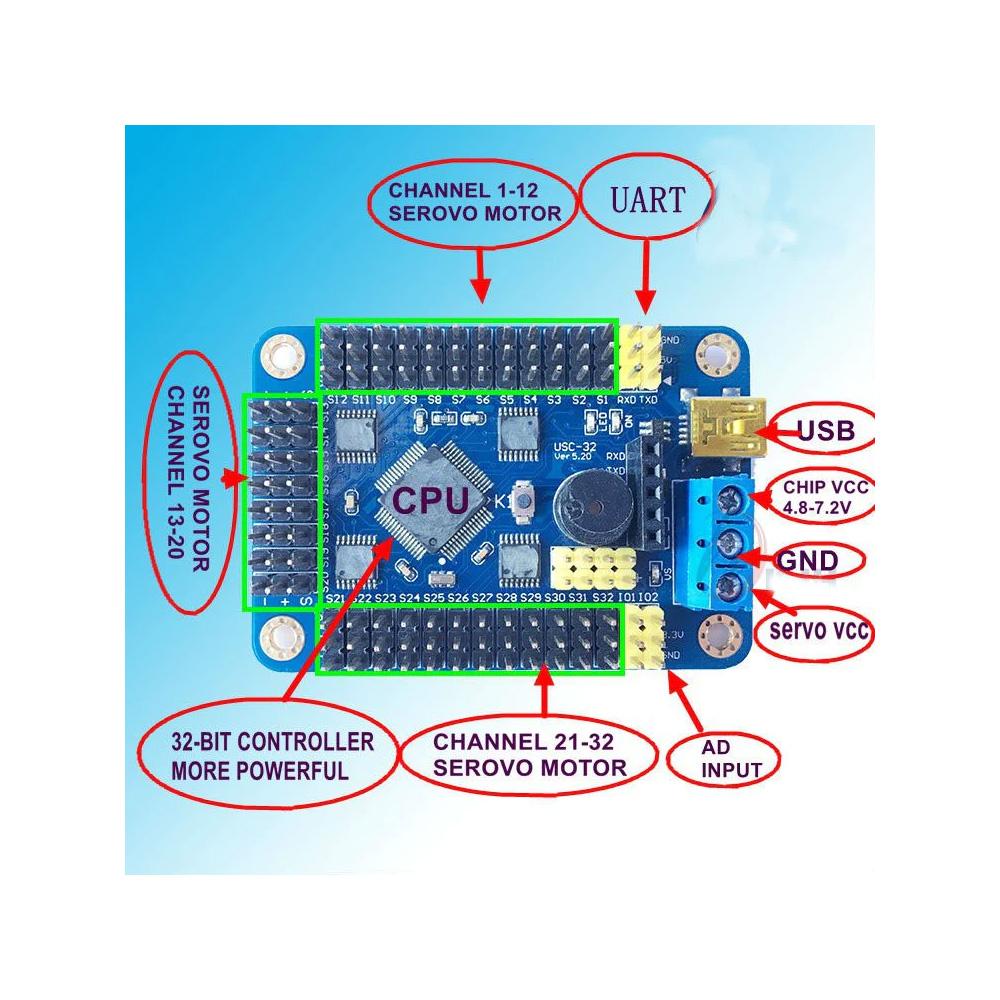

Pin Description:

VCC: Servo power input VCC, can be connected to the 4.2V~7.2V power supply, plugged into a power supply for the anode, please.
GND: The overall GND of the servo controller can be connected to servo power GND of CPU power GND, plugged into a power supply for the cathode, please.
5V: Servo controller CPU power input, Voltage range: 5V – 8.5v.
USB: Servo controller CPU power input and data communication port.

NOTE: 5V interface and USB interface cannot be access the same time, Choose only one at a time.

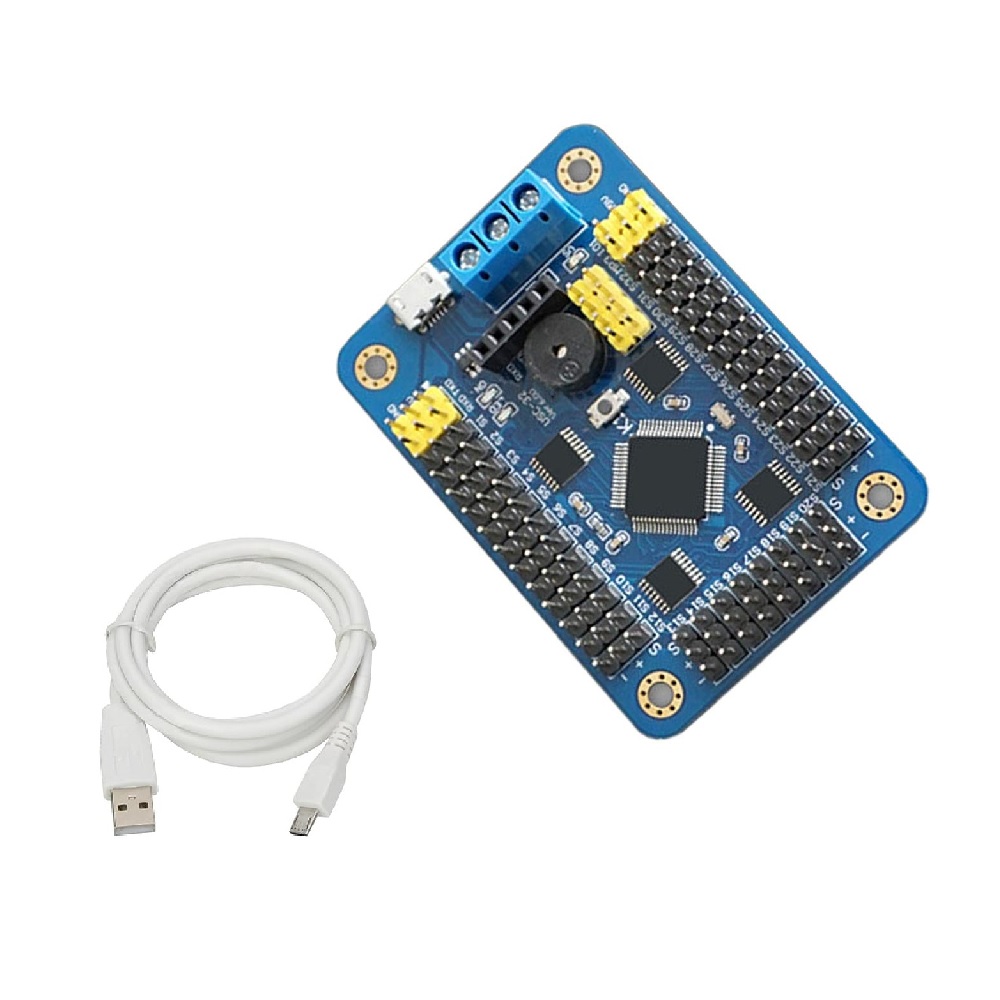

Packing List:

1 x USB 32Ch Servo Motor Controller Board, support PS2 WIFI

1 x USB Cable
