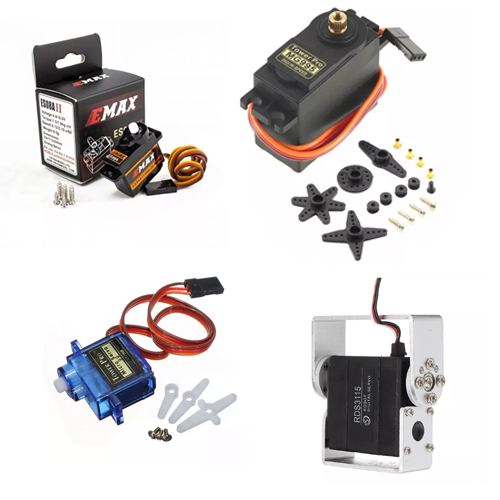

Servo Motor
₹85.00
Aluminium Servo Horn/ Arm 25T round type Disc MG665 MG996
Aluminium Servo Horn/ Arm 25T round type Disc MG665 MG996
₹85.00
Aluminium Servo Horn/ Arm 25T round type Disc MG665 MG996
Aluminium Servo Horn/ Arm 25T round type Disc MG665 MG996Specifications
- Material: Aluminium
- M3 Screws
- Adjustable type servo arm
- Mounting Hole Spacing: 14mm
- Servo disc diameter: 20mm
- 25Tooth
- Weight: 2 gm
₹85.00
CNC Aluminium Steering Servo Horn Arm for futaba standard 25T
CNC Aluminium Steering Servo Horn Arm for futaba standard 25T
₹85.00
CNC Aluminium Steering Servo Horn Arm for futaba standard 25T
CNC Aluminium Steering Servo Horn Arm for futaba standard 25TSpecifications
- Gear Teeth: 25T
- Material: Aluminum
- Overall length: 30mm
- Thickness: 2mm
₹279.66
MG 90 180 Deg Servo Motor Metal Gear
MG 90 180 Deg Servo Motor Metal Gear
₹279.66
MG 90 180 Deg Servo Motor Metal Gear
MG 90 180 Deg Servo Motor Metal GearSpecifications
- Weight : 13.4g
- Dimension : 22.8 × 12.2 × 28.5 mm
- Operating Speed (6.0V no load): 15sec / 60 deg
- Operating Speed (7.4V no load): 13sec / 60 deg
- Product Torque (4.8V): 1.8kg/cm 2.2kg/cm(6.0V)
- Reaction Rate: 0.10sec/60degree(4.8V) 0.08sec/60degree(6.0V)
- Operation Voltage : 4.8 – 6Volts
- Gear Type: All Metal Gears
- Stable and shock proof double ball bearing design
- Dead band width: 5µs
- Temperature range: 0-55 degrees
₹275.42
MG995R 180 Deg Servo Motor
MG995R 180 Deg Servo Motor
₹275.42
MG995R 180 Deg Servo Motor
MG995R 180 Deg Servo MotorSpecification
- Weight : 55g
- Dimension : 40.7 × 19.7 × 42.9 mm
- Operating Speed (4.8V no load): 20sec / 60 deg
- Operating Speed (6.0V no load): 16sec / 60 deg ( no load)
- Stall Torque (4.8V): 10kg/cm
- Stall Torque (6.0V): 12kg/cm
- Operation Voltage : 4.8 – 7.2Volts
- Gear Type: All Metal Gears
- Stable and shock proof double ball bearing design
- Dead band width: 5 µs
- Temperature range: 0 ºC – 55 ºC.
- Control System: Analog
- Operating Angle: 120degree
- Required Pulse: 900us-2100us
₹339.00
MG995R 360 Deg Servo Motor
MG995R 360 Deg Servo Motor
₹339.00
MG995R 360 Deg Servo Motor
MG995R 360 Deg Servo Motor
₹339.00
MG996R 180 Deg Servo Motor
MG996R 180 Deg Servo Motor
₹339.00
MG996R 180 Deg Servo Motor
MG996R 180 Deg Servo MotorSpecification
- Operating voltage: 4.8 V a 7.2 V
- Running Current 500 mA – 900 mA (6V)
- Stall Current 2.5 A (6V)
- Temperature range: 0 ºC – 55 ºC
- Control System: Analog
- Operating Angle: 120degree
- Required Pulse: 900us-2100us
- Direction: CCW
- Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
- Dead band width: 5 μs
- Wire length: 30cm
- Connector: 3 pin ‘S’ type female header
- Weight: 55 g
- Dimension: 40.7 x 19.7 x 42.9 mm approx.
- Stall torque: 9.8 kgf·cm (4.8 V ), 11 kgf·cm (6 V)
- Stable and shock proof double ball bearing design
₹339.00
MG996R 360 Deg Servo Motor
MG996R 360 Deg Servo Motor
₹339.00
MG996R 360 Deg Servo Motor
MG996R 360 Deg Servo MotorSpecifications
- Operating Voltage : 4.8 to 7.2V
- Operating Temperature Range: 0 to 55
- Operating Speed: 60/0.17 degree/second
- Operating Speed: 60/0.14 degree/second
- Stall Torque: 9.4 kg/cm @ 4.8V
- Stall Torque: 12 kg/cm @ 6V
- Running Current 500mA – 900mA @ 6V
- Stall Current 2.5A @ 6V
- Gear Type: All Metal Gears
₹297.00
PCA9685Servo Driver 16 Channel 12 bit PWM
PCA9685Servo Driver 16 Channel 12 bit PWM
₹297.00
PCA9685Servo Driver 16 Channel 12 bit PWM
PCA9685Servo Driver 16 Channel 12 bit PWM
₹2,720.00
Servo Motor FT5335M 35kg.cm High Torque Metal Gear
Servo Motor FT5335M 35kg.cm High Torque Metal Gear
₹2,720.00
Servo Motor FT5335M 35kg.cm High Torque Metal Gear
Servo Motor FT5335M 35kg.cm High Torque Metal GearSpecifications
- Operating voltage range : 6 V to 7.4 V
- Dimensions : Size: 62.8 × 32.5 × 55.9 mm
- Weight: 180 g
- Digital: Y
- Speed @ 7.4V: 0.18 sec/60°
- Stall torque @ 7.4V: 40 kg·cm
- Speed @ 6V: 0.20 sec/60°
- Stall torque @ 6V: 35 kg·cm
- Lead length: 12 in
₹127.00
Servo Motor SG90
Servo Motor SG90
₹127.00
Servo Motor SG90
Servo Motor SG90
- Size: 23.1 mm x 12.2 mm x 29 mm
- Weight: 9 g
- Speed at 4.8 V: 0.1 s/60°
- Compulsion Torque: 1.3 kg/cm
- Cable Length: 15 cm
₹125.00
SERVO MOTOR TESTER
SERVO MOTOR TESTER
₹125.00
