Features:
1. lead out 8 io ports
2. debug pin
3. matching firmware to achieve analyzer function

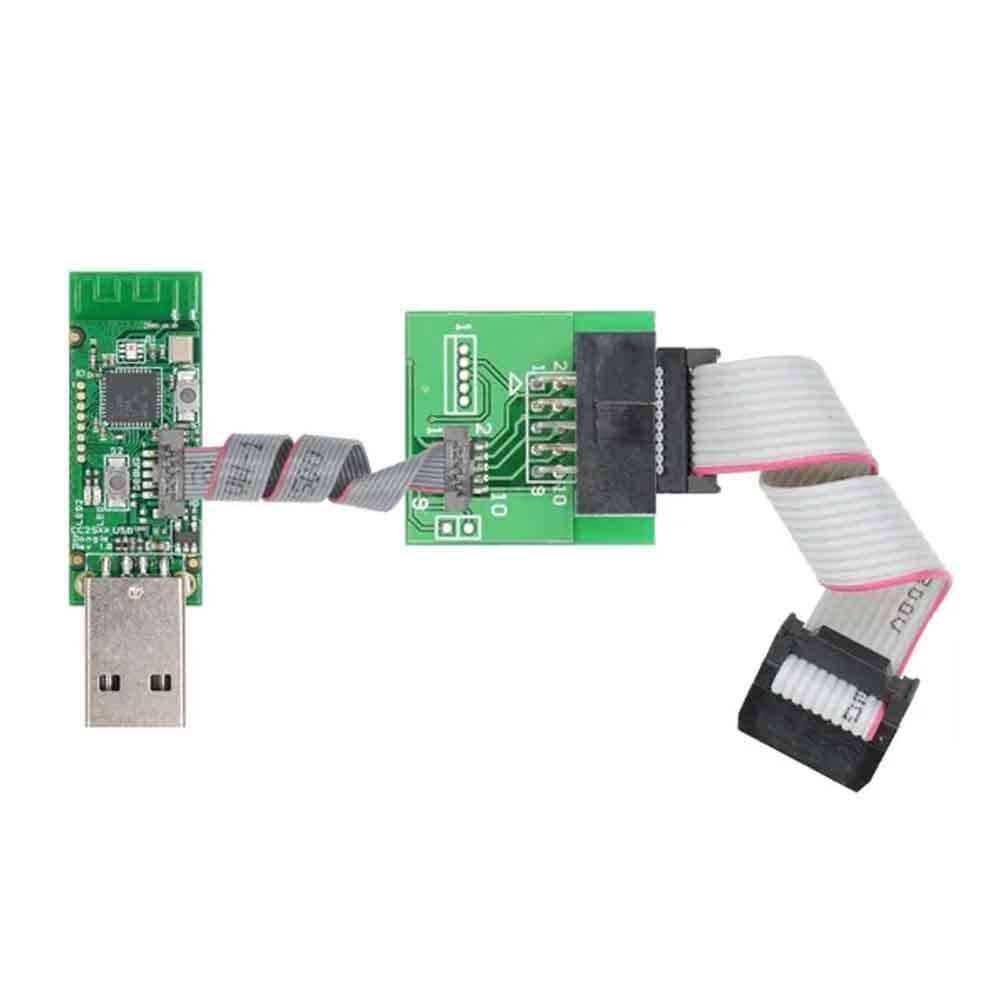

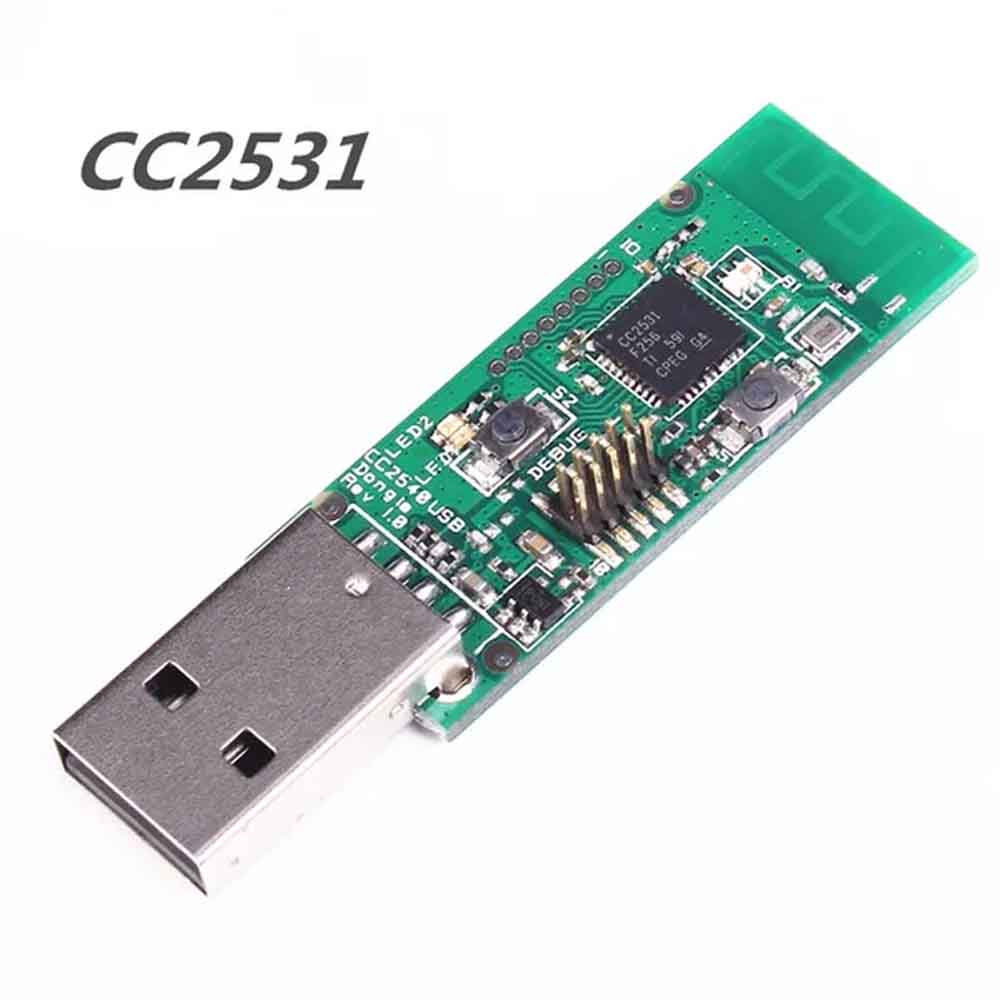

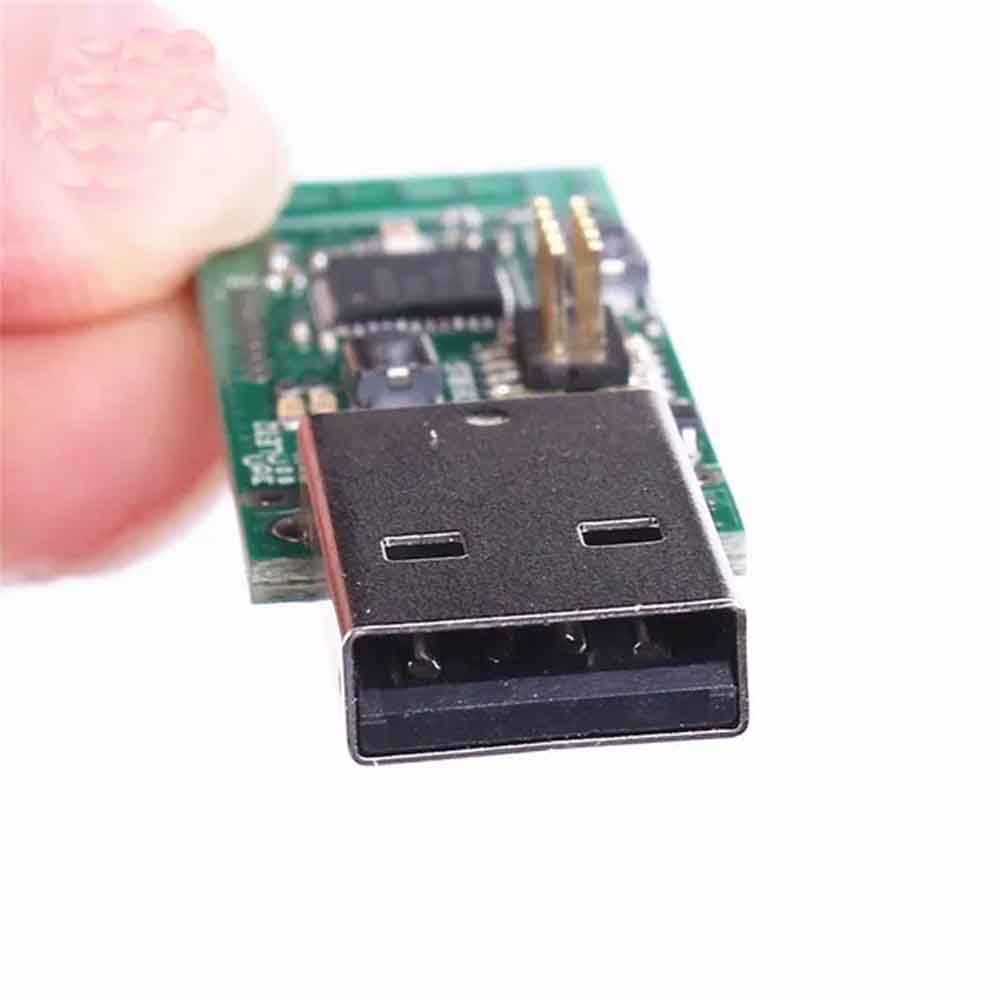

Bluetooth 4.0er cable downloader cc2540 zig-bee cc2531 sniffer usb programmer wire download programming connector the cc Debugger is a small programmer and debugger for low power RF system-on-chips you. Can be used in conjunction with the 8051 iar embedded workbench (version 7.51a or later) for debugging AND smarter flash programmer for flash programming. The dc debugger can also be used to control selected smarter studio devices.
Supported software :
Smart RF Studio, Smart RF Flash Programmer, IEEE Address Programmer, Packet Sniffer, Pure Path Wireless, IAR for 8051 various versions (including the newest 8.10 used in Z-STACK) ,etc.
Supported operating system:
WINXP,WIN7 32/64bit
Supported chips overview:
A full series of CC chips of TI with 8051 inner core, as well as several transceivers, detailed specification as below:
A. chips can be used for programming and simulation:
CC1110, CC1111, CC2430, CC2431, CC2510, CC2511, CC2530, CC2531, CC2533, CC2540, CC2541. CC2543, CC2544, CC2545
B. chips can be controlled through Smart RF Studio:CC1120, CC1121, CC1125, CC1175, CC1100, CC1101,CC110L, CC113L, CC115L, CC2500,CC2520
C. wireless chips can be used to programmed Pure Path
CC8520, CC8521, CC8530, CC8531

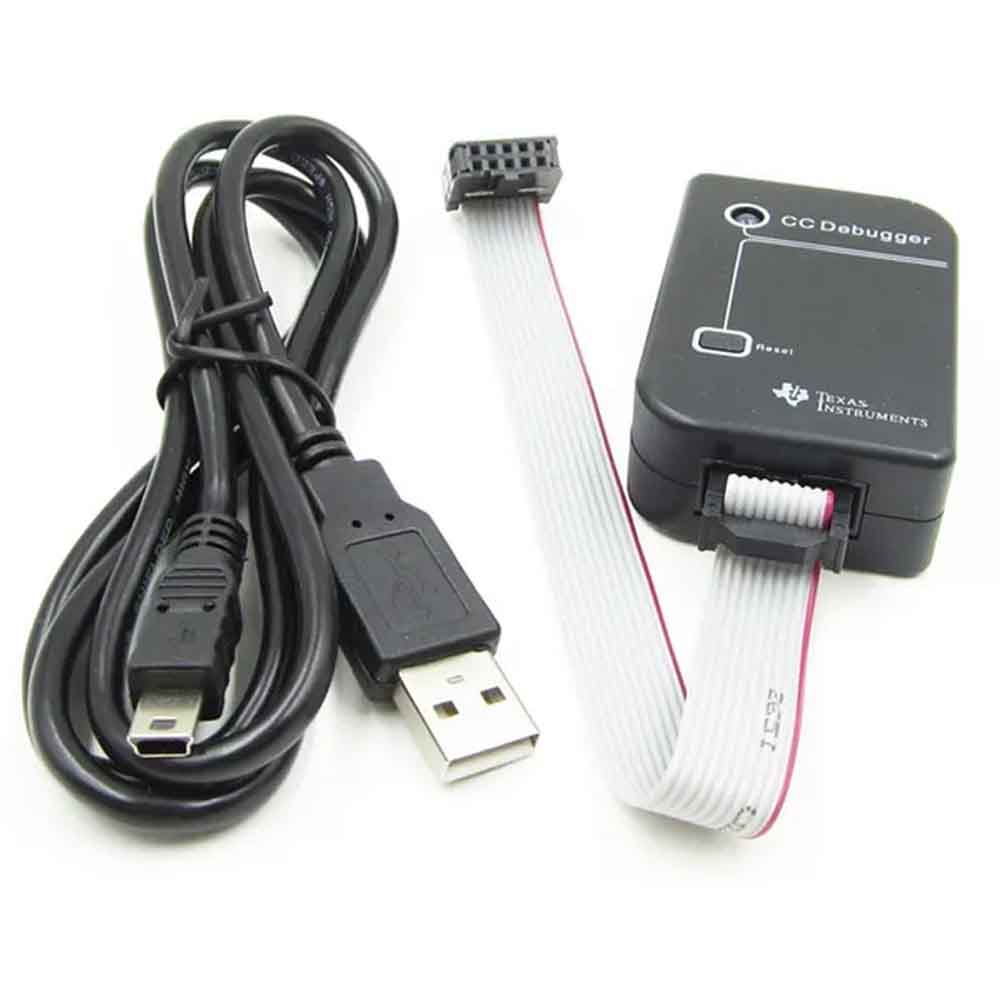

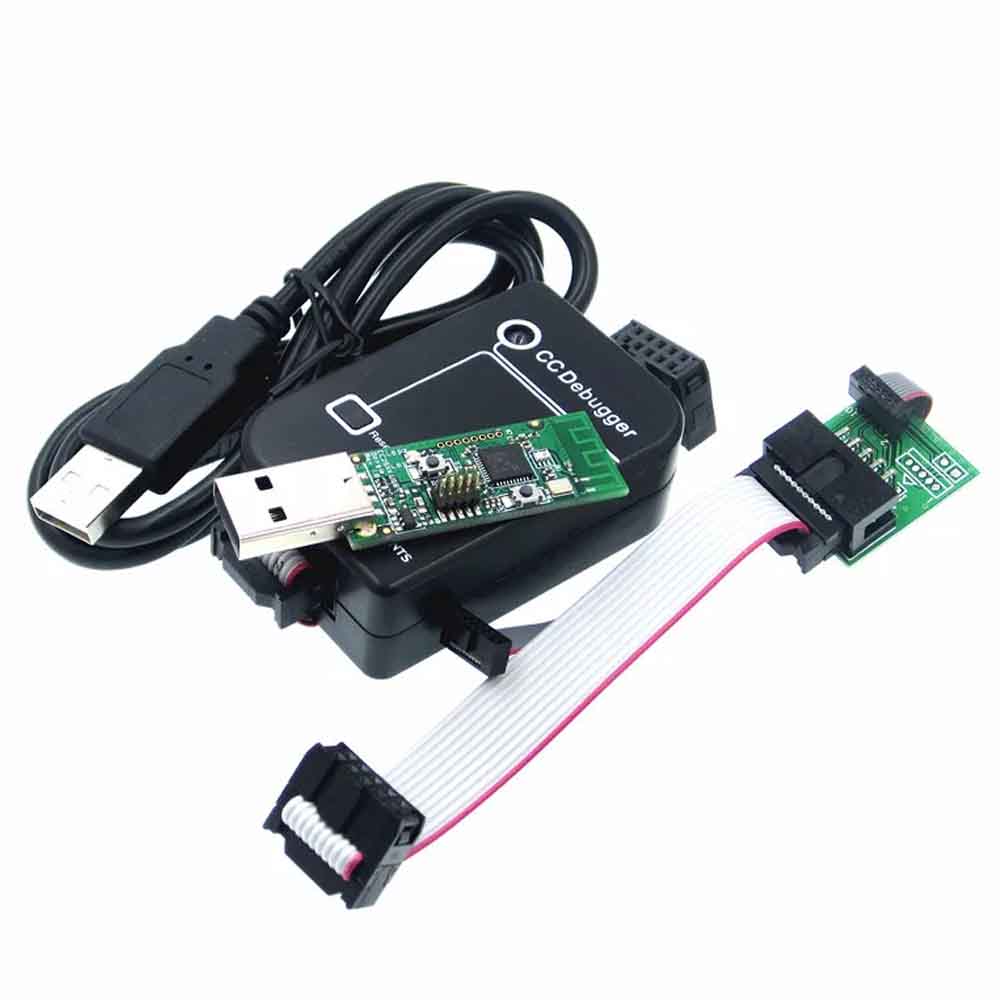

Package Contains

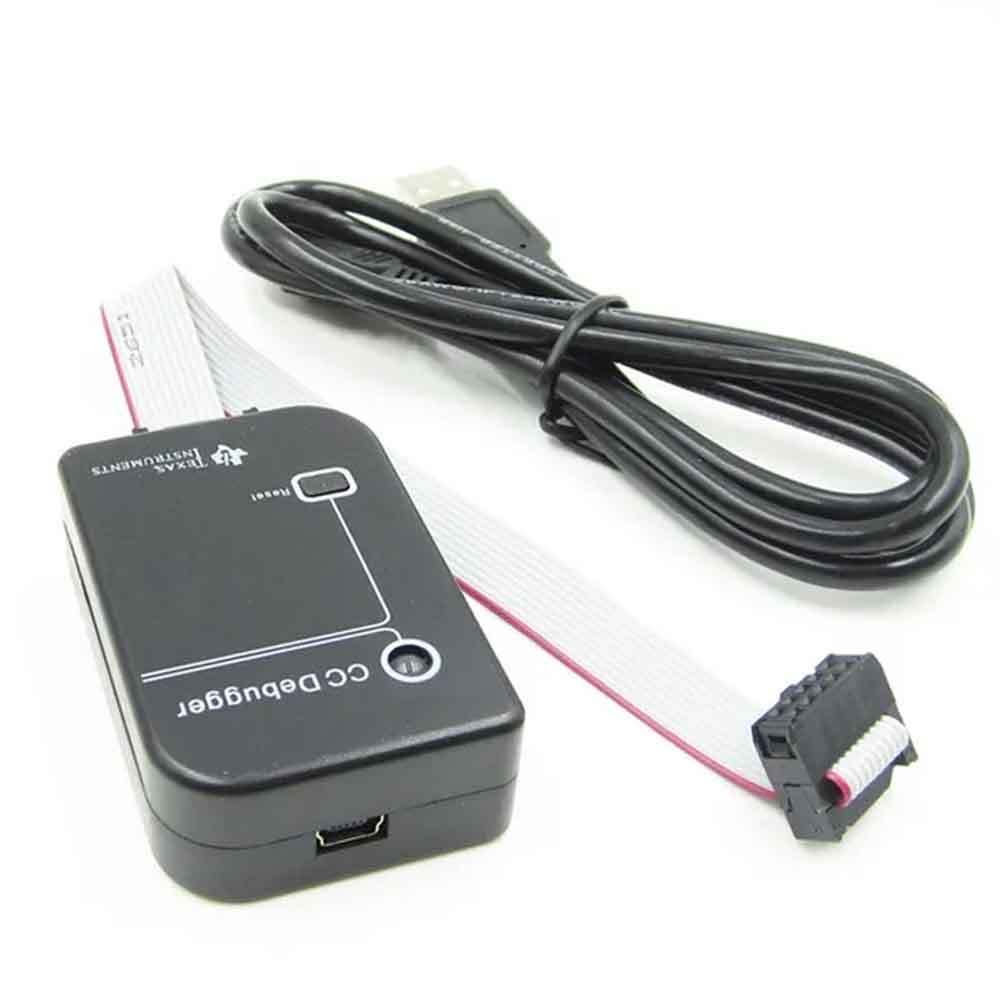

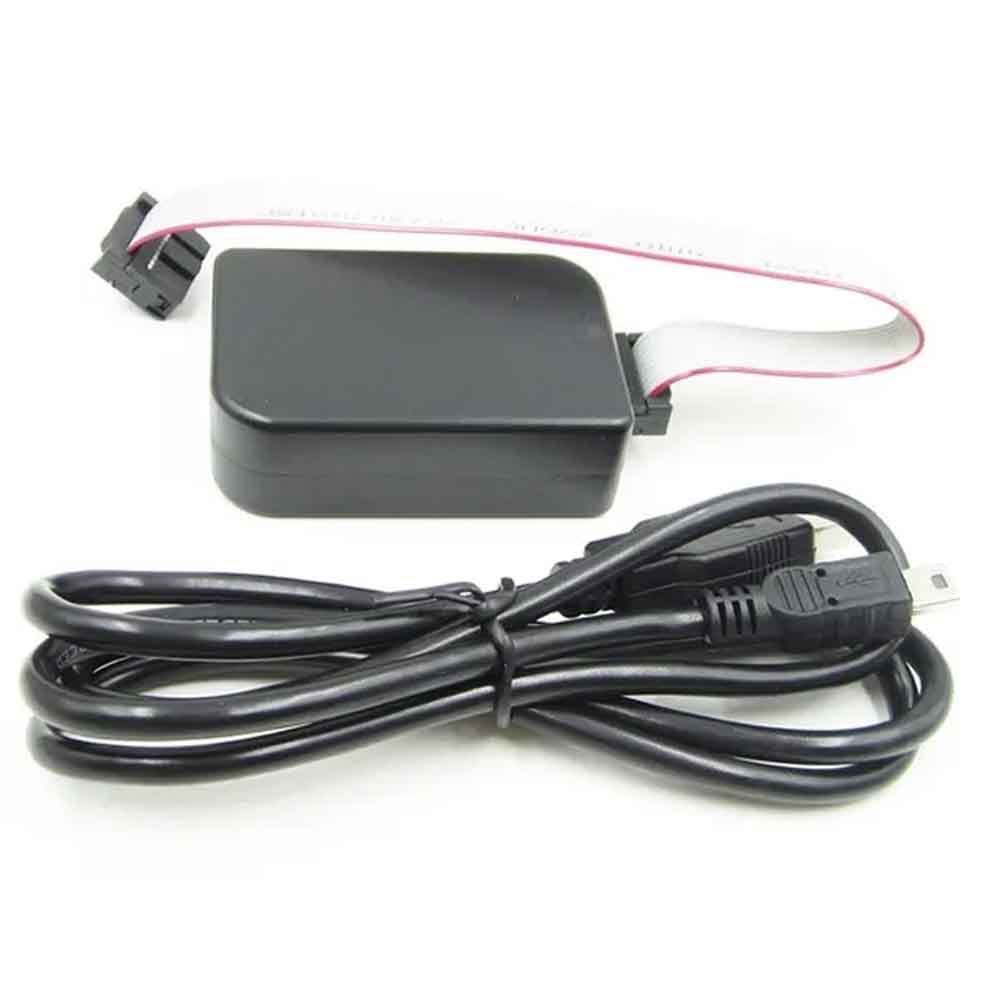

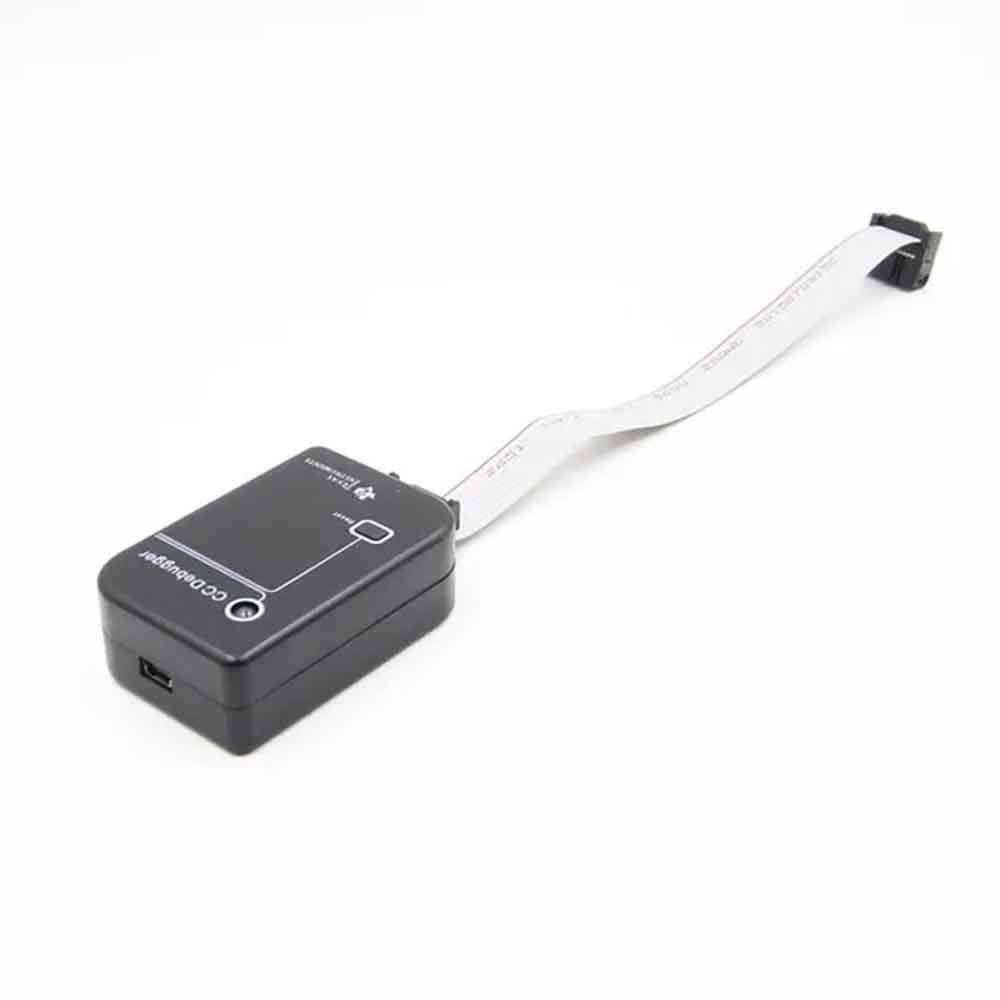

1 x CC Debugger with outer-shell plating
1 x mini USB cable

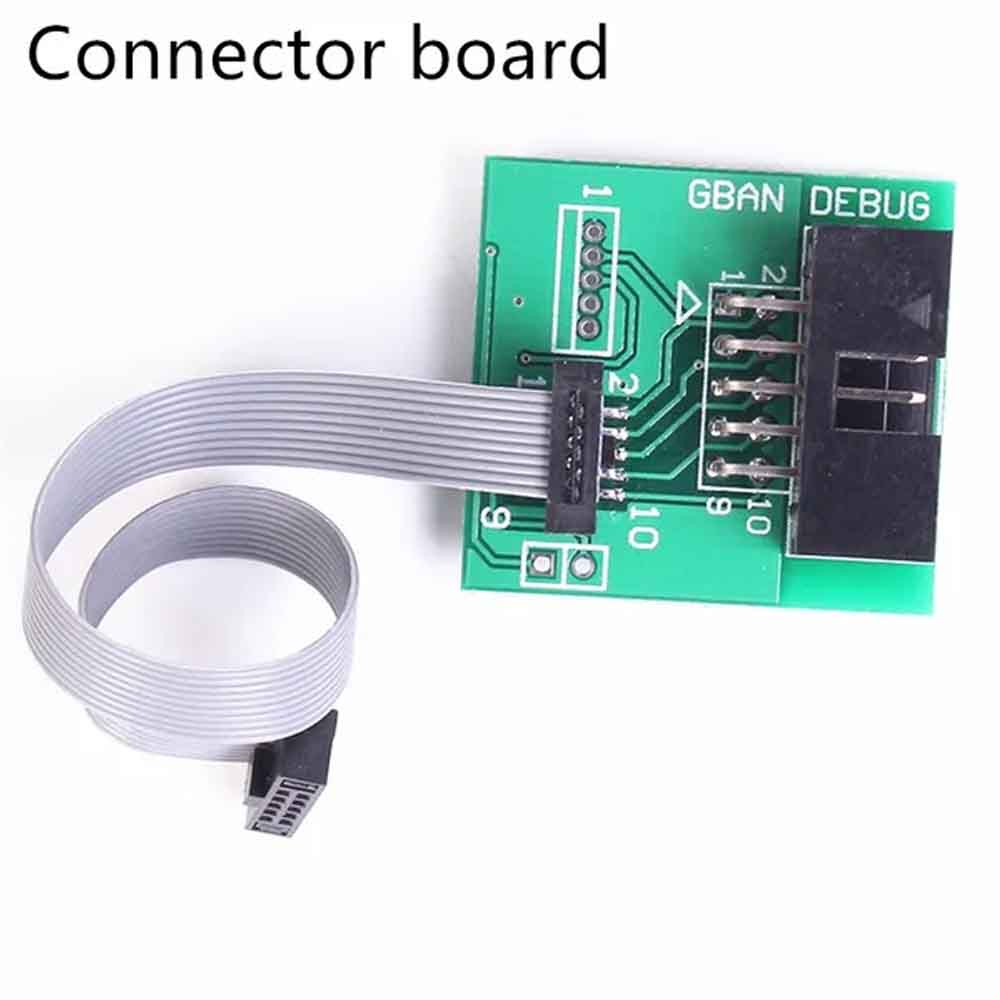

1 x 10-pin JTAG cable
