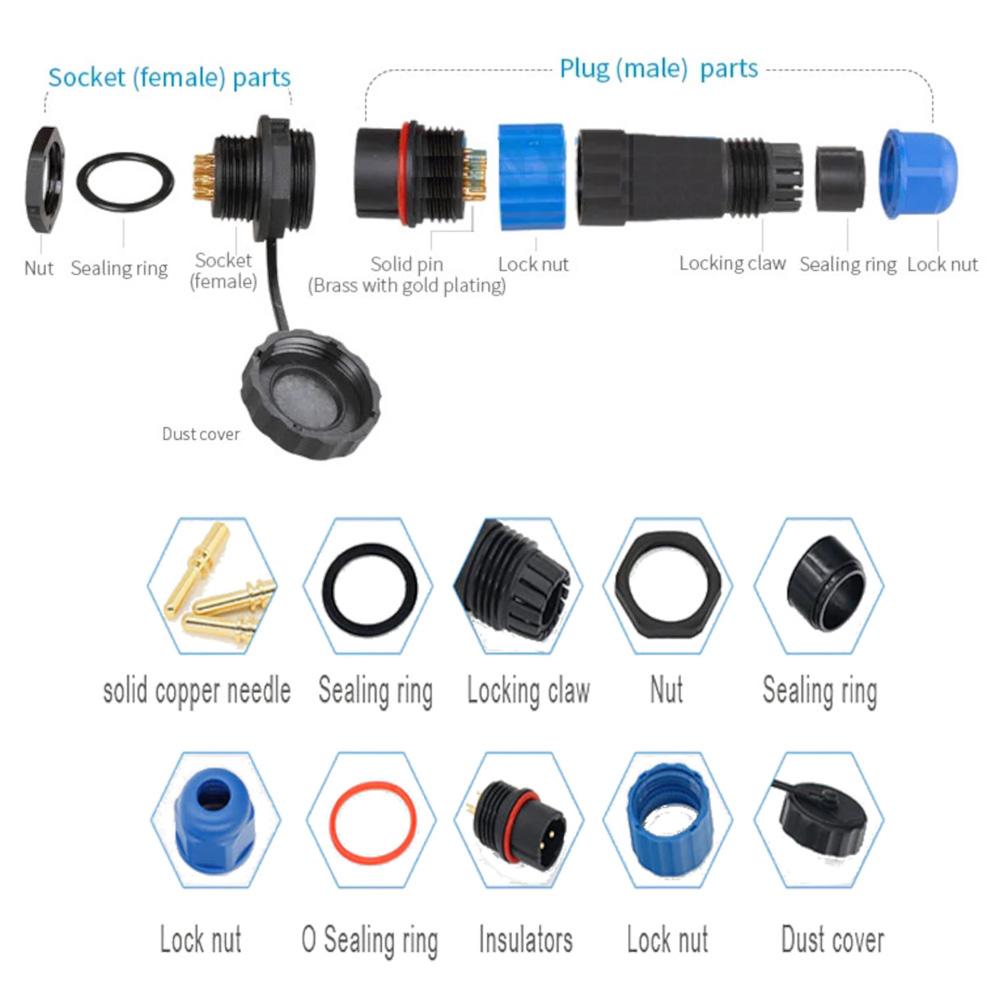

SD20 3 Pin 25a IP68 Waterproof Cable Mount Aviation Connector Male Plug+Female Socket

Specifications:

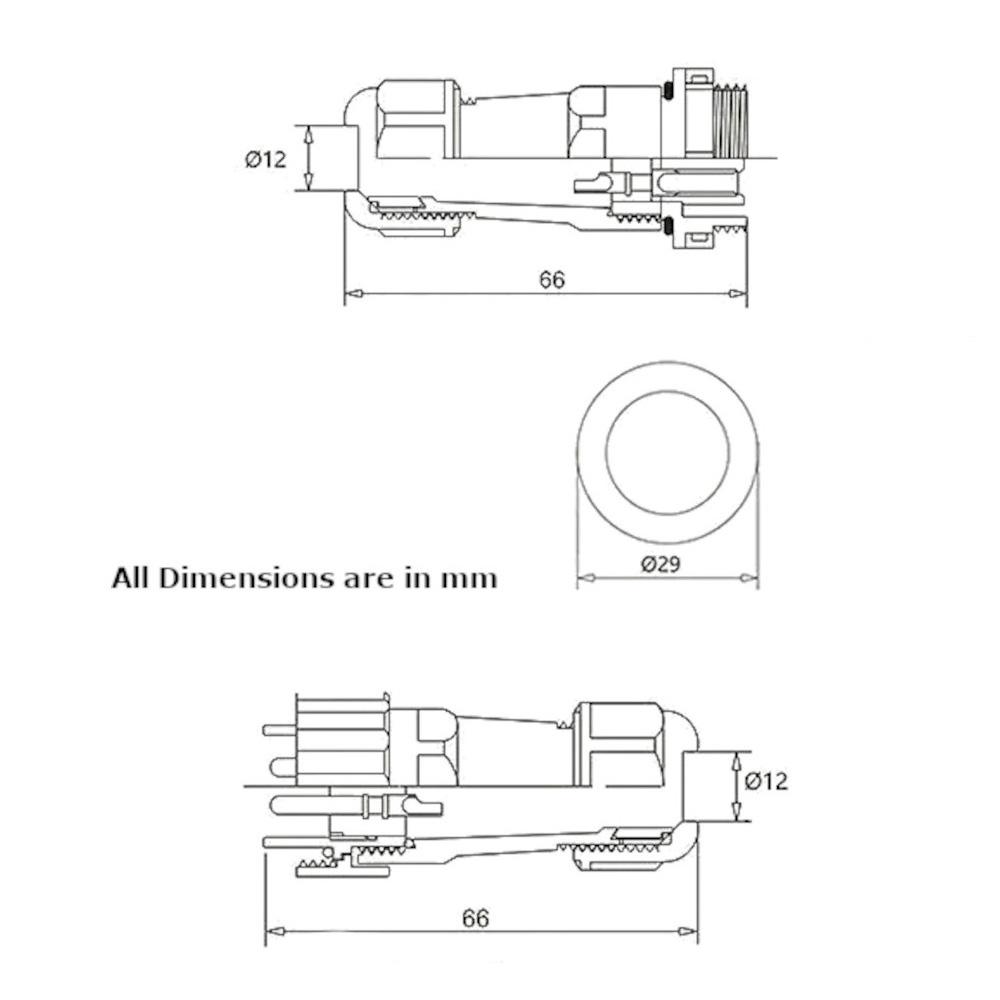

Docking Diameter: 20mm
Cable Insert Diameter: 11mm
No of Contact Pins: 2
Contact Pin Diameter: 2.8mm
Rated Current: 25A
Rated Voltage: 250 (DC/AC/RMS)
Contact Resistance: 1MΩ
Insulation Resistance: 2000MΩ
Temperature Range: -25 – 85°C
Protection Degree: IP68
Coupling: Threaded Coupling
Shell Material: PA66/Polyamide 66
Insert Material: PPS
Contact Material: Brass(Gold-plated)
Termination: Solder
Mating Cycle: 500 Times

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹507.40 (Inc. GST)
₹430.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Aviation connectors are primarily used in the fields of power transmission and signal transmission and contain many different types of connectors, such as SD connectors. Therefore, the aviation plug and socket does not refer to a plug and socket of one model. The SD series has different classifications depending on the size of the opening. The number behind the SD represents the size of the hole in the chassis, which is the thread diameter of the socket.

SD connectors can be used for electrical connections between instrumentation and electronic devices or interconnections between wires and cables. SD connectors are threaded, stable in electrical conductivity, and have a waterproof function.

Application:
