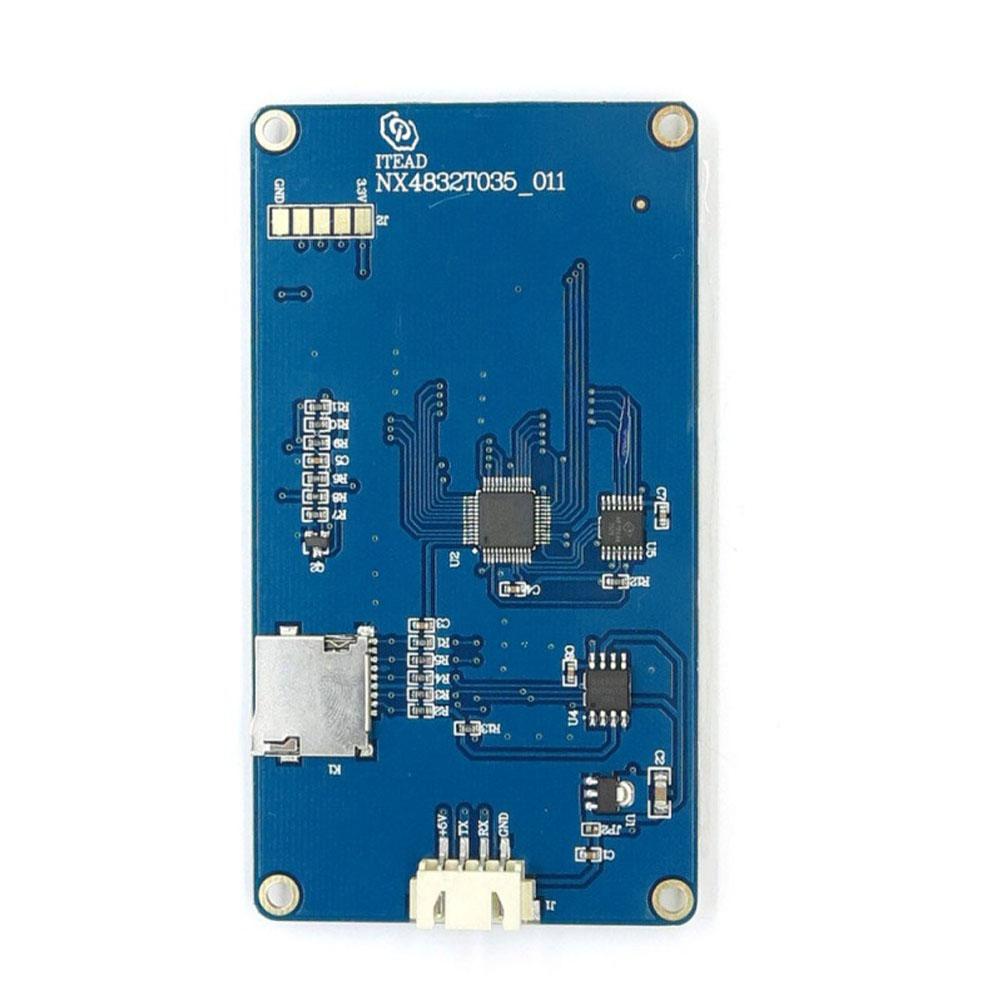

Nextion BASIC NX4832T035-3.5″ HMI TFT LCD Touch Display Module

HMI Displays are becoming increasingly popular as a result of their intelligence, and NEXTION is one of the major players in HMI Display Production, which has introduced a range of different kinds of Displays at a very affordable cost.

NEXTION offers an advanced level of displays at an affordable cost than any other competitor brand in the market, making them ideal for the one who wants to start some Projects through touch displays. This type of Display has inbuilt audio, video, and animation play functions which makes it smart.

Nextion NX4832T035-3.5″ HMI TFT LCD Touch Display Module is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. Nextion is mainly applied to the Internet of Things (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.

The operating Voltage of the Display is lies between 4.75 to 7 V also this TFT Screen Intelligent Display Module with integrated 4-wire Resistive Touch Panel For Arduino DIY NX4832T035 480 x 320 is a powerful 3.5” HMI, which is a member of the Nextion family. The following are some of the features: a 3.5 “TFT 480 x 320 resistive touchscreen, 16M Flash, 65K colors.

Features:

1. 480 x 320 Resolution
2. RGB 65K true to life colors
3. TFT screen with integrated resistive touch panel
4. 4 pin TTL serial interface
5. 16M Flash memory for User Application Code and Data
6. Onboard micro-SD card slot for firmware upgrade
7. Visual Area: 73.44mm(L)×48.96mm(W)
8. Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%

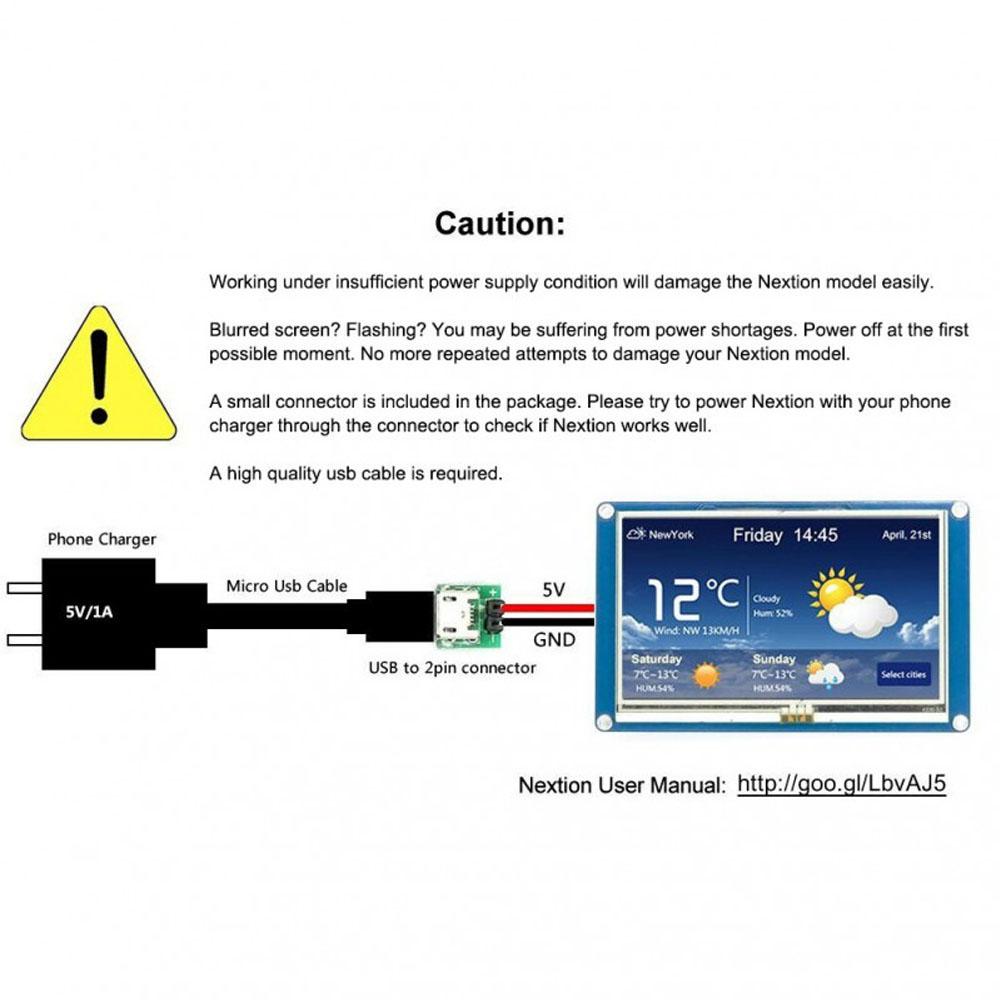

9. 5V500mA DC recommended the power supply
10. 5V145mA power consumption
11. Certificates: CE/EMC, RoHS(certificates)

Package Includes:

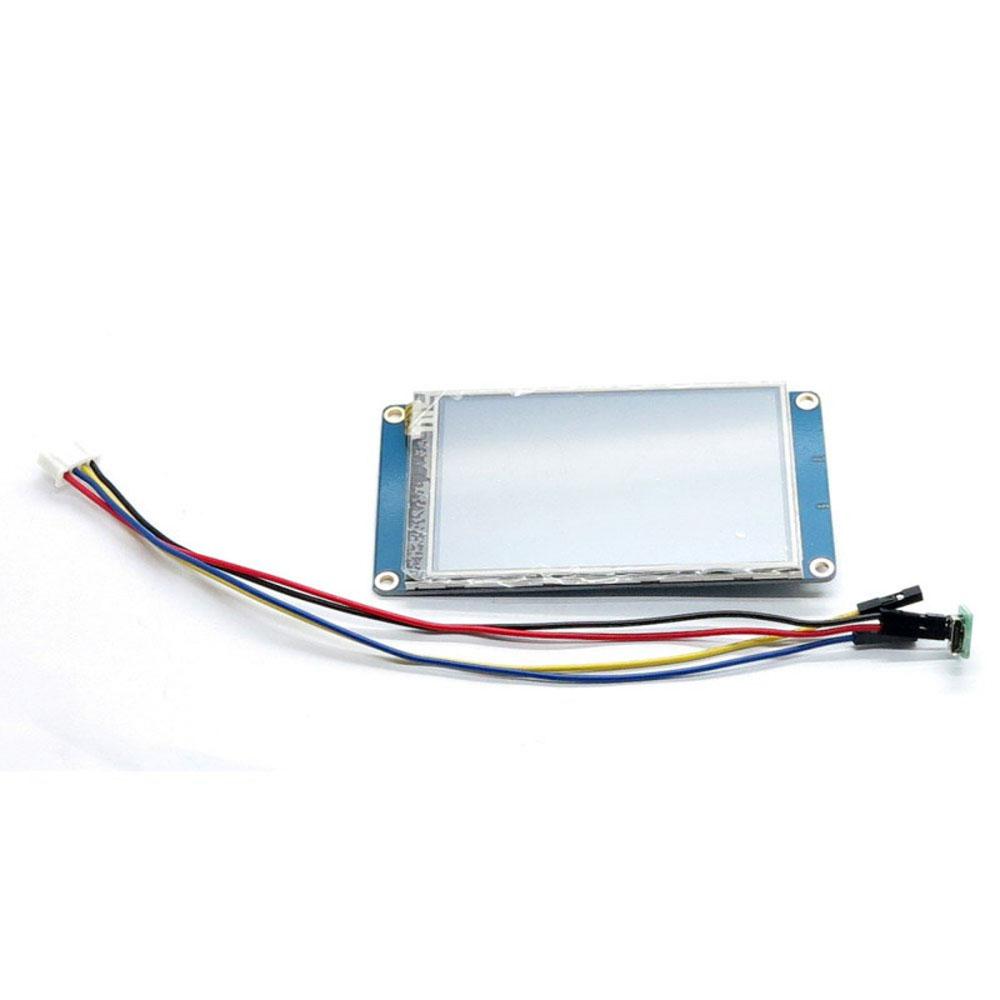

1 x Nextion NX4832T035 – 3.5″ HMI Kernel TFT LCD Touch Display Module

1 x Connecting Wires

1 x Power Supply Test Board
