ZK-BM1 10A Dual DC Motor Drive Dodule Forward and Reverse PWM Speed Regulation Dimming 3-18v low Voltage High Current
Specifications:
- Work voltage: DC 3.0V-18V
- Signal voltage: DC 3.0V-18V
- Work current:10A for each channel
- Support PWM frequency:0-2KHz
- Duty cycle:0%-100%
- Work Temperature:-25℃~85℃
- Work Humidity:5%~95%RH

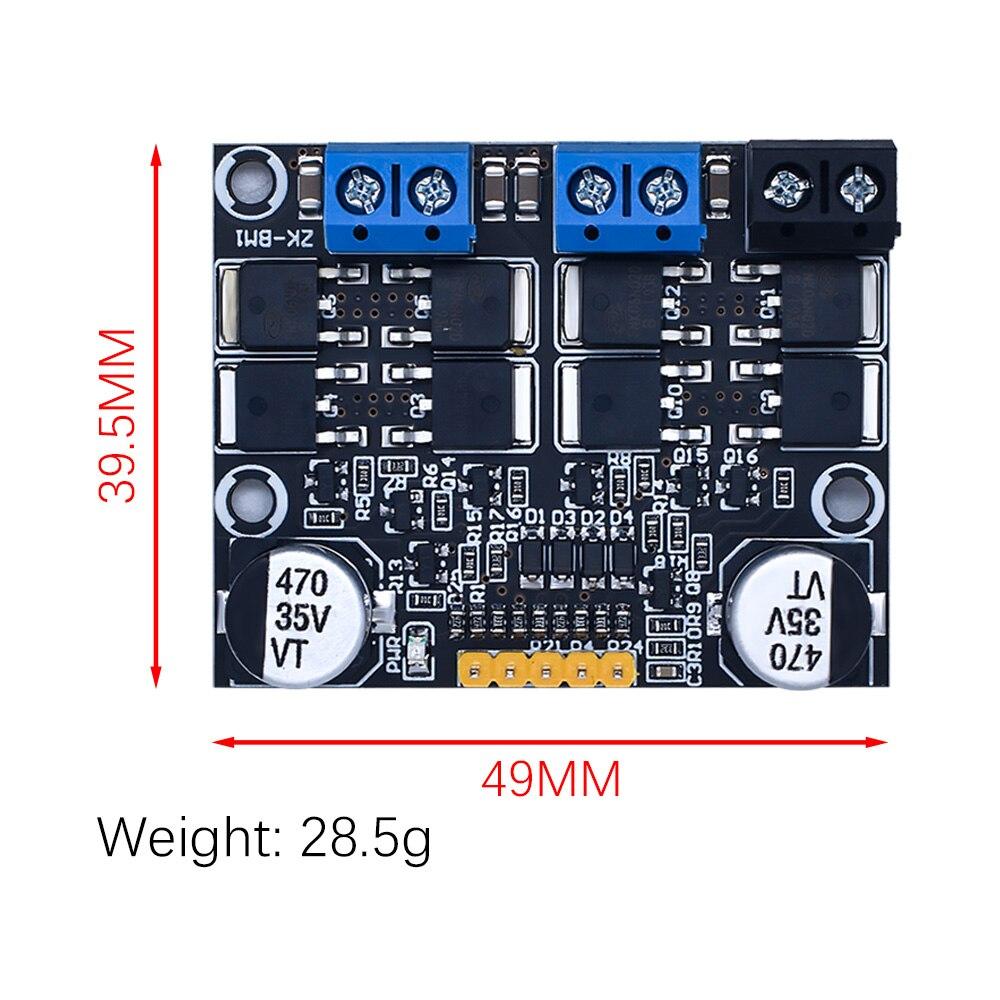

- Module Size:49*39*14mm
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₹855.50 (Inc. GST)
₹725.00 (+18% GST Extra)
In stock
In stock
For bulk orders or B2B inquiries, please contact us at: [email protected]
12
People watching this product now!
-
Pick up from the RoboticsDNA Store in Pune / Dunzo
To pick up today
Free
-
Same Day Delivery in Pune
(Mon-Sat) (Please Place Order Before 1:30 PM)​
Rs. 99
-
via Delhivery.com (Express Mode)
Our courier will deliver to the specified address
3-5 Days
Rs. 149
-
via Delhivery.com (Surface Mode)
Our courier will deliver to the specified address
4-7 Days
Rs. 69
Payment Methods:
Description
ZK-BM1 is a 10A Dual DC Motor Driver Module Forward Reverse Controller. Users can trigger and control the forward and reverse rotation of the controlled equipment according to needs, such as automatic curtain switch, automatic control of running stroke.
Features:

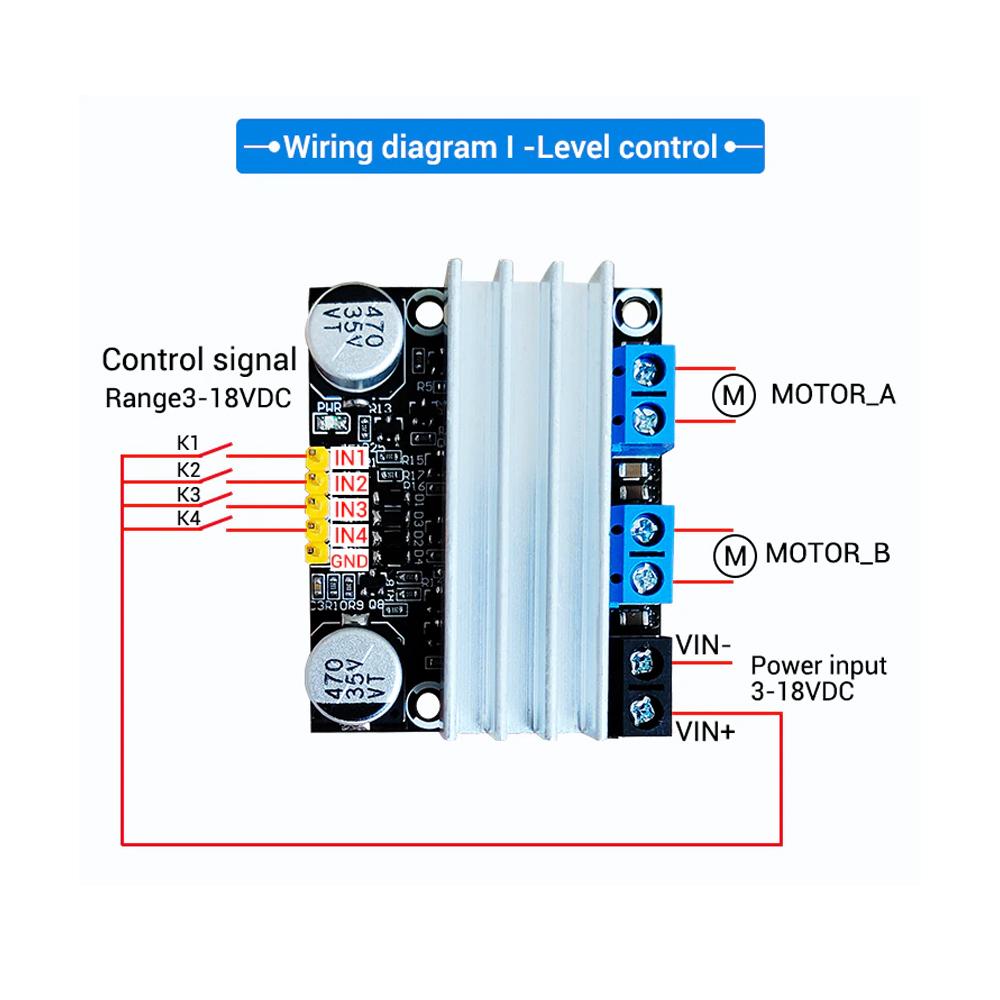

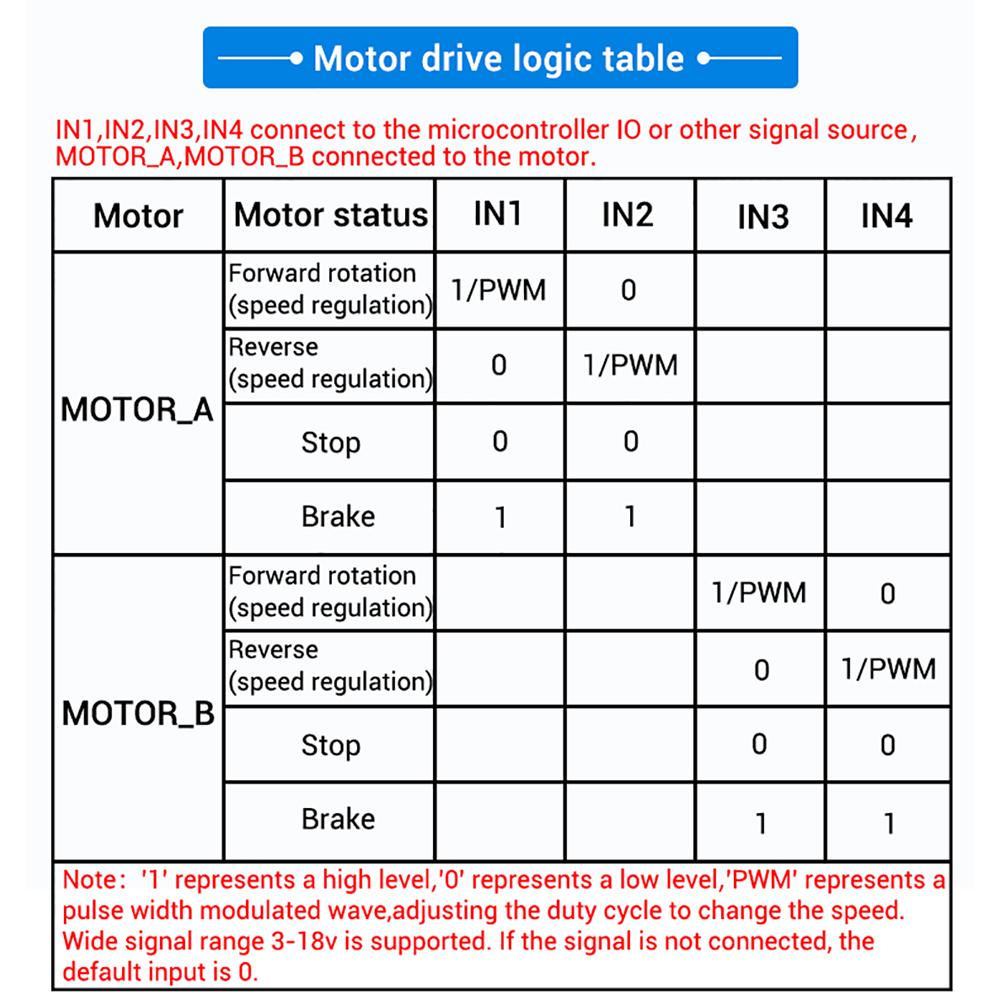

- Forward and Reverse control

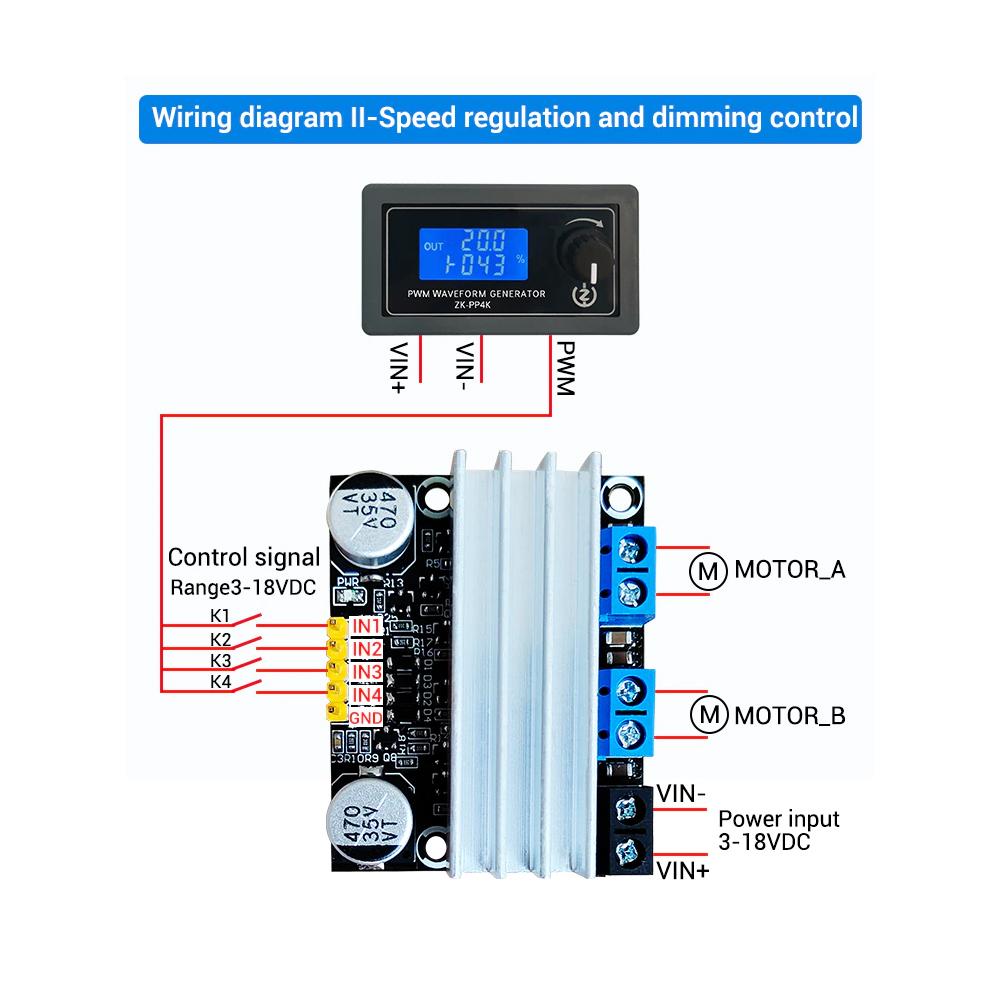

- TTL level drive and PWM adjust speed
- Dual channel independent control

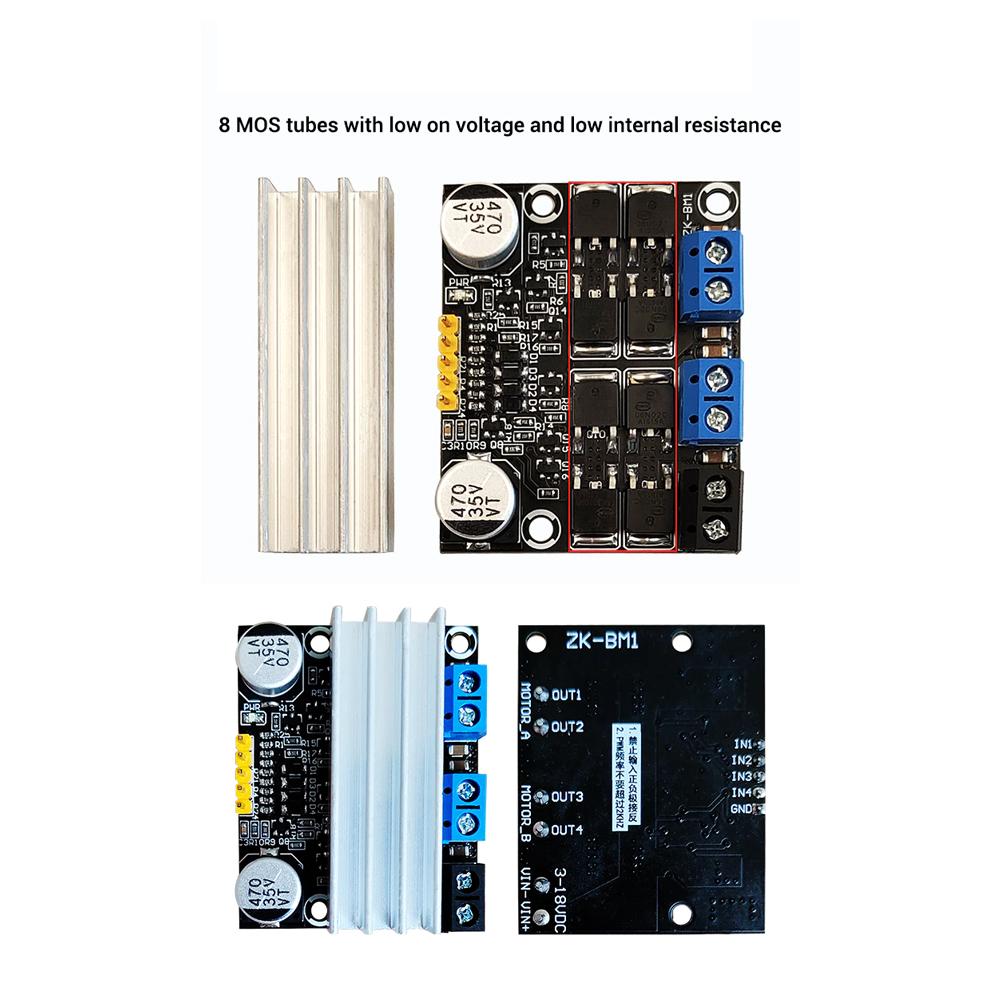

- MOS control circuit
Packing List:
1 x ZK-BM1 10A Dual DC Motor Drive Module Forward and Reverse PWM Speed Regulation Dimming 3-18v low Voltage High Current
