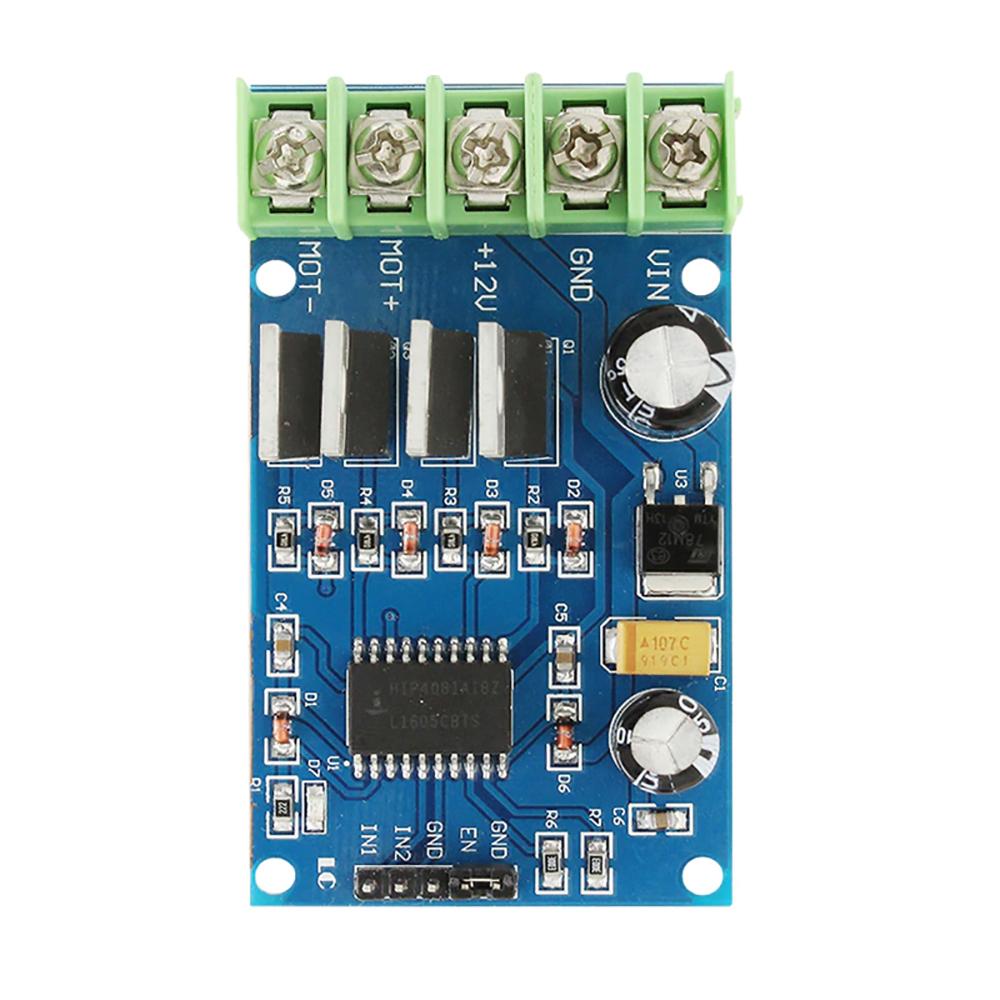

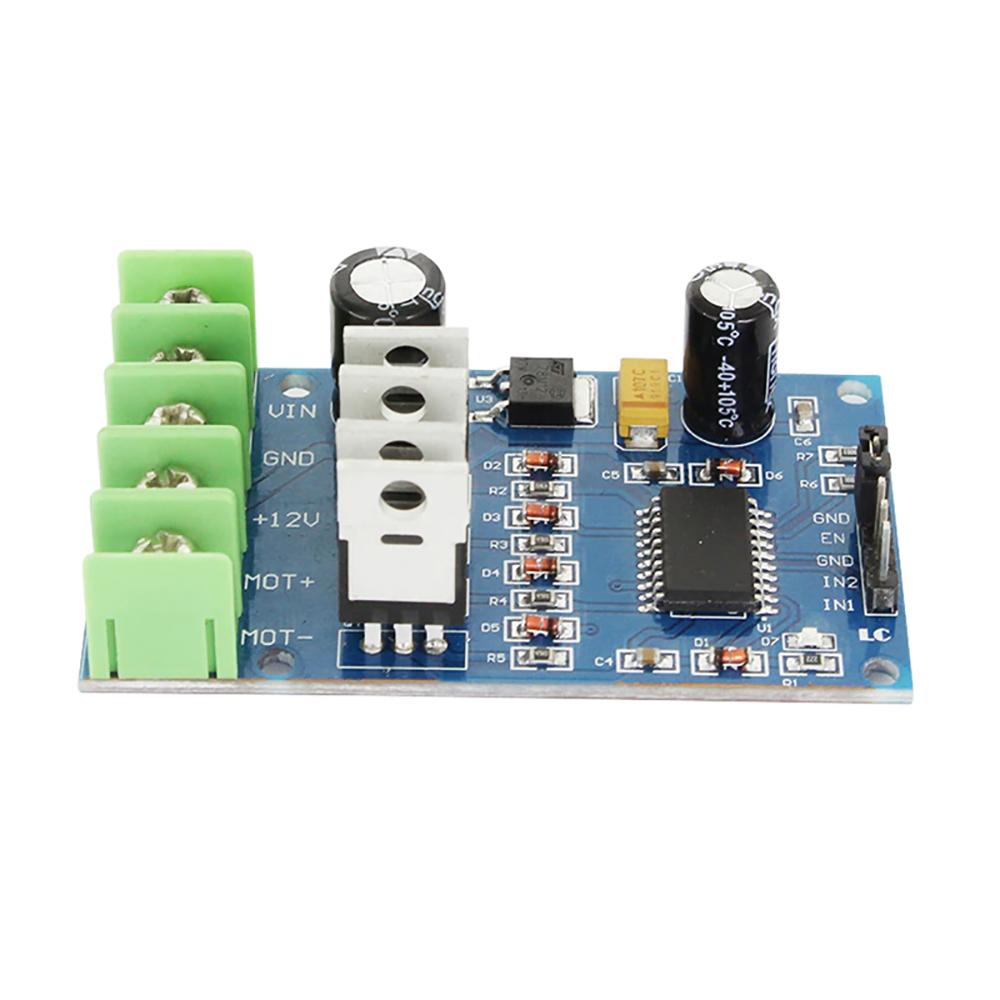

170W High Power H-Bridge Motor Driver Module For NMOS Brake Duty Cycle For DC 5-40V Motor 4 External NMOS Tubes Two PWM Inputs

Specifications:

1. With full bridge driver chip + low resistance 55V110ANMOS,
   the motor can be turned forward and backward.
2. Two PWM inputs, dutycycle regulated in 0-100%. Instant braking ability.
3. The working voltage is 10-40V and the power is below 170W

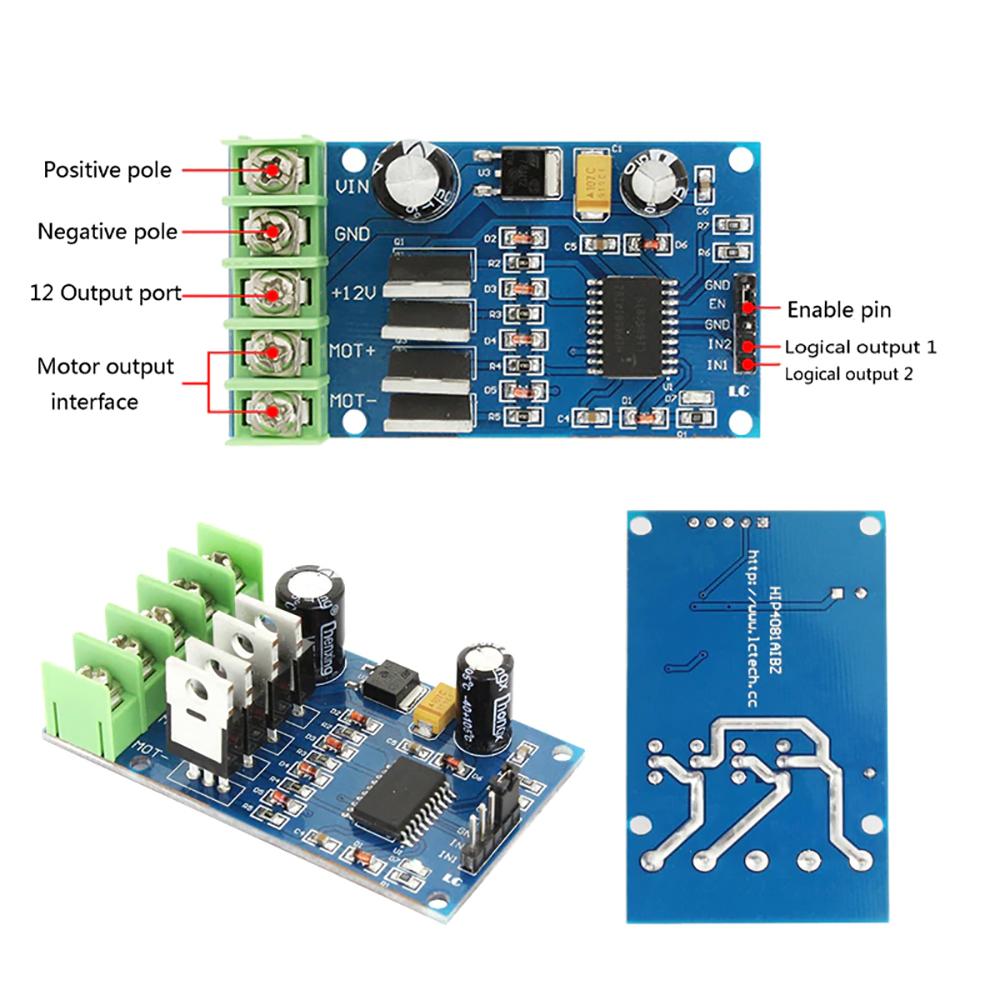

4. The control is simple and convenient. Only 3 input lines are needed to control the motor
5. Chip built-in dead time hardware control, more suitable for frequent reversing.
   Reduce the loss of the pipe itself.
6. Tin plating on the back of the module. A conductor can flow through a larger current.
7. Support 5V, 3..3V logical input. Suitable for all types of single-chip IO port direct control.
   You can also control the positive and negative rotation of the motor by analog input.
8. Board size: 38.8*67.5mm
