xTool D1Pro 40W+10W Laser Cutting Bundle

Specifications:

Model No: xTool D1 Pro-40W Laser Module
Machine Power: 200 W
Laser Electric Power: 144 W
Laser Module Output Power: 40W
Laser Spot: 0.1*0.15mm
Routing Speed; 400 mm/s
Working Area : 430*348mm (16.93 * 13.7 inches)
Expandable to 909*430mm (35.79*16.93 inches) with xTool Extension Kit
Max. Workpiece Height: 50 mm (2 inch)
Connecting Interfaces: USB/Wi-Fi/TF Card
Operating Systems: Windows/macOS
Control Software: xTool Creative Space / LightBurn
File Type: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹169,989.62 (Inc. GST)
₹144,059.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Specifications:

Type	xTool D1 Pro-40W Laser Module	xTool D1 Pro-10W
Machine Power	200 W	60W
Laser Electric Power	144 W	40W
Laser Module Output Power	40W	10W
Laser Spot	0.1*0.15mm	0.08*0.06 mm
Routing Speed	400 mm/s	400 mm/s
Working Area	*430348mm (16.93 * 13.7 inches) Expandable to 909430mm (35.7916.93 inches)** with xTool Extension Kit	*430400mm (16.9315.75 inches)* Expandable to 930430mm (36.6116.93 inches) with xTool Extension Kit
Max. Workpiece Height	50 mm (2 inch)	50 mm (2 inch)
Max. Workpiece Height with X risers	50mm+X*45mm（each set riser height column）	50mm+X*45mm（each set riser height column）
Connecting Interfaces	USB/Wi-Fi/TF Card	USB/Wi-Fi/TF Card
Certification	FCC / FDA / CE	FCC / FDA / CE
Operating Systems	Windows/macOS	Windows/macOS
Control Software	xTool Creative Space / LightBurn	xTool Creative Space / LightBurn
File Type(s)	SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.	SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.

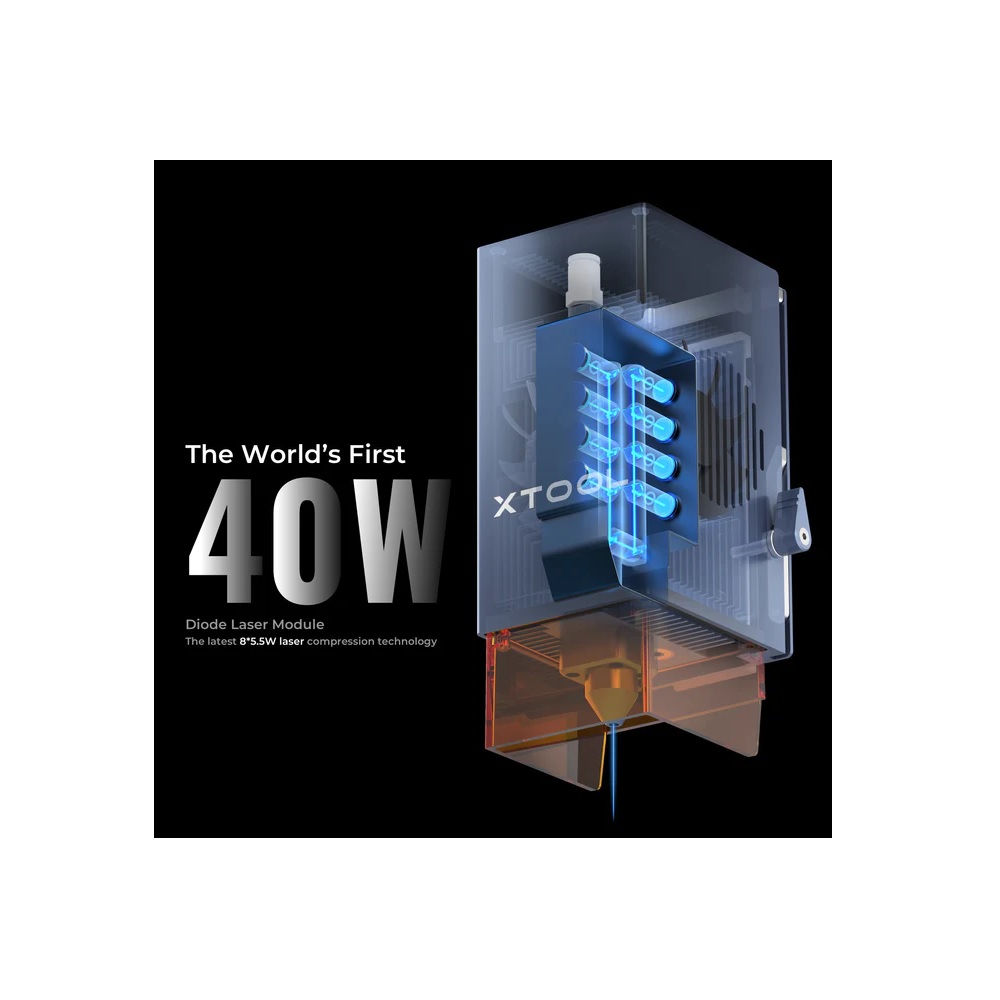

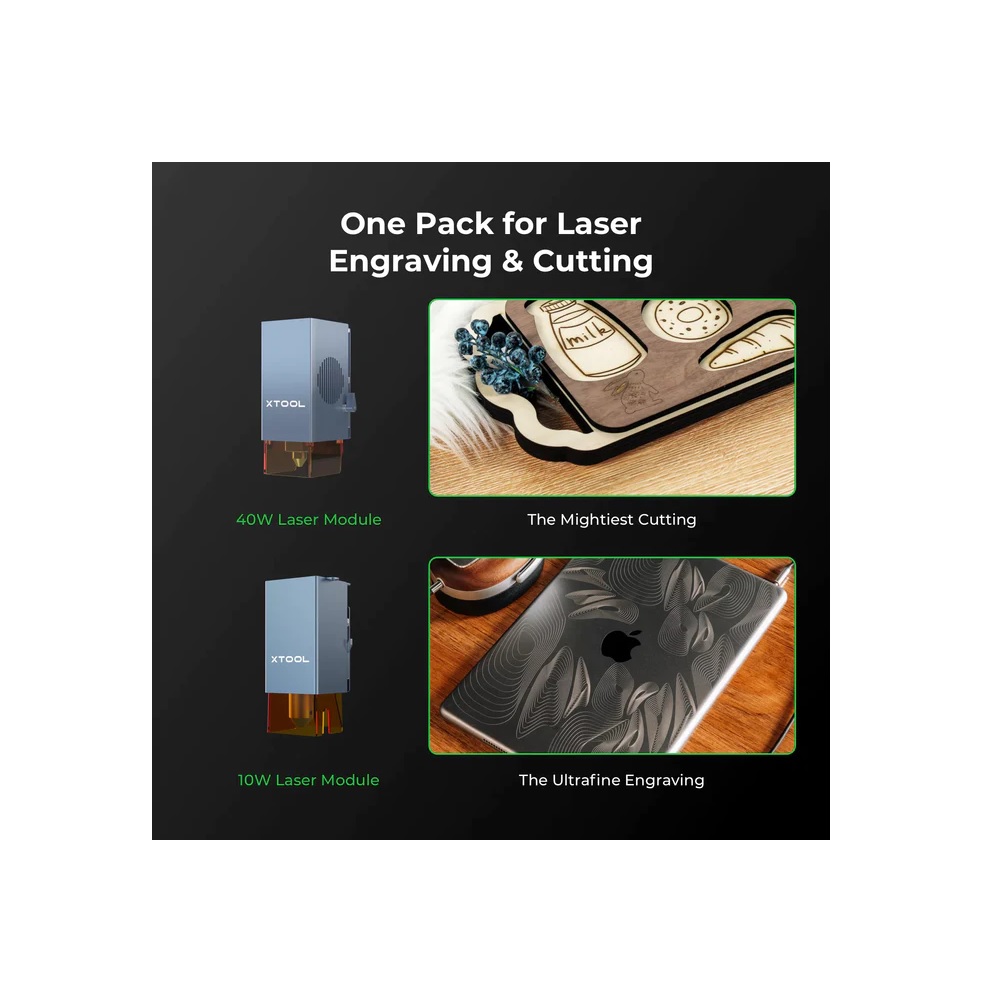

The World’s First 40W Diode Laser Module

The Mightiest Cutting Ability

18mm hardwood cutting in one-pass | 15mm black acrylic cutting in one-pass | 0.1mm stainless metal cutting in one-pass

Maximum thickness of one-pass cutting

Laser Module	40W	20W
Pine Wood	20mm	15mm
Cherry Wood	18mm	10mm
Basswood Plywood	15mm	10mm
Walnut Wood	15mm	10mm
Black Acrylic	15mm	8mm
Stainless Metal	0.1mm	0.04mm

The 10W Diode Laser Module | The Ultrafine Engraving

Ultrafine Engraving Line Thickness

Smaller laser focus (from 0.15*0.15mm to 0.08*0.06mm) and tiny engraving line width makes for impeccable details, thanks to the compresssed-spot technology.

100% Reprint Your Laser Engraving Ideas

Higher Productivity at A Higher Speed

* To engrave at the highest speed, please use a higher performance computer or process offline.

Improve The Accuracy to The Extreme

Why D1 Pro Provide the Highest Accuracy

engraving/cutting accuracy to reach 0.0004 inches

repositioning accuracy down to less than 0.0007 inches.

Easily and Precisely Adjust the Focus

Easy Focus Adjustment

Only take 3 steps to adjust the focus in 5 seconds. Pull down the original focus lever, slide the laser slider to make the focus lever close to the material’s surface, recover the focus lever.

Precise Focus Adjustment
for Thicker Cutting

To ensure the cutting capacity of the laser, the focal length can be adjusted by lifting or lowering the laser module according to the thickness of the materials.

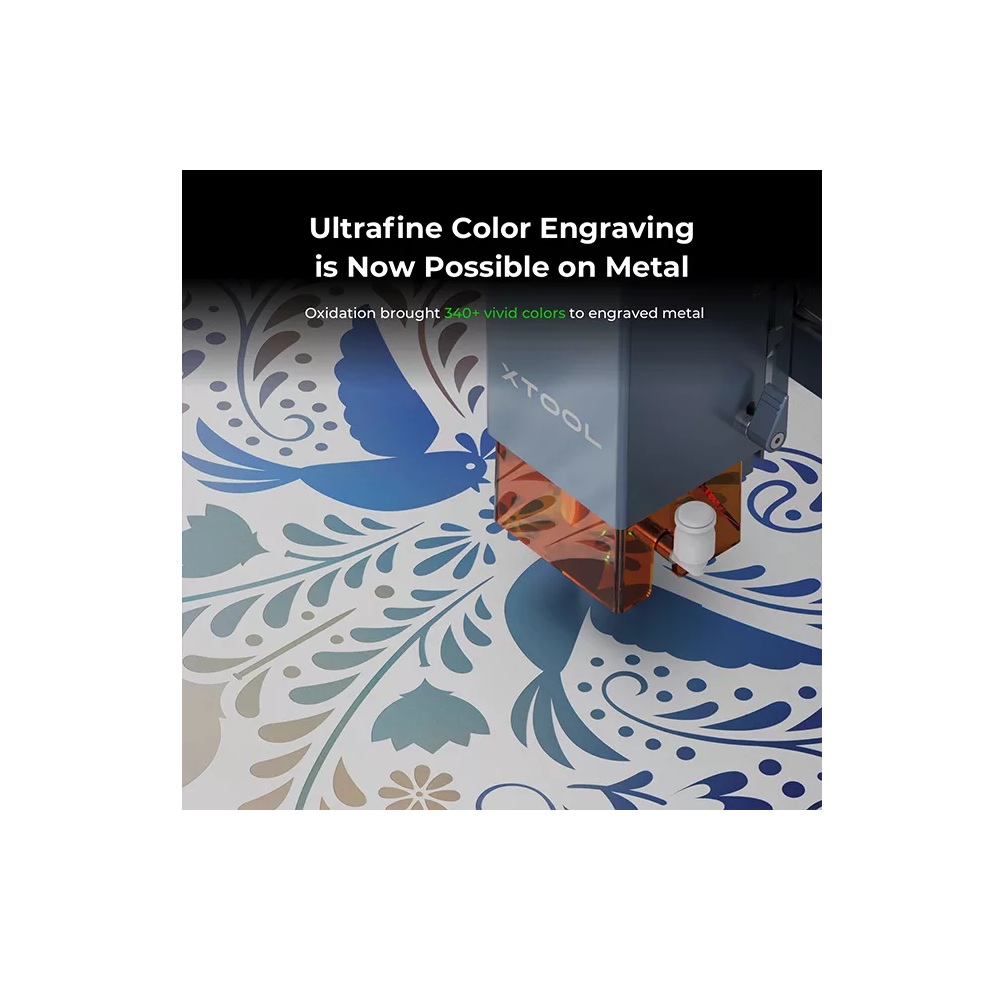

Invigorate Your Creations with 340+ Colors

Super powerful 20W laser beam oxidizes the metallic surface in an instant, bringing vivid colors to the engraved metal.

Limit Switches in All Directions

Limit switches will trigger the alarm if the laser head is about to hit the boundary of the machine in All Directions.

Safe to Use

The emergency stop will be triggered by the detection of flames, smoke and tipping.

Better Software at Your Service

Get started quickly with our user-friendly software: XCS

Updating Project Files

Batch Processing with Circular Array

Default Working Parameters for Materials

xTool Creative Space

Compatible with mature engraving software: LightBurn

The layout, editing, and control software for common laser cutter. Engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

Details Matters

The Risers

Use additional risers (sold separately) to increase the height of xTool D1 Pro to facilitate the engraving of higher objects(use 2 sets to increase height to 140mm). Customize your skateboard or basketball to make them cooler.

Just Connect

You can transfer data via Wi-Fi, USB cable, a large capacity TF card (Offline Use) and use D1 Pro anytime and anywhere.
