Infrared Thermopile Sensor (-20 to 100ºC) -INDUSTRIAL GRADE – Original CF SENSOR MAKE

The XGZT263 thermopile IR sensor can measure temperature by detecting the infrared (IR) energy of an object at a certain distance. The higher the temperature, the more infrared energy is produced. The thermopile sensing element consists of some small thermocouples on a silicon chip, which can absorb energy and generate an output signal.

The XGZT263 non-contact temperature measurement thermopile infrared sensor has various lenses and filters and can be used in a variety of applications from pyrometers to climate control and medical equipment.

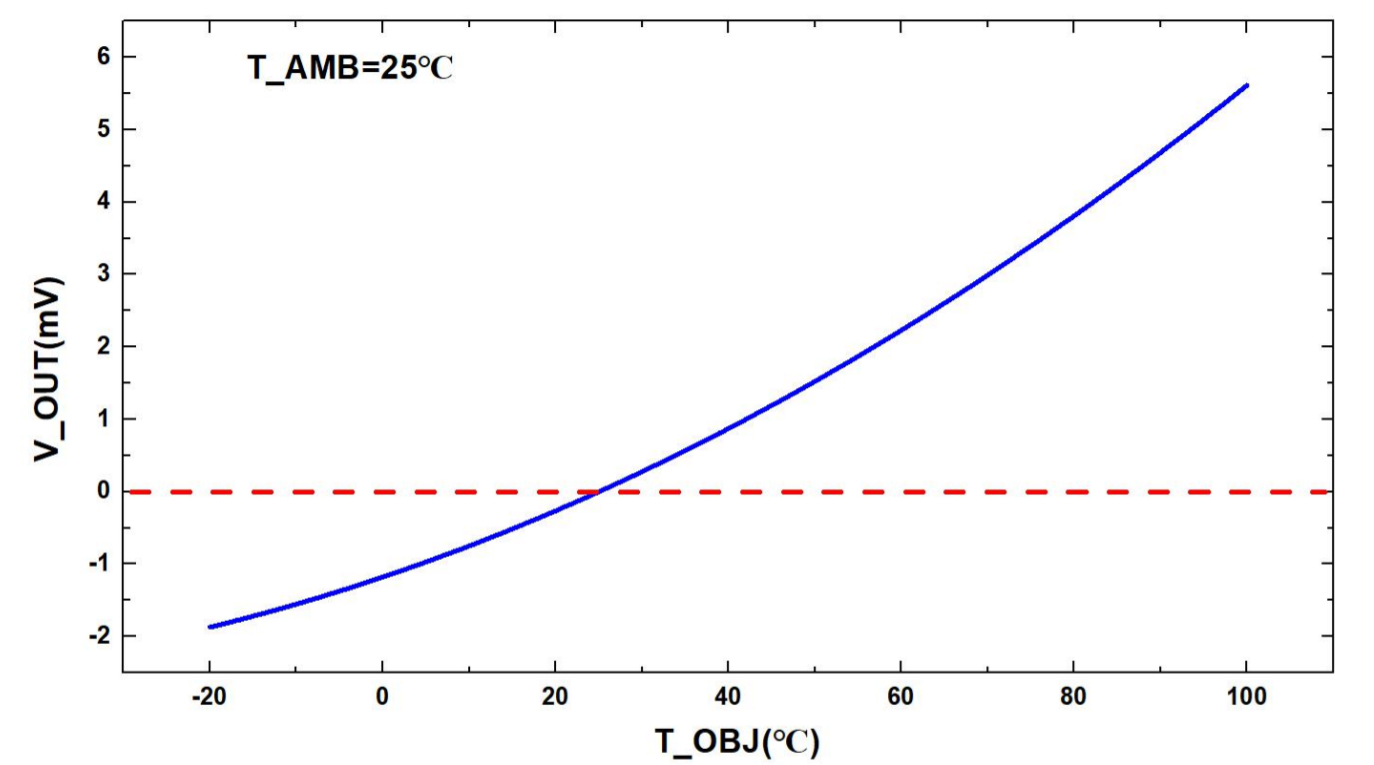

Performance Curve

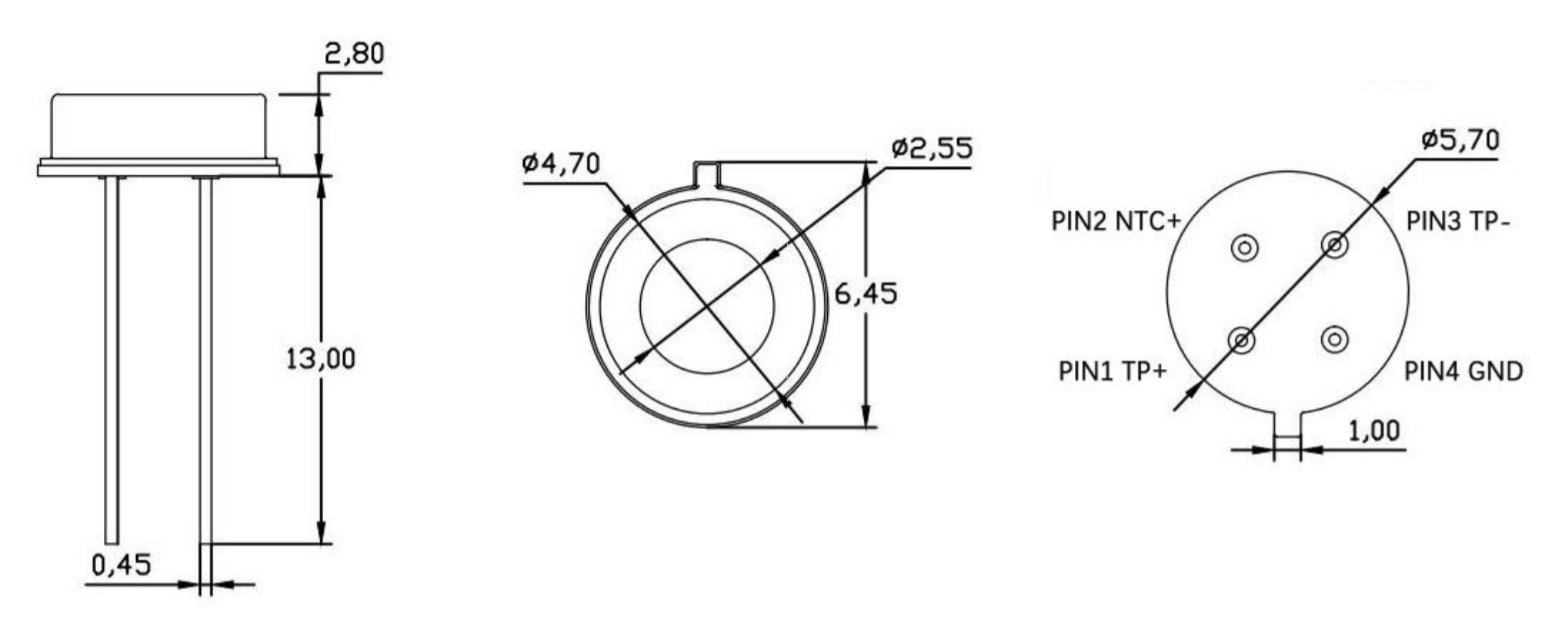

Mechanical Dimensions:

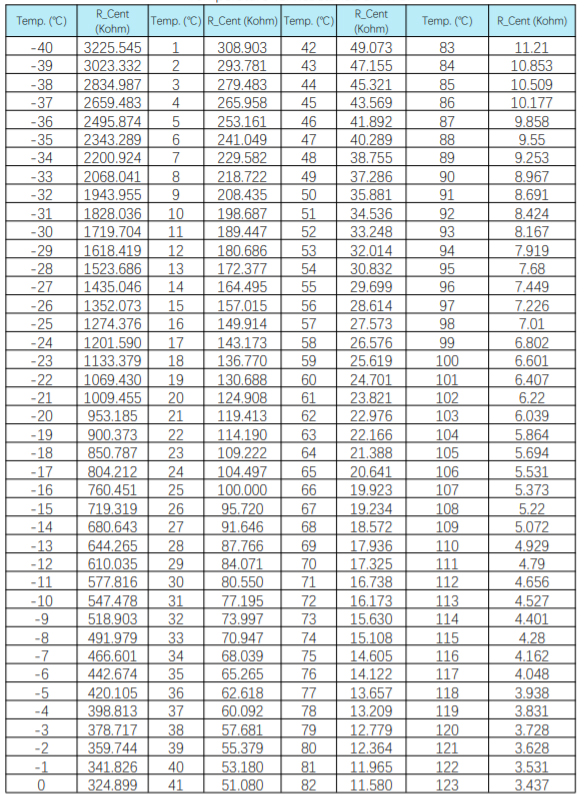

Temperature Vs Resistance Chart:

Safety Note:

Using these sensors products may malfunction due to external interference and surges, therefore, please confirm the performance and quality in actual use. Just in case, please make a safety design on the device (fuse, circuit breaker, such as the installation of protection circuits, multiple devices, etc.), so it would not harm life, body, property, etc even a malfunction occurs. To prevent injuries and accidents, please be sure to observe the following items:

• The driving current and voltage should be used below the rated value.
• Please follow the terminal connection diagram for wiring. Especially for the reverse connection of the power supply, it will cause an accident due to circuit damage such as heat, smoke, fire, etc.
• In order to ensure safety, especially for important uses, please be sure to consider double safety
  circuit configuration.
• Do not apply pressure above the maximum applied pressure. In addition, please be careful not to
  mix foreign matter into the pressure medium. Otherwise, the sensor will be discarded, or the media will blew out and cause an accident.
• Be careful when fixing the product and connecting the pressure inlet. Otherwise, accidents may occur due to sensor scattering and the blowing out of the media.
• Because the sensor PIN is sharp, please be careful not to hurt your body when using it.

Application:

1. Non-contact temperature measurements
2. Ear thermometers; Forehead thermometer
3. Continuous temperature control of manufacturing
4. Consumer applications
5. Home appliance temperature measurement
