6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module

Description

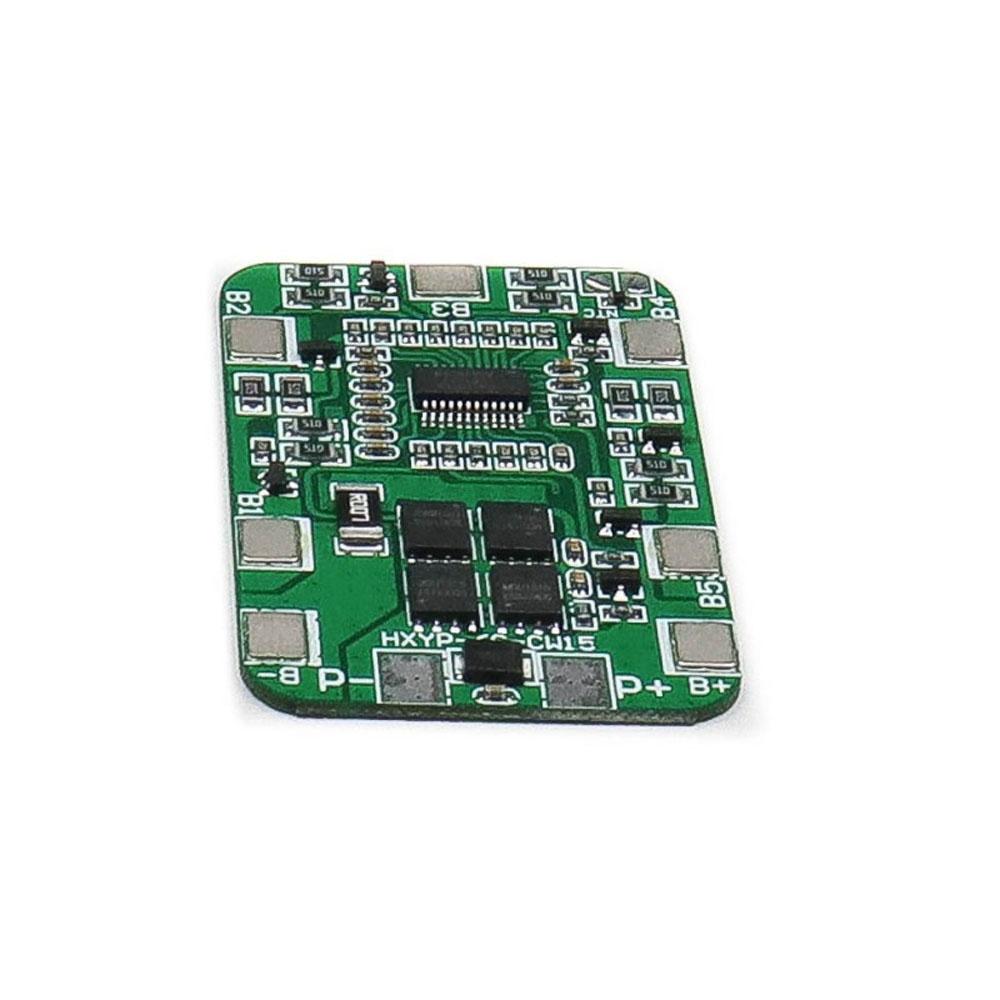

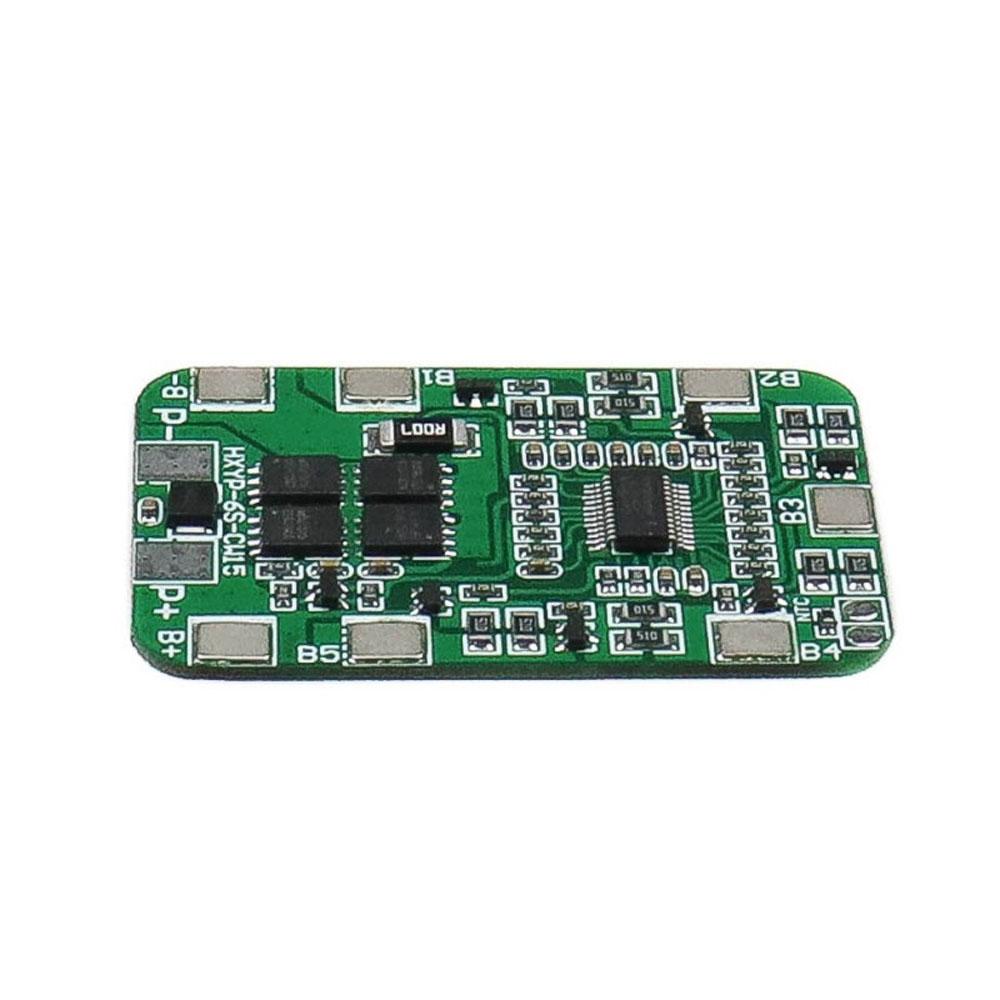

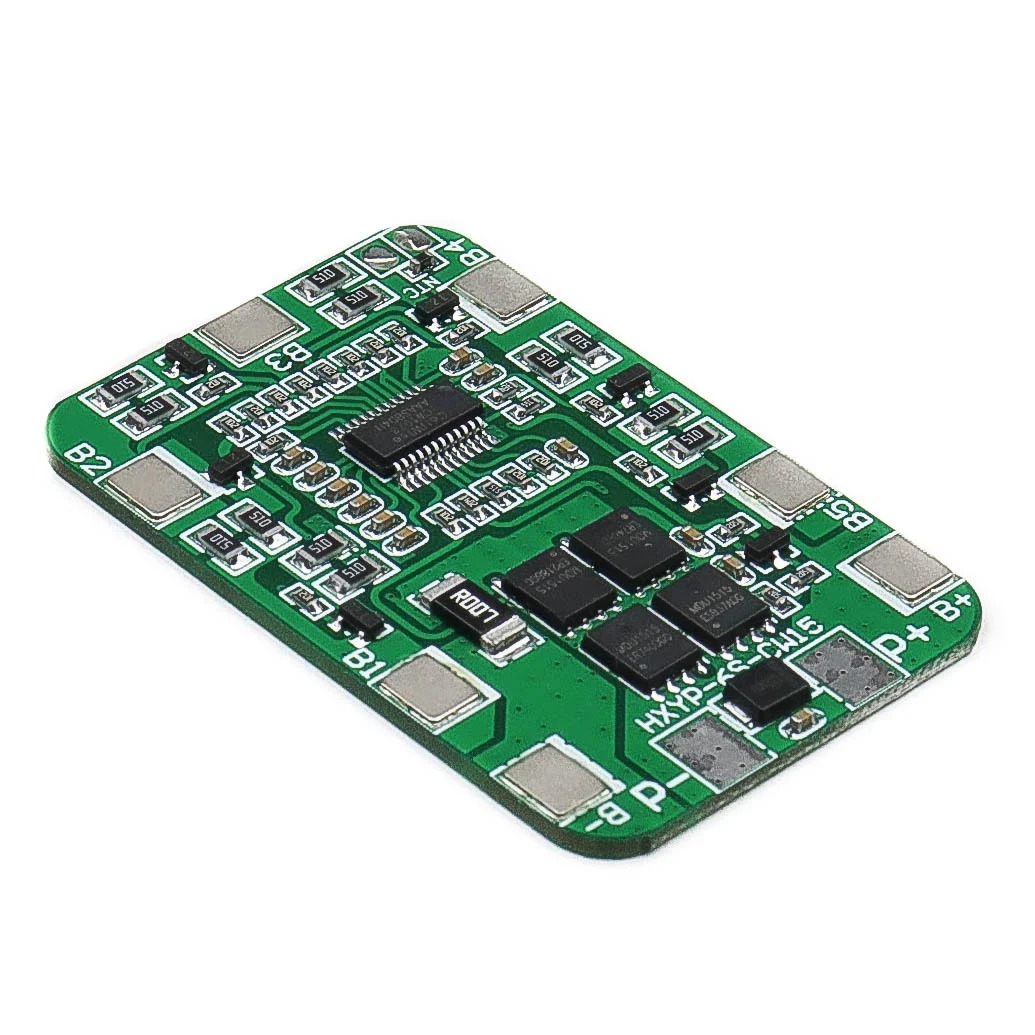

6S 20 A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module is a small PCB mount Li-ion Lithium Battery charger protection module. This small battery charger protection module comes with various features like Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects.

Features:

1. Battery protection board is mainly for the rechargeable battery (generally refer to as lithium battery) to protect the role of the integrated circuit board.
2. Lithium battery (rechargeable) needs protection, which is determined by its own characteristics.
3. As the material of the lithium battery itself determines that it cannot overcharge, overflowing, short-circuiting, and super high temperature.
4. Charging and discharging of lithium battery will always follow a protective plate with a sampling resistance and a current safety device.
5. Instantaneous discharge current: 25A
6. Charging voltage: 25.5V
7. Charging current: 20 A (MAX)
8. Overcharge detection voltage: 4.28 ± 0.05V
9. Overcharge protection delay: 0.1S
10. Over discharge detection voltage: 2.55 ± 0.08V
11. Overcharge release voltage: 4.08 ± 0.05V
12. Over discharge detection delay: 0.1S
13. The over discharge release voltage: 2.9 ± 0.1V
14. Overcurrent detection voltage: 150mV
15. Overcurrent detection delay: 9MS
16. The Overcurrent protection current: 30 ± 3A
17. Overcurrent protection release condition: Disconnect the load
18. Short circuit detection delay: 250uS
19. Short circuit protection Release condition: disconnect negative open
20. Main circuit conduction resistance: ≤20mΩ
21. Working current: ≤30uA
22. Sleep current (battery over-discharge) ≤10uA
23. Temperature range: -30 / + 80 ℃

Connections :

MB: The Common connection point between the batteries.

B+: Battery V+ Positive.
B-: Battery V- Negative.
P+: Charging V+.
P-: Charging V-.
