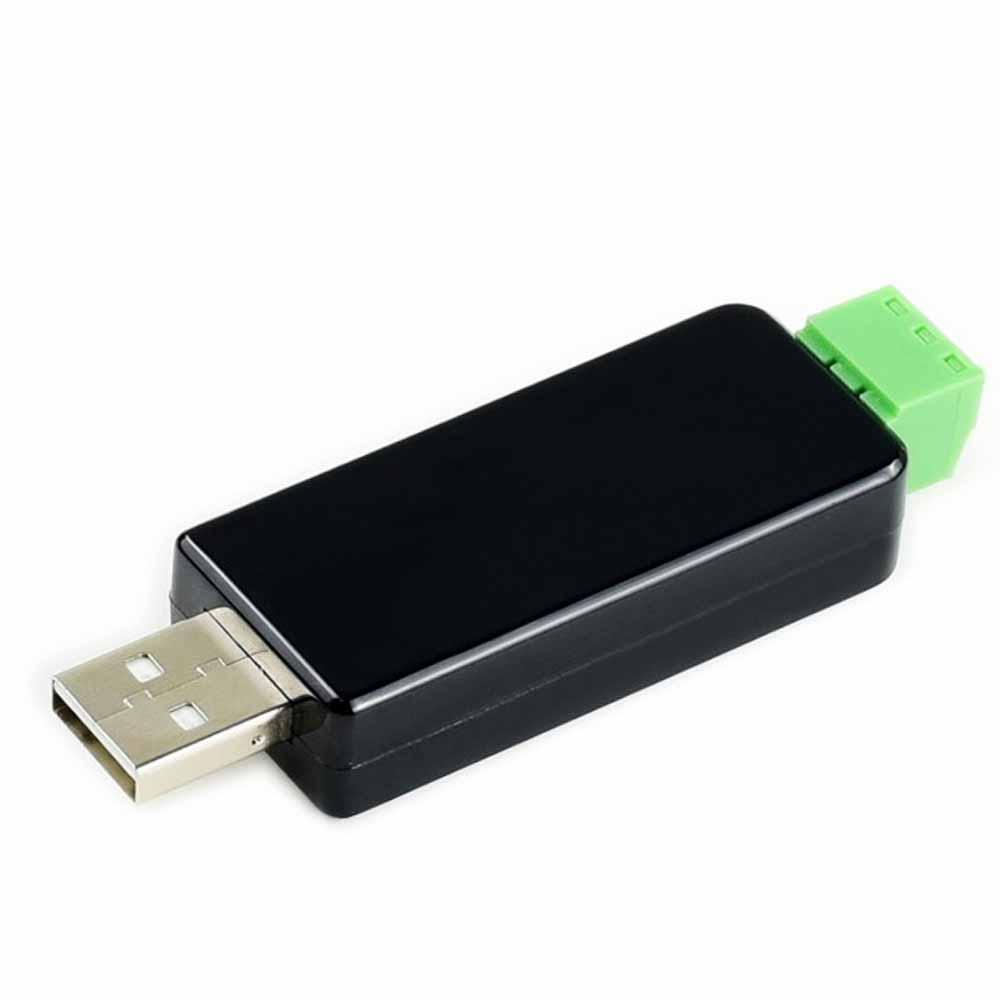

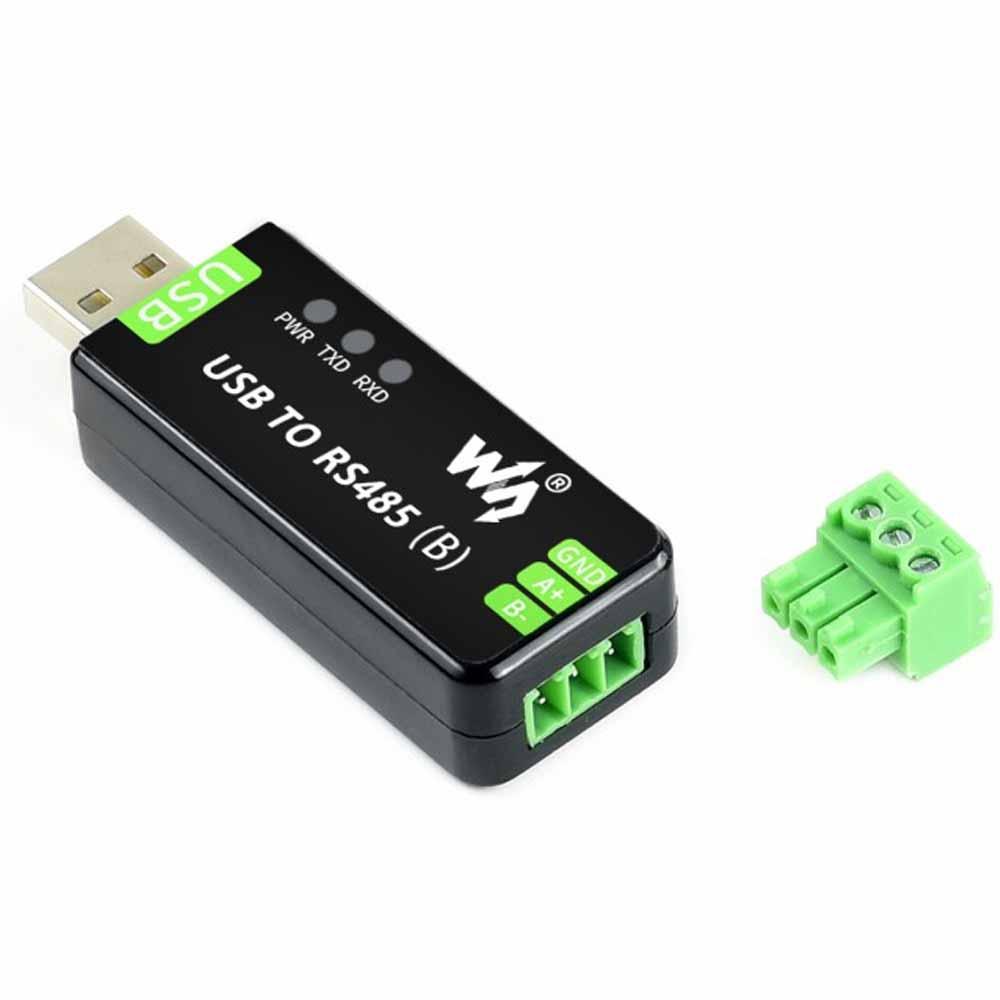

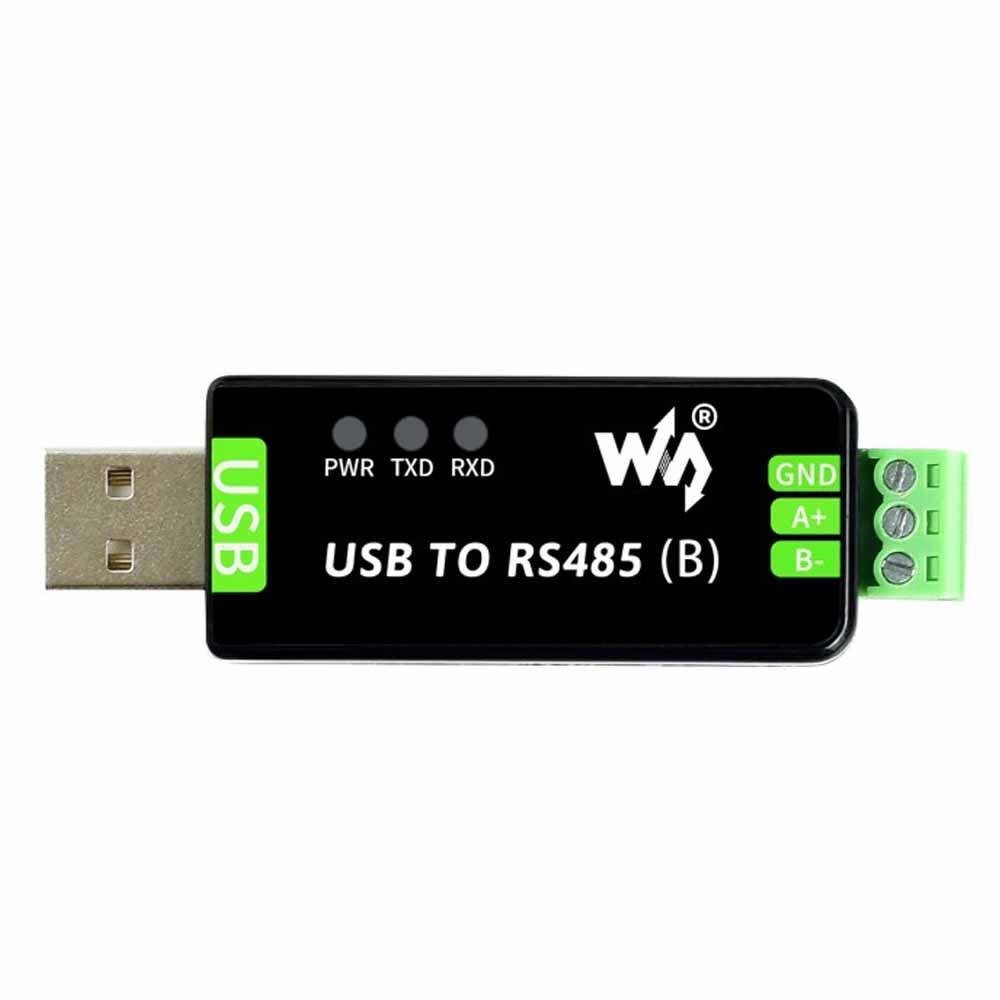

Waveshare Industrial USB to RS485 (B) Converter

Specifications :

Original FT232RL and SP485EEN
Product type: Industrial Grade USB to RS485 converter
Baudrate: 300bps ~ 3Mbps
Host port: USB
Device port: RS485
Operating voltage : 5V
Connector : USB-A
Protection : 200mA self-recovery fuse, ESD protection
Transmission distance : About 5m
Connector : Screw terminal
Pins : A+, B-, GND
Protection : 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
USB with the protection of 200mA self-recovery fuse, ESD protection
PWR : Red power indicator, light up when there is USB connection and voltage is detected
TXD : Red TX indicator, light up when the USB port sends data
RXD : Red RX indicator, light up when the device ports send data back
Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

SKU: RDNA-328.7

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹768.99 (Inc. GST)
₹651.69 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is an industrial USB to RS485 converter with the original FT232RL and SP485EEN inside. It features embedded protection circuits such as lightning-proof, resettable fuse, ESD protection, and TVS diode, etc. It’s pretty small in size.

The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipment and/or applications with high communication requirements.

Features:

USB to RS485 communication.
Adopt original FT232RL and SP485EEN, fast communicating, stable and reliable, better compatibility.
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.
3 LEDs for indicating the power and transceiver status.

Package Includes:

1 x USB TO RS485
1 x USB-A male to female cable
1 x Screwdriver
