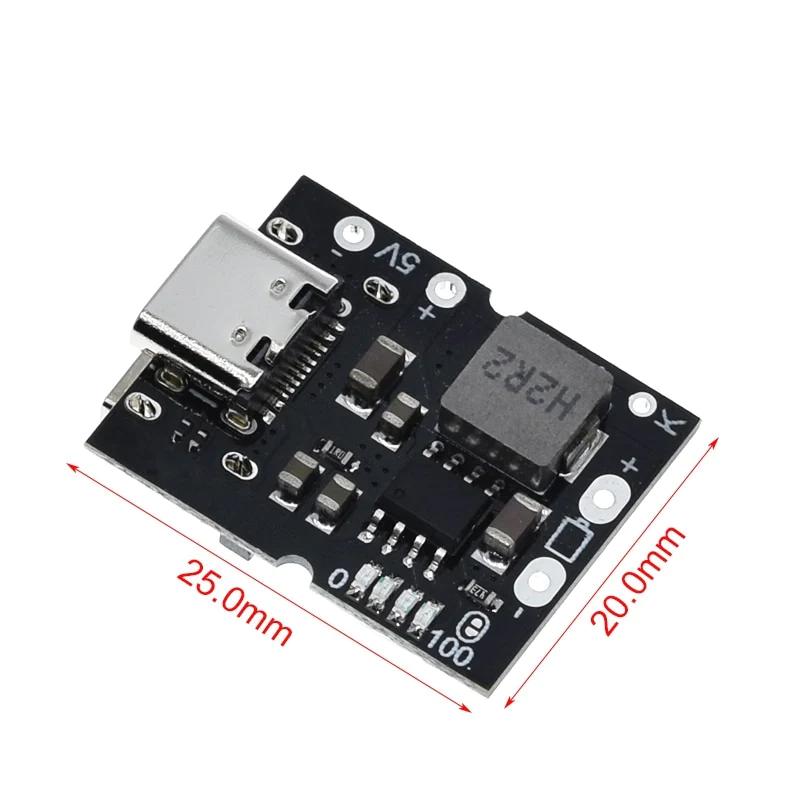

Type-C USB 5V 2A Step-Up Boost Converter with USB Charger (Version 2)(Without USB port solder)

Specifications:

Input voltage range: 55.5V
Charging cut-off voltage: (4.2V/4.35V) ±0.5%:
Charging current: 2.4A±5%
Boost output voltage: 5V5.15V (wire loss compensation)
Boost output voltage ripple: 100mV
Weight:3 gm

SKU: RDNA-WX24.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹114.46 (Inc. GST)
₹97.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

16 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is a Type-C USB 5V 2A Step-Up Boost Converter with a USB Charger. Great Step-up Module with 5V input, output 5V for many digital devices, so this is really a great module for designing a portable charger. Useful for your USB charger projects and onboard USB device supply solutions.

Function:

When the load current is less than 50mA continuously, the output will be turned off.
It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.
When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.
When the battery voltage drops below 4.1V, the charging cycle starts again.
When the battery voltage is lower than 2.8V, the battery will be precharged with a current of 180mA.

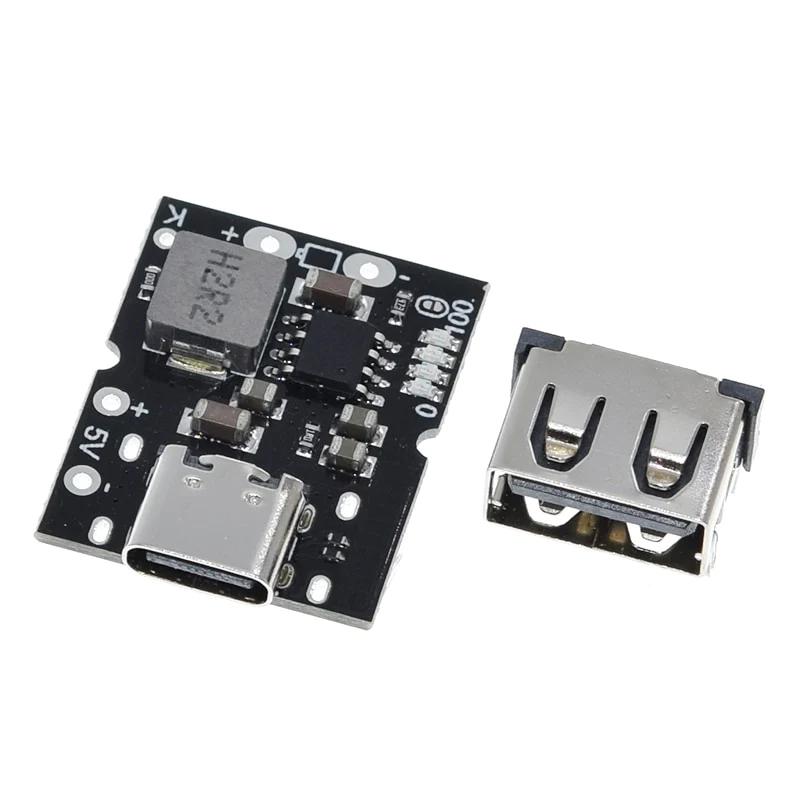

The USB-a base welding position is provided on the back of the product, which can be installed manually.
It supports discharging while charging.

Features and Specifications:

Input voltage range: 55.5V
Charging cut-off voltage: (4.2V/4.35V) ±0.5%:
Charging current: 2.4A±5%
Boost output voltage: 5V5.15V (wire loss compensation)
Boost output voltage ripple: 100mV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5V2A Output)
Battery end quiescent current: 30uA
Material: Metal and Plastic

Input Voltage Range	5~55.5
Charge Current(A)	2.4±5%
Boost output voltage(v)	5~5.15
Boost output voltage ripple(mV)	100
Boost output current(A)	2
Efficiency	92.5%
Material	Metal Plastic
Weight (gm)	3
Shipment Weight	0.006 kg
Shipment Dimensions	6 × 4 × 1 cm
