O3 is widely used in water disinfection, food processing, and purification, food storage and preservation, medical hygiene, and household disinfection and purification. In ozone application, a certain concentration of ozone is an important parameter to ensure disinfection effect, save energy and prevent pollution.
RS485 OUTPUT:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â ANALOG OUTPUT
Power supply : 10~30V DCÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Power supply :Â 10~30V DC
Power consumption :Â 0.01WÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Power consumption :Â 0.12W
Measure range : 0~10ppm, 0~100ppm       Measure range : 0~10ppm,                                                  0~100ppm
Accuracy : ±6%FS(@5ppm, 25℃, 50%RH)    Accuracy : ±6%FS(@5ppm, 25℃,                                            50%RH)
Operating temperature : -10℃～55℃,        Operating temperature :-10℃～
15%RH-90%RH (no condensation)          55℃, 15%-10℃～55℃, 15%RH-                                              90%RH (no condensation)
Resolution : 0~10ppm 0.01ppm             Resolution : 0~10ppm   0.01ppm
            0~100ppm  1ppm                          0~100ppm 1ppm  Â
Stability : ≤7% signal value/year             Stability : ≤7% signal value/year
Output signal RS485                        Output signal : 4~20mA, 0~5V,                                             0~10V

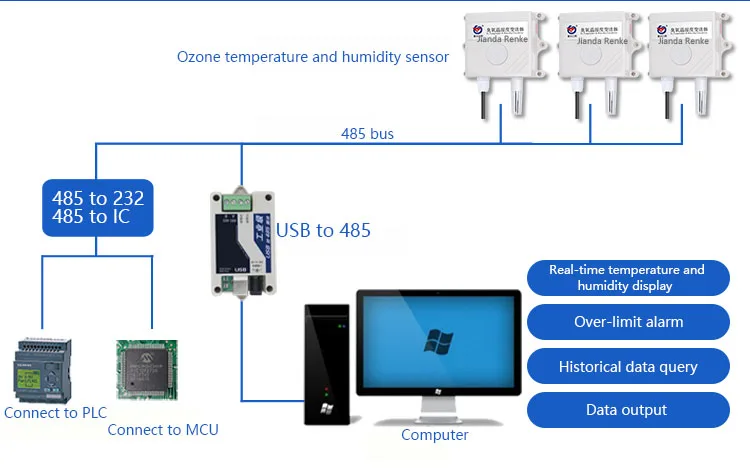

However, if the ozone concentration in the environment is too high, it will cause harm to the human body, so it is very necessary to effectively monitor the ozone concentration. This iot ozone sensor widely used in air quality detection, smart home, and other occasions where O3 detection is required.
Detail Specifications:
- Power supply: 10~30V DC
- Measure range: 0~10ppm, 0~100ppm
- Accuracy: 0~10ppm：±6%FS(@5ppm,25℃,50%RH)
- Resolution: 0~10ppm: 0.01ppm
- Zero drift: ±1%FS
- Operating temperature: -10℃~+55℃, 15%RH~90%RH
- Stability: ≤7% signal value/year
- Output signal: RS485, 0-5V, 0-10V, 4-20ma
- Data update time: 1s
- Repeatability: ≤2%
User Manual
Packing List:Â
1 x Ozone Gas Sensor 0~10PPM 0-5V Output
