Type-C Micro USB Charging Small Fan Board Control Board Motherboard Handheld Small Table Fan Mobile Fan Universal Board 5V 1A

Specifications:

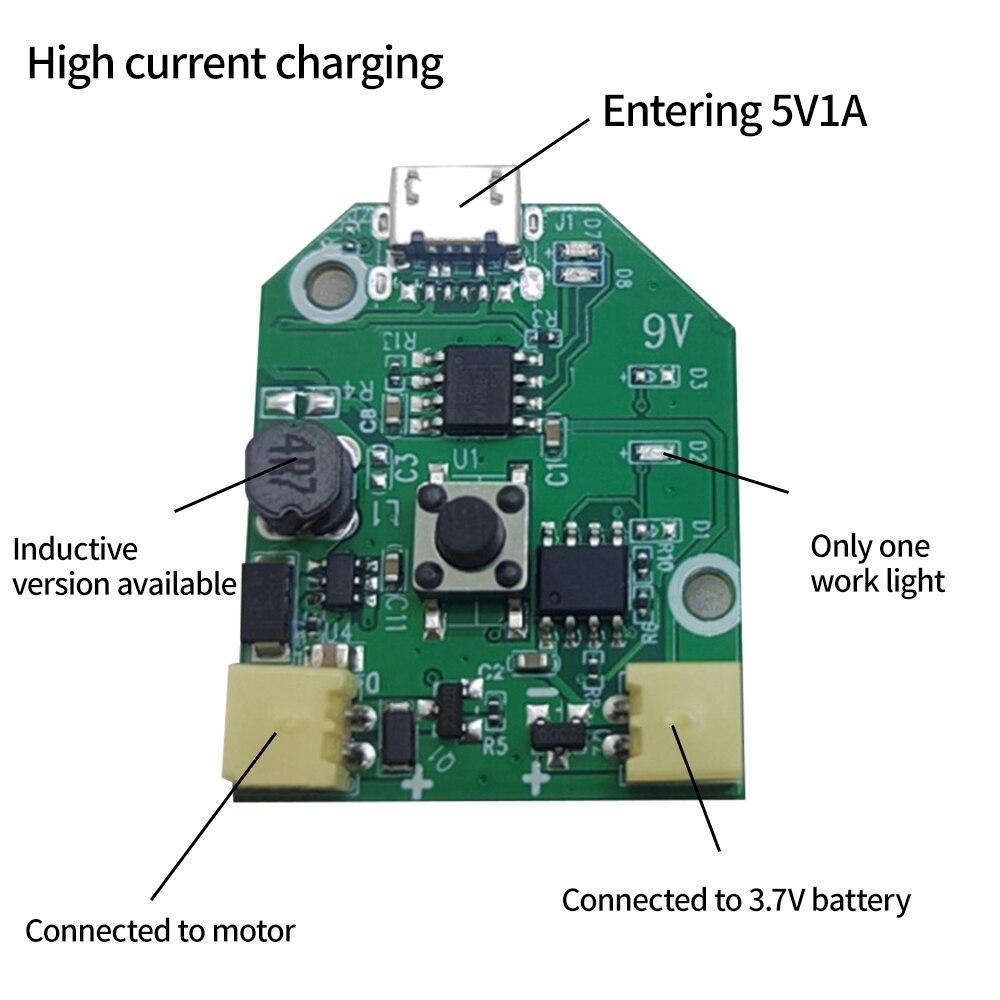

Input charging: 5V current limiting 1A
Shutdown protection: charging 4.2V protection, with lithium
battery management protection.
Battery: 3.2V flashing blue light
Standby current: 10uA

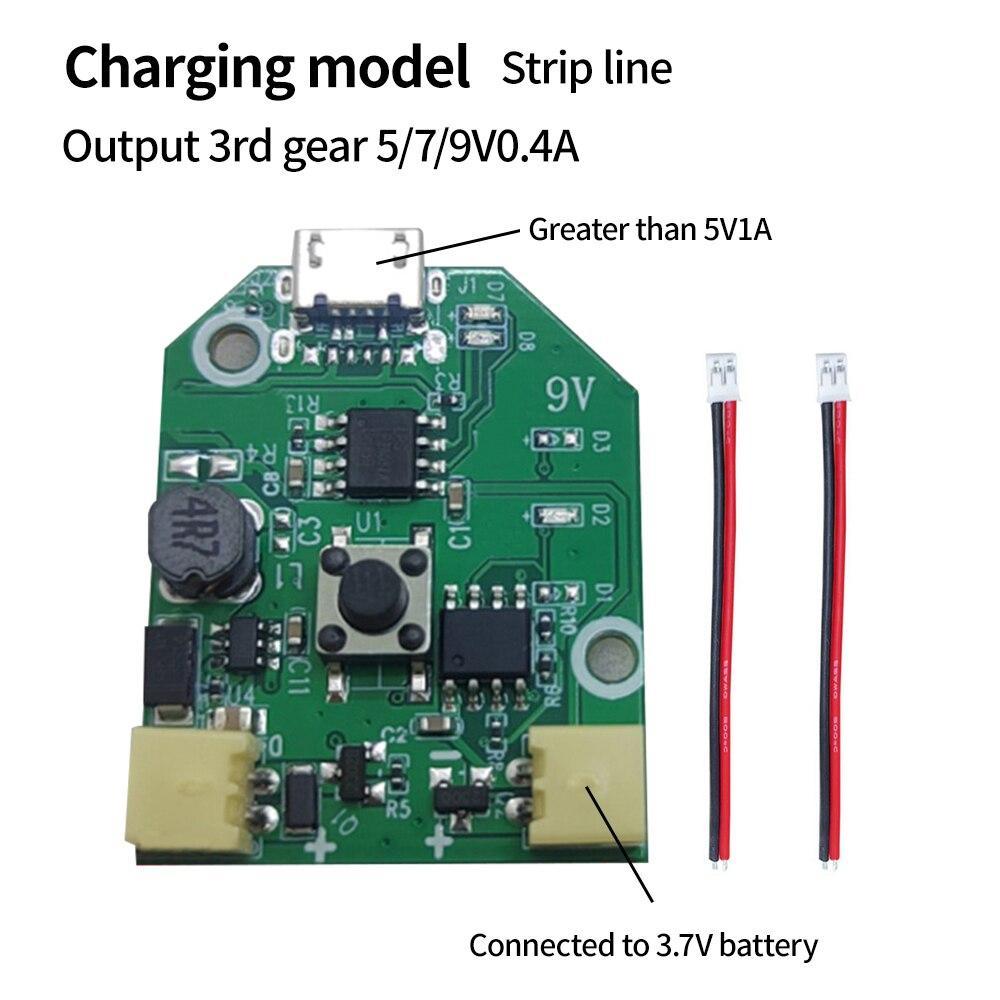

Output: Voltage -1st gear 5V; 2nd gear 7V; 3rd gear 9V; 4
shutdown cycles, current – cannot exceed 0.4A
Input battery power supply: 3-4.2V cannot be exceeded, with a
current of more than 2A.
Button height: 6mm
Product size: 34.43mm * 27.35mm
Aperture diameter: approximately 2.5mm

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹300.00 (Inc. GST)
₹254.24 (+18% GST Extra)

Out of stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

12 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The Type-C Micro USB Charging Small Fan Board Control Board Motherboard is a versatile electronic component designed to power and control small handheld fans, often used as mobile accessories. This board allows you to connect and control a fan with the convenience of Type-C and Micro USB charging ports. It operates with a power input of 5V and a current of 1A, providing efficient and reliable power for the fan’s operation.

The board features a control circuit that manages the fan’s speed and operation, ensuring optimal performance while minimizing power consumption. It’s designed to be compact and easy to integrate into various handheld and small table fan designs. This universal board is suitable for a wide range of applications, including DIY projects, mobile accessories, and portable fan devices.

Overall, the Type-C Micro USB Charging Small Fan Board Control Board Motherboard offers a convenient and efficient solution for powering and controlling small fans, making it an essential component for creating portable cooling devices and mobile fan accessories.

Features:
1.Compact appearance
2.Easy to use
3.Easy to operate
4.Stable performance
5.Good functionality

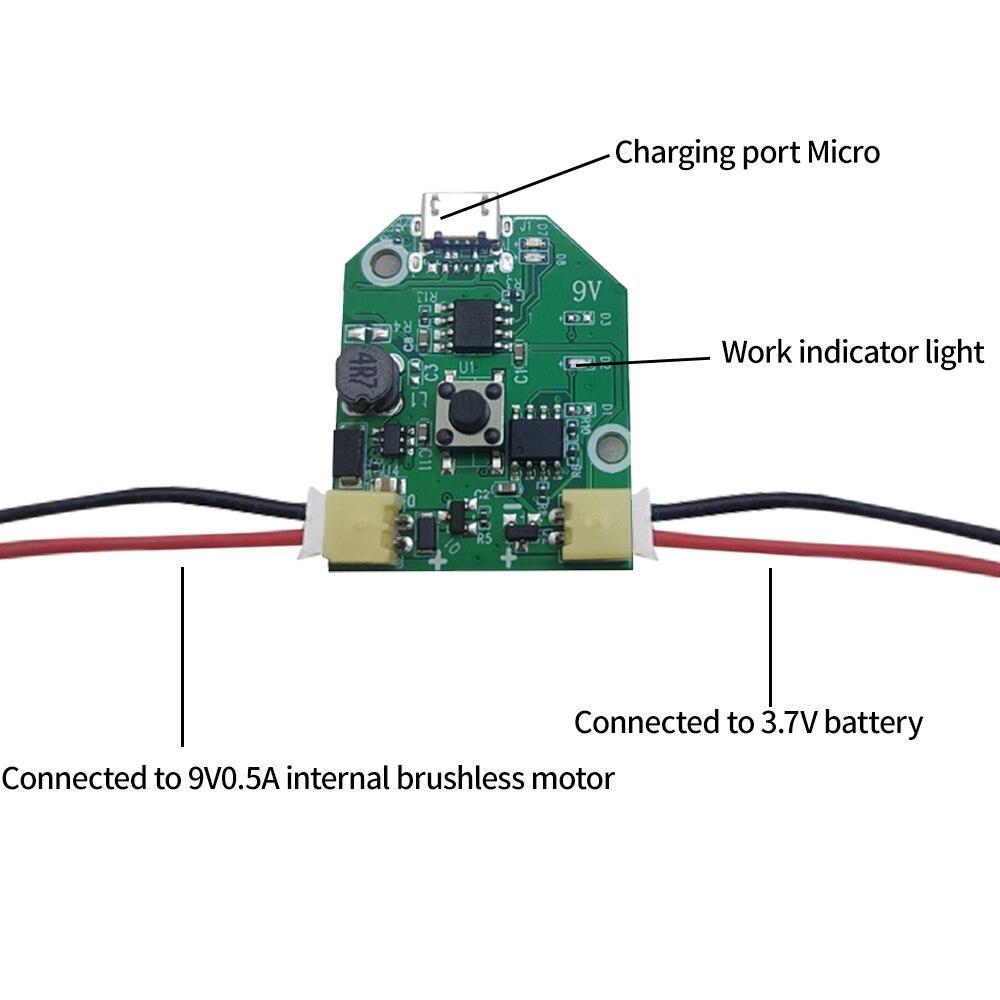

Attention: Just connect the battery and motor cables+-, to distinguish between the original machine and not necessarily the right one, it cannot be used with a hand plug!!

Package Include:

1 x Type-C Micro USB Charging Small Fan Board Control Board Motherboard Handheld Small Table Fan Mobile Fan Universal Board 5V 1A

2 x Connecting wires
