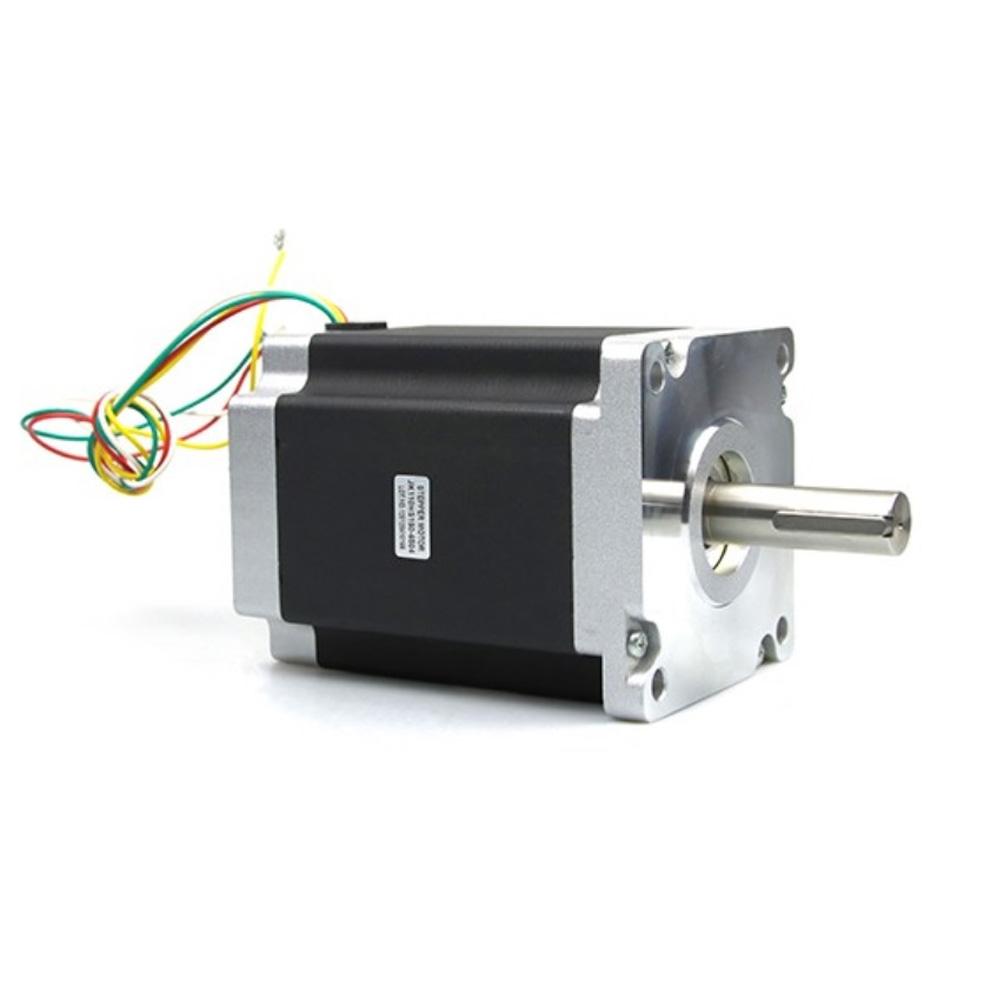

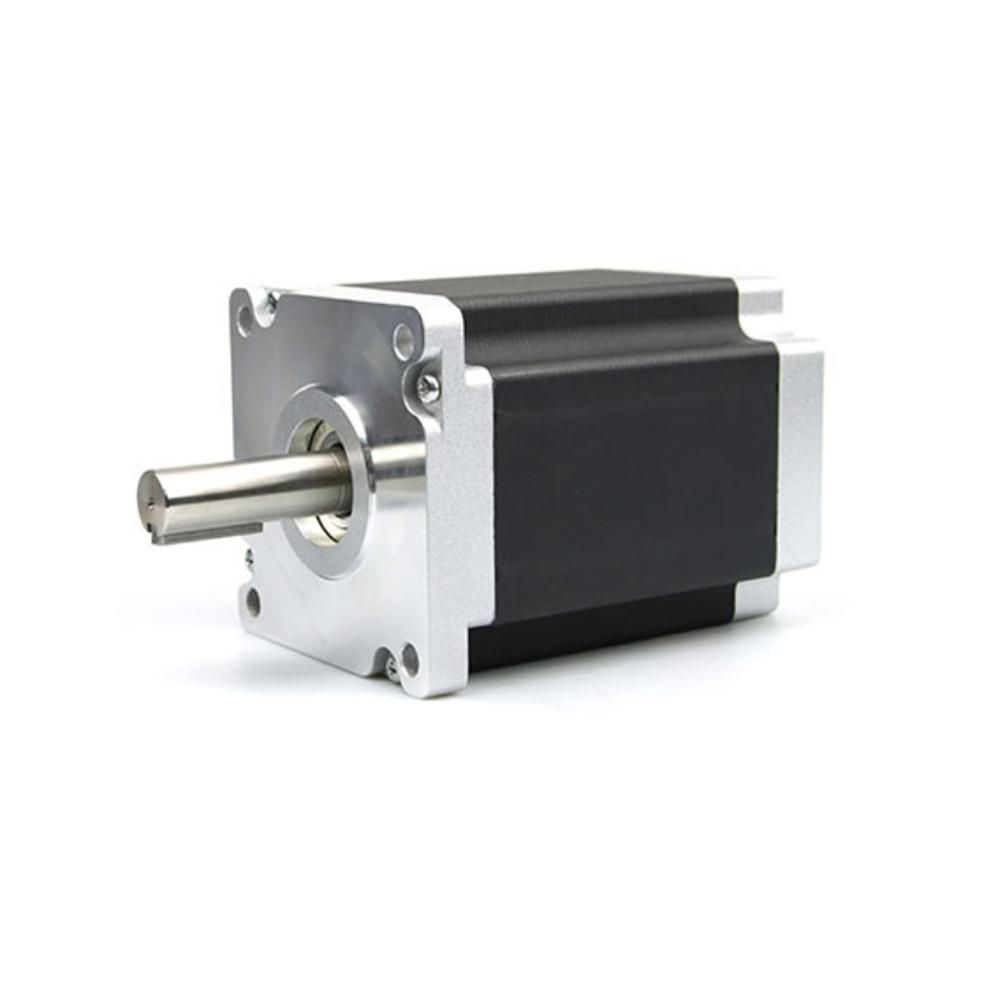

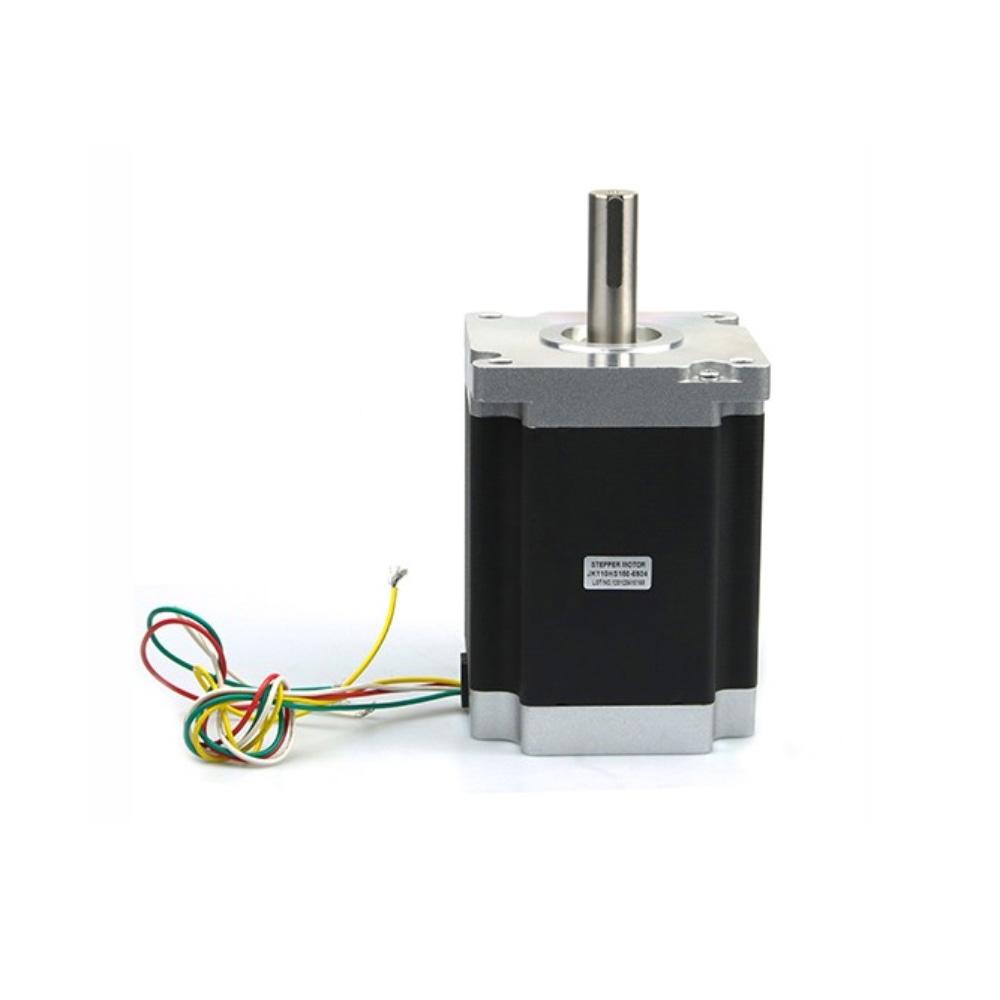

Nema 23 Stepper Motor Jk57Hs82-3004 22Kgf 3A Brushless Dc motor

Specifications:

  • Model: JK57HS82-3004
  • Motor type: NEMA 23 stepper motor
  • Motor size: 57 x 57 mm
  • Torque: 22 kgf.cm
  • Rated current: 3 A
  • Rated voltage: 3.6 V
  • Angle of pitch: 1.8 degree’s
  • Number of phases: 2
  • Resistance per phase: 1.2 ohms
  • Inductance per phase: 3.2 mH
  • Weight: 1.2 kg

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1,947.00 (Inc. GST)
1,650.00 (+18% GST Extra)

Out of stock

Out of stock

15 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The Nema 23 JK57HS82-3004 stepper motor is a high-quality, high-performance motor designed for applications that demand precision and motion control. With a force of 22kgf and current of 3A, this motor is capable of providing enough torque to move heavy loads with ease. It is compatible with standard stepper motor controllers and can be used in a wide variety of applications including CNC machines, 3D printers, robots and industrial automation equipment. With its rugged construction and proven reliability, the JK57HS82-3004 Nema 23 stepper motor is an ideal choice for anyone looking for a high quality motor and reliable performance.



Package Includes :

1 x Nema 23 Stepper Motor Jk57Hs82-3004 22Kgf 3A Brushless Dc motor
