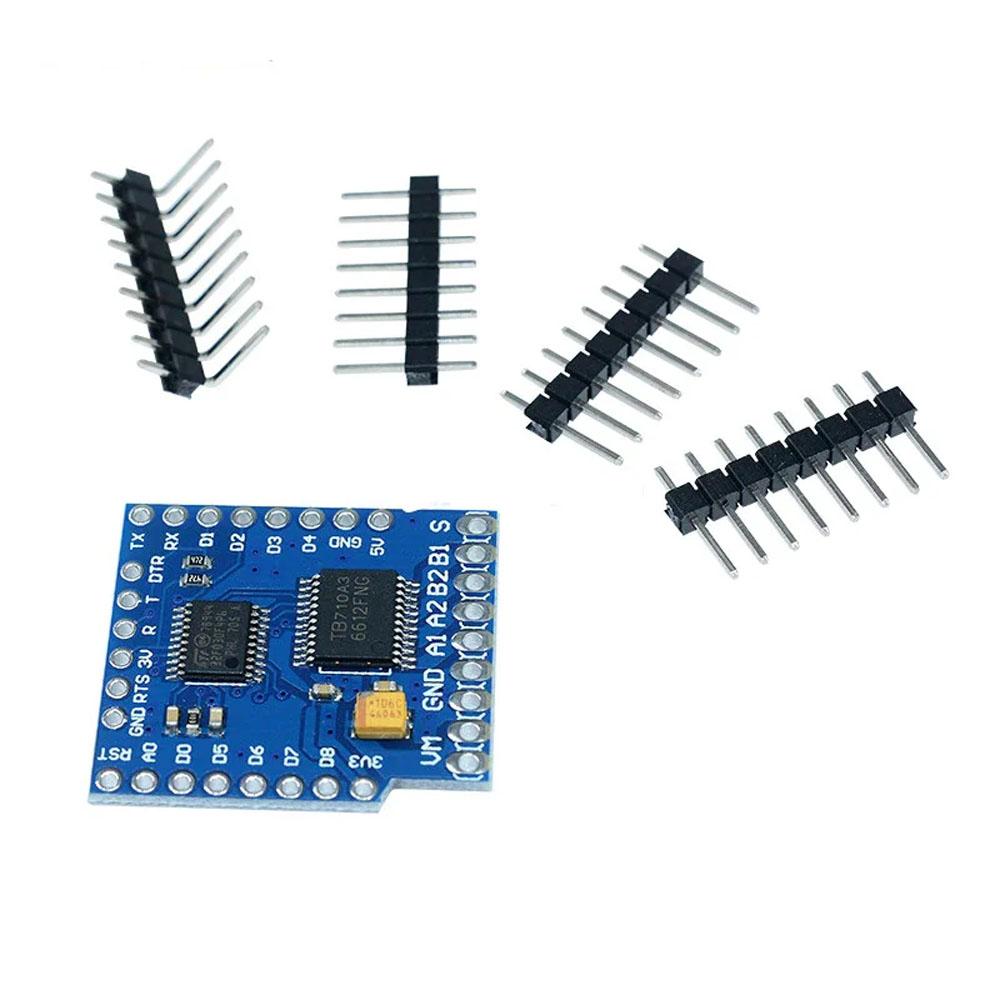

TB6612FNG V1.0.0 WeMos D1 Mini I2C Dual Motor Drive Module

 Specifications :

  • Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor.
  • Recommended motor voltage (VMOT): 4.5 V to 13.5 V (can operate down to 2.5 V with derated performance).
  • CW/CCW/short break/stop motor control modes
  • Logic voltage (VCC): 2.7 V to 5.5 V
  • Output current maximum: 3.2 A peak per channel.
  • Output current continuous: 1.2 A per channel (can be paralleled to deliver 2 A continuous).
  • Maximum PWM frequency: 100 kHz
  • Built-in thermal shutdown circuit
  • Filtering capacitors on both supply lines.
  • Reverse-power protection on the motor supply.
SKU: RDNA-346.3

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

689.00 (Inc. GST)
583.90 (+18% GST Extra)

In stock

In stock

10 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

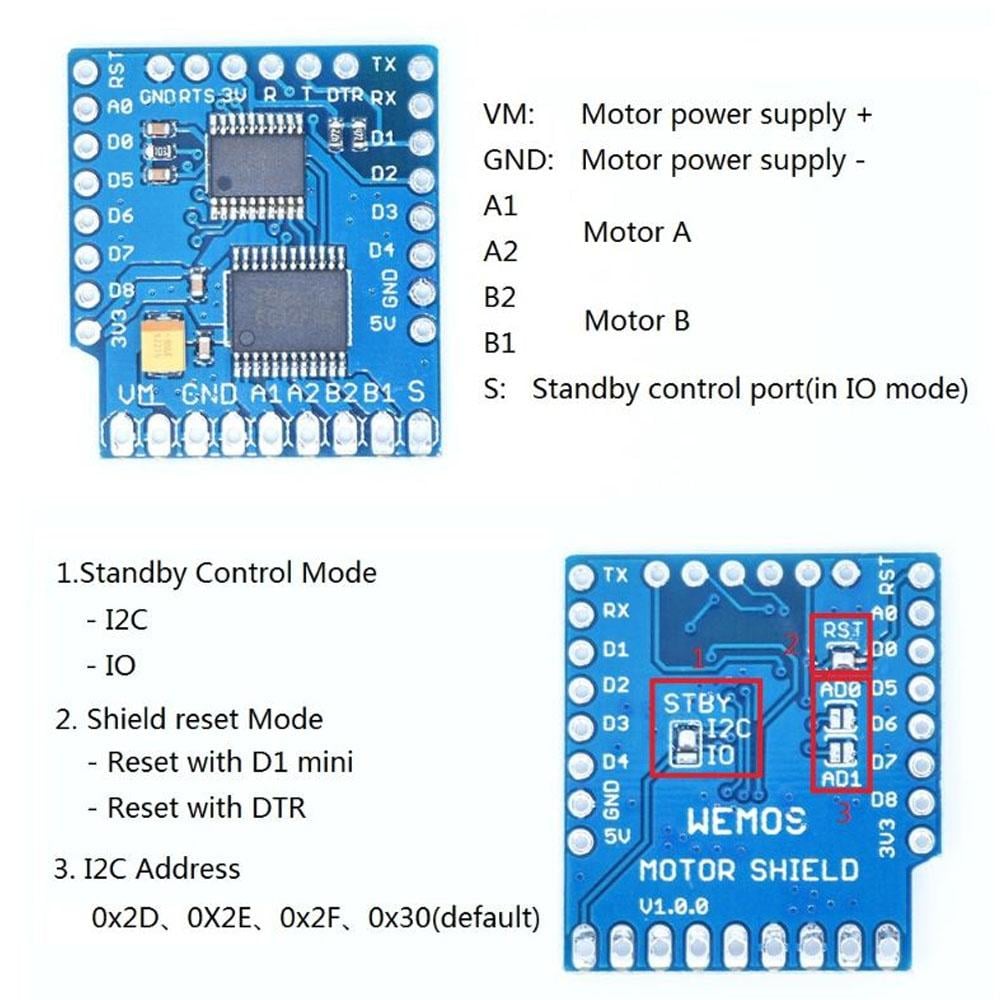

The TB6612FNG Motor Driver that is effective to drive two DC motors at a constant current of 1.2A continuous current whereas it supports peak current of 3.2A. It has two input signal pins named as IN1 and IN2 that can be used to control the motor in one of the four function modes: Clockwise, Counter Clockwise, short-brake or to stop the motor. This can be used to separately control the two motor outputs A and B independently.

The module uses PWM input signal to control the speed of the motors. It supports a standard PWM frequency maximum of 100kHz. Logic supply voltage (VCC) can be in the range of 2.7–5.5VDC making it easily interfaced with any microcontroller unit from 3.3V to 5.5V. The maximum motor voltage is 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

TB6612FNG

TB6612FNG Motor Driver Applications:

  • Motor Control
  • Two way Control in Robotics
  • Mini CNC Machines
  • Microcontroller based Motor Driving Solution
  • Movement control

Package Includes:

1 x TB6612FNG V1.0.0 WeMos D1 Mini I2C Dual Motor Drive Module
