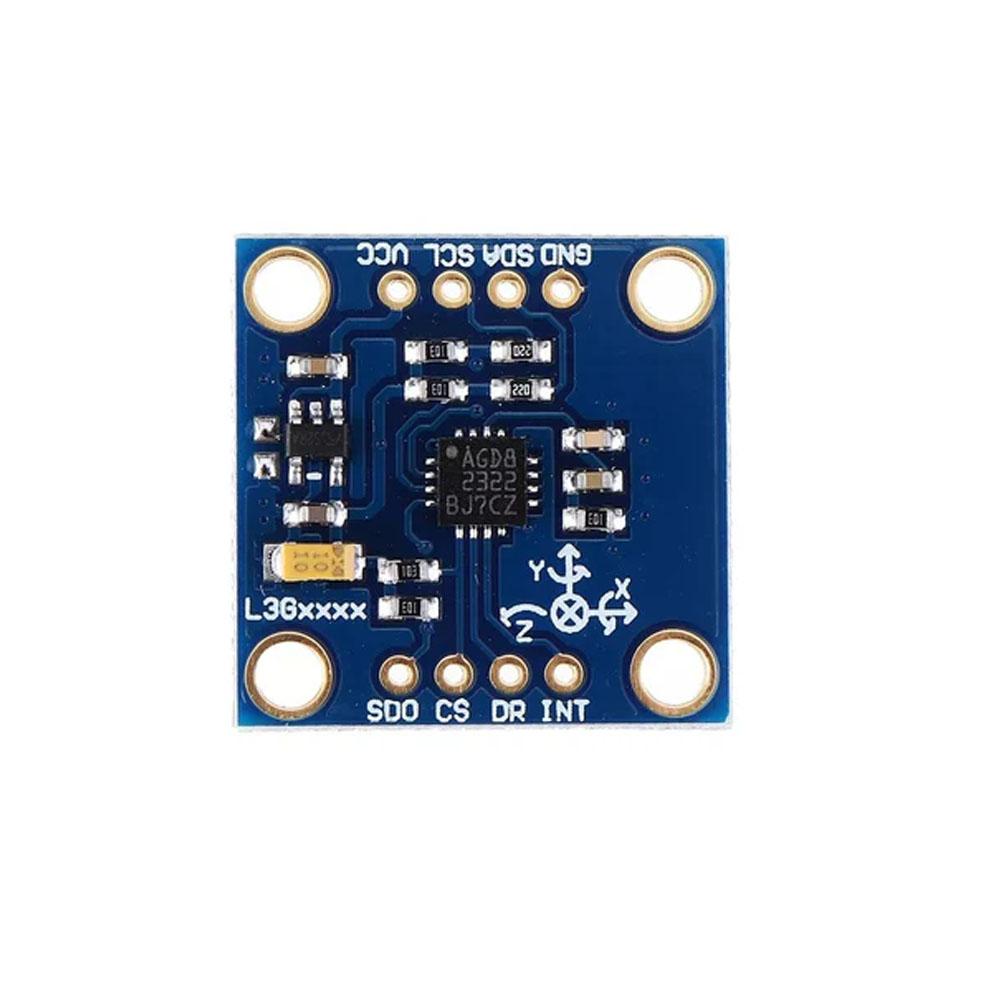

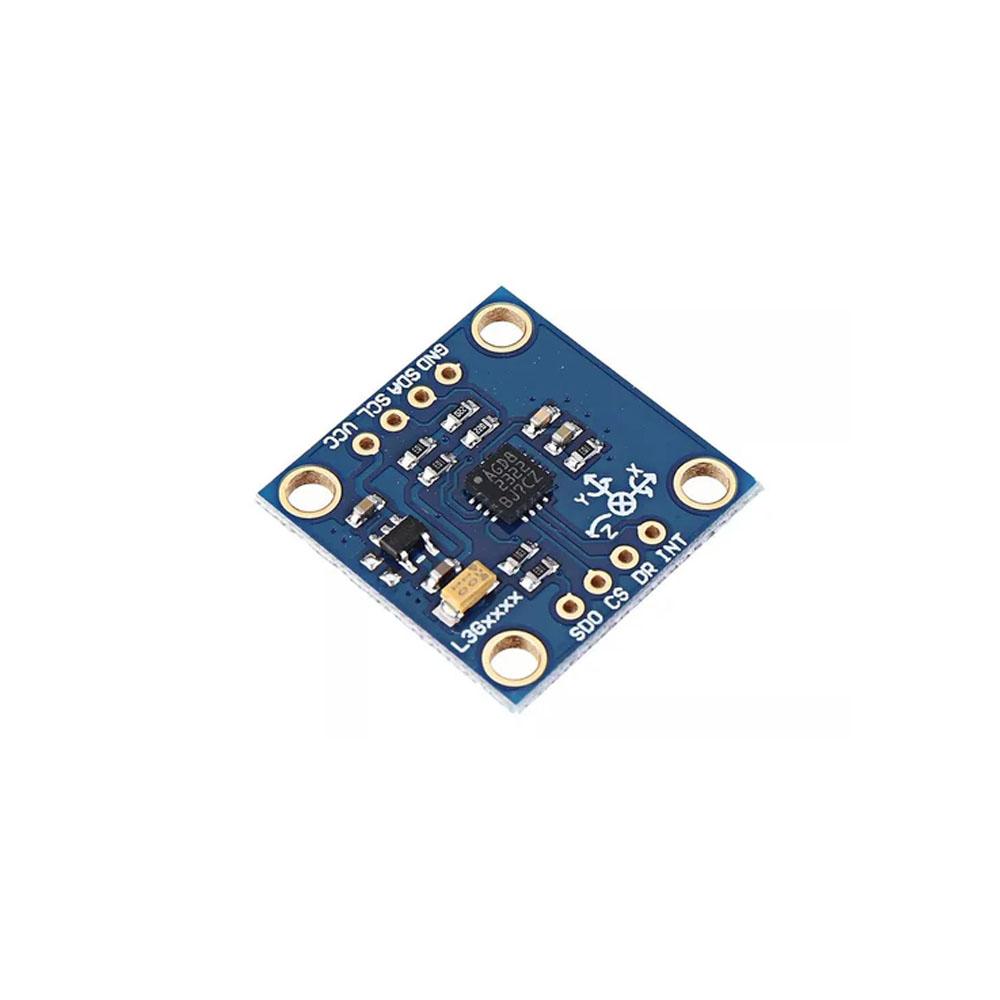

GY-50 L3G4200D 3 Axis Digital Gyroscope Sensor Module Angular Velocity Module

Specifications:
  • Power Requirement:  2.7 to 6.5 VDC
  • Communication: I2C (up to 400kHz) or SPI (10MHz; 4 & 3 wire)
  • Dimensions: 0.85 x 0.80 in  (2.16 x 2.03cm)
  • Operating temp range: -40 to +185 °F (-40 to +85 °C)
SKU: RDNA-347.5

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

442.50 (Inc. GST)
375.00 (+18% GST Extra)

In stock

In stock

15 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Description :

Raw angular rate and temperature data measurements are accessed from the selectable digital I2C or SPI interface. The small package design and SIP interface accompanied by the mounting hole make the sensor easy to integrate into your projects. Designed to be used with a variety of microcontrollers, the module has a large operating voltage window.

Features:
  • 3-axis angular rate sensor (yaw, pitch & roll) make it great for model aircraft navigation systems.
  • Supports both I2C and SPI for whichever method of communication you desire.
  • Three selectable scales: 250/500/2000 degrees/sec (dps)
  • Embedded power down and sleep mode to minimize current draw
  • 16 bit-rate value data output
  • 8-bit temperature data output
Applications:
  • UAV, IMU systems
  • Robotics
  • 3D motion control
  • Virtual reality input devices

Package Includes:

1 x GY-50 L3G4200D 3 Axis Digital Gyroscope Sensor Module Angular Velocity Module
1 x 1*8 Burg connector Pins(Right angle).
1x 1*8 Burg connector Pins(Straight).
