Servo 80KG RDS5180 Metal Gear Digital Servo Motor Arduino High Torque 3

Servo 80KG RDS5180 180Deg Metal Gear Digital Servo Motor Arduino High Torque

Specifications :

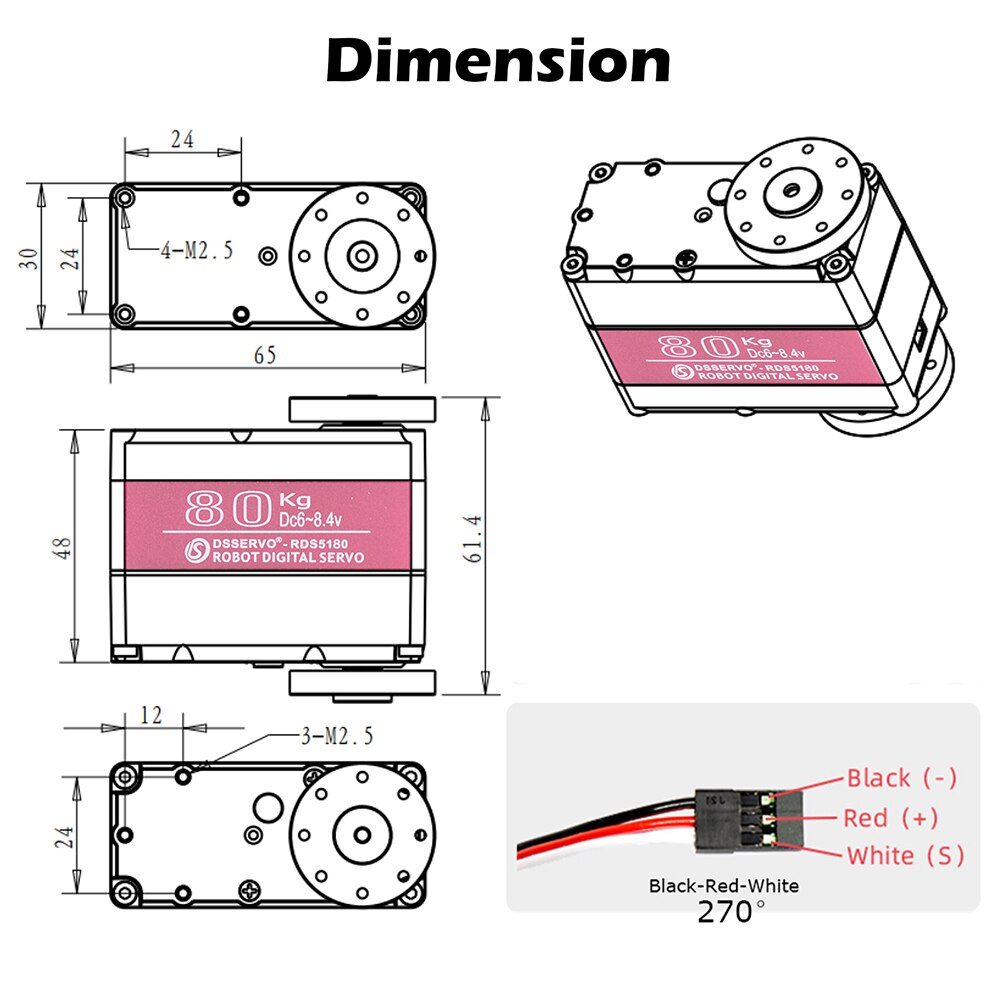

Size:65*30*48mm(servo)
Wire length:300mm
Operating Voltage: 6V-8.4V
Gare Type: Copper & Aluminum
Bearing: Double Bearing
Weight: 162g

SKU: RDNA-678

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹3,009.00 (Inc. GST)
₹2,550.00 (+18% GST Extra)

Only 2 left in stock

Compare

Add to wishlist

14 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

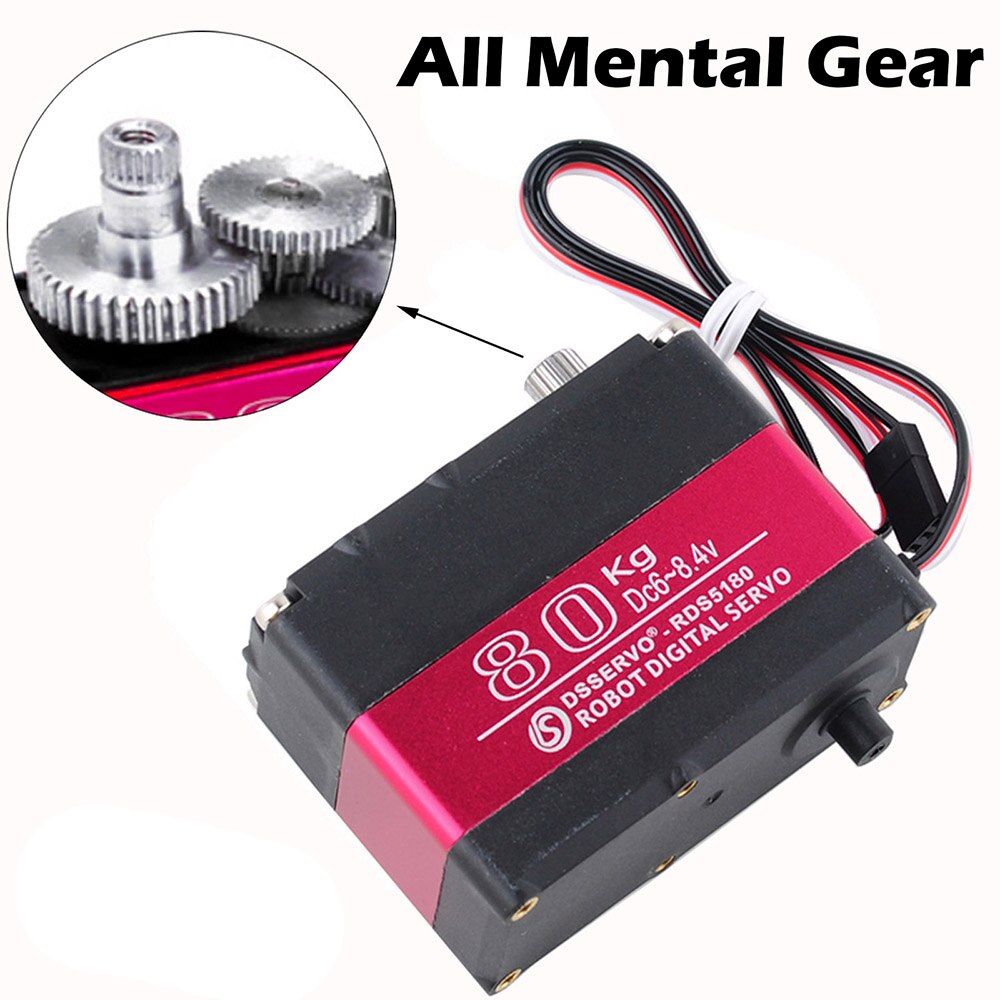

These Dual Shaft Servo motors are great for applications where output positional control is required. The shaft can be moved to any required angle using a PPM signal. Servo motors are the easiest-to-use motors as they do not require external motor drivers, feedback sensors, etc. Just connect it to your microcontroller to a Digital IO pin and you can start controlling the servo motor. It is water resistant and features high torque, metal gear, fast heat dissipation, sensitivity, and responsiveness. With high quality and performance, it is tailored for RC hobbyists to provide different experiences and delight. High-precision metal gears with hard anodizing CNC aluminium middle Shell waterproof rubber seals screws.

Speed(RDS5180):

0.24sec/60 degree at(6v)
0.21sec/60 degree at(7.4v)
0.19sec/60 degree at(8.4v)

Torque(RDS5180):

85kg.cm.at(6v)
98kg.cm.at(7.4v)
105kg.cm.at(8.4v)

Voltage: 6v-8.4v

Control Specifications :
