1. Supply Voltage: 5 V
  2. Power consumption: 0.4 to 1.0 mA
  3. Min. Ee irradiation: 0.35 mW/m2 typ.
  4. The angle of detection: 90
  5. Dimensions of the casing (mm): 12.5 x 10 x Thickness 5.8
  6. Temperature range: -25 C to +85 C
SKU: RDNA-82.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%


37.76 (Inc. GST)
32.00 (+18% GST Extra)

In stock

In stock

18 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today


  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:


TSOP1738 is an infrared receiver tuned to receive IR of frequency 38 kHz only. It is perfect for making obstacle sensors and to read signals from most IR remotes(TV, AC, Home Theatre Remotes, etc). When used as a receiver in distance sensors, it provides better performance as it allows better reception and protection from ambient light compared to other IR receivers. It can be used to read signals of most IR Remotes.

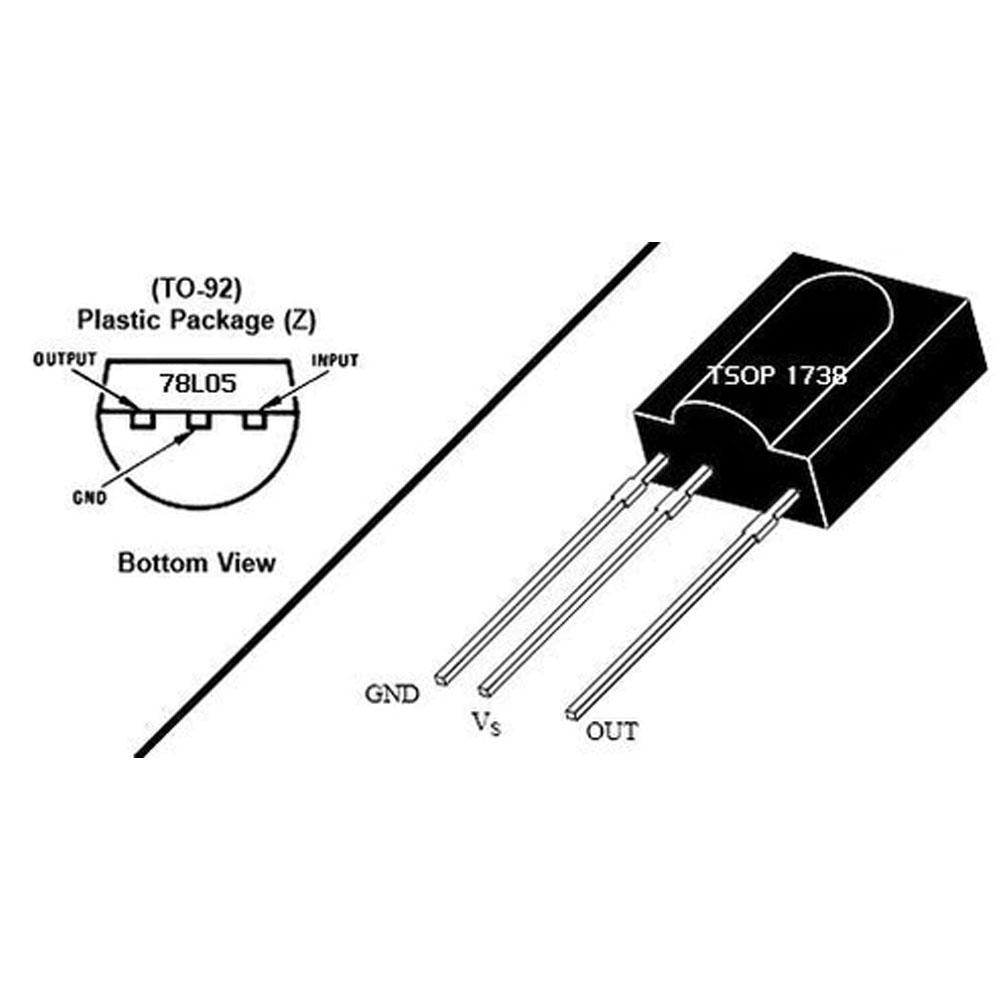

The TSOP1738 IR sensor module consists of a PIN diode and a preamplifier which are embedded into a single package. The output of TSOP is active low and it gives +5V in the off state. When IR waves, from a source, with a center frequency of 38 kHz incident on it, its output goes low. Lights coming from sunlight, fluorescent lamps, etc. may cause disturbance to it and result in undesirable output even when the source is not transmitting IR signals. A band pass filter, an integrator stage, and automatic gain control are used to suppress such disturbances. TSOP module has an inbuilt control circuit for amplifying the coded pulses from the IR transmitter.

The sensor can be used for Proximity detection application along with an IR led in robotics and security systems. It receives an IR signal at 38khz frequency.


  1. Minimum and Maximum Input Voltage is -0.3 and 5V respectively. Typically +5V is used.
  2. Can detect IR signals from Remotes (38kHz)
  3. Operating current: 5mA
  4. High Range and wide coverage area.
  5. Will respond only to IR signals, due to high immunity against ambient light
  6. Low power consumption
  7. Has in-built pre amplifier
  8. TTL and CMOS compatible

You can also look for Following Components :

Refer below Datasheet for more Detail.

Datasheet available here.
