Wind Direction Sensor 5V-24V RS485 JXCT

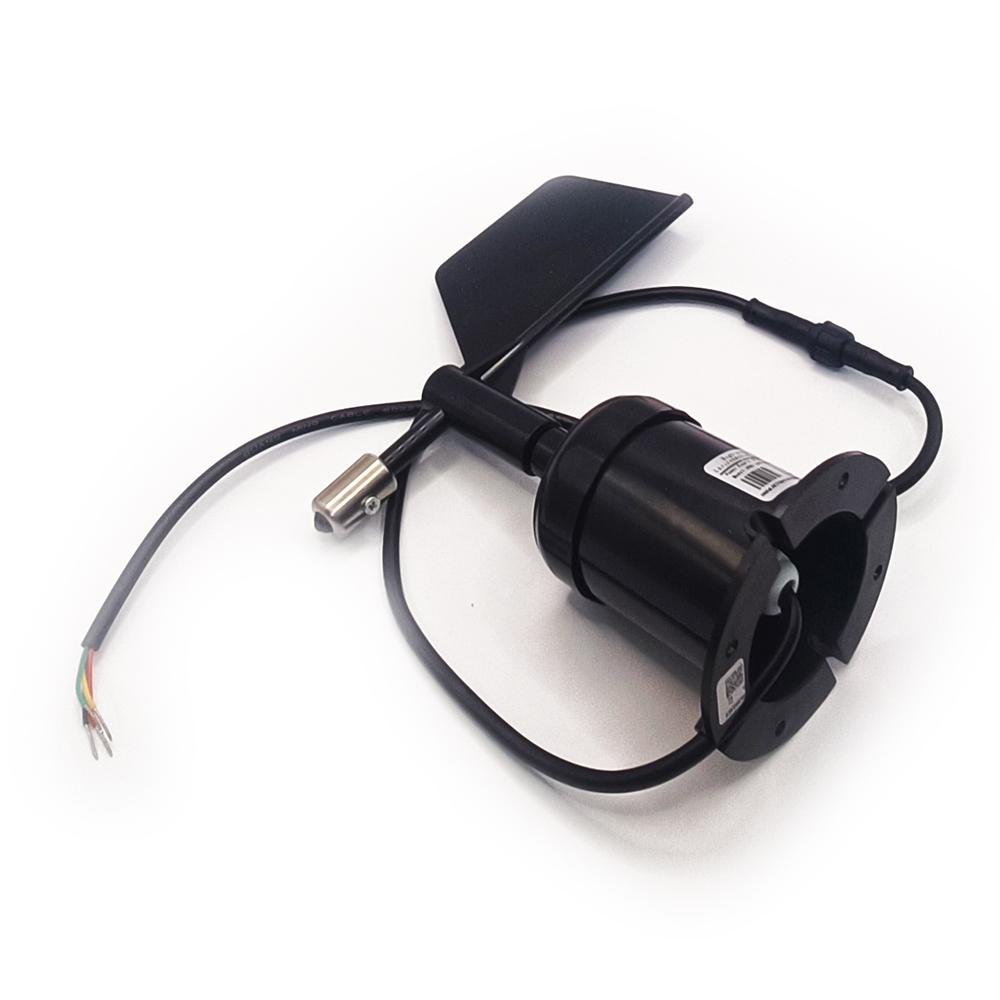

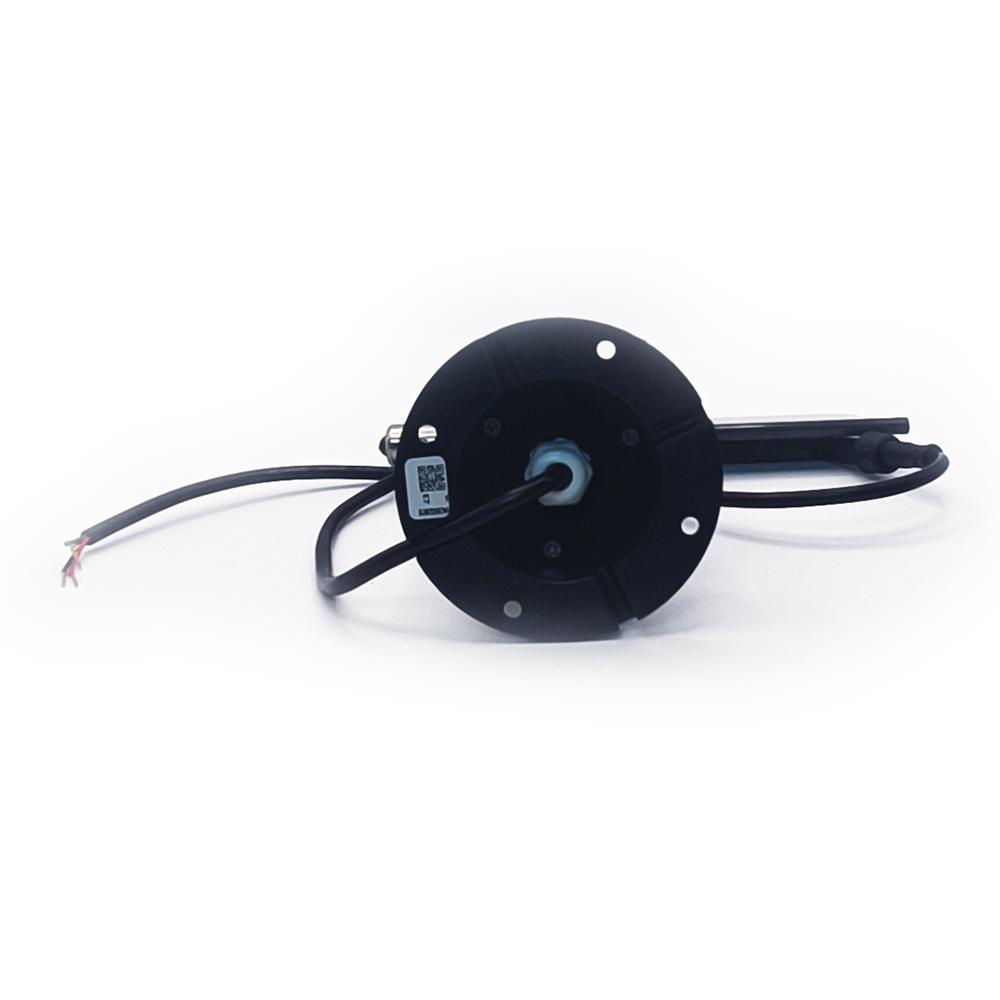

RS-FXJT wind direction sensor, compact and lightweight, easy to carry and assembly, a new design concept can effectively obtain
information on wind direction, high-quality aluminum alloy housing, external spray plating process, has good anti-corrosion, anti-
Erosion and other characteristics, to ensure long-term use of the transmitter without rust phenomenon, colleagues with the internal smooth bearing system to ensure the accuracy of information collection.

RS485 OUTPUT

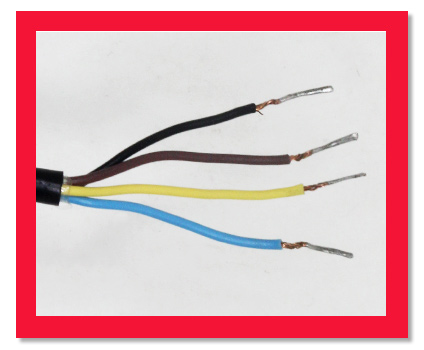

Line  color	RS485 Description
brown	Positive power supply
black	Negative power supply
yellow	485 -A
blue	485 -B

4-20ma, 0-5V, 0-10V OUTPUT
	Line color	Description
power supply	brown	Power is positive
	black	Negative power supply
Output	Blue	Wind speed signal is positive
	Green	Wind speed signal negative

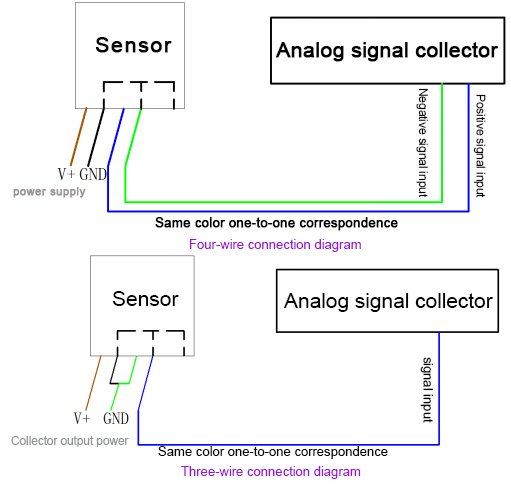

NOTE:  Two types wire methods 1.Four-wire connection diagram 2.Three-wire connection diagram

Features:

1. Range: 0-360°
2. Anti – electromagnetic interference treatment
3. Using high-performance imported bearings, rotating resistance is small, accurate measurement
4. Waterproof case, mechanical strength, high hardness, corrosion resistance, long-term use in outdoor rust
5. Equipment structure and weight have been carefully designed and distributed, the inertia is small, responsive
6. Pulse, Analog or Modbus-RTU standard communication
Electrical Wiring

Wind Direction Calibration Certificate

User Manual

Testing Software

*Note : With Arduino and coding we don’t have any support, because of it is customer product development.

We suggest to use for testing :USB to RS485 Industrial Converter Module Adapter Board

You may also like :

Sensor

Package Include:

1 x Wind Direction Sensor  JXBS-3001-FX-RS
