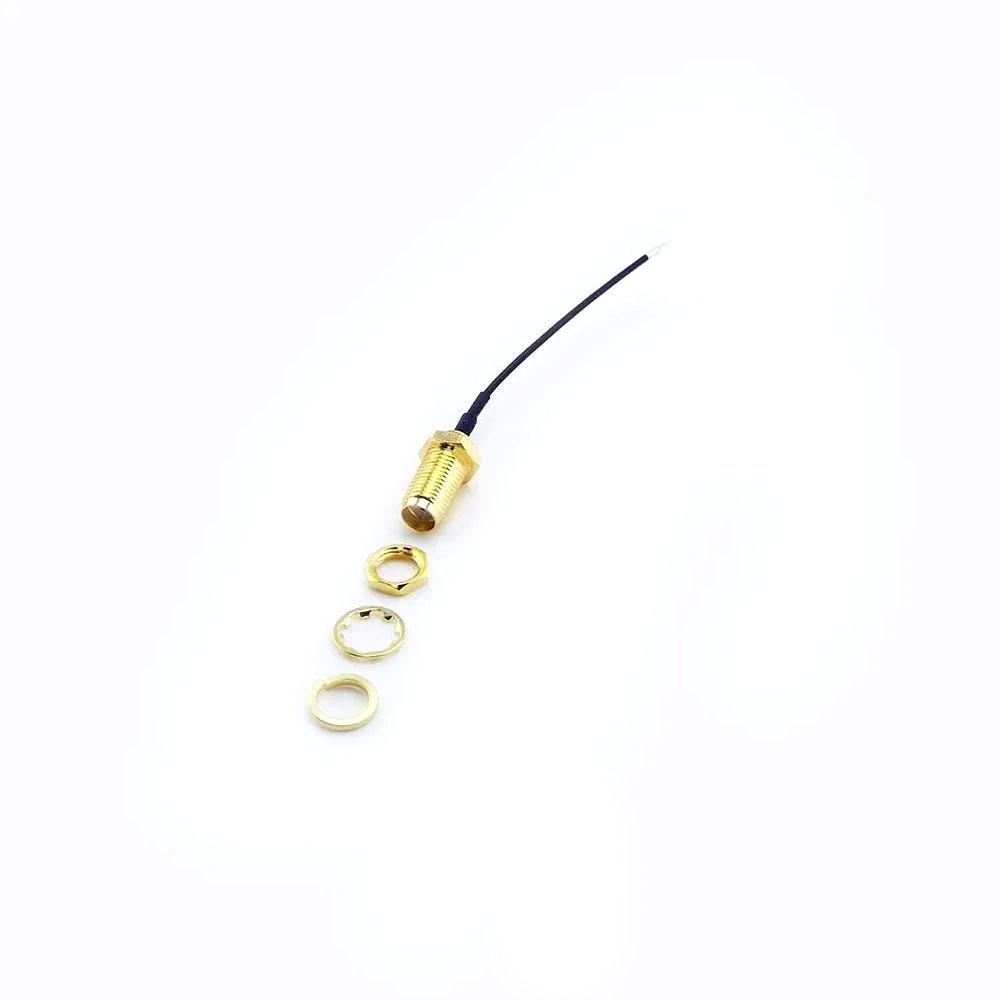

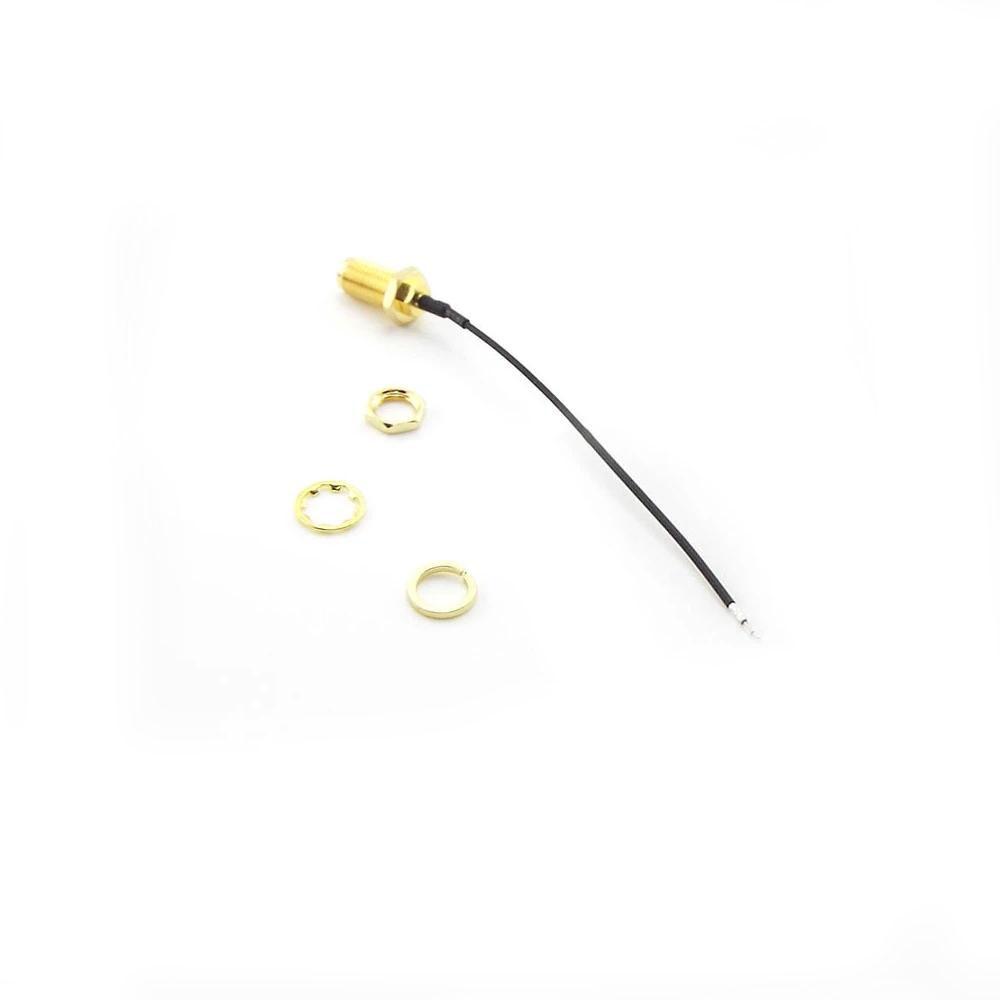

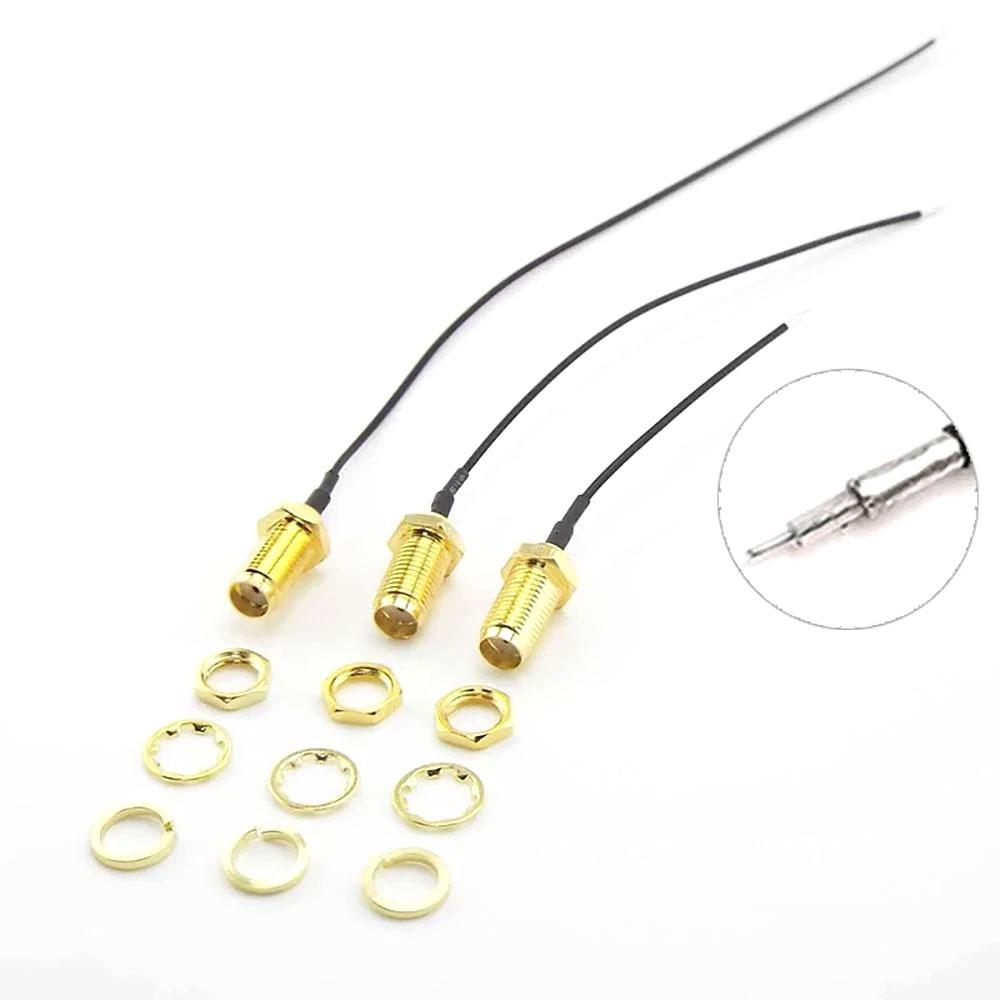

RP-SMA Female to Stripping Head Connector Cable 11mm RG1.13 – 15cm

RP-SMA stands for “reverse polarity” (sometimes also referred to as reverse SMA or for short “R-SMA”). It is designed to prevent the unauthorized connection of an external antenna to increase the range. In an RP-SMA connector, the gender has been changed. The RP-SMA male is also the connector with inside threads, but it has the metal sleeve as an inner conductor. The RP-SMA female socket has a barrel with external threads and a centre pin.

RP-SMA female outside diameter is 5/16″ (7.9375mm): Accommodates a hex nut (bulkhead nut) with 5/16″ nominal outer diameter. Connector body is gold plated brass. The center contact is beryllium Copper, Gold Plated. Crimp ferrule is copper, nickel plated. The material of insulator is PTFE.

Packing List:

1 x RP-SMA Female to Stripping Head Connector Cable 11mm RG1.13
