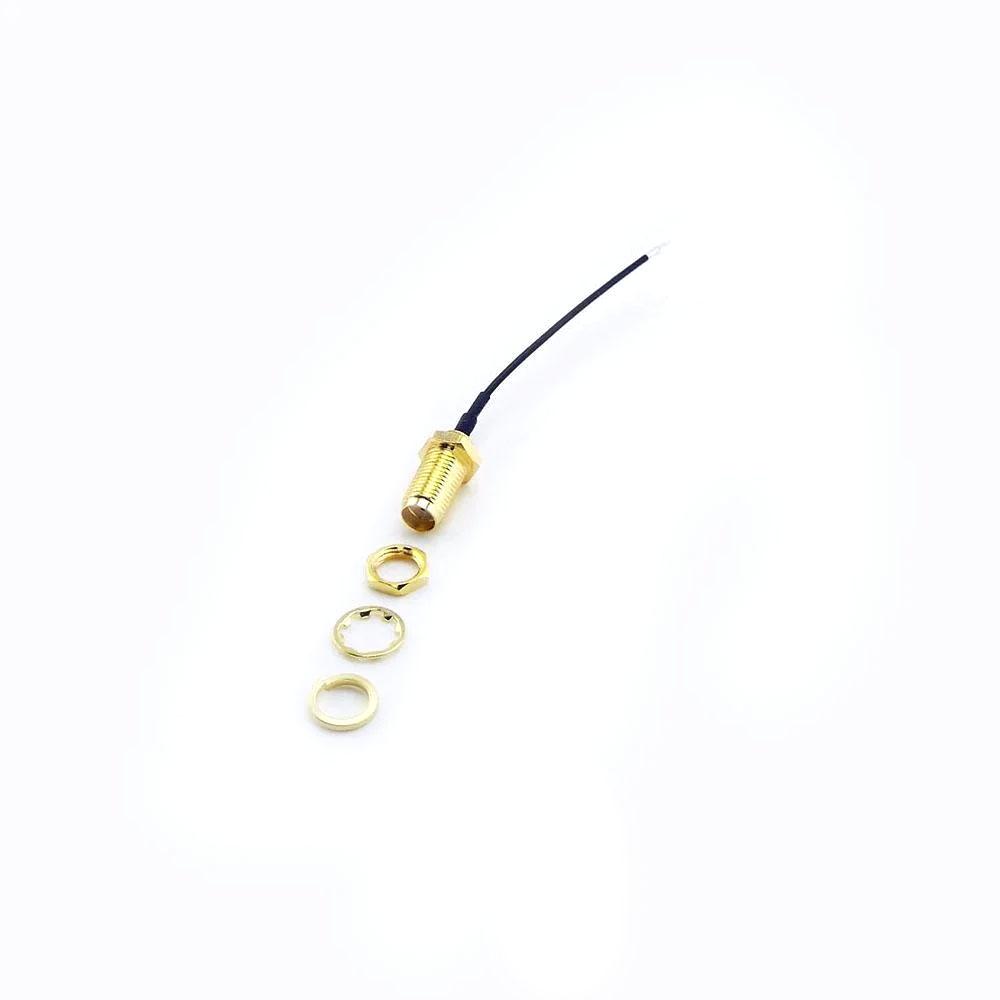

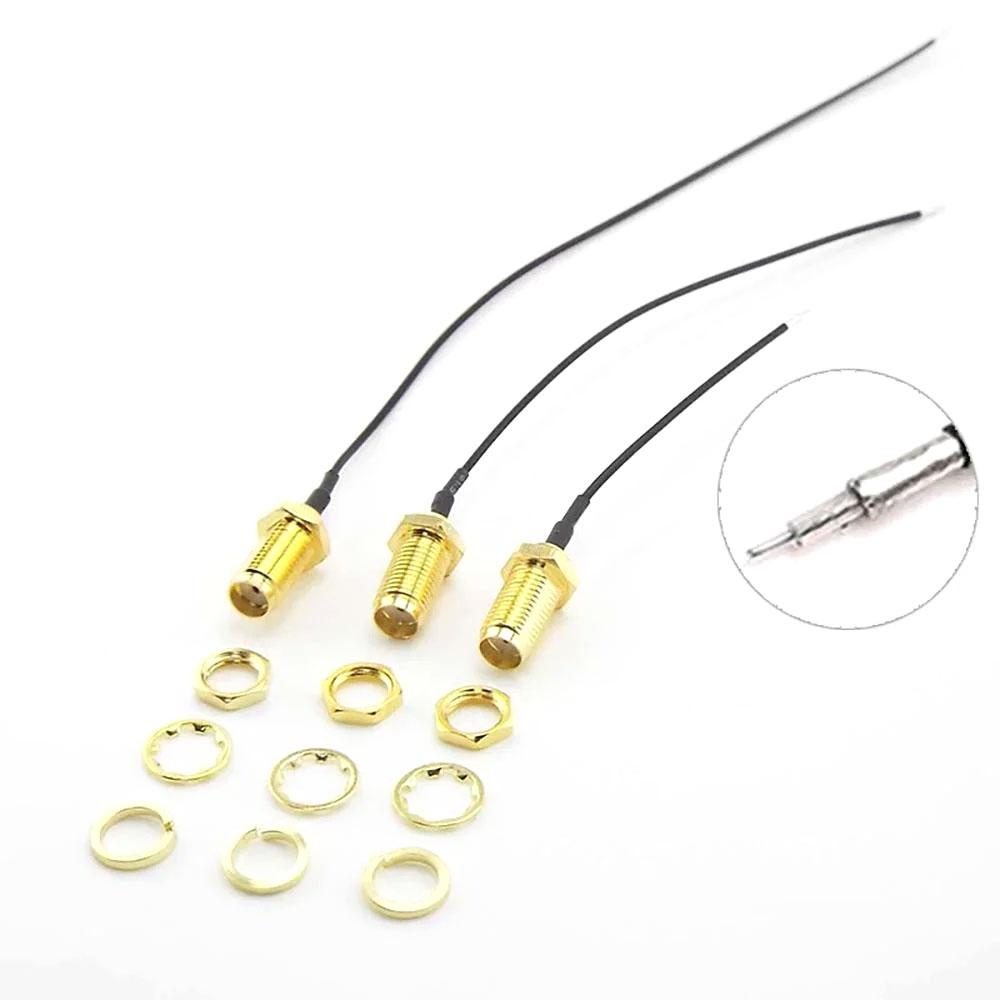

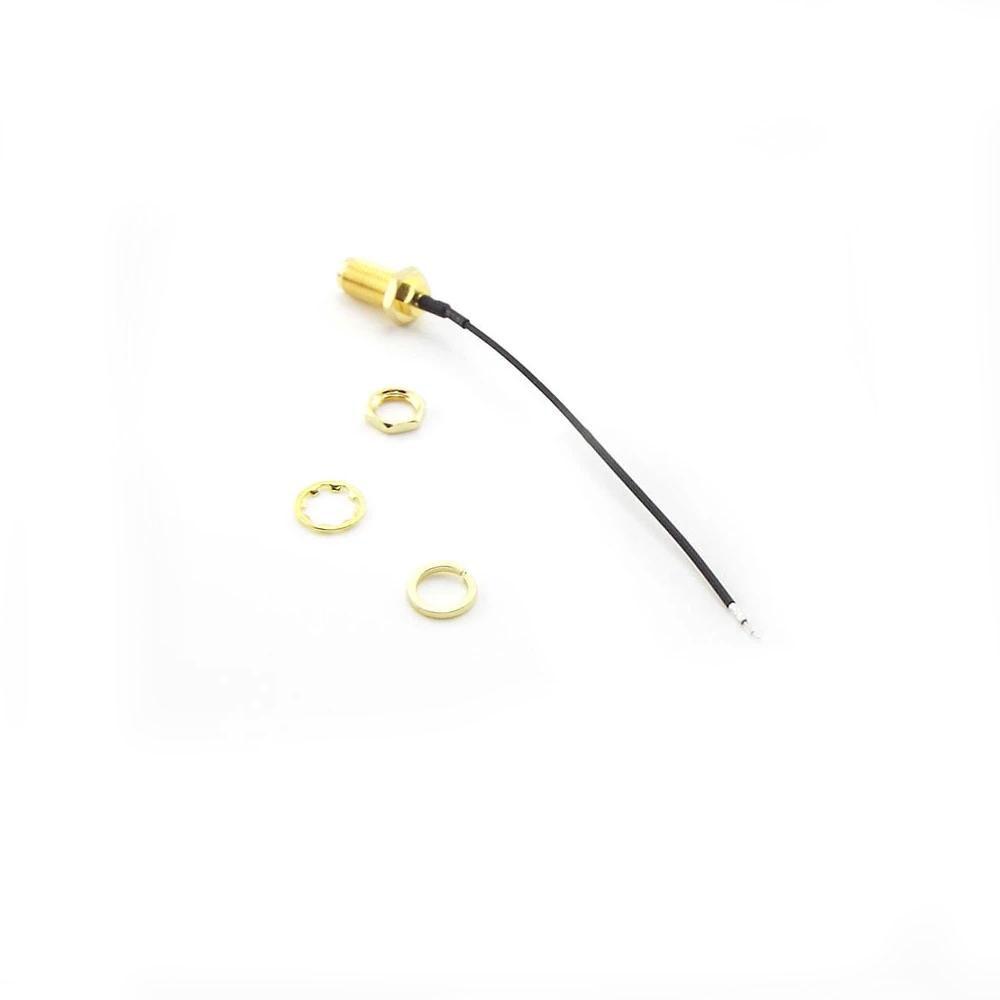

RP-SMA Female to Stripping Head Connector Cable 11mm RG1.13 01

RP-SMA Female to Stripping Head Connector Cable 11mm RG1.13 – 10cm

Specifications:

Connector End 1: RP-SMA Female
Another end is empty, peeling, separate shield and tin on
Used for 5G, 4G, 3G, 2G, LPWA, GNSS, WiFi, LoRa Wireless Modules
Smartphones, Laptops and Embedded systems

SKU: RDNA-70.8

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹70.80 (Inc. GST)
₹60.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

19 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

RP-SMA stands for “reverse polarity” (sometimes also referred to as reverse SMA or for short “R-SMA”). It is designed to prevent the unauthorized connection of an external antenna to increase the range. In an RP-SMA connector, the gender has been changed. The RP-SMA male is also the connector with inside threads, but it has the metal sleeve as an inner conductor. The RP-SMA female socket has a barrel with external threads and a centre pin.

RP-SMA female outside diameter is 5/16″ (7.9375mm): Accommodates a hex nut (bulkhead nut) with 5/16″ nominal outer diameter. Connector body is gold plated brass. The center contact is beryllium Copper, Gold Plated. Crimp ferrule is copper, nickel plated. The material of insulator is PTFE.

Packing List:

1 x RP-SMA Female to Stripping Head Connector Cable 11mm RG1.13
