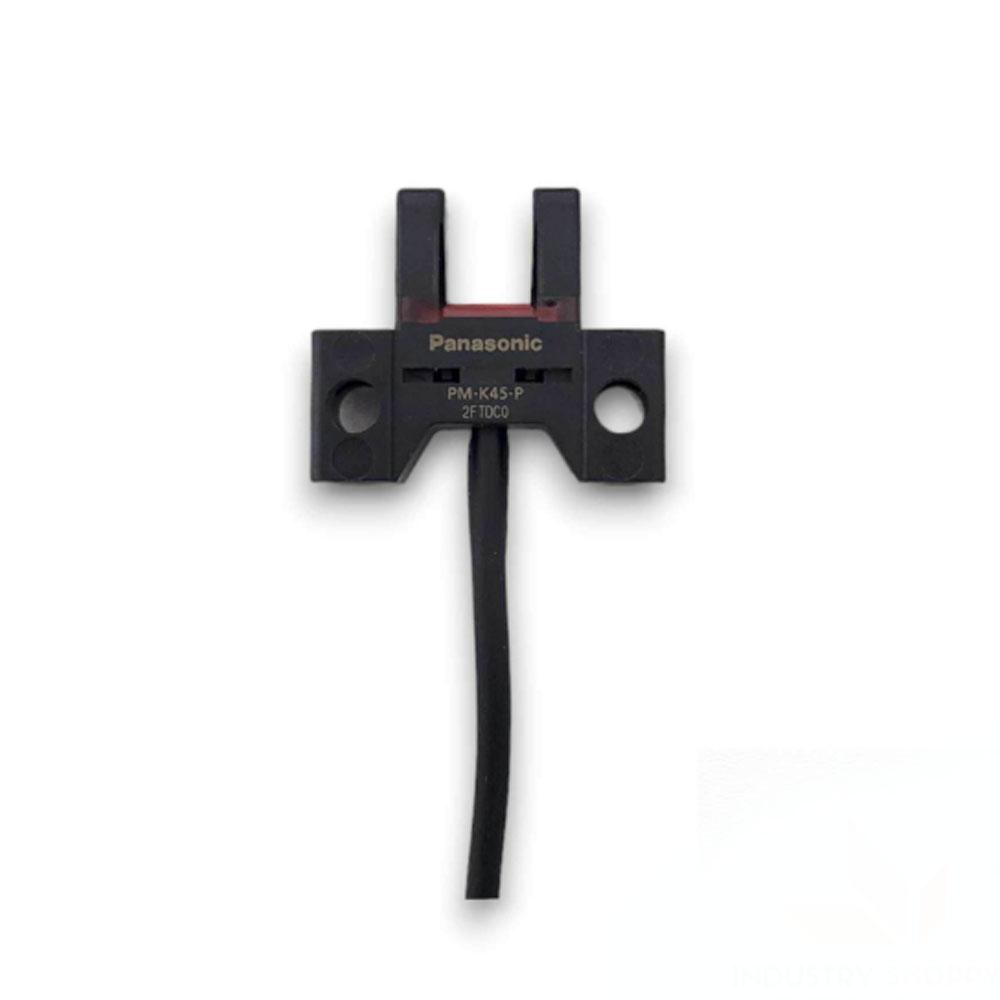

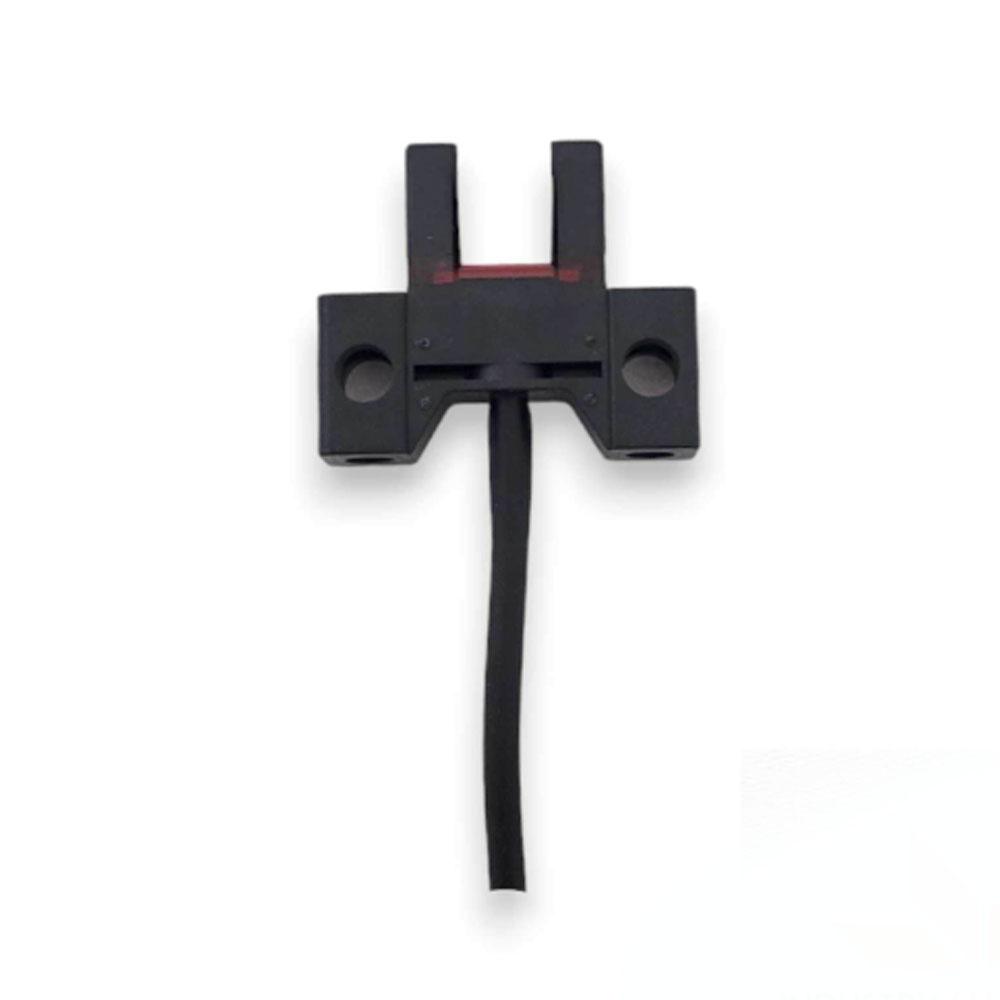

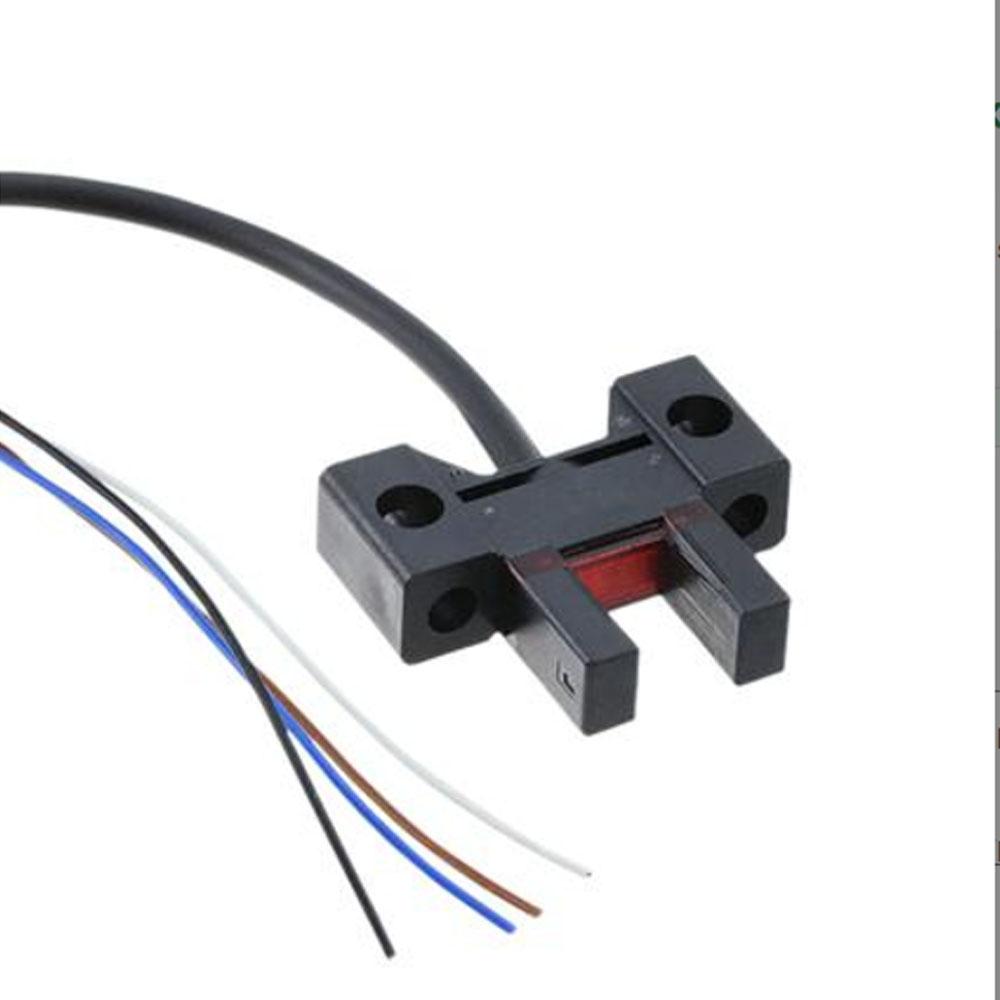

Panasonic PM-K45-P Sensor Module

Specifications:

Detection Type : Through Beam
Detection Range : 6 mm
Output Type ; NPN
Electrical Connection ; Cable 1 m
Maximum dc Voltage ; 24V
Terminal Type : Cable
Light Source : Infrared
Maximum Current : 50 mA
Response Time ; 20 μs, 80 μs
Minimum Operating Temperature ; -25°C
Maximum Operating Temperature ; +55°C

SKU: RDNA-GH43.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,121.00 (Inc. GST)
₹950.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Panasonic PM-45 series ultra-small U-shaped micro photoelectric sensors. The PM series sensors feature a through beam detection type with the emitter and receiver contained within a single U-shaped housing. A large operating indicator lights up to make operation identification easy to see from above and from the sides.
The sections where stress concentrates, such as the connecting section of the cable and internal circuit, are covered with a resin. This helps prevent malfunctions caused by vibrations and impacts.

Datasheet:

Package Includes :
1 x Panasonic PM-K45-P Sensor Module
