DB25 Female PCB Board with cover and side pins

590.00 (Inc. GST)500.00 (+18% GST Extra)

Specifications :

  • Material:Copper,Metal,Plastic
  • Color:Green and Black
  • Connect Type:Screw Nut
  • Dimension(LxWxH)mm: 87 x 54 x 18
  • The terminals can accept 24-12AWG wire and max 10A current

In stock

Compare
SKU: RDNA-ST11.1 Category:

Share this product

Description

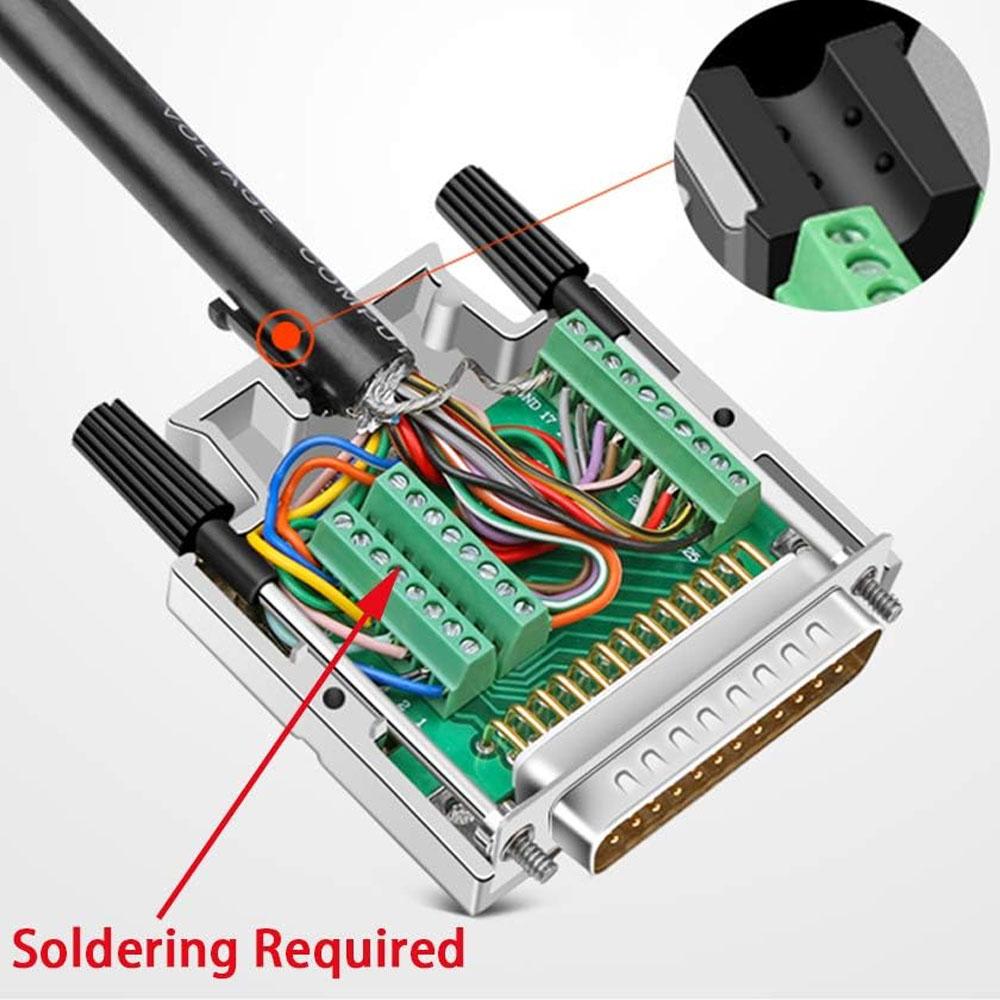

DB25-M2 DB25 to Terminal with Nut Adapter used for communication debug. With 25 pcs signal line was all lead out, name and number clearly labeled;

The terminal spacing of connector is 3MM, screw hole diameter 2.5MM, need to use a width of 2.5MM screwdriver for assembly, terminals can accept 24-12AWG Wire and max 10A current. The connector uses the environmental friendly copper terminals. it also has an insulated 3 mm thickness pad at the bottom.

Features :-

  • D-SUB25PIN Adapter used for communication debug

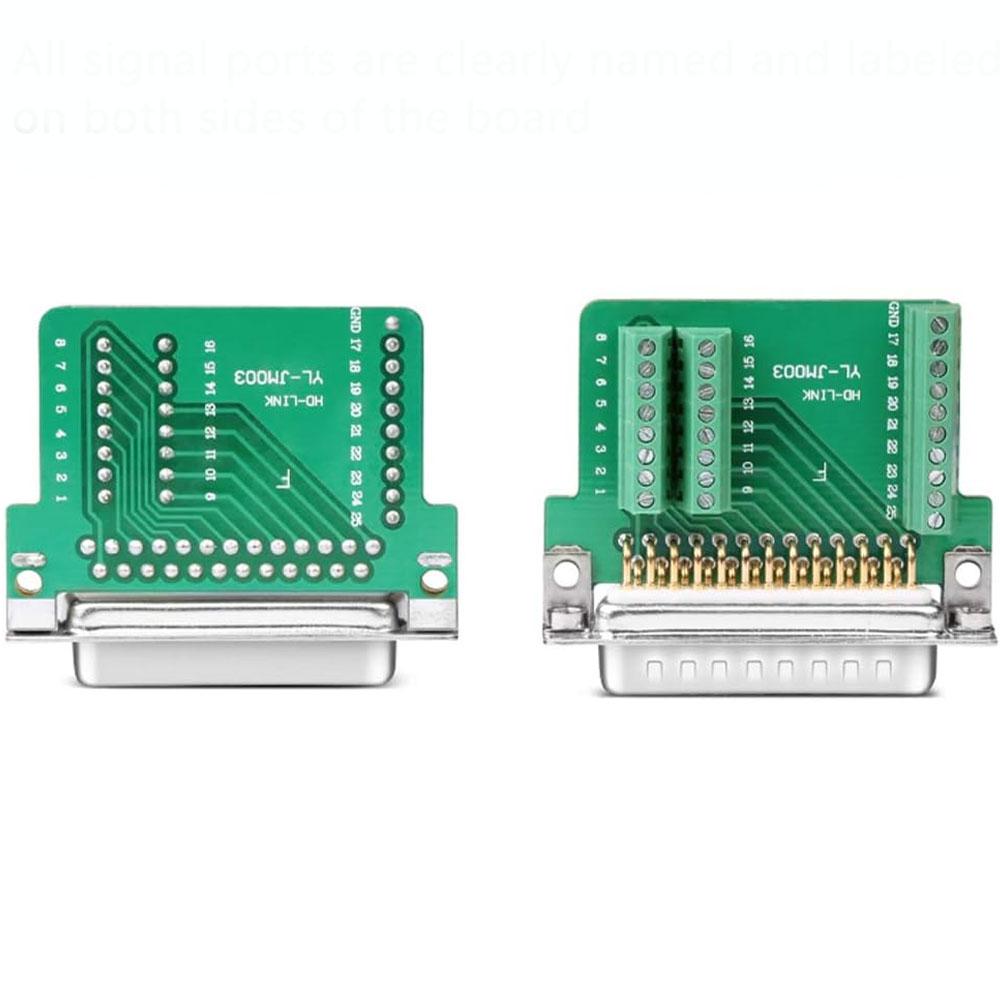

  • 25PIN signal line was all lead out, name and number clearly labeled;
  • .PCB terminal3.81MM, screw hole diameter 2.5MM, need to use a width of 2.5MM screwdriver for assembly, terminals can accept 24-12AWG Wire and max 10A current;
  • Use of environmentally friendly copper terminals, through IS0-9001,
  • .Black ABS plastic shell,Protective connector

Package Include :

1 x DB25 Female PCB Board with cover and side pins
