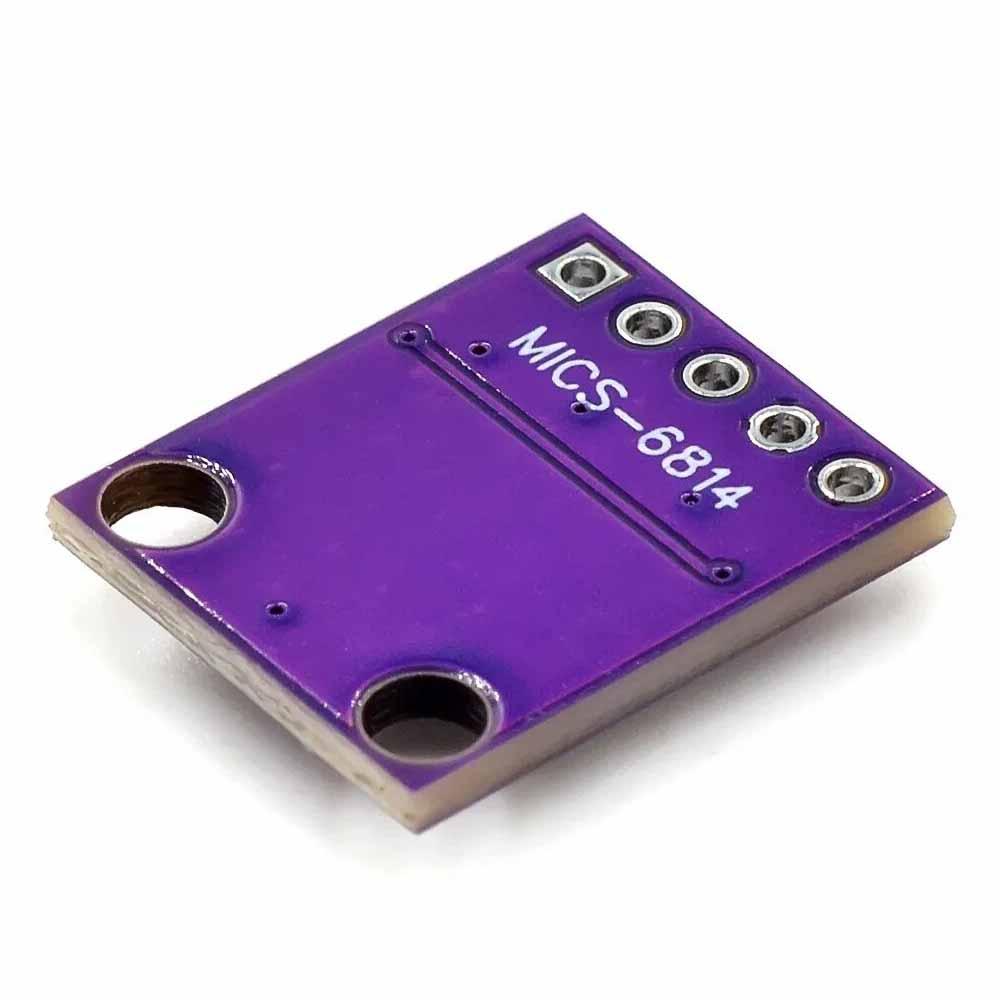

MICS-6814 Gas Sensor Module Air Quality CO VOC NH3

Specifications:

  • Operating Voltage: DC4.9V ~ 5.1V
  • Operating current: 0.3mA (measuring) 60uA (standby)
  • Output: Serial data
  • Temperature Range:  -30 ~ 85 degrees
  • Humidity Range: 5 ~ 95% RH
  • Resolution: Temperature and Humidity both are 16-bit
  • Accuracy: ±1°C and ±1%
  • Compatible with Arduino Boards,esp 8266 .
SKU: RDNA-359.8

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

2,999.01 (Inc. GST)
2,541.53 (+18% GST Extra)

In stock

In stock

12 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

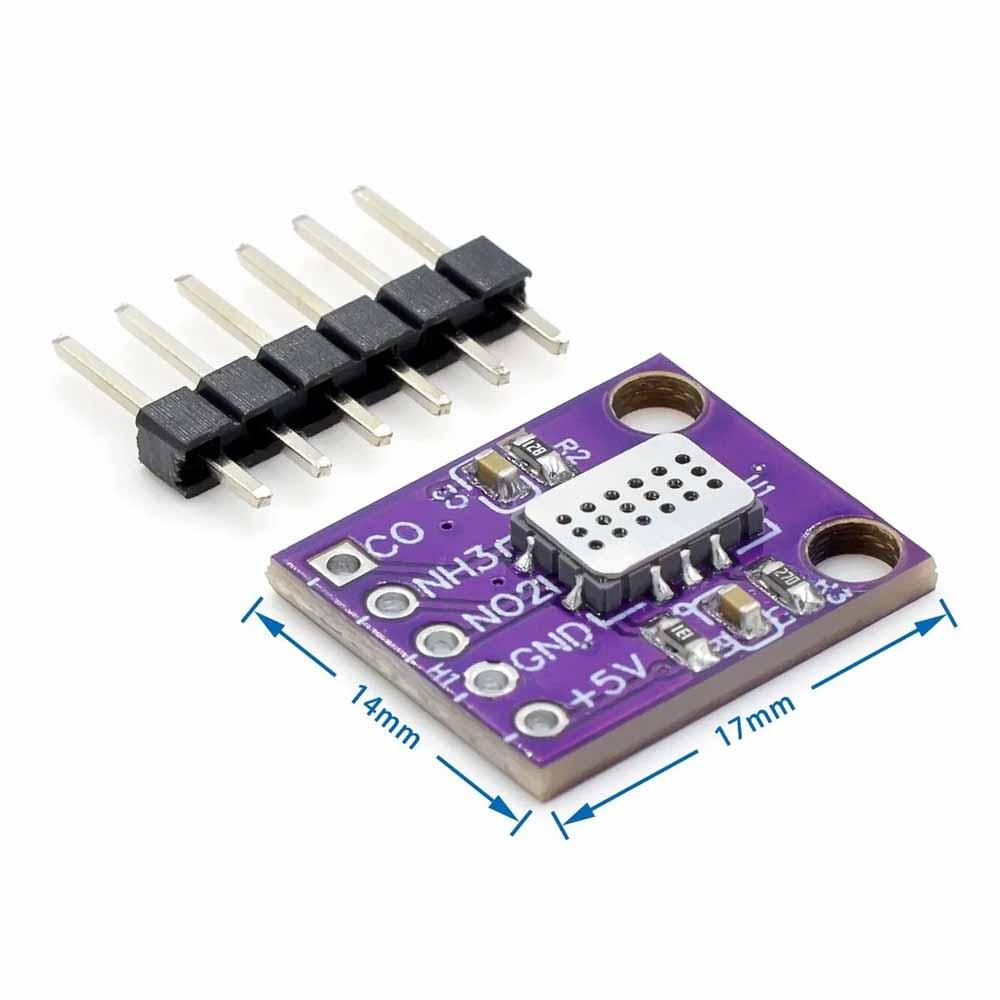

This module is a basically a breakout board for SGX Sensortech MICS 6814 Air Quality MOS Triple sensor. MiCS-6814 is a compact MOS sensor with three fully independent sensing elements on one package. It is a robust MEMS sensor for the detection of pollution from automobile exhausts and for agricultural/industrial odors.

MICS 6814 has a silicon gas sensor structure which consists of an accurately micro machined diaphragm with an embedded heating resistor and the sensing layer on top. The MiCS-6814 includes three sensor chips with independent heaters and sensitive layers. One sensor chip detects oxidising gases (OX) , the other sensor detects reducing gases (RED) and the other detects Ammonia (NH3).

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules

Detectable gas range:
Carbon monoxide CO 1 – 1000ppm
NO2 Nitrogen dioxide 0.05 – 10ppm
Ethanol C2H5OH 10 – 500ppm
H2Hydrogen 1 – 1000ppm
Ammonia NH3 1 – 500ppm
CH4Methane > 1000ppm
C3H8 Propane > 1000ppm
C4H10 Iso -Butane > 1000ppm

You may also look for

Refer to the Datasheet below for more details:

SGX Sensor tech MICS 6814 Air Quality MOS Triple sensor.

LIBRARIES

Sample code

Package Include:

1 x MICS-6814 Gas Sensor Module Air Quality CO VOC NH3
