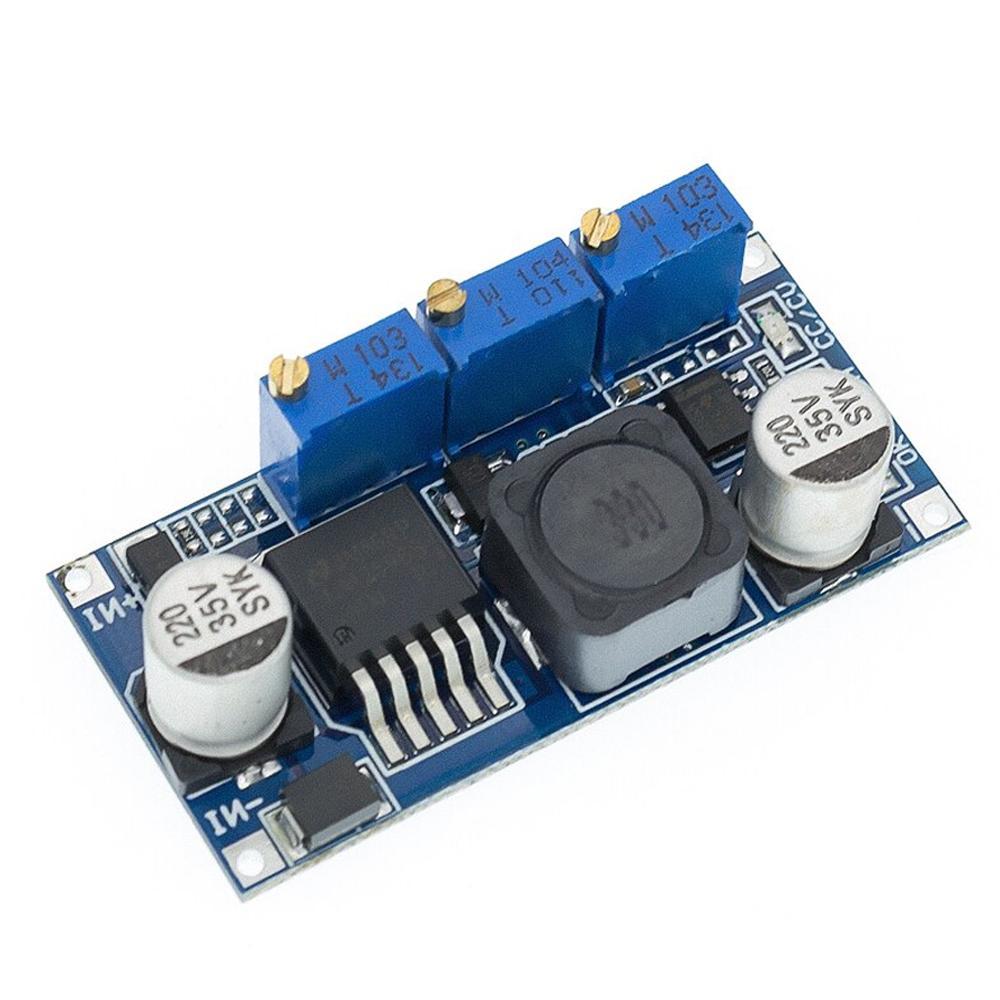

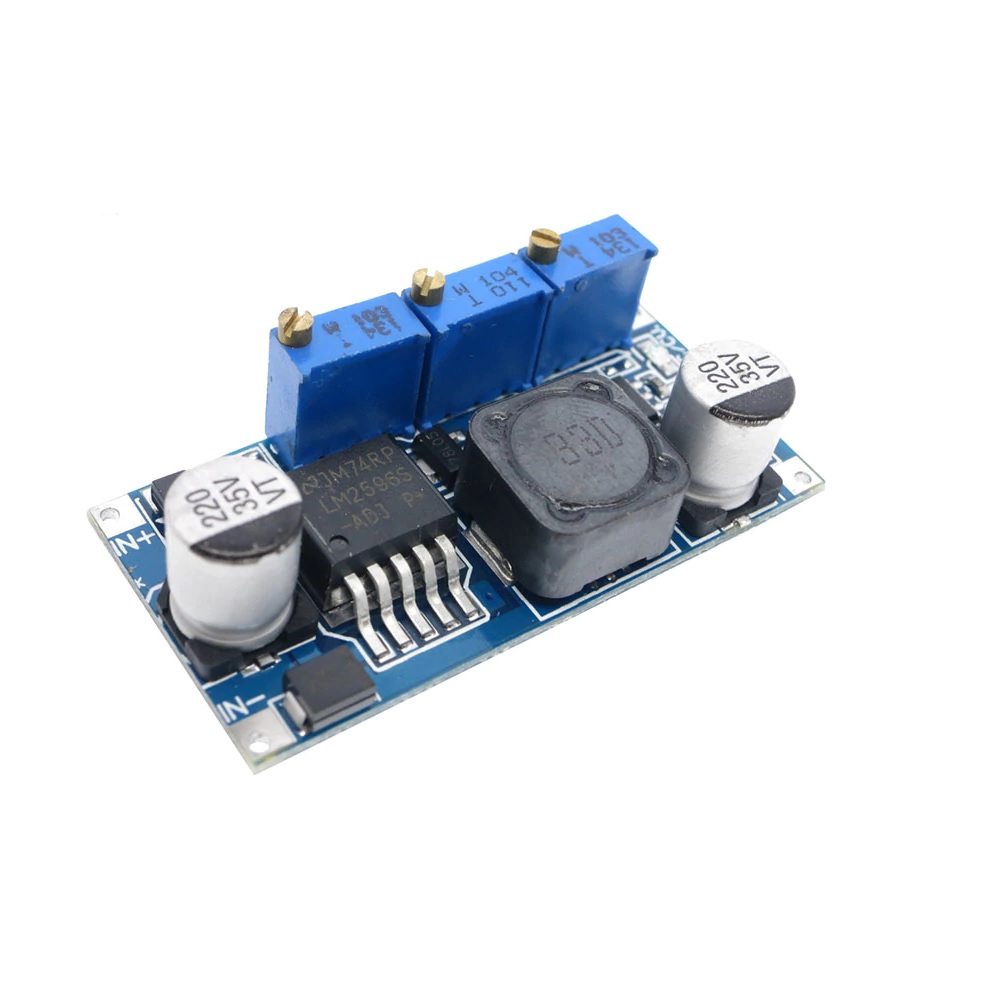

LM2596 Constant current constant voltage LED driving lithium ion battery charging module

Specifications:

  1. LM2596 LED Constant Current & Constant Voltage Driver Power Supply Module
  2. Input voltage: 7 V – 35 V; Output Voltage: 1.25 V – 30 V ; Output Current: adjustable maximum 3 A
  3. Conversion efficiency: 92% (the highest) ; Switching frequency, 150 KHZ; The Output ripple: 50 mv (Max) 20 m bandwidth
  4. The Load Regulation: plus or minus 0.5%; Voltage Regulation: plus or minus 2.5% ; Operating Temperature: – 40 ° to + 85 °
  5. Size: 46 mmx23mmx10mm / 1.81 x0.91 x0.39 (inch) (approx)
SKU: RDNA-483

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

175.82 (Inc. GST)
149.00 (+18% GST Extra)

Out of stock

Out of stock

14 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The battery charging method:

you need to determine the floating voltage of the rechargeable battery and the charging current, input voltage module adjust constant voltage potentiometer, adjust the output voltage to about 5V. use multimeter 10A current block to measure and output short circuit current, adjust constant current potentiometer at the same time, make output current reach the predetermined charging current value charging, turn the light current default to 0.1 times the charging current (constant current value), if you need to adjust, please adjust the current switch potentiometer; (generally do not adjust) to adjust the output voltage of the constant voltage potentiometer to float voltage connect the battery, test charge. LED constant current driving method: make sure you drive the operating current and maximum operating voltage of the LED adjust constant voltage potentiometer to make the output voltage reach the highest working voltage of LED connect LED, test machine. Package Contents:1 x Power module Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Package Includes :

1 x LM2596 Constant current constant voltage LED driving lithium ion battery charging module
