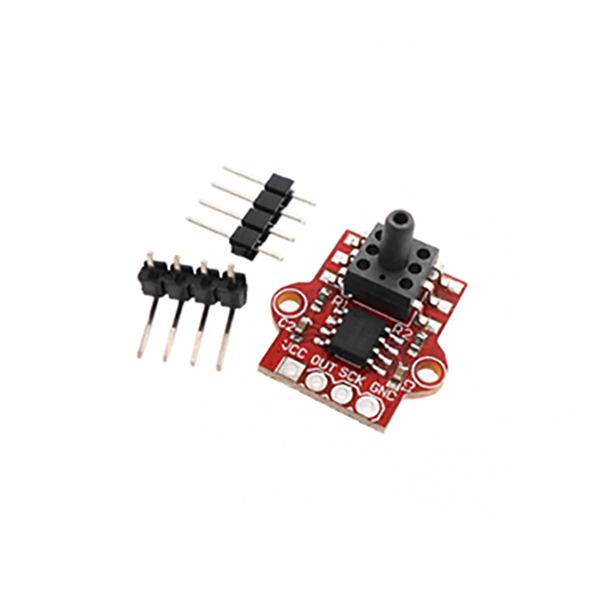

HX710B AIR PRESSURE (0-40KPA) SENSOR MODULE

328.99 (Including GST)

278.81 ( + 50.18 GST)

Specification:

  • Model – HX710B
  • Interface Type -Serial
  • Data Output Rate -10 SPS / 80SPS
  • Max. Operating Current (mA)-1.5
  • Operating Temperature Range (°C)-40 to 85
  • IC Package -16 Pin SOP
  • Gain -32 / 64 / 128
  • Length (mm)-18
  • Width (mm)-17
  • Height (mm)- 2
  • Weight (gm)- 2
  • Shipment Dimensions- 5 × 5 × 2 cm

Out of stock

Compare
SKU: RDNA-R3.35 Categories: ,

Share this product

Description

This HX710B air pressure sensor module uses a high-precision AD sampling chip, adopts a 0-40KPa air pressure sensor, can connect a 2.5mm hose, can detect water level, and other air pressure

Features:

  1. Two Selectable Differential Input Channels.
  2. On-Chip Active Low Noise PGA.
  3. Selectable Gain of 32,64 and 128.
  4. On-Chip Power Supply Regulator For Load Cell and ADC Analog Power Supply.
  5. On-Chip Power-ON-Reset
  6. Simple Digital Control And Serial Interface.

Datasheet available here.
