500MM, 16mm/S, 500N, 12V Linear Actuator

Specifications:

  • Permanent magnet DC motor drive: Voltage 12VDC
  • Max Current: Less than 2 Amp
  • Self Locking Force: 500N
  • Working temperature: -20ºC to +63ºC
  • Aluminium frame and extension tube
  • Compact Design
  • Built in Limit Switch
  • Low Noise
  • Moisture-proof Surface
  • Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
  • YNT-03
SKU: RDAN-NP26

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

4,718.82 (Inc. GST)
3,999.00 (+18% GST Extra)

Out of stock

Out of stock

14 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This Miniature Linear Actuator Stroke Length 500MM, 16mm/S, 500N, 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro motion control switch, etc.

Note:

  •  The actual product may vary in terms of color and markings.
  •  The following conditions can cause serious damage to the product.
    • Direct connect with AC power
    • Use in the above standard voltage environment
    • Push/Pull exceed the maximum value of the product show
    • The stroke did not finish, still with power, forced to cease.
  •  The following conditions may shorten the product life.
    • High frequency operation
    • High temperature

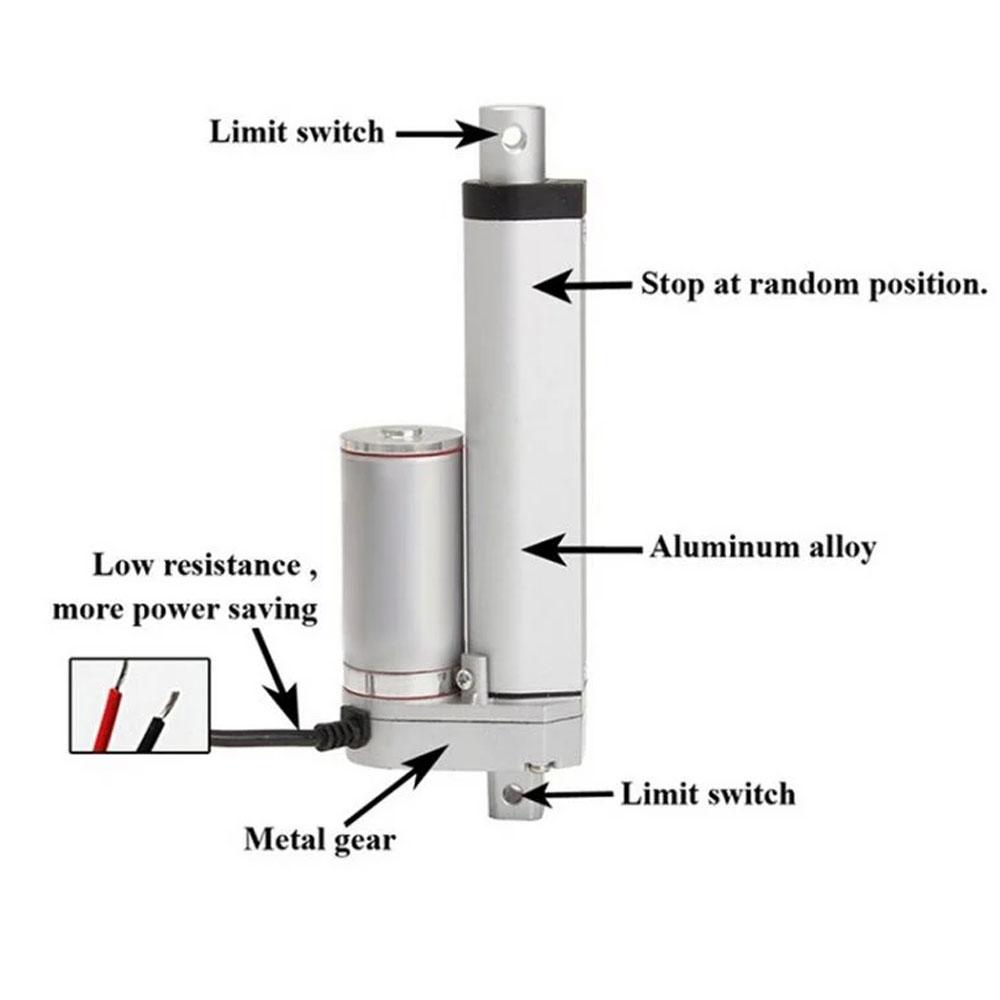

Following figure shows various parts of Linear Actuator. Also, please refer to the schematic provided in the attachments for dimensions of the actuator.

Linear Actuator Stroke Parts

Features:

  • Aluminum frame and extension tube
  • Compact Design
  • Built in Limit Switch
  • Low Noise
  • Moisture-proof Surface
  • Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
  • Permanent magnet DC motor drive: Voltage 12VDC
  • Self Locking Force: 500N

Applications:

  • Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
  • The medical electric bed, surgical bed, traction bed
  • Electric equipment’s: Electric sofa, electric lifting lever, electric booth, electric sunroof, etc.;
  • Chair for medical use: Electric wheelchair, massage chair, dental chair.
  • Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Package Includes:

  • 1 x Linear Actuator Stroke Length 500MM, 16mm/S, 500N, 12V
