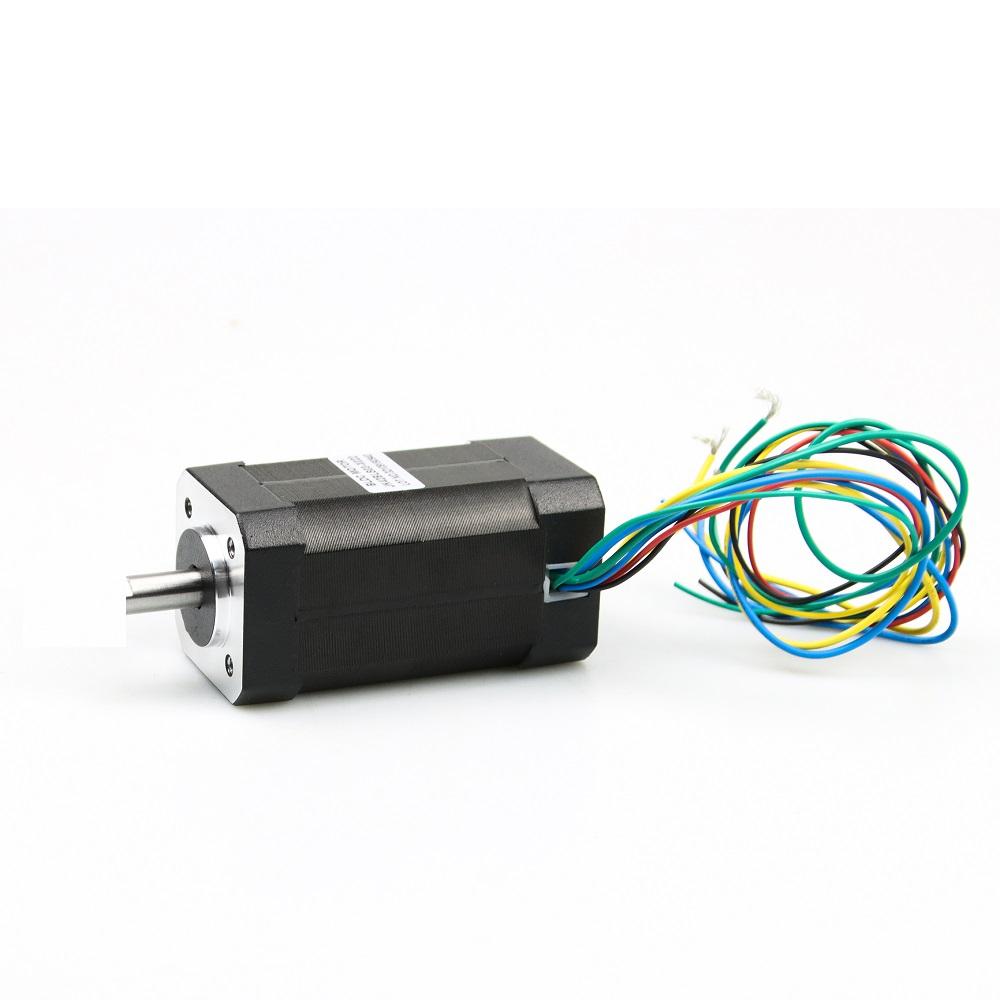

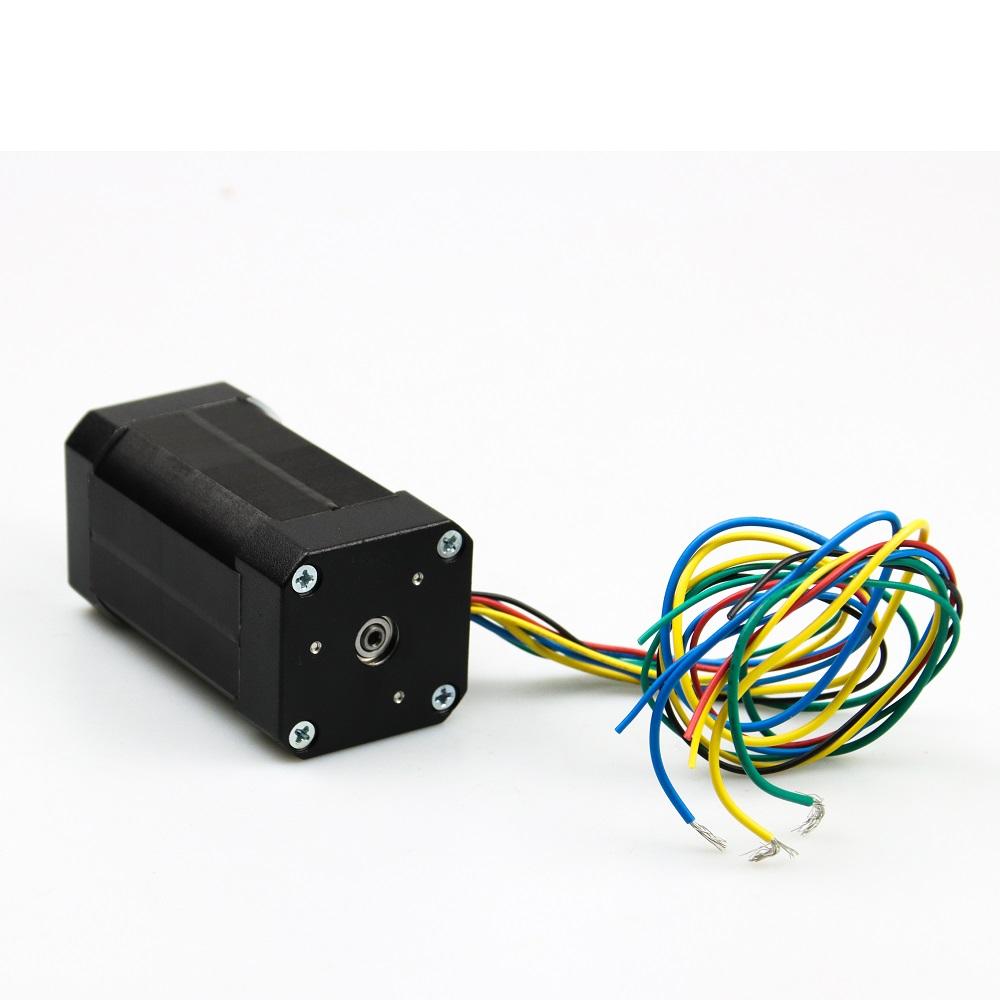

JK42BLS03 77W 24V 4000RPM 42mm Square Brushless Dc motor
₹2,803.68 (Inc. GST)₹2,376.00 (+18% GST Extra)
- Model No.: JK42BLS03
- Number of Phase: 3phase
- Number of Poles: 8poles
- Rated Voltage: 24V
- Rated Speed: 4000Rpm
- Rated Torque: 0.18Nm
- Rated Current: 4.8A
- Rated Power: 77W
- Peak Torque: 0.56Nm
- Peak Current: 15.5A
- Rotor Inertia: 72g.cm3
- Body Length: 81mm
Out of stock
Description
JK42BLS03 DC24V 4000rpm 77.5W 0.18N.m 4.8A Brushless DC Motor With Hall-sensor 3-phase Brushless BLDC Motor
Specification:
- Model No.: JK42BLS03
- Number of Phase: 3phase
- Number of Poles: 8poles
- Rated Voltage: 24V
- Rated Speed: 4000Rpm
- Rated Torque: 0.18Nm
- Rated Current: 4.8A
- Rated Power: 77W
- Peak Torque: 0.56Nm
- Peak Current: 15.5A
- Rotor Inertia: 72g.cm3
- Body Length: 81mm
- Sensor: Honeywell
- Insulation Class: B
- Degree of Protection: IP30
- Storage Temperature: -15~+70℃
- Operation Temperature: -15~50℃
Features :
- The model is JK42BLS04
- Metal body, strong hardness, exquisite workmanship, not easy to rust.
- Pure copper motor, small resistance, better conductivity, high torque.
- Bass design, no noise interference.
- Can be used in Automation Equipment.
APPLICATION：
Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.
Package Includes :
1 x JK42BLS03 77W 24V 4000RPM 42mm Square Brushless Dc motor
