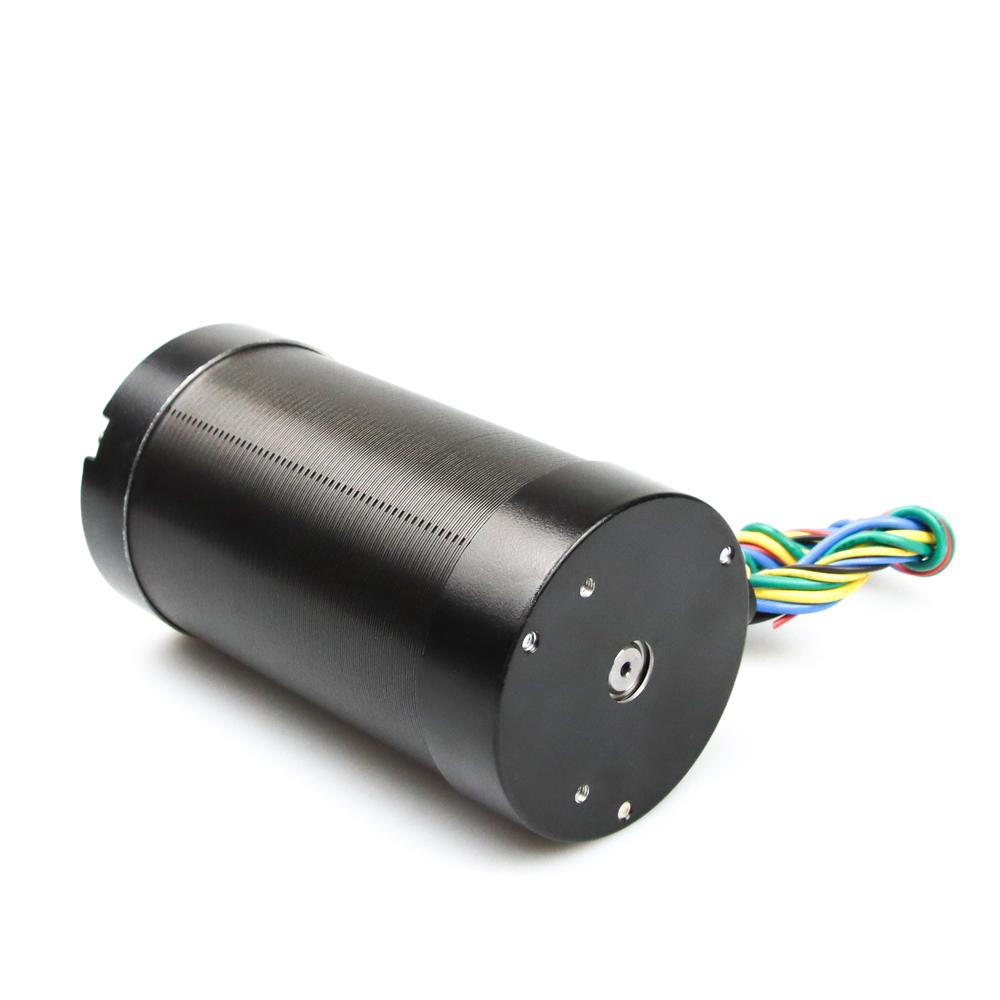

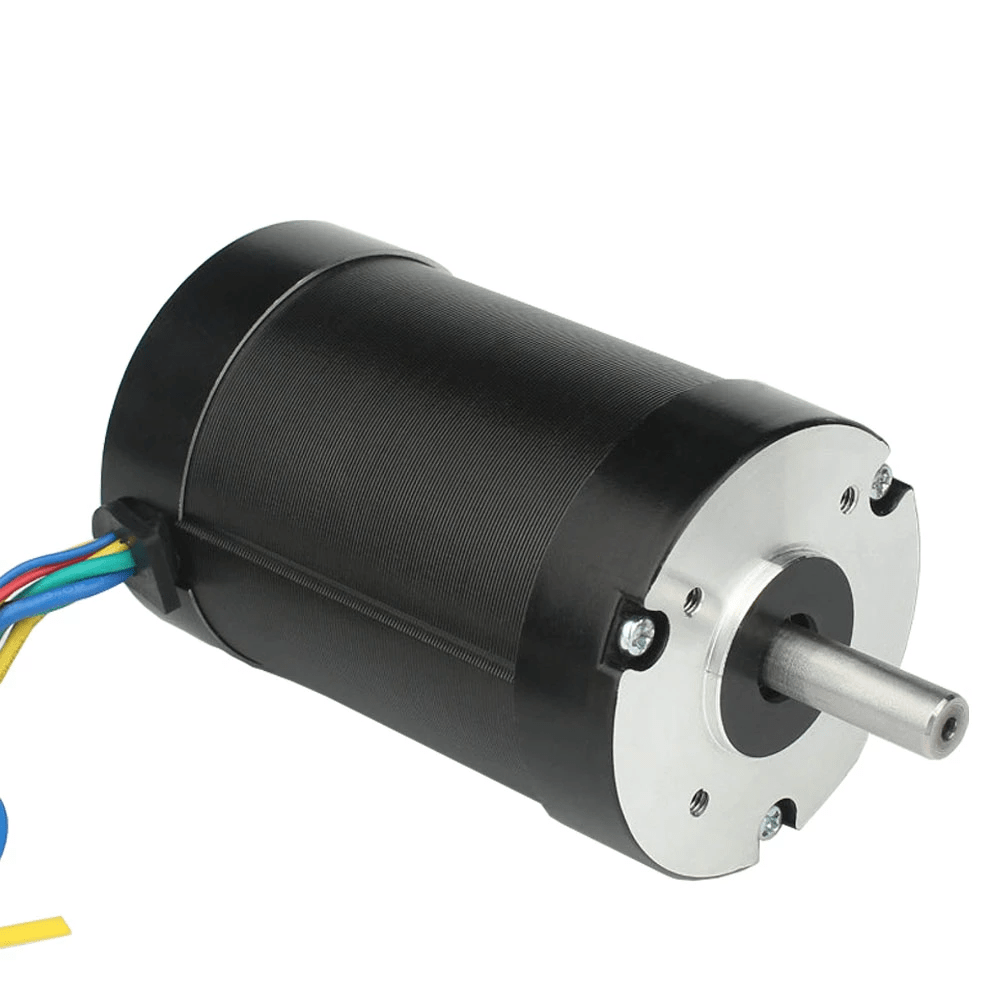

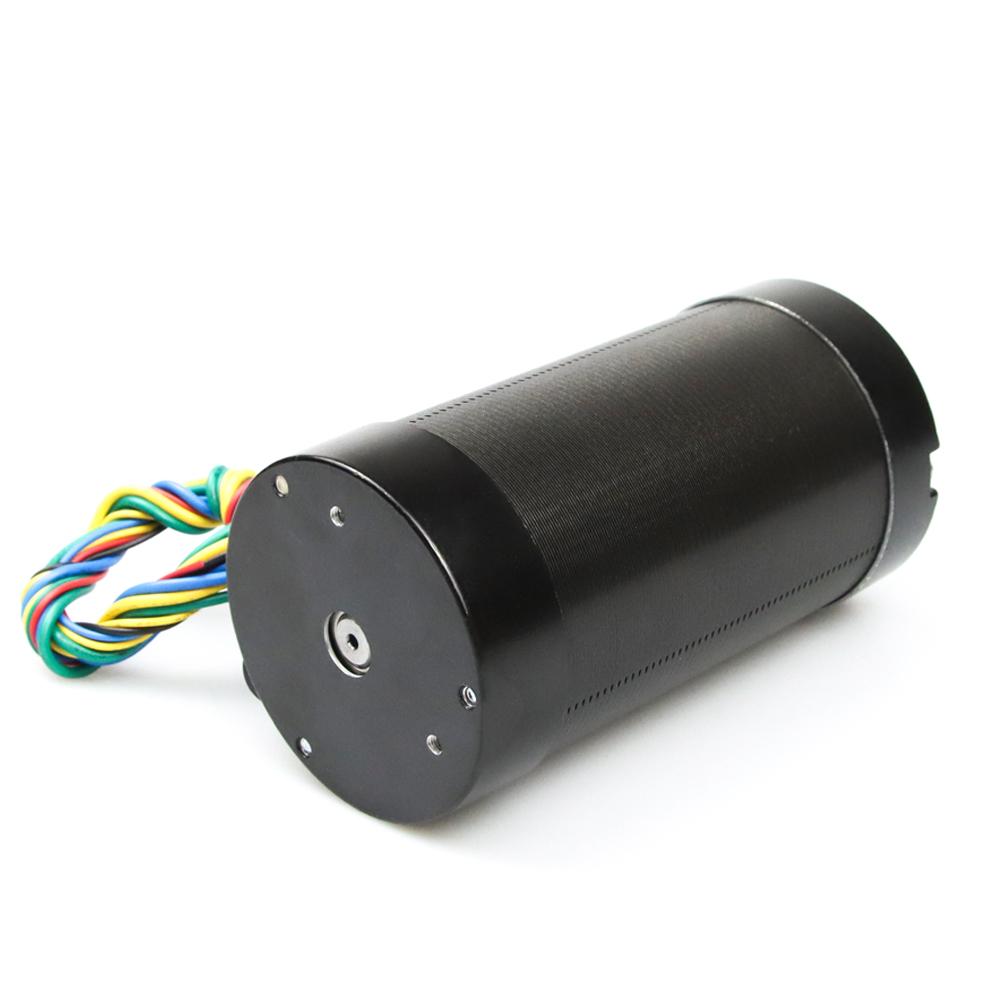

JK57BLS04 184W 36V 4000RPM 57mm Round Brushless Dc motor

Specifications:

- Rated Power: 184W
- Rated Voltage: 36V DC
- Rated Speed: 4000 RPM
- Motor Diameter: 57mm (round frame)
- Current: Typical operating current is around 4.5A – 5A, depending on the load
- Torque: Produces a typical torque of around 0.4 Nm – 0.5 Nm
- Number of Poles: Typically 8 poles
- Hall Sensors: Integrated for precise rotor position feedback
- Commutation: Electronic (requires an external controller)
- Efficiency: High, typically around 85% – 90%
- Cooling: Generally air-cooled, additional cooling may be required for high-load applications

SKU: RDNA-C7.18

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹3,304.00 (Inc. GST)
₹2,800.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

14 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The JK57BLS04 is a compact yet powerful BLDC motor with a 57mm diameter round frame, making it perfect for applications where space is limited but high performance is essential. Operating at a rated voltage of 36V DC, this motor can achieve a maximum speed of 4000 RPM, delivering an impressive power output of 184W. This makes the JK57BLS04 suitable for more intensive and high-demand applications compared to its predecessors.
