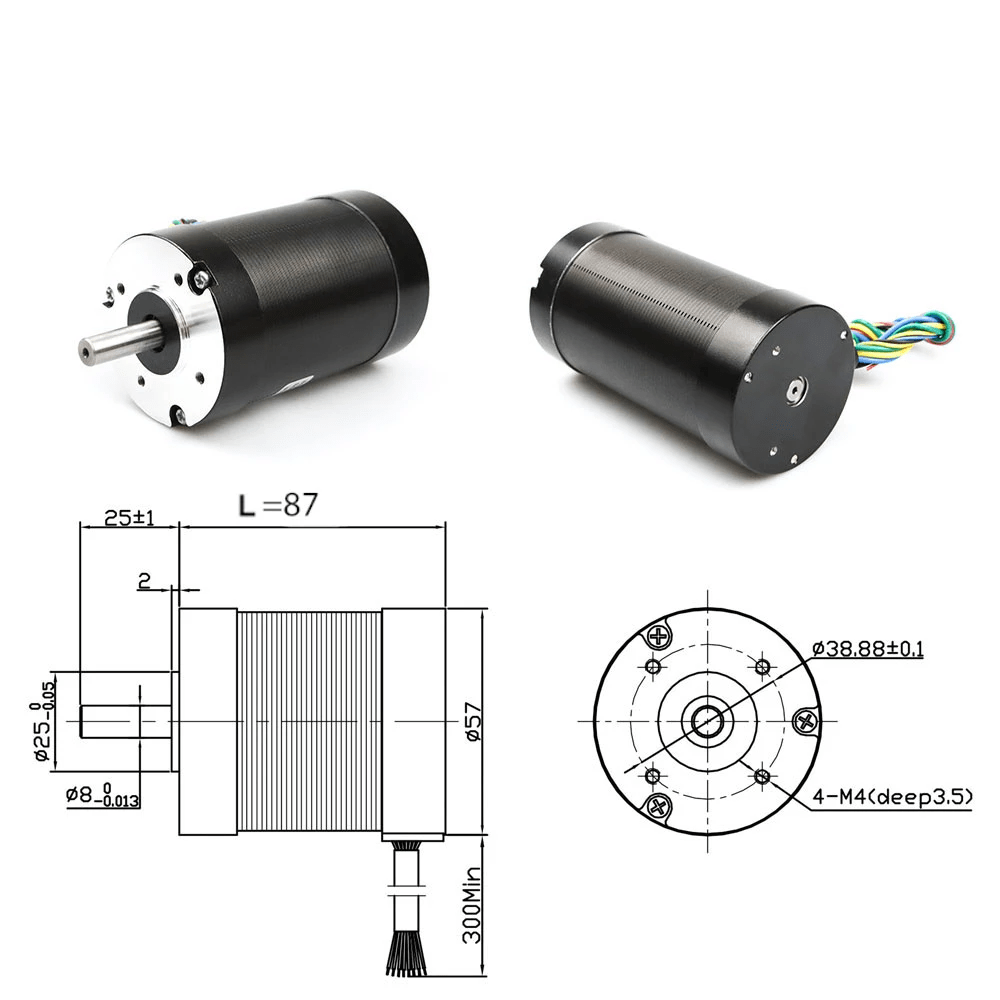

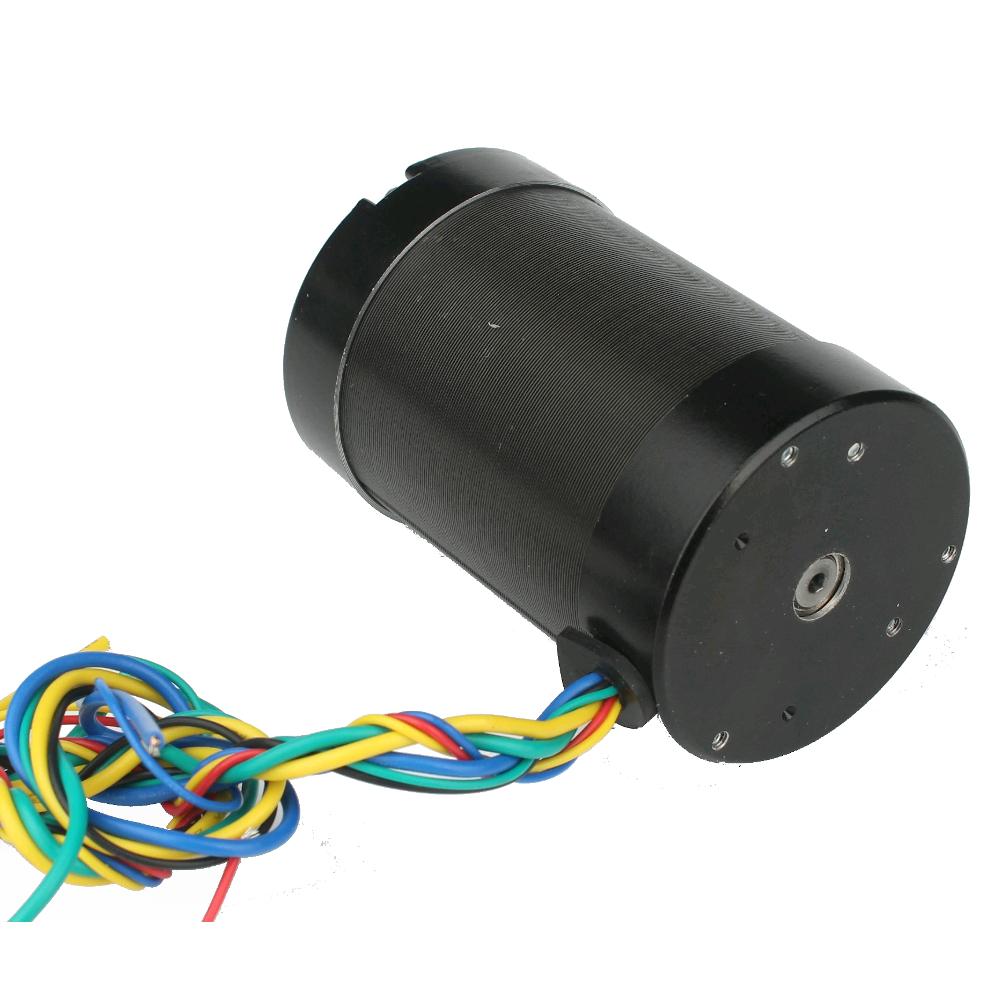

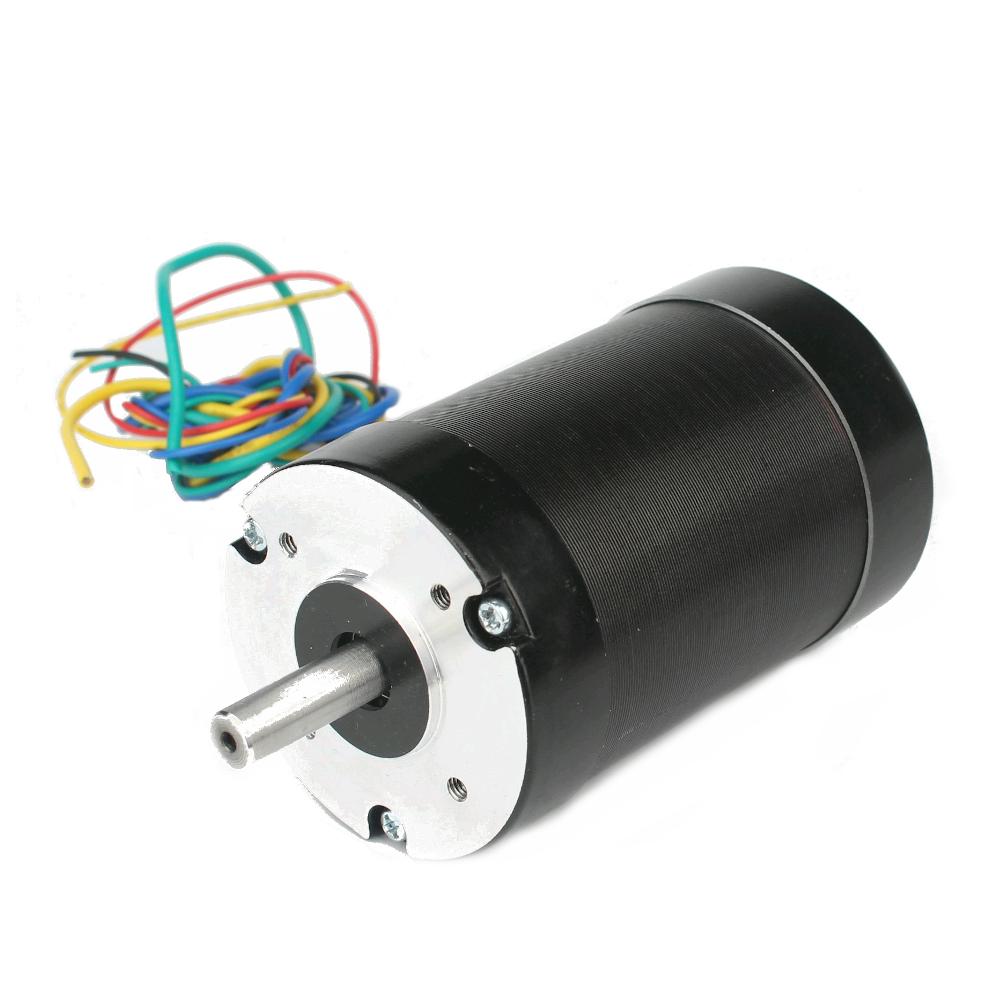

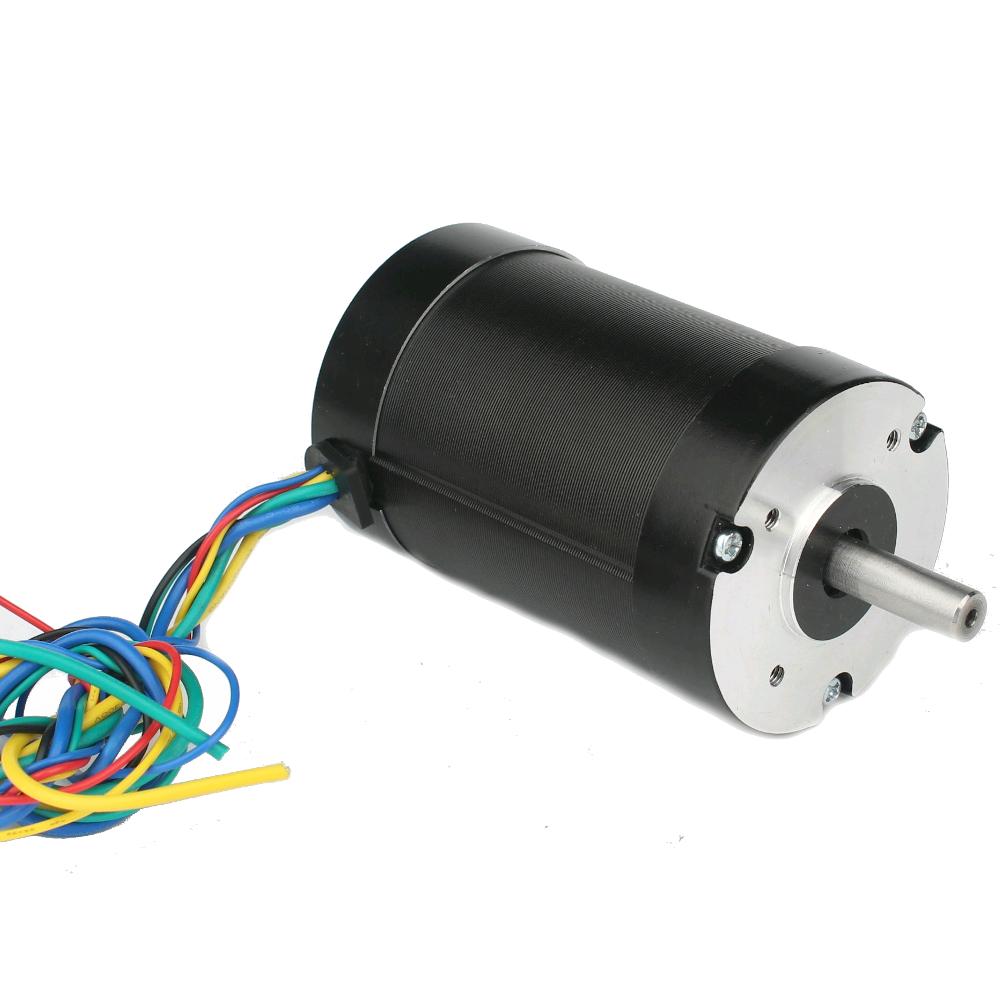

JK57BLS03 138W 36V 4000RPM 57mm Round Brushless Dc motor

3,855.06 (Inc. GST)3,267.00 (+18% GST Extra)

  • Model No.: JK57BLF03
  • Number of Phase: 3phase
  • Number of Poles: 4poles
  • Rated Voltage: 36V
  • Rated Speed: 4000Rpm
  • Rated Torque: 0.33Nm
  • Rated Current: 5.3A
  • Rated Power: 138W
  • Peak Torque: 1Nm
  • Peak Current: 15.5A
  • Rotor Interia: 173g.cm3
  • Body Length: 87mm

Only 1 left in stock

Compare
SKU: RDNA-U6.53 Category:

Share this product

Description

JK57BLS02 DC36V 4000rpm 138W 1N.m  5.3A Brushless DC Motor With Hall-sensor 3-phase Brushless BLDC Motor

Specification:

  1. Brand: Jkongmotor
  2. Model No.: JK57BLF03
  3. Number of Phase: 3phase
  4. Number of Poles: 4poles
  5. Rated Voltage: 36V
  6. Rated Speed: 4000Rpm
  7. Rated Torque: 0.33Nm
  8. Rated Current: 5.3A
  9. Rated Power: 138W
  10. Peak Torque: 1Nm
  11. Peak Current: 15.5A
  12. Rotor Interia: 173g.cm3
  13. Body Length: 87mm
  14. Senser: Honeywell
  15. Insulation Class: B
  16. Degree of Protection: IP30
  17. Storage Temperature: -15~+70℃
  18. Operation Temperature: -15~50℃

Features:

  1.  The model is JK57BLS03
  2.  Metal body, strong hardness, exquisite workmanship, not easy to rust.
  3.  Pure copper motor, small resistance, better conductivity, high torque.
  4.  Bass design, no noise interference.
  5.  Can be used in Automation Equipment.

Package Includes :

1 x JK57BLS03 138W 36V 4000RPM 57mm Round Brushless Dc motor
