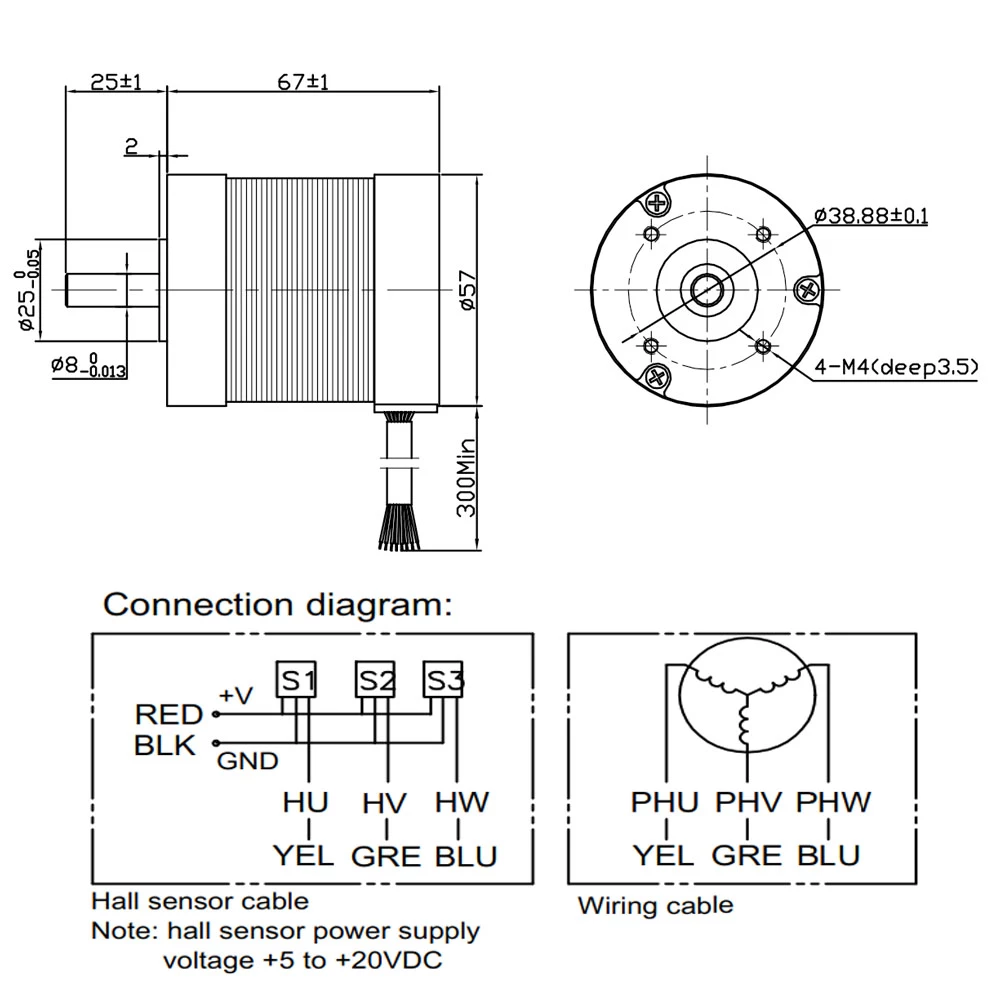

JK57BLS02 92W 36V 4000RPM 57mm Round Brushless Dc motor

Specifications:

    • Rated Power: 92W
    • Rated Voltage: 36V DC
    • Rated Speed: 4000 RPM
    • Motor Diameter: 57mm (round frame)
    • Current: Typical operating current is around 2.5A – 3A, depending on the load
    • Torque: Produces a typical torque of around 0.2 Nm – 0.3 Nm
    • Number of Poles: Typically 8 poles
    • Hall Sensors: Integrated for precise rotor position feedback
    • Commutation: Electronic (requires an external controller)
    • Efficiency: High, typically around 85% – 90%
    • Cooling: Generally air-cooled, additional cooling may be required for high-load applications
SKU: RDNA-200

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

3,127.00 (Inc. GST)
2,650.00 (+18% GST Extra)

Only 2 left in stock

Only 2 left in stock

13 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Description:

The JK57BLS02 is a compact and powerful BLDC motor with a 57mm diameter round frame, making it ideal for applications where space is limited but performance cannot be compromised. Operating at a rated voltage of 36V DC, this motor can achieve a maximum speed of 4000 RPM, providing a balance of speed and torque suitable for demanding tasks. The JK57BLS02 offers a higher power rating of 92W compared to its predecessor, making it suitable for more intensive applications.

Features:

  1. The model is JK57BLS02
  2. Made of pure copper, strong power.
  3. High degree of matching of bearings and stable operation.
  4. Micro motor, easy to carry.
  5. High-speed operation, low heat generation.
  6. Noise reduction design, low noise.
  7. Small volume, torsion big.

Package Includes :

1 x JK57BLS02 92W 36V 4000RPM 57mm Round Brushless Dc motor
