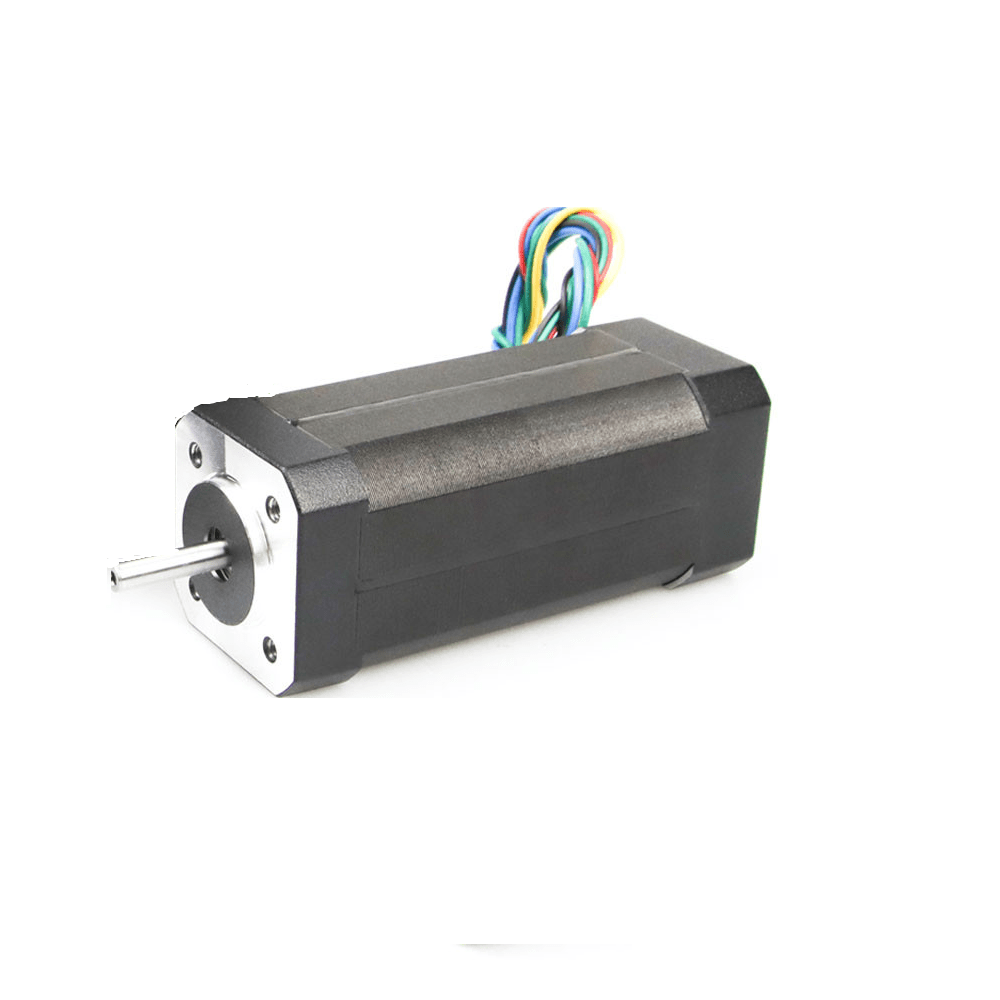

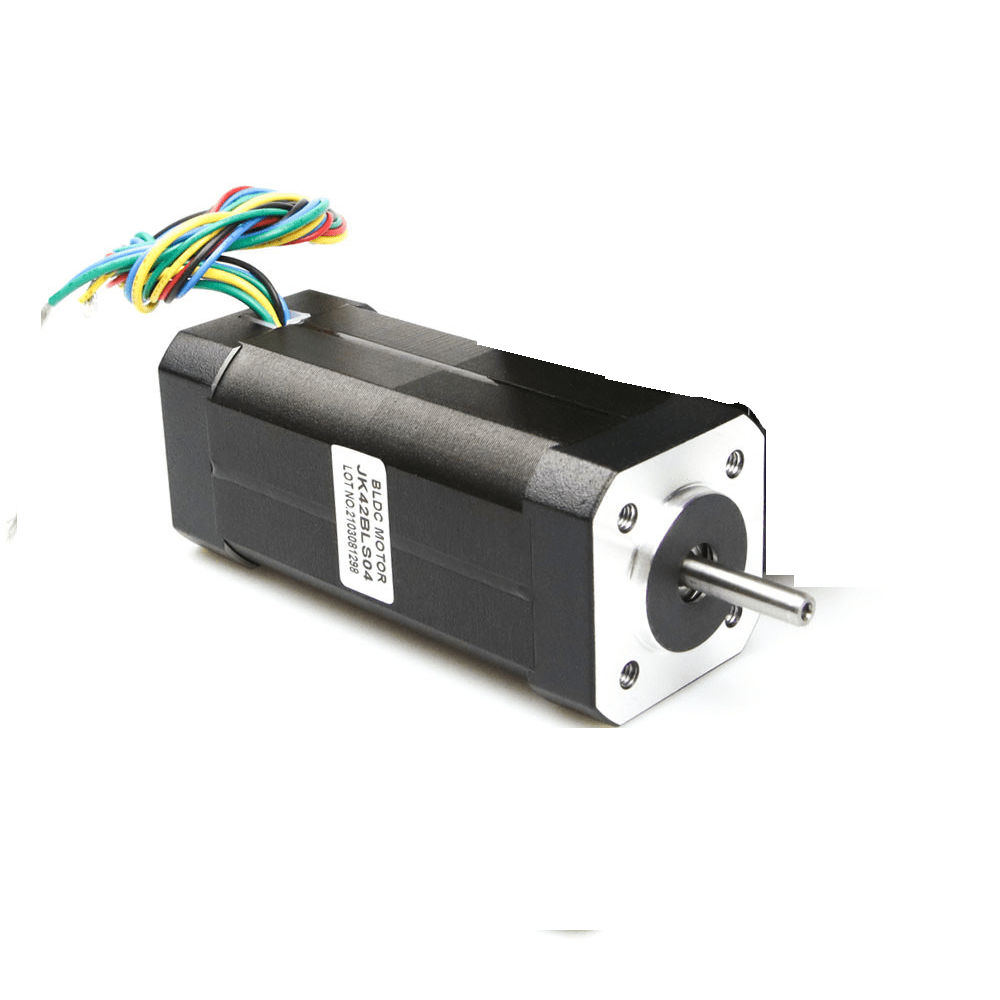

JK42BLS04 105W 24V 4000RPM 42mm Square Brushless Dc motor

Specifications:

- Rated Power: 105W
- Rated Voltage: 24V DC
- Rated Speed: 4000 RPM

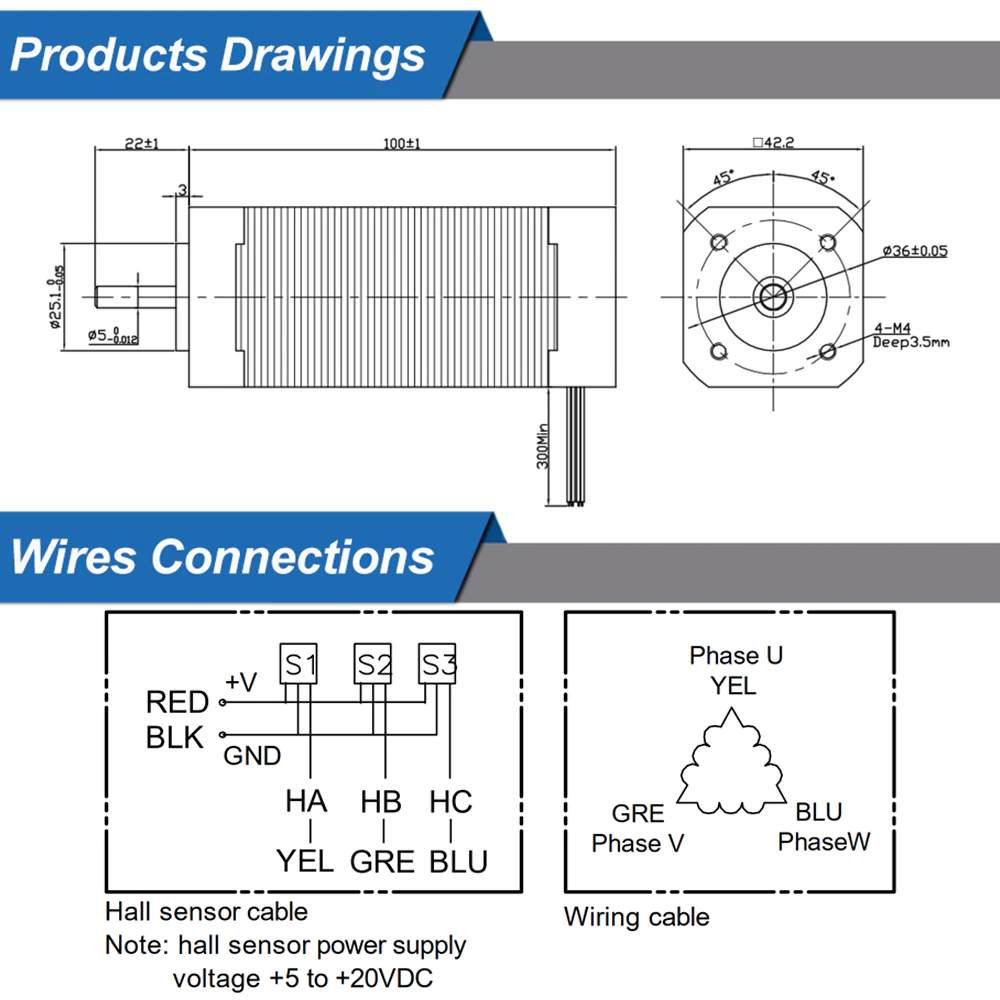

- Motor Dimensions: 42mm square frame
- Current: Typical operating current is around 4.5A – 5A, depending on the load
- Torque: Produces a typical torque of around 0.25 Nm – 0.35 Nm
- Number of Poles: Typically 8 poles
- Hall Sensors: Integrated for precise rotor position feedback
- Commutation: Electronic (requires an external controller)
- Efficiency: High, typically around 85% – 90%
- Cooling: Generally air-cooled, additional cooling may be required for high-load applications

SKU: RDNA-K4.24

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹3,481.00 (Inc. GST)
₹2,950.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

14 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The JK42BLS04 is a compact yet powerful BLDC motor with a 42mm square frame, making it perfect for applications where space is limited but high performance is essential. Operating at a rated voltage of 24V DC, this motor can achieve a maximum speed of 4000 RPM, delivering an impressive power output of 105W. This makes the JK42BLS04 suitable for various intensive and high-demand applications.

Features :

The model is JK42BLS04
Metal body, strong hardness, exquisite workmanship, not easy to rust.
Pure copper motor, small resistance, better conductivity, high torque.
Bass design, no noise interference.
Can be used in Automation Equipment.

APPLICATION：

Medical equipment: medical pumps, stirring instruments, peristaltic pumps, biopharmaceutical equipment. Industrial equipment: winding machines, printing machines, robots, grinding, cutting, drilling, automatic conveying systems, automatic positioning systems, level control systems, electric actuators, electric valves, vending machines.
