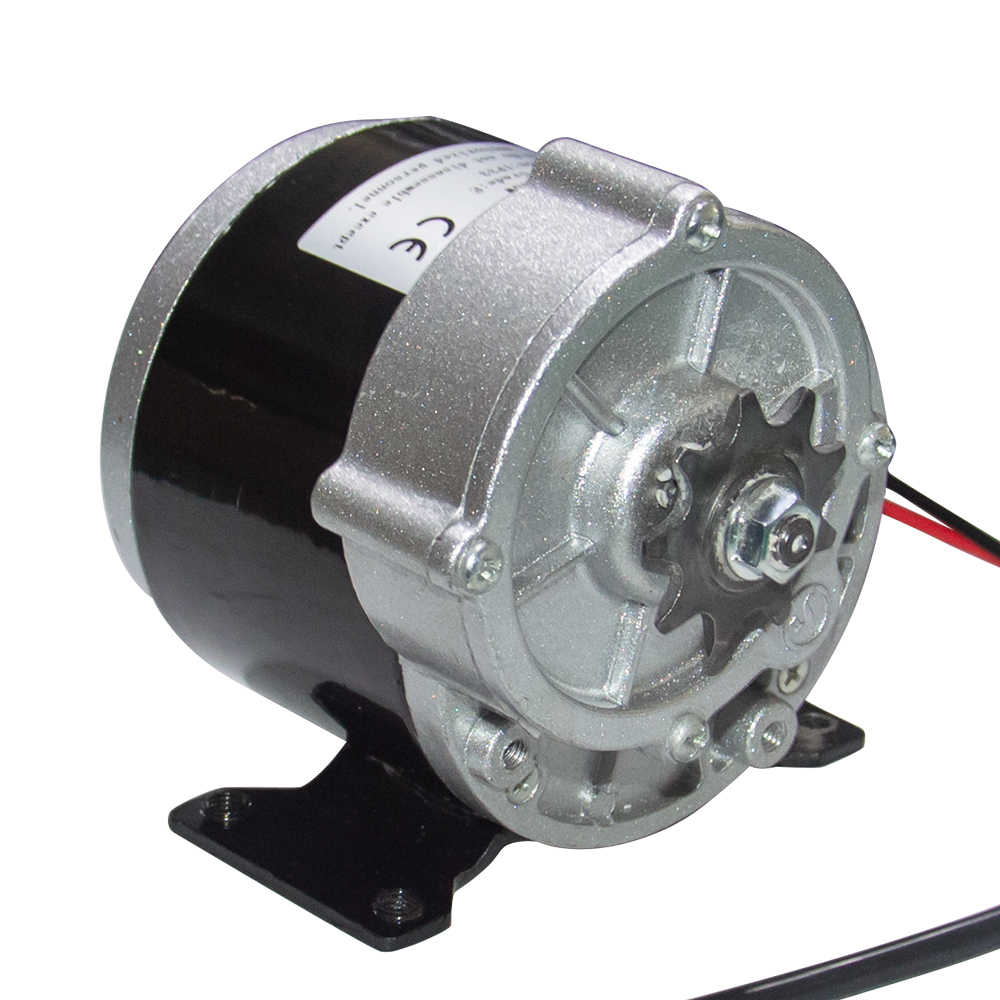

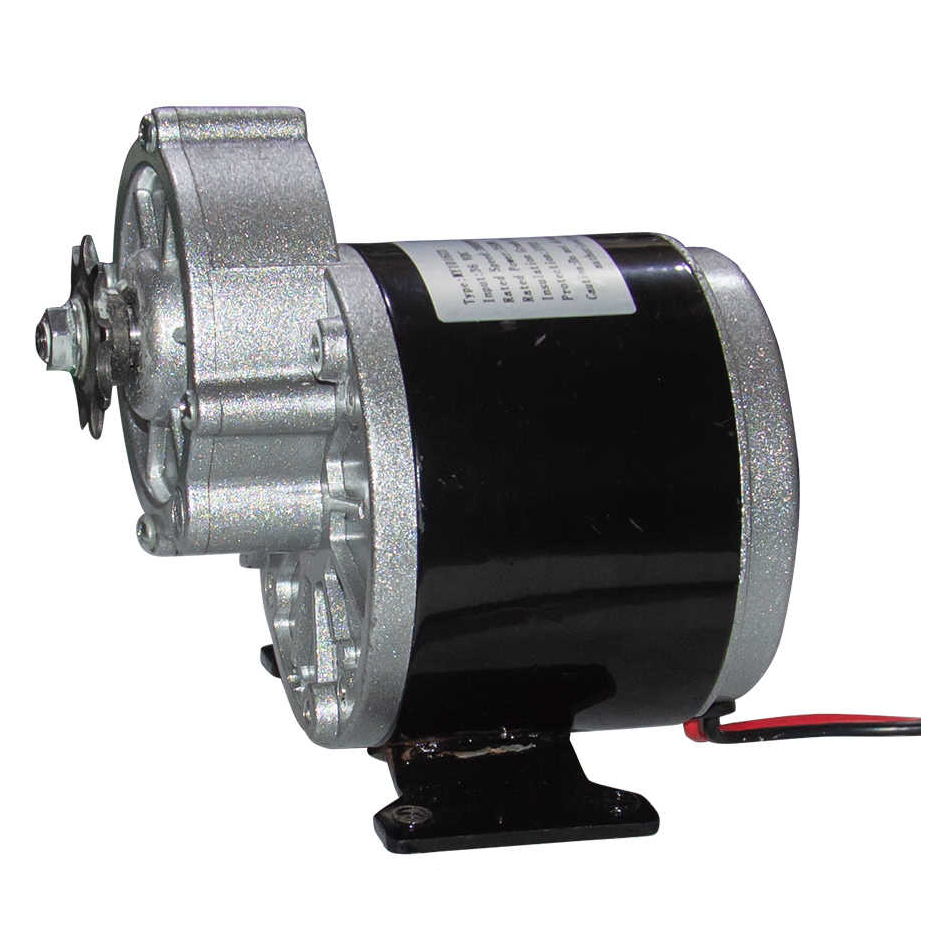

Ebike MY1016Z2 24V 350W 330RPM Geared DC Motor (NON-UNIT)

Specifications:

Model : MY1016Z2
Rated Current(A) : 18A
Voltage : 24V
Rated Speed : 3300 RPM (speed of motor before geared)
310 RPM (after geared output speed)
Operating Power : 350 Watt.
Gear Ratio : 9.78:1
Rated Torque (Kg-Cm) : 8.15
Min. Reduction Ratio : 9.78
Gearbox : Yes
Cable Length (Meter) : 0.5

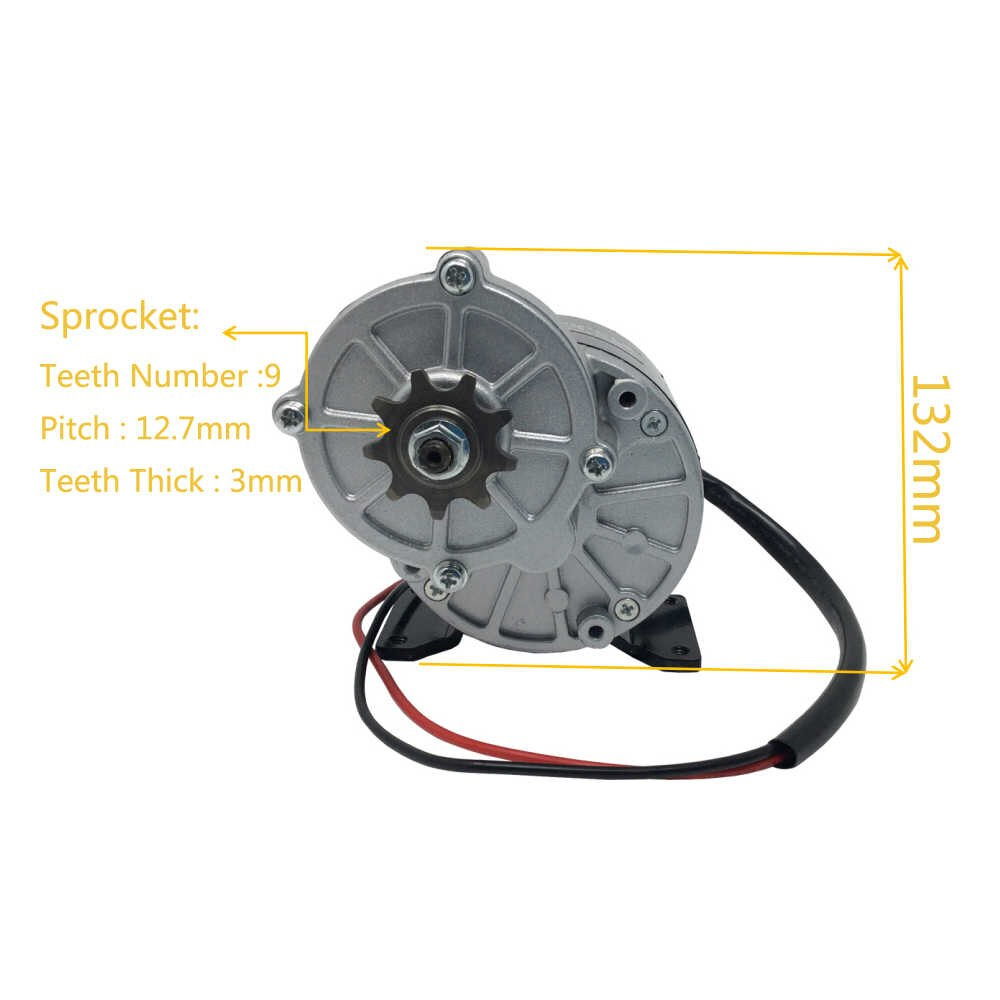

Sprocket : 9Tooth only fits #410 bicycle chains.
Weight (Kg) : 2.35

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹3,849.99 (Inc. GST)
₹3,262.71 (+18% GST Extra)

In stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Ebike MY1016Z2 350W 310rpm Geared DC motor is a popular reduction dc motor & it’s simply the most commonly used motor for scooters, bikes, and quads available in the market! Also due to its robustness, it is also in many DIY projects like Segway, e-cars, etc and in many robots like ATV robots, combat robots etc.It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination. The low range (usually in the cheap kiddie carts) unit is generally a Johnson or Mabuchi 550 motor hooked together to a plastic toy gearbox (pretty poor quality). Most people use this 350W motor as a starting block for building their own carts, warbot, Segway,etc..etc. It’s suitable for kids up to about 5-7 years old (after that they may be getting a little heavy, and any younger and you won’t be able to catch the kids). These use a common mounting block which makes replacement of a worn or broken motor a painless swap over. They are quite powerful for their small size and extremely reliable.
