300MM,7mm/S, 1500N, 24V Linear Actuator

Specifications:

Operating Voltage: 24 V
Self Locking Force: 1500N
Working temperature: -20ºC to +63ºC
Aluminum frame and extension tube
Compact Design
Built-in Limit Switch
Moisture-proof Surface
Long life: A service life of more than 50000 times.

SKU: RDNA-AC1.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹4,321.16 (Inc. GST)
₹3,662.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

19 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This Miniature Linear Actuator Stroke Length 200MM,7mm/S,1500N,24V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod. It can be used in a various simple or complex process. This electric push rod is a kind of electric driving device as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.

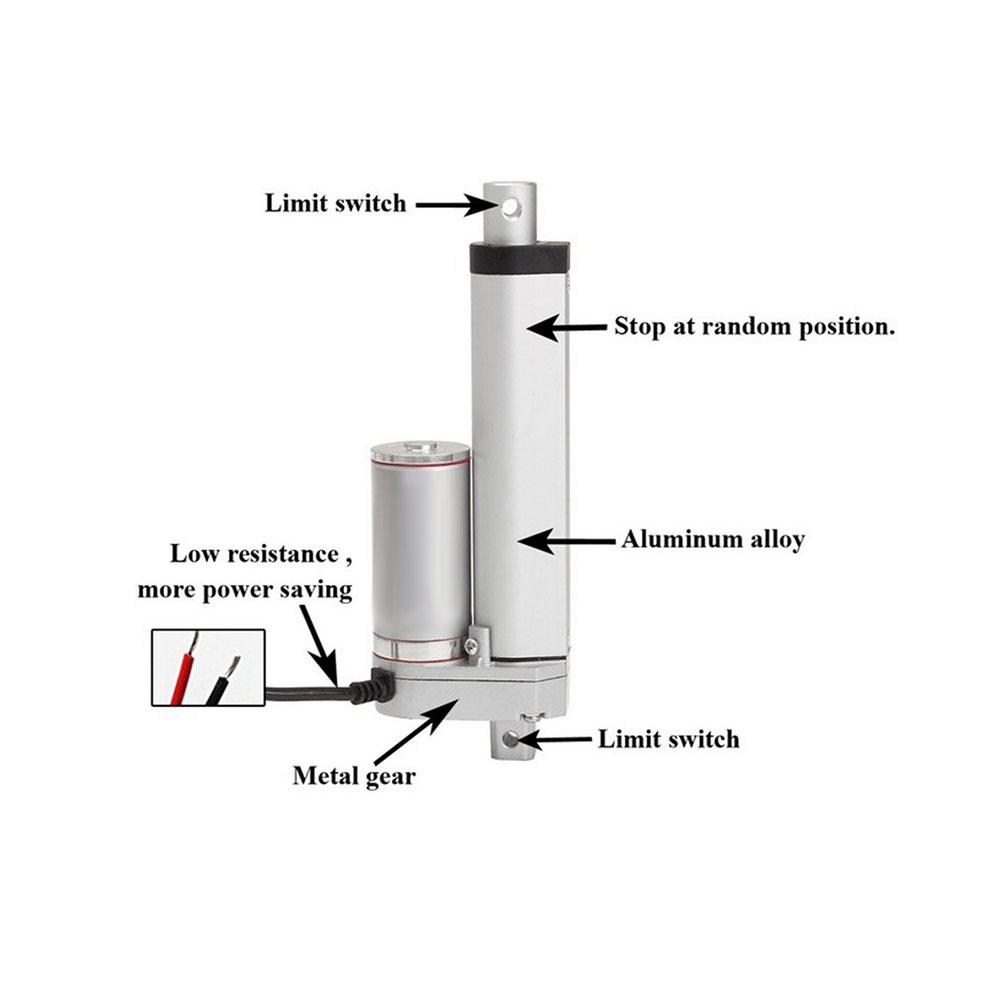

Linear Actuator Parts:

Following figure shows various parts of Liear Actuator. Also, please refer to the schematic provided in the attachments for dimensions of the actuator.
