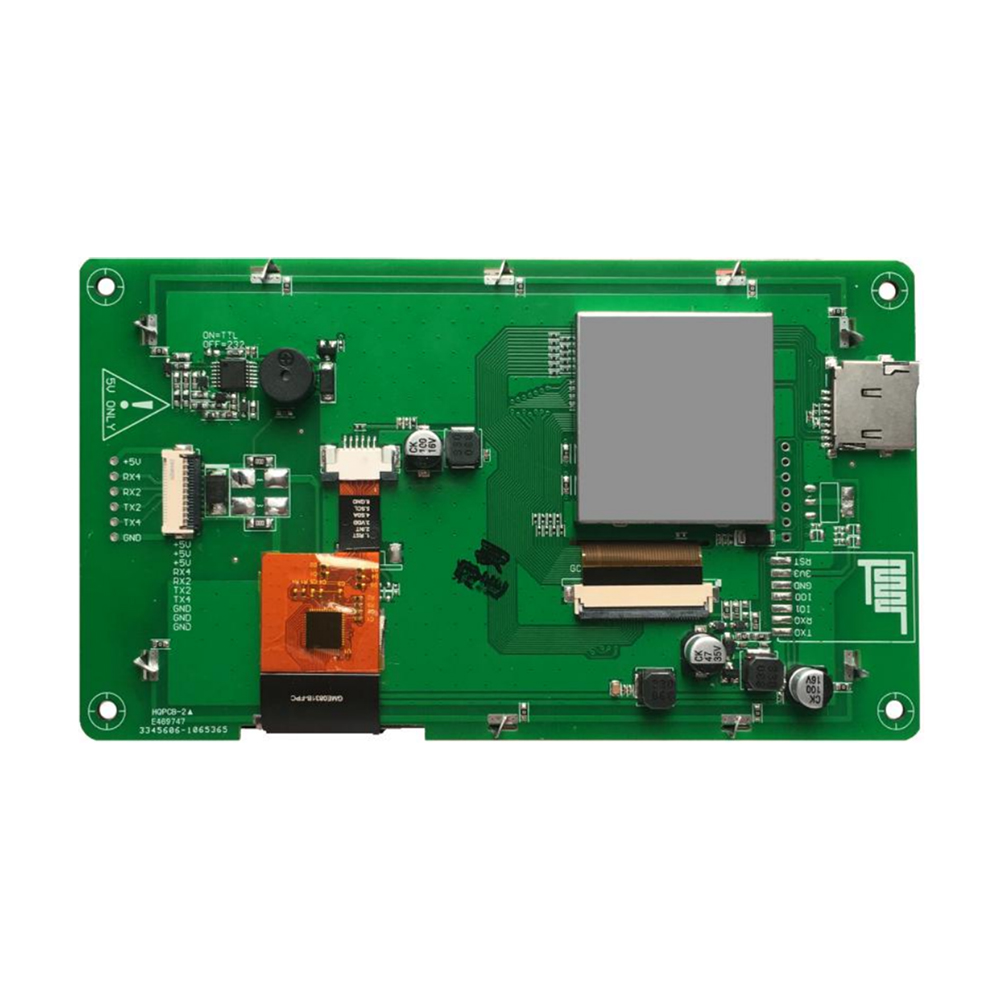

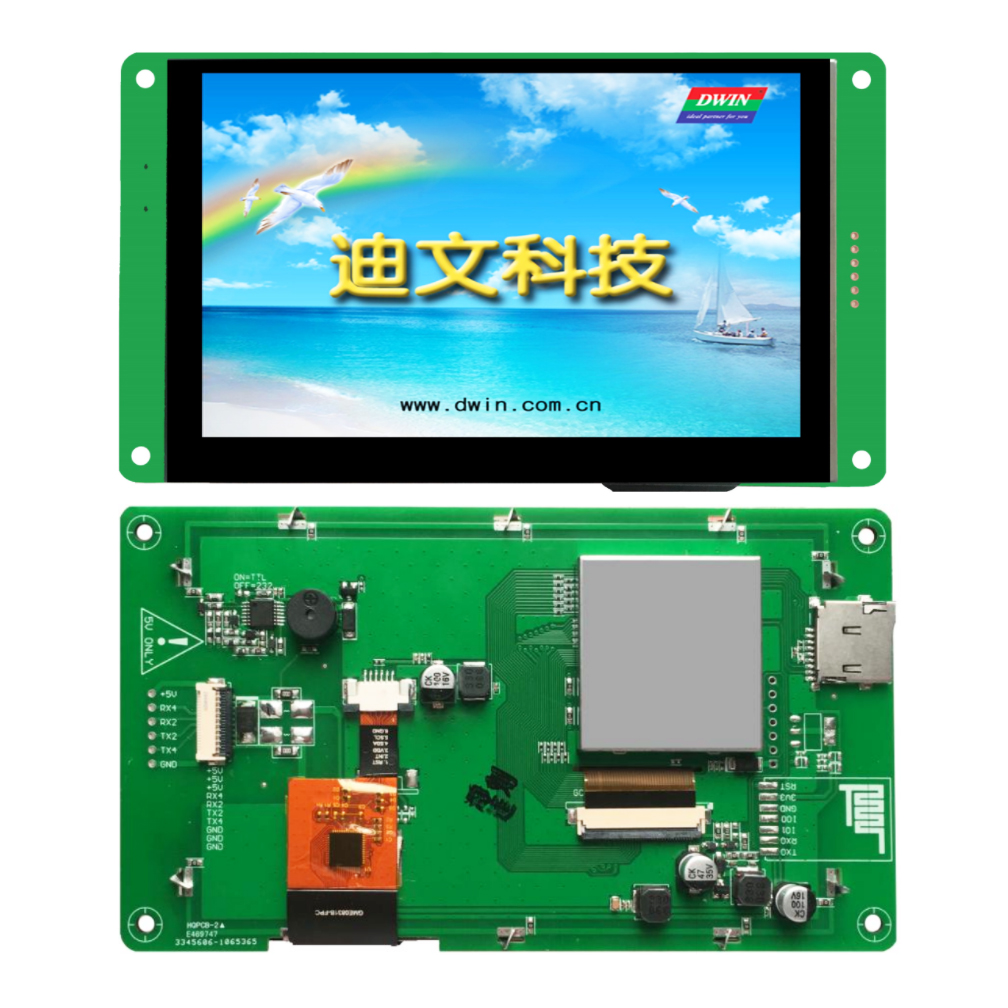

DWIN 5 inch 800*480 Resolution HMI UART Serial, Capacitive touch Smart Screen

This Dwin 5 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives user great and useful tool to develop their own UI with great Feature. One can design UI Suh as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it supported with RGB color and 16.7M colors. It is also equipped with 250nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

Display:

• Size -5″
• Display Format -480×800 Pixel Matrix
• Brightness -250nit
• Active Area – 108.0mm (W) ×64.8mm (H)
• Colour – 24-bit color 8R8G8B
• Backlight – LED

Interface:

• UART4 : Mode is determined by Jumper :( be used after OS configuration )
  ON=N81/E81/O81/N82, 3.3V&5V TTL/COMS ;
  OFF=N81/E81/O81/N82,RS232.

FLASH Memory:16MB.

Full Feature List:

• Built-in DGUS II intelligent software
• Integrated smart screen
• Powerful data management
• Active Area (AA): 108.0mm (W) ×64.8mm (H)
• Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
• Dimensions:143.5(W) × 80.9(H) × 15.8(T) mm
• Brightness 250nit
• 16.7M  colors
• Capacitive  touch screen, Buzzer

Package List:

1. 5″ SMART SCREEN x 1qty

Datasheet available here.

Guidance for Development Book
