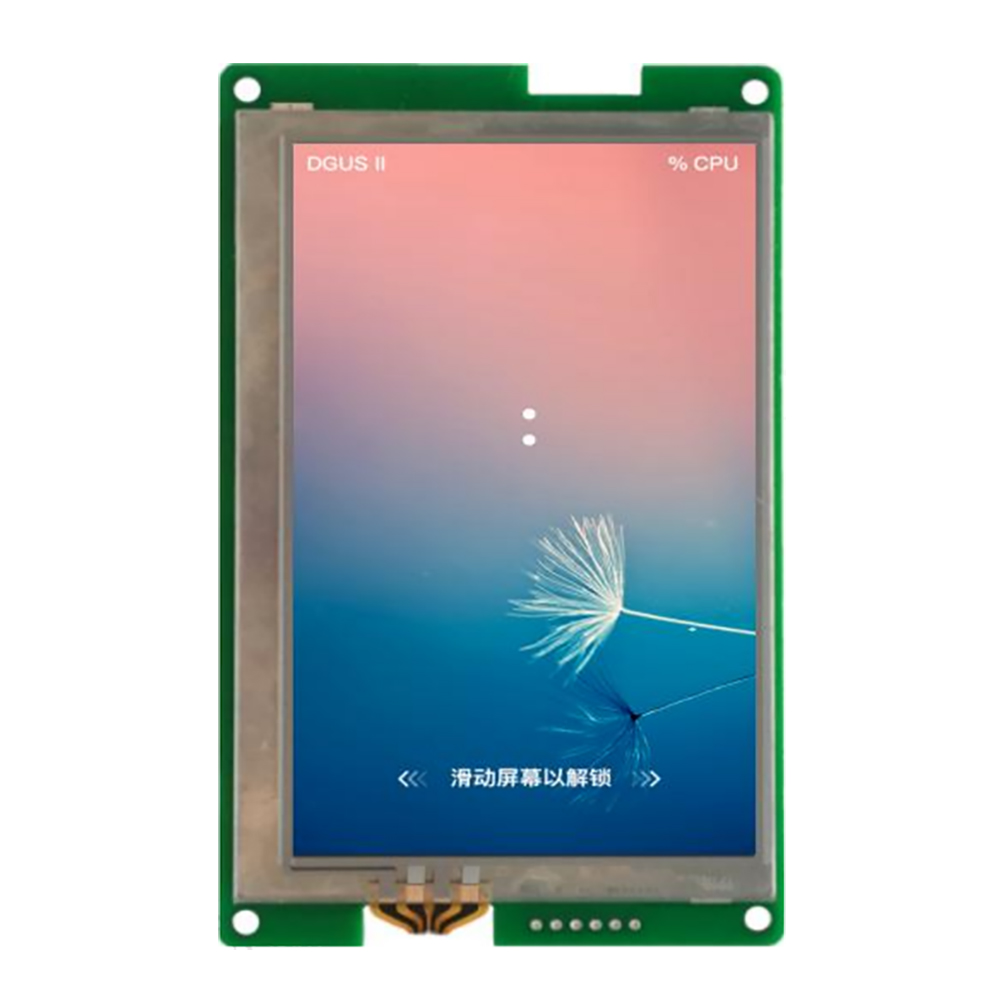

DWIN 4.3 inch 800*480 Resolution HMI UART Serial, Capacitive Touch Smart Screen

5,900.00 (Inc. GST)5,000.00 (+18% GST Extra)

Specifications:

  • DMG80480C043_01WN
  • Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
  • Integrated smart screen
  • Brightness 300nit
  • 16.7M colors
  • FLASH Memory 16Mbytes
  • RAM Memory:128Kbytes
  • Powerful data management
  • Built-in DGUS II intelligent software
  • Active Area (AA):56.16mm (W) ×93.6mm (H)
  • Dimensions:121.9(W) × 73.2(H) ×14.1 (T) mm
  • Capacitive touch screen, Buzzer
  • UI Version: TA / DGUS II ( DGUS II pre-installed)

Only 2 left in stock

Compare
SKU: RDNA-P5.44 Category:

Share this product

Description

This Dwin 4.3 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives user great and useful tool to develop their own UI with great Feature. One can design UI SUch as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it supported with RGB color and 16.7M colors. It is also equipped with 200nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.
Display:

  • Size -4.3″
  • Display Format -480×800 Pixel Matrix
  • Brightness -200nit
  • Active Area – 56.16mm (W) ×93.6mm (H)
  • Colour – 24-bit color 8R8G8B
  • Backlight – LED

Interface:

  • UART2 : N81 , 3.3V TTL/CMOS
  • UART4 : Optional N81/E81/O81/N82 four mode , 3.3V TTL/CMOS

FLASH Memory:16MB.
Full Feature List:

  • Built-in DGUS II intelligent software
  • Integrated smart screen
  • Powerful data management
  • Active Area (AA):56.16mm (W) ×93.6mm (H)
  • Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
  • Dimensions:121.9(W) × 73.2(H) ×14.1 (T) mm
  • Brightness 200nit
  • 16.7M colors
  • Capacitive touch screen, Buzzer

Package List:

  1. 4.3″ SMART SCREEN x 1qty

Datasheet available here.

Guidance Book for Development
