Dtech High Speed Active Photoelectric Isolation RS485 Hub RS232 RS485 to 2 Port RS485 Hub

Specifications :

Interface: Compatible with RS-232 and RS-485 standards of EIA/TIA
Electric connection: 10-bit wiring terminal for both RS-232 and RS-485 interface
Transmission media: twisted-pair cable or shielded cable
Operation mode: Asynchronous half-duplex
Power supply: 9-30VDC/350mA
Signal indication: 7 signal indicators – Power (PWR), Transmission (TD), Receive (RD), Error (E1-E4) • Isolation voltage: continuous 2.5KVrms /500VDC isolation DC/DC module
Data rate: 115.2K-300BPS
Protection class: +/-15KV ESD protection for RS-232 interface; 600W lightning strike and surge protection for
each RS-485 line.
Communication distance: 0-5 KM (115200bps-300bps) • Dimension: 120mm 80mm 25mm
Working environment: -40 to 85 relative £¬ humidity of 5% to 9

SKU: RDNA-G6.35

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹6,466.40 (Inc. GST)
₹5,480.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

15 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

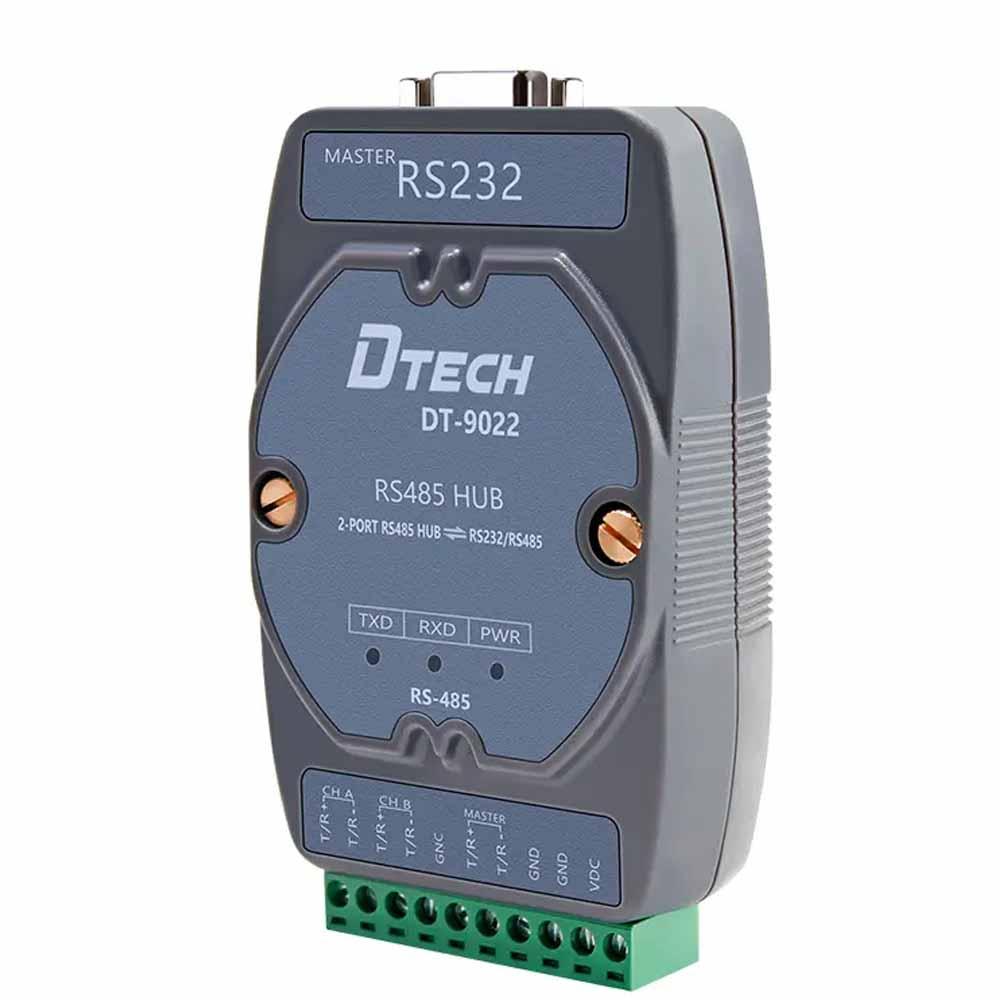

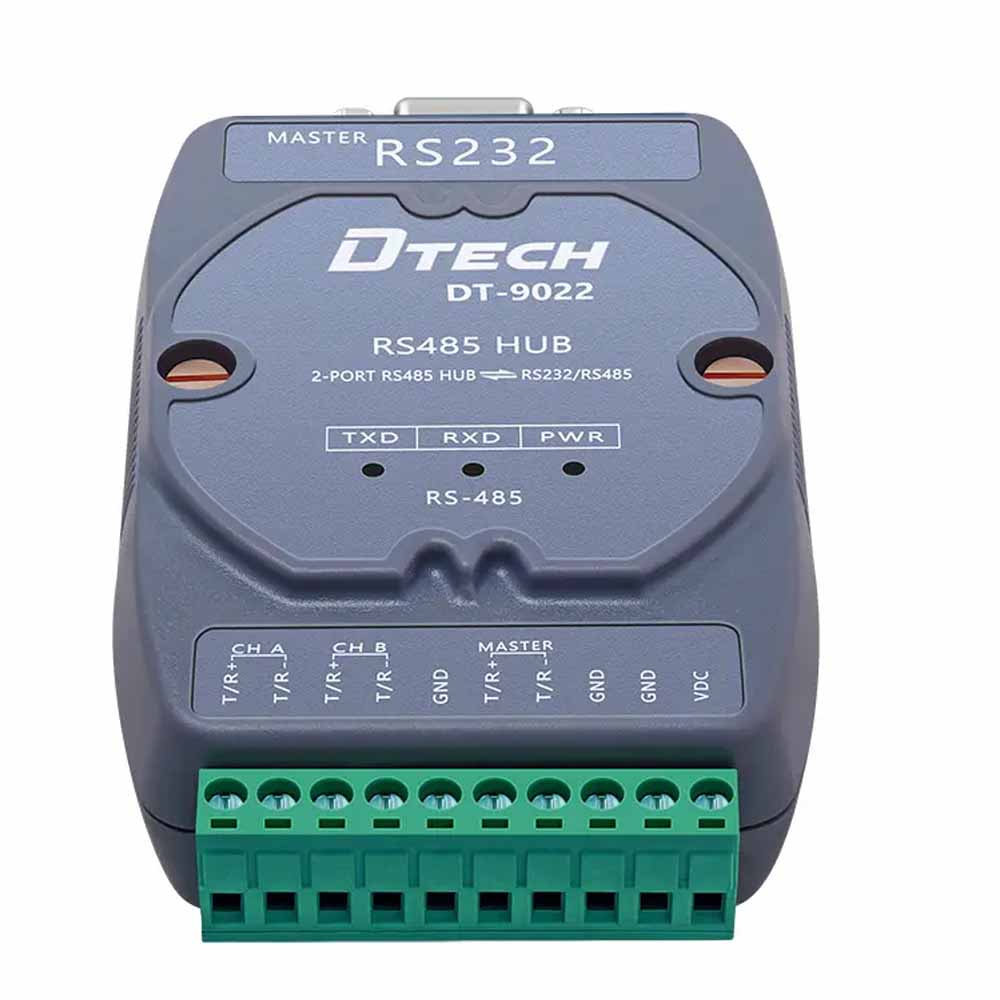

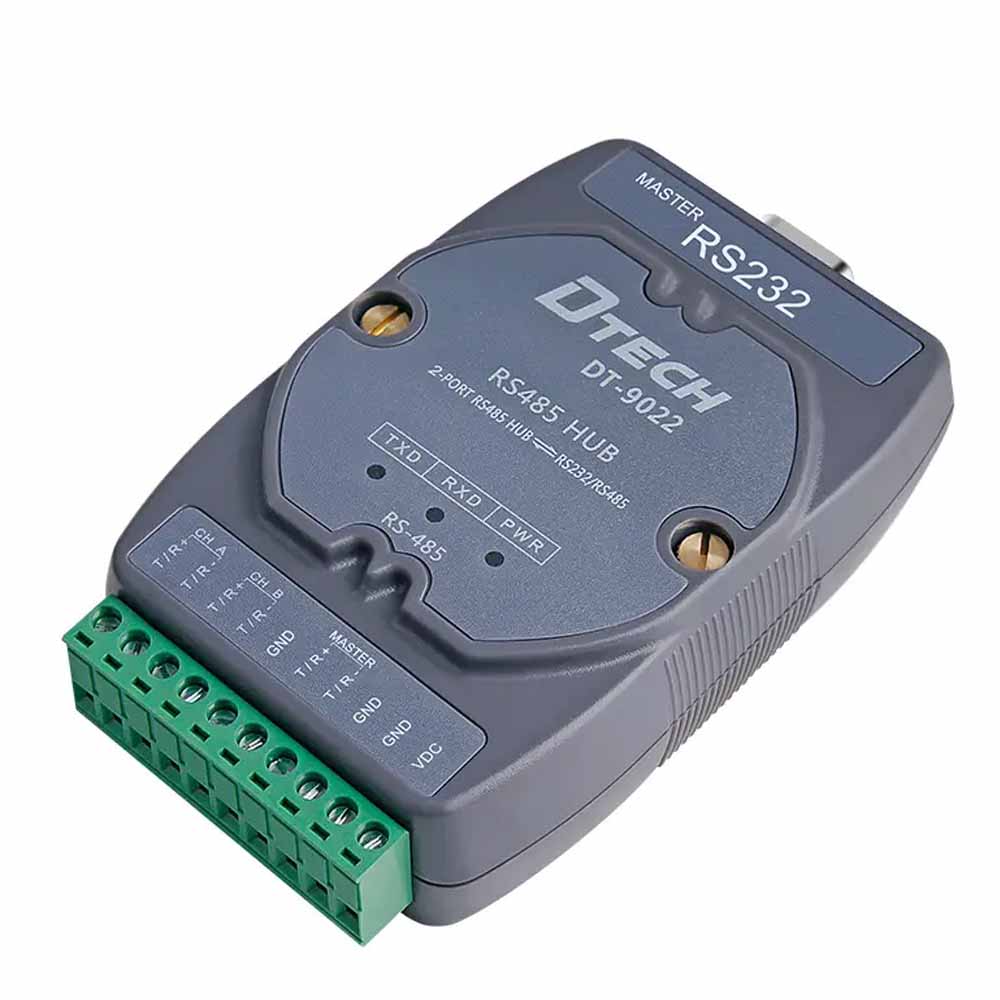

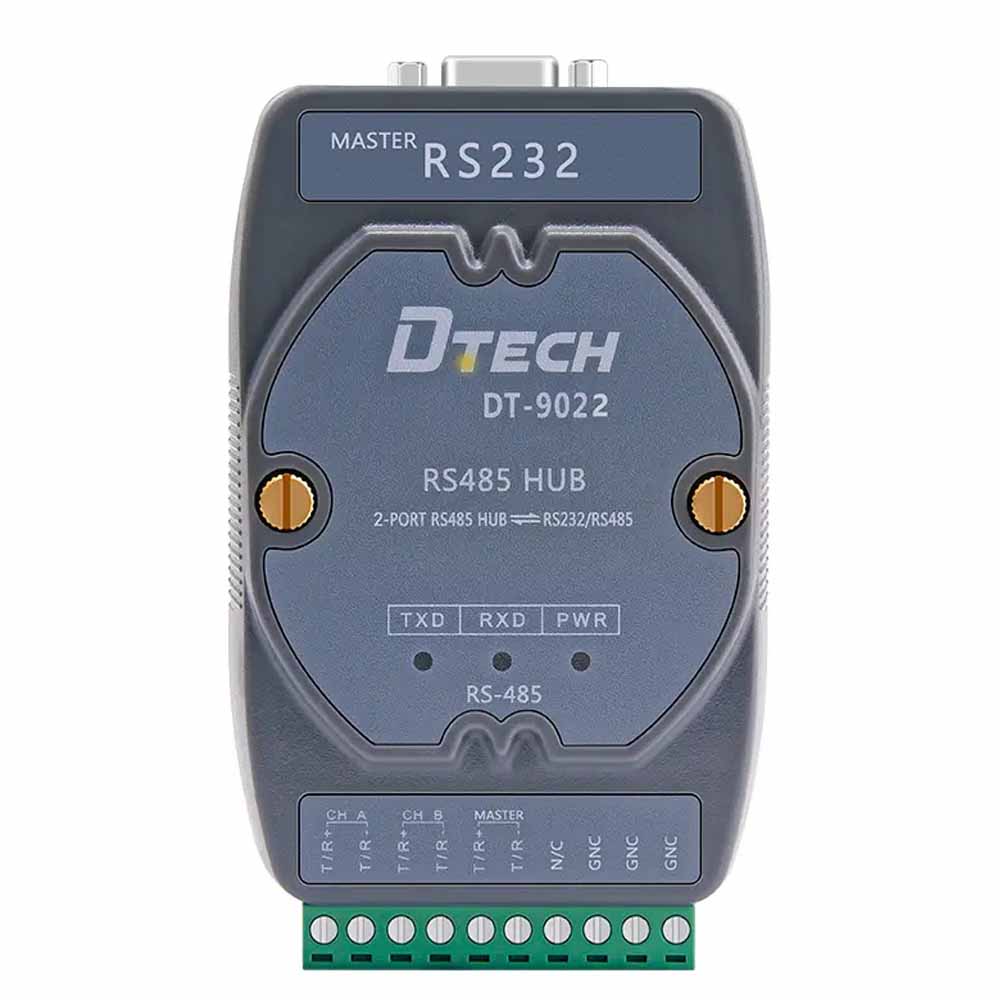

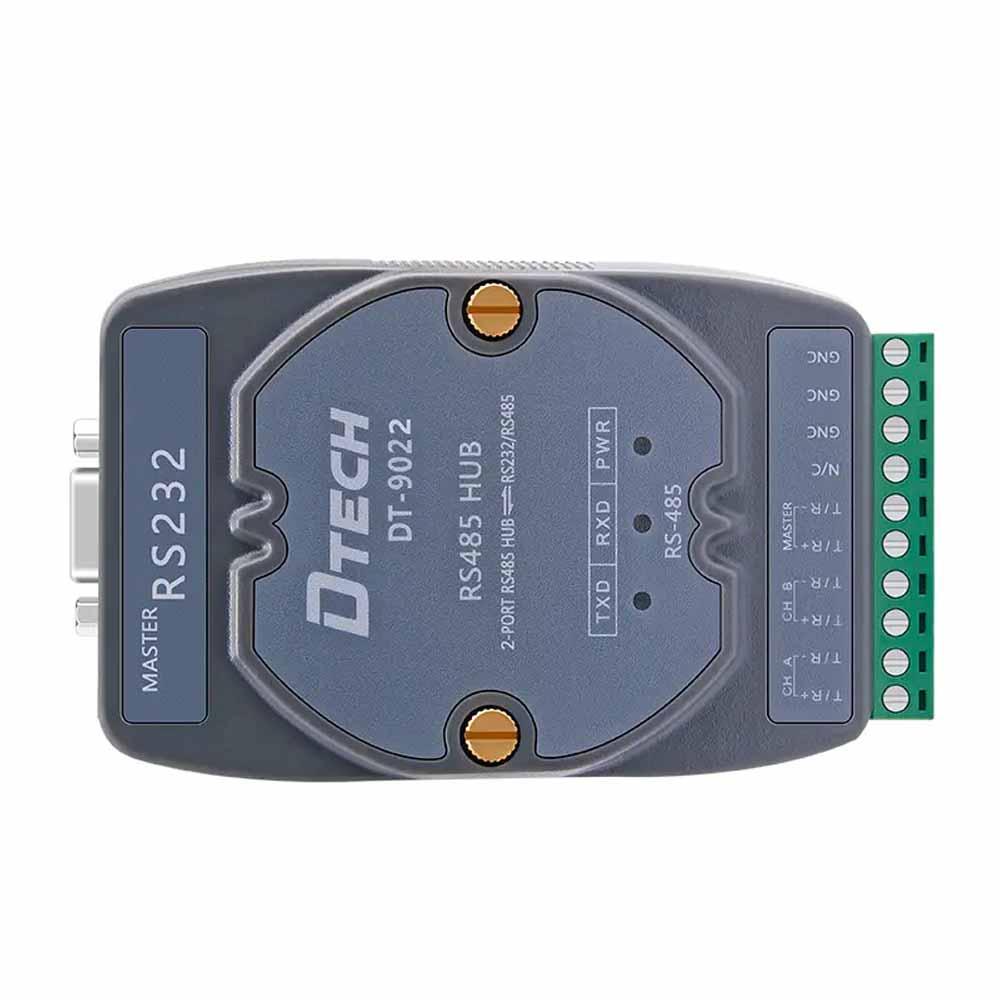

DT-9022 is a universal industrial two port RS485 adaptive relay hub, with a main RS232/RS485 port, the RS485 hub is designed specifically for the needs of RS485 transmission distance and large capacity serial communication network expansion. With a number of independent innovation technology of DTTEC, including built-in data collision protection control etc.

Package Includes:

1 x RS485 Hub DT-9022

1 x Serial Cable

1 x Manual
