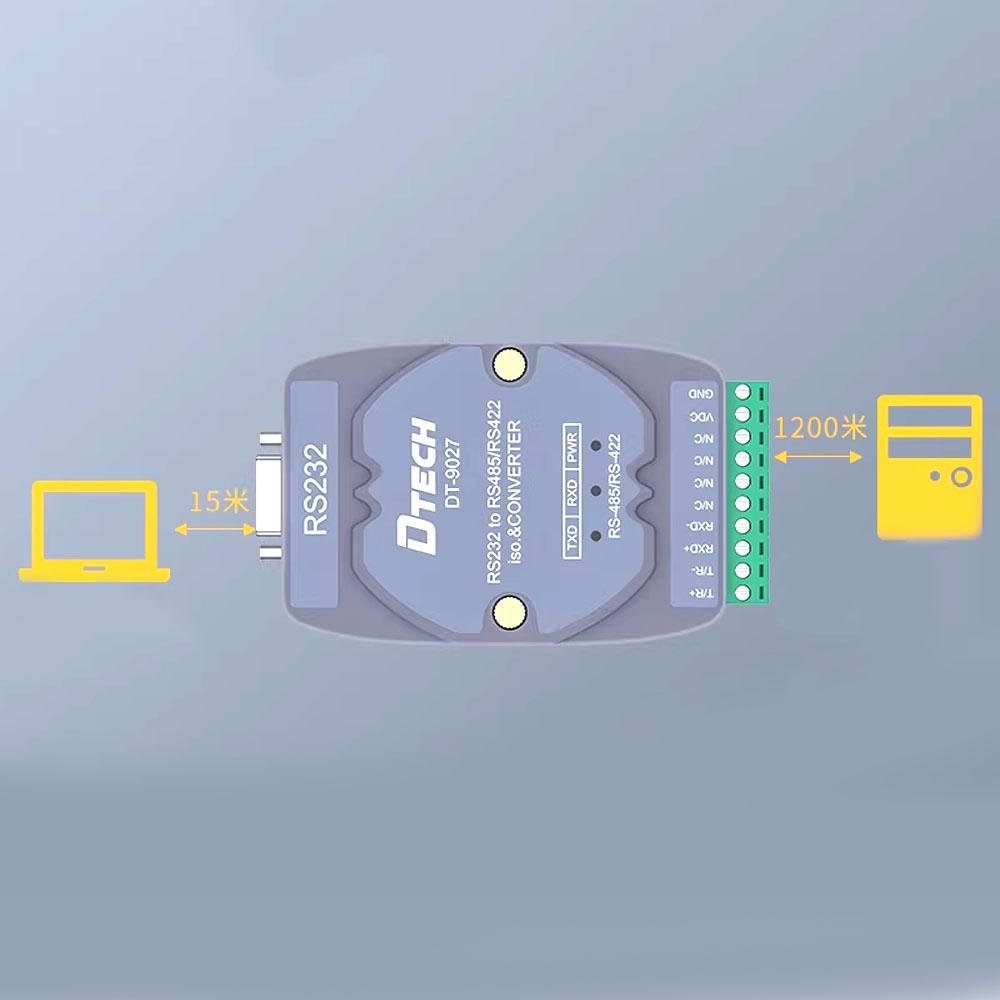

Dtech DT-9027 RS232 TO RS485 / RS422 industrial-grade photoelectric isolation lightning protection converter

Specifications :

Compatible with RS-232, RS-485, RS-422 TIA/EIA standards
Automatically send/receive data, without external flow control signal (RTS), true three-wire (TXD.RXD.GND)
Communication rate: 300bps-115.2Kbps
Able to connect 128 RS-485 or RS-422 interface devices
Communication distance: 5,000 meters (tested at a baud rate of 9600bps)
Working mode: Asynchronous half-duplex (RS-485) or asynchronous full-duplex (RS-422) universal, no jumper setting required
Photoelectric isolation reinforced type (isolation voltage 2.5KVrms /500VDC insulation), dedicated DC/DC
module,

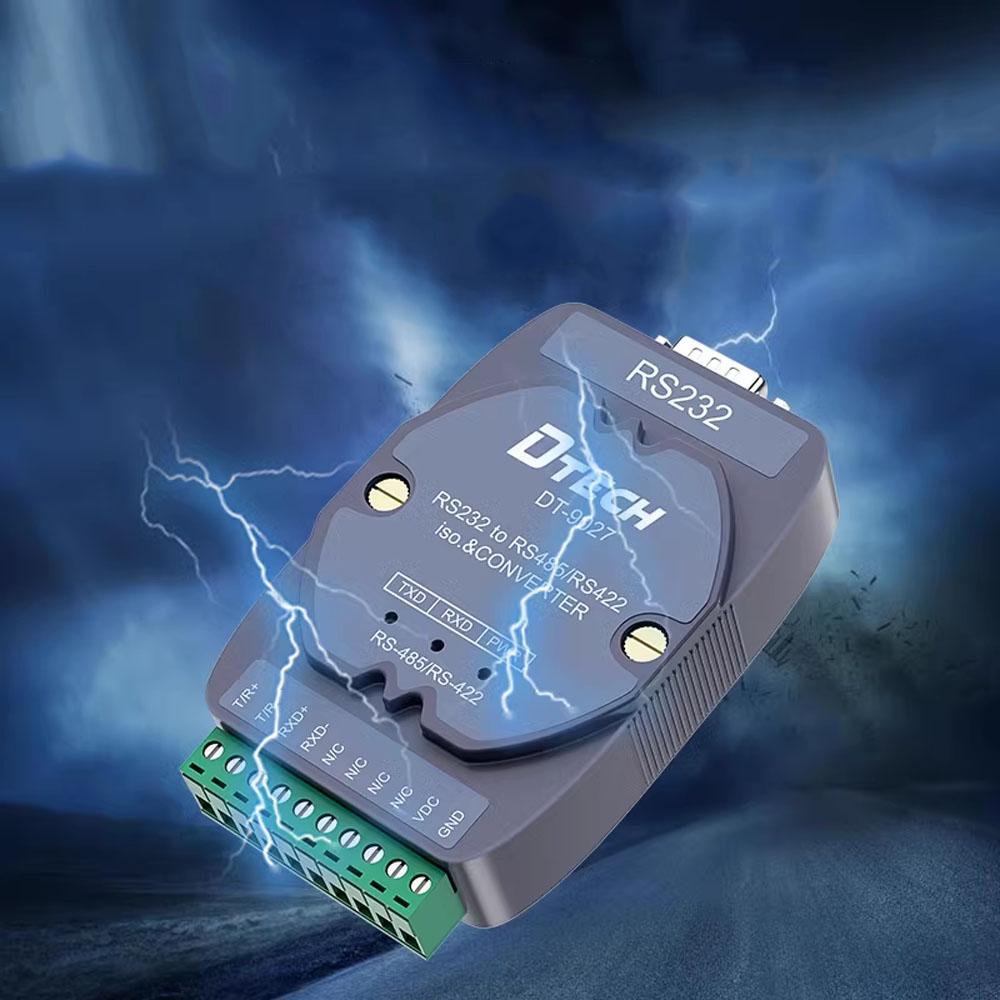

RS-485/422 provides 600W per line lightning protection, surge, +/-15KV ESD protection and common
ground interferenc

SKU: RDNA-B7.25

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹7,966.18 (Inc. GST)
₹6,751.00 (+18% GST Extra)

Only 1 left in stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

DT-9027 is a universal industrial two port RS485 adaptive relay hub, with a main RS232/RS485 port, the RS485 hub is designed specifically for the needs of RS485 transmission distance and large capacity serial communication network expansion. With a number of independent innovation technology of DTTEC, including built-in data collision protection control etc.

Package Includes:

1 x RS485 Hub DT-9027

1 x Serial Cable

1 x Manual
