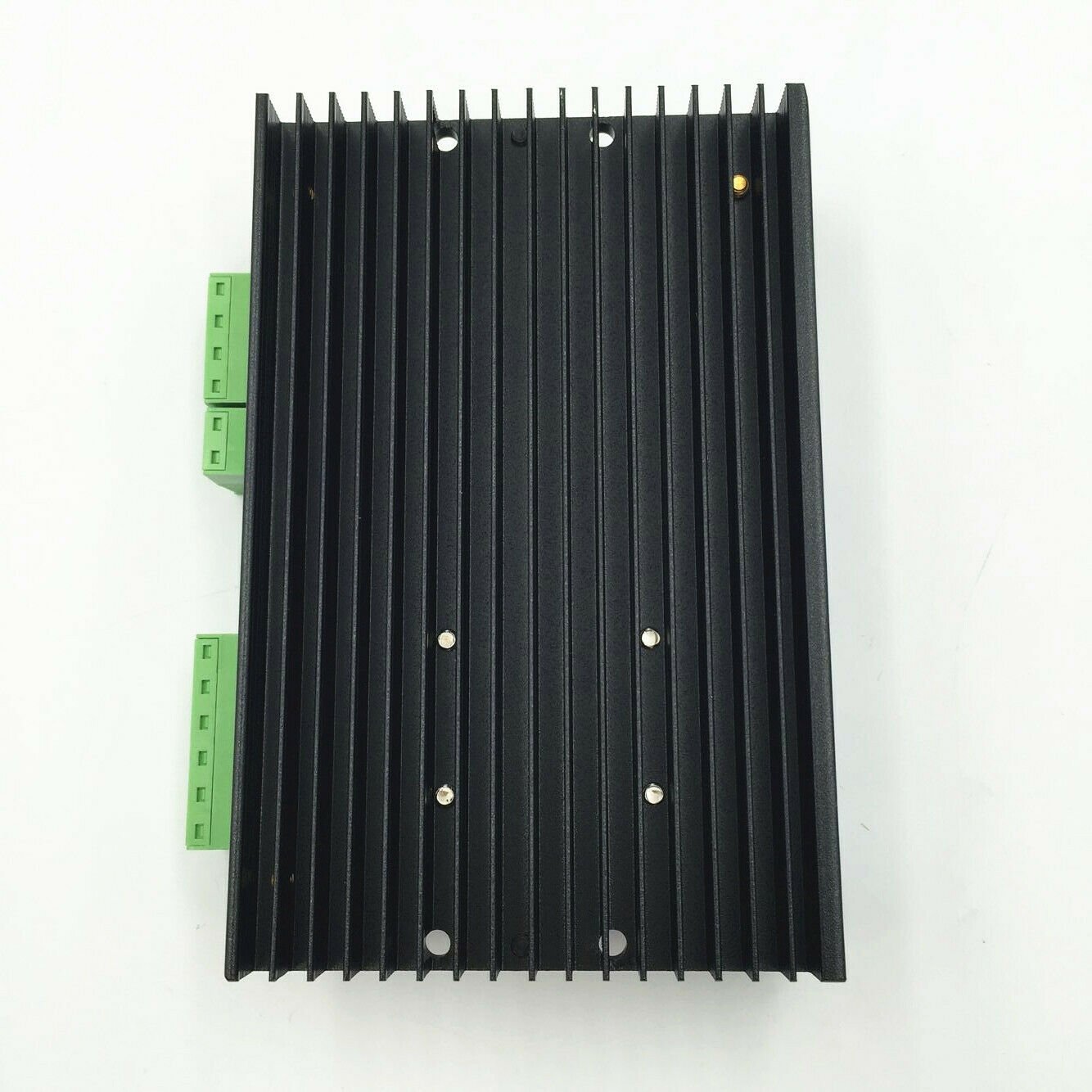

DM542 Digital Stepper Motor Driver for CNC Drivers Controller 3D Printer Accessories
Features:
- Good high-speed performance
- Supply voltage up to +50VDC
- Output current up to 4.2A
- Pulse frequency up to 300 KHz
- Automatic idle-current reduction
- 3-state current control technology
- Self-adjustment technology
- Pure-sinusoidal current control technology
Note: Photo Only for representation purpose. Actual product may vary as per avail
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₹859.01 (Inc. GST)
₹727.97 (+18% GST Extra)
Only 2 left in stock
Only 2 left in stock
For bulk orders or B2B inquiries, please contact us at: [email protected]
10
People watching this product now!
-
Pick up from the RoboticsDNA Store in Pune / Dunzo
To pick up today
Free
-
Same Day Delivery in Pune
(Mon-Sat) (Please Place Order Before 1:30 PM)​
Rs. 99
-
via Delhivery.com (Express Mode)
Our courier will deliver to the specified address
3-5 Days
Rs. 149
-
via Delhivery.com (Surface Mode)
Our courier will deliver to the specified address
4-7 Days
Rs. 69
Payment Methods:
Description
The DM542 – C is a fully Leadshine digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM542 can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542 an ideal choice for high requirement applications.
Power and Motor Terminal Assignments
|
Terminal No.
|
Terminal Name
|
Description
|
|
Terminal 1
|
+Vdc
|
Power supply, 20~30 VDC, Including voltage fluctuation and EMF voltage.
|
|
Terminal 2
|
GND
|
Power ground
|
|
Terminal 3
|
A+
|
Motor Phase A+
|
|
Terminal 4
|
A-
|
Motor Phase A-
|
|
Terminal 5
|
B+
|
Motor Phase B+
|
|
Terminal 6
|
B-
|
Motor Phase B-
|
Pulse and Direction Inputs
|
Terminal No.
|
Terminal Name
|
Description
|
|
Terminal 1
|
PUL+
|
Pulse +ve input
|
|
Terminal 2
|
PUL-
|
Pulse -ve input
|
|
Terminal 3
|
DIR+
|
Direction +ve input
|
|
Terminal 4
|
DIR-
|
Direction -ve input
|
|
Terminal 5
|
ENA+
|
Enable +ve input
|
|
Terminal 6
|
ENA-
|
Enable -ve input
|
Packing include:
1 x DM542 Digital Stepper Motor Driver for CNC Drivers Controller
