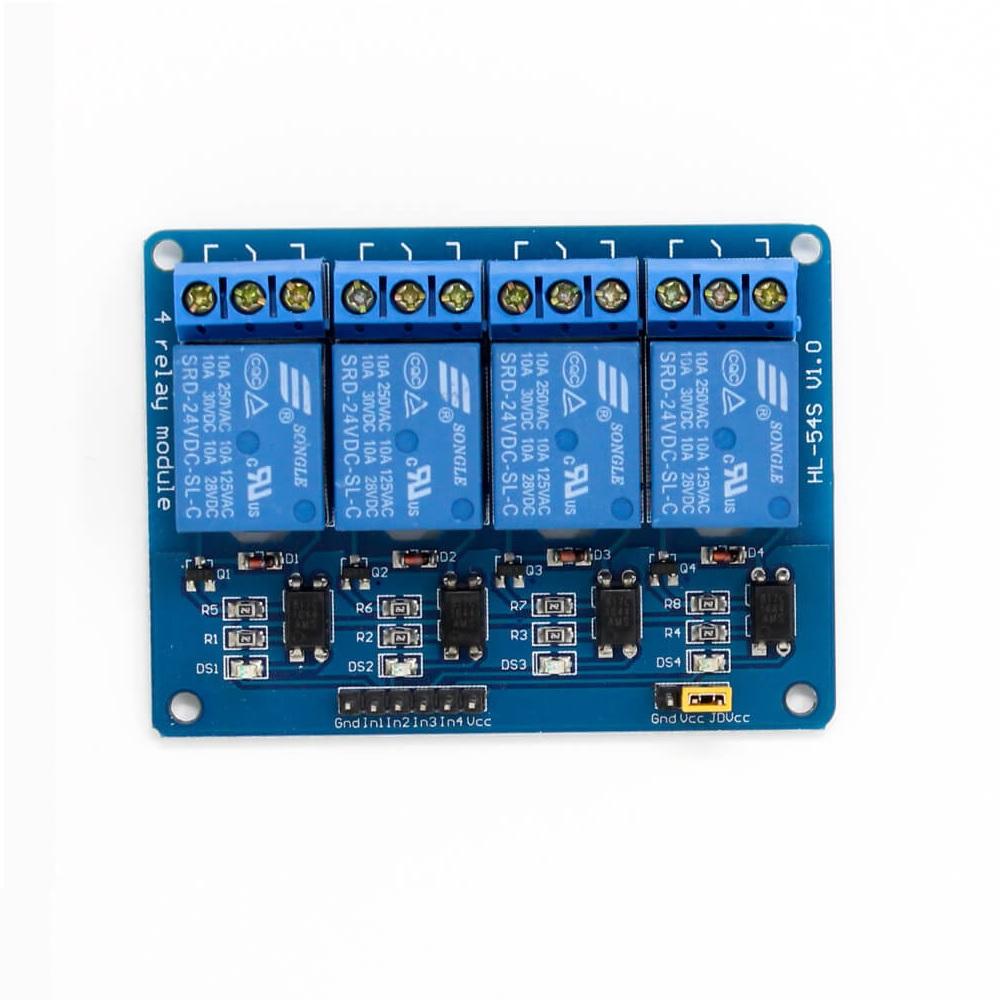

24V 4-Channel Relay Module (with Light Coupling)

This 4 Road/Channel Relay Module (with light coupling) 24V module meets the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.

Meaning of High level and Low-level

1. High-level trigger refers to using the anode voltage at the VCC connection way of a trigger and triggers the end when the trigger side has a positive voltage or to trigger voltage when the relay is off.
2. Low-level trigger refers to using the negative voltage at the GND connection way of a trigger and triggers the end when the trigger side has 0 v low voltage or voltage to can trigger, the relay is off.

Module interface:

The positive (according to the relay voltage VCC: connect power supply)
GND: connect power negative
IN1: relay module (effective) high-level trigger signal trigger end
IN2: relay module (effective) high-level trigger signal trigger end
IN3: relay module (effective) high-level trigger signal trigger end
IN4: relay module (effective) high-level trigger signal trigger end

Package includes :

1 x 24V 4-Channel Relay Module (with Light Coupling)
