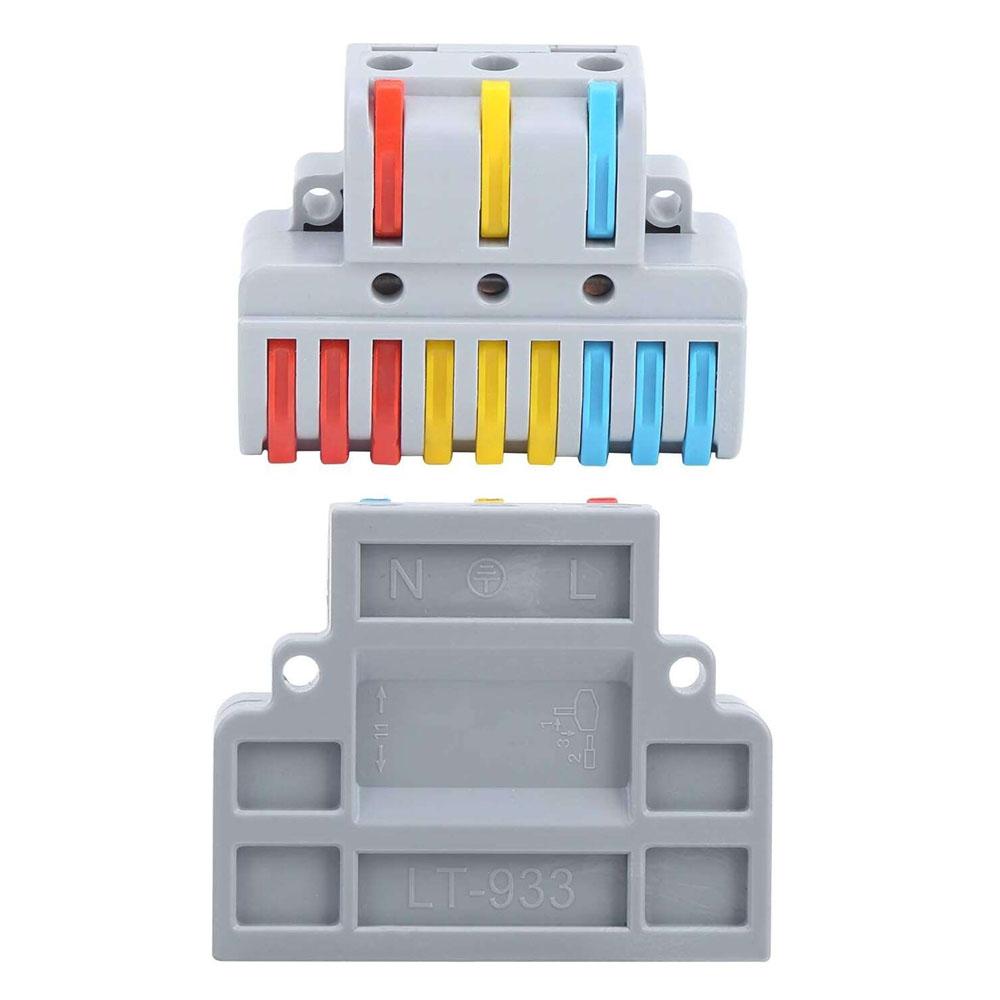

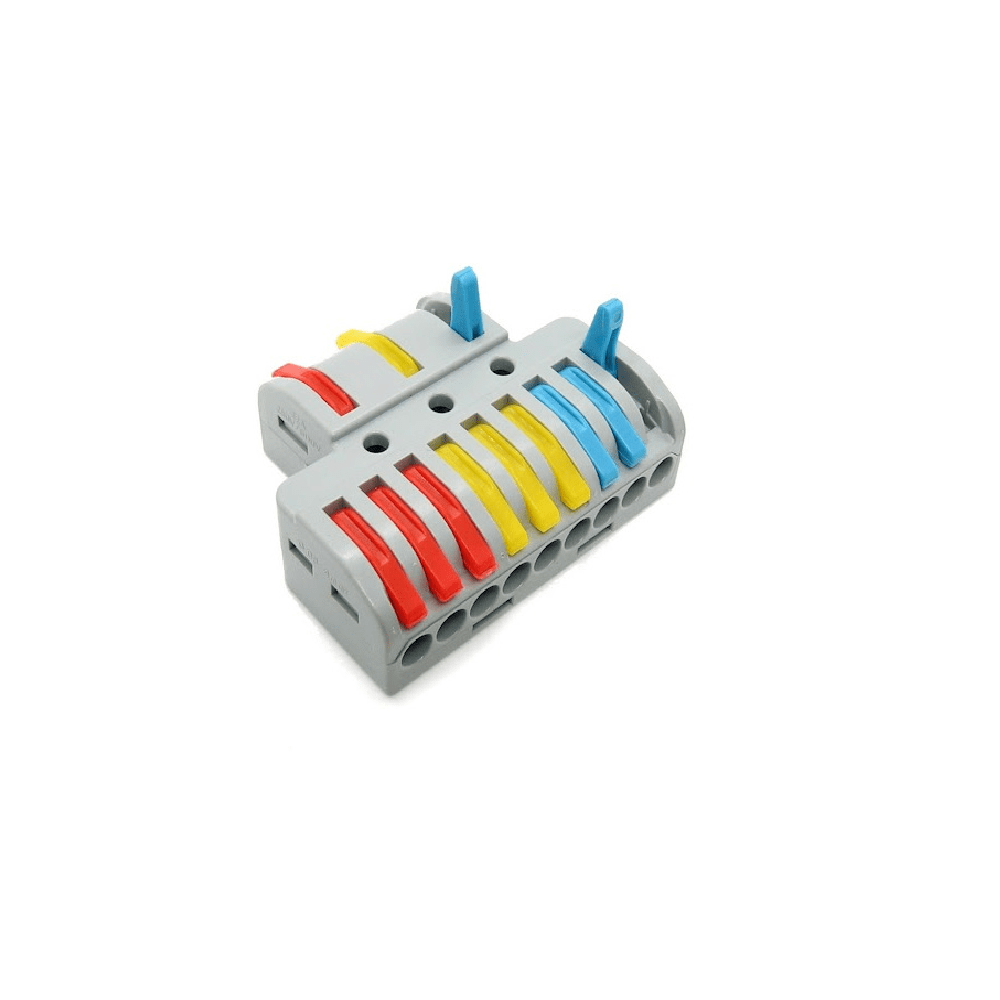

LT-933(SPL-93) Stationary, Type Quick Connection, Terminal

Specifications :

  • Rated Voltage (V):450
  • Rated Current(A):32
  • Body Material: Modified Nylon (PA66)
  • Contact Material: Stainless Steel
  • No. of Contact Points:9:3
  • Rated Power (W):4 KW
  • Allowed Wire Size (AWG):28 ~ 12
  • Color:Grey+Orange+Blue+Yellow
SKU: RDNA-CD119

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

108.56 (Inc. GST)
92.00 (+18% GST Extra)

In stock

In stock

17 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

It can be used to create the 3-wire connection from 3 pair connections.

PCT Spring Lever Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.5mm to 2.5mm2 area or soft wire with 0.5mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, resulting in a maximum of 4KW Power. And the Stripping Length of the connector is 11-12 mm

Features:

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 9:3 -Conductor Terminal Block
  7. With Operating Levers
  8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x LT-933(SPL-93) Stationary, Type Quick Connection, Terminal
