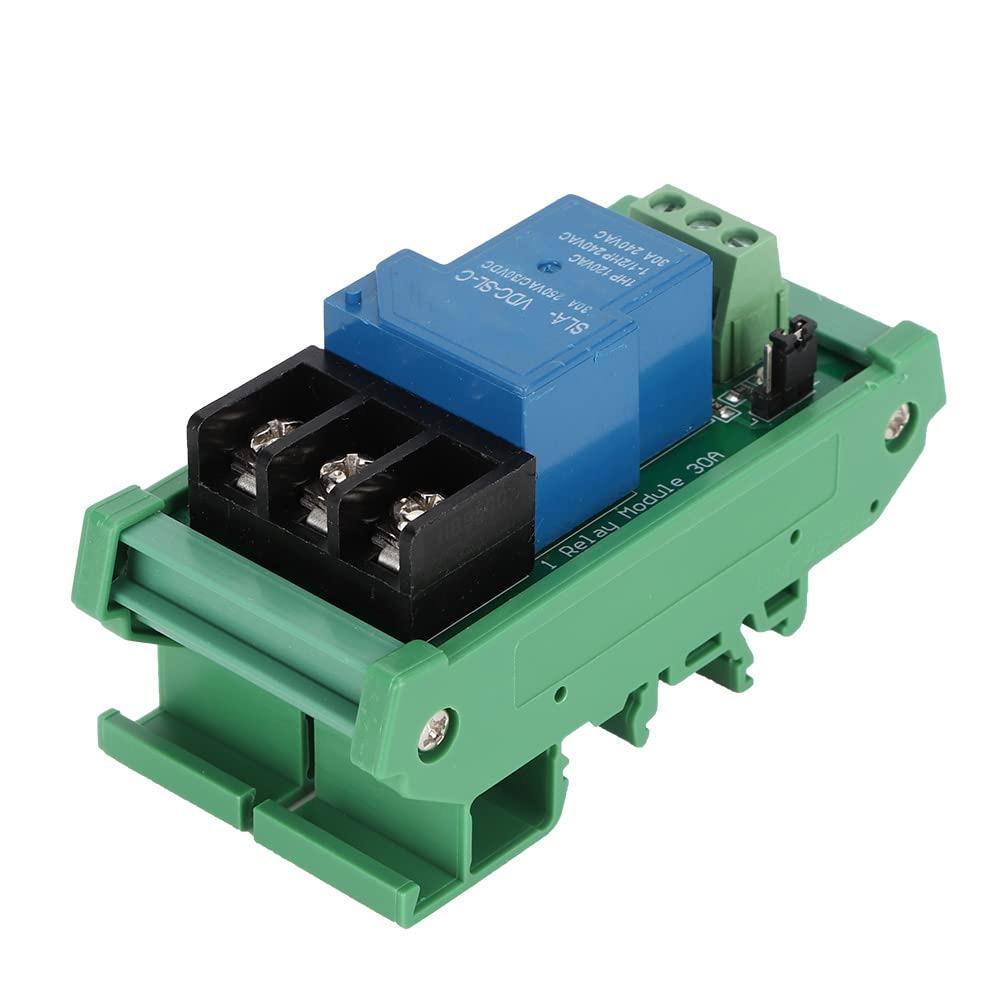

1 Channel Relay Module 30A with Optocoupler Isolation 24V Supports High and Low Triger with Guide Rail

Specifications:

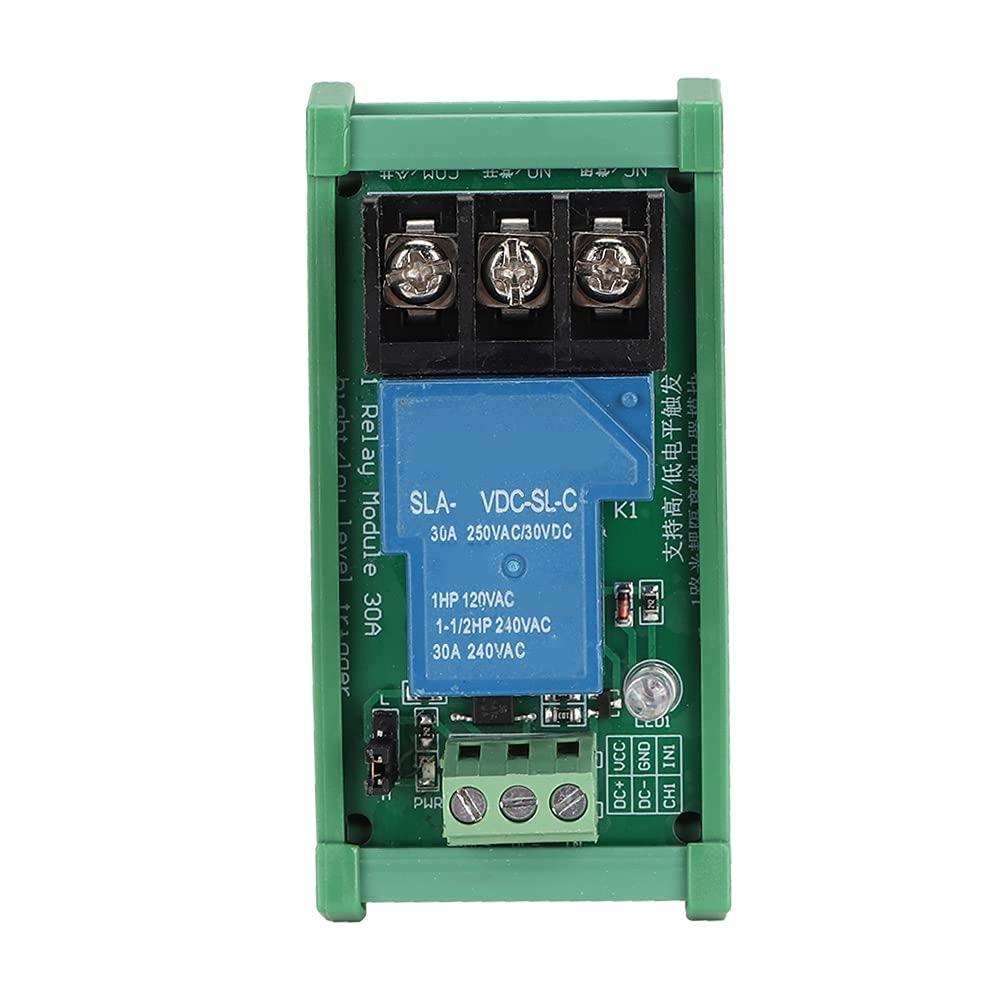

The module uses a high-quality 30A relay, normally open interface maximum load: AC 250V/30A, DC 30V/30A.

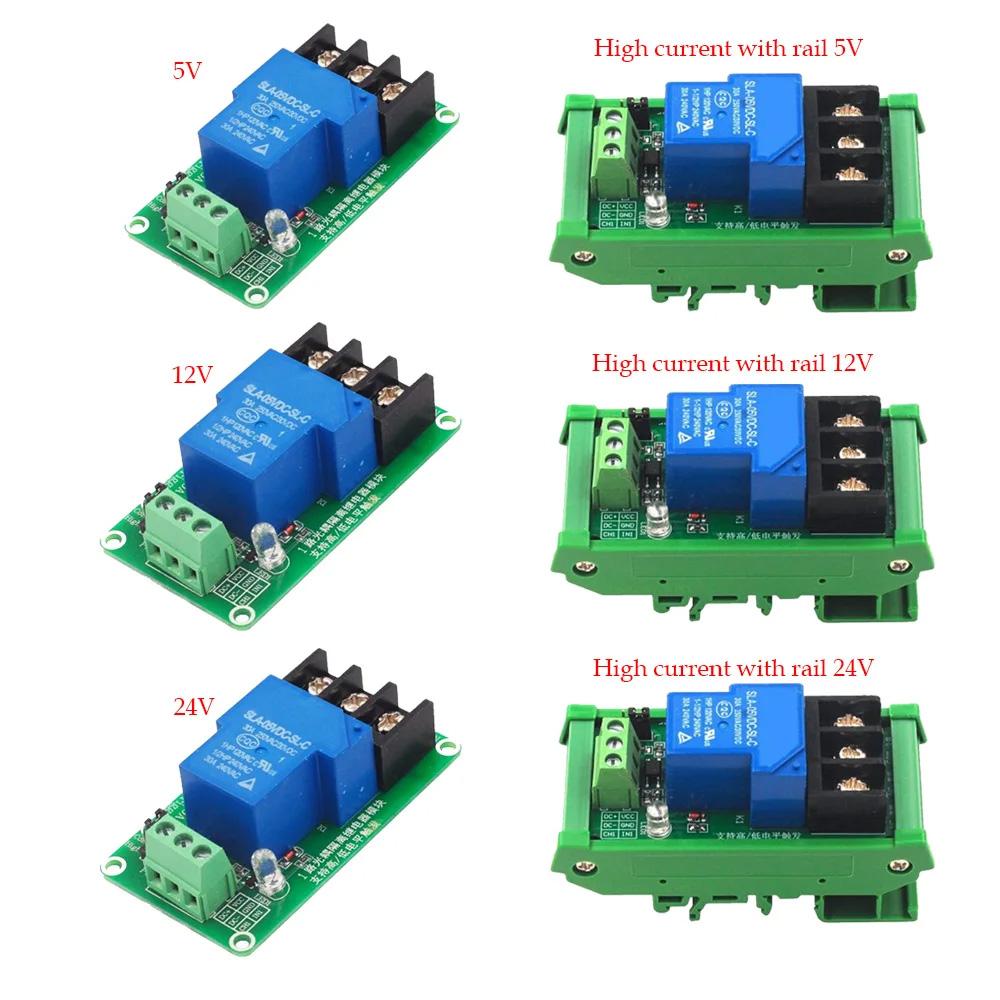

Module operating voltage is available in 24V.
Adopting paster OptoCoupler isolation, strong driving capability, stable performance; trigger current 5mA.
The module can be triggered by a jumper to set a high or low level.
User-friendly interface design, all interfaces can be directly connected through the terminal block, which is very convenient.

SKU: RDNA-706.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹333.99 (Inc. GST)
₹283.05 (+18% GST Extra)

Only 2 left in stock

Compare

Add to wishlist

13 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This 1-channel 24V 30A relay control board module with optocoupler modules is compliant with international safety standards, control and load areas isolation trenches it has a single relay a genuine. The inputs of 1 Channel 24V 30A Relay Module are isolated to protect any delicate control circuitry.

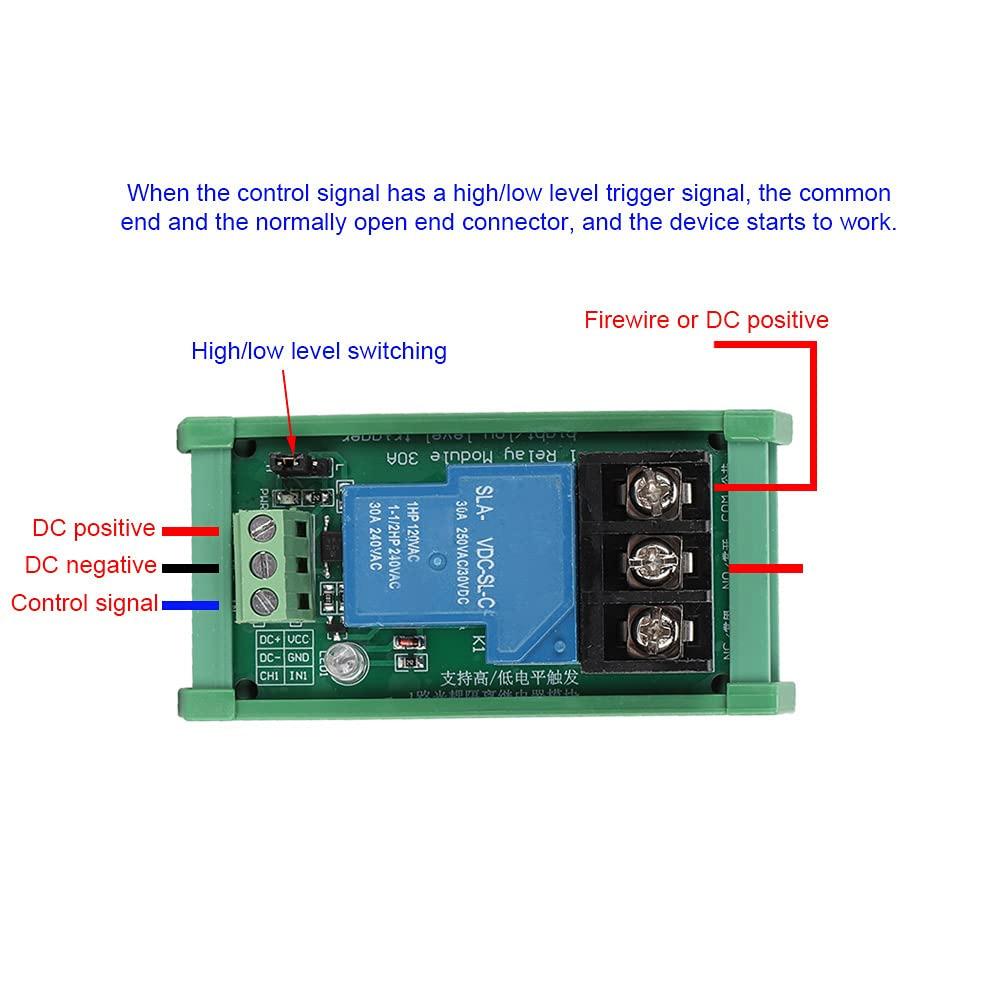

Operational Guide:

High-level trigger refers to the signal voltage between input and trigger, and can be understood as a signal input with VCC cathode short-circuit triggered away;
Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, which can be understood as a signal input terminal and the GND negative electrode short circuit triggered is a way 1-channel relay module connection.

Packing List:

1 x 1 Channel Relay Module 30A with Optocoupler Isolation 24V Supports High and Low Triger with Guide Rail
