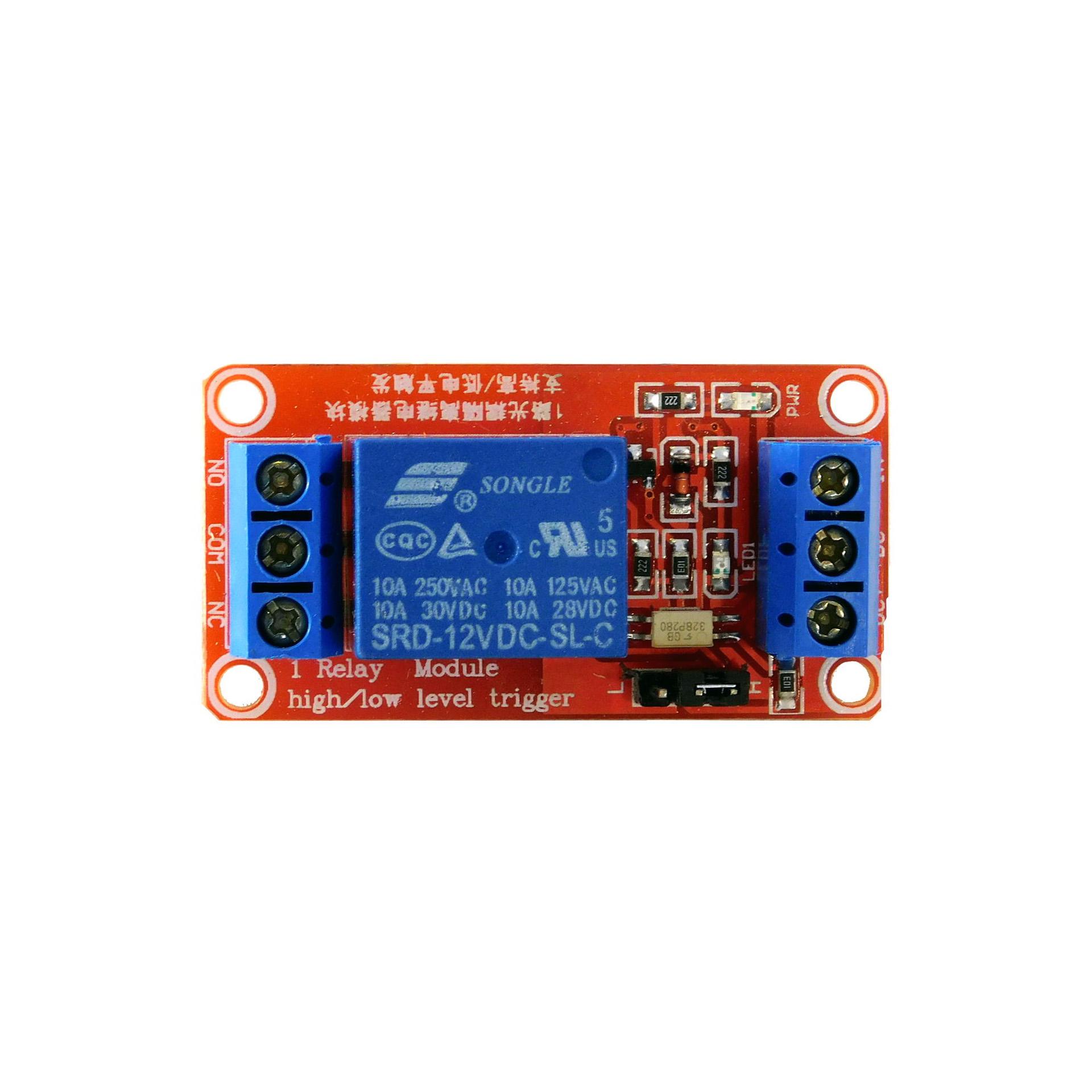

1 Channel Relay Module 12V High and Low Level Trigger Relay Control

Specifications:

High/Low-Level Trigger
1-Channel Relay interface board,
Equipped with high-current relay : 15A @ 125V AC or 10A @ 250V AC

SKU: RDNA-337.10

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹59.00 (Inc. GST)
₹50.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

1 Channel Relay Module 12V High and Low-Level Trigger Relay Module is small and easy to use. Use it to control one 240V power appliance directly from Arduino, Raspberry Pi, and other microcontrollers or low-voltage circuits. Perfect for switching 240V appliances—lights, fans, etc.—and even high-power motors at lower voltages.

The board uses a high-quality relay, which can handle a maximum of 10A/250 V AC or 15A/125 V AC. Each relay has all three connections—common, normally open, and normally closed—brought out to three-pin screw terminals, which make it easy to make and remove connections. The board has a power indication and a relay status LED to ease debugging. The board can accept control inputs within a wide range of voltages, from 4V to 12V. Power input and relay control signals are brought to header pins on the board. Hence, the board can be easily interfaced with our development boards using jumper wires.

Packing List:

1 x 1 Channel Relay Module 12V High and Low-Level Trigger Relay Control
