AS3103PG 5.5KG 270° Analog Servo For RC Robot RC Car ₹468.46 (Inc. GST)
₹397.00 (+18% GST Extra)
Click to enlarge

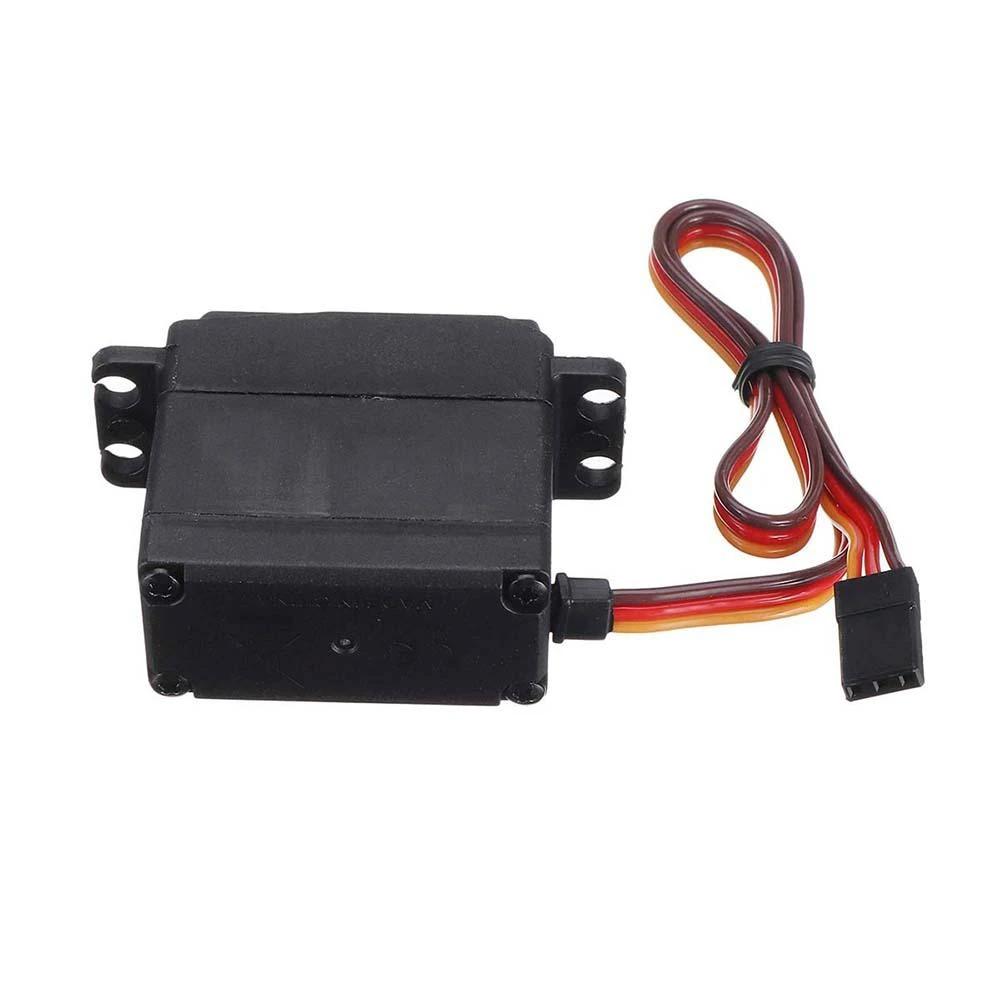

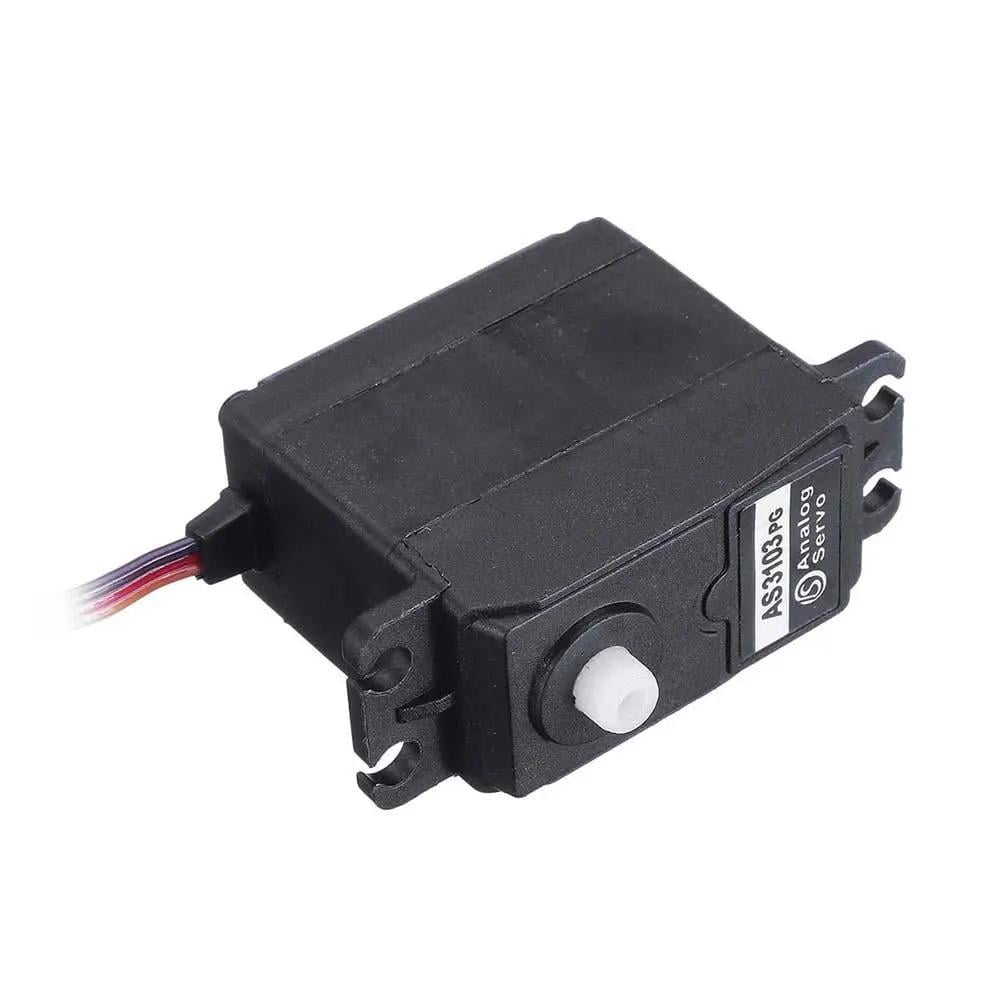

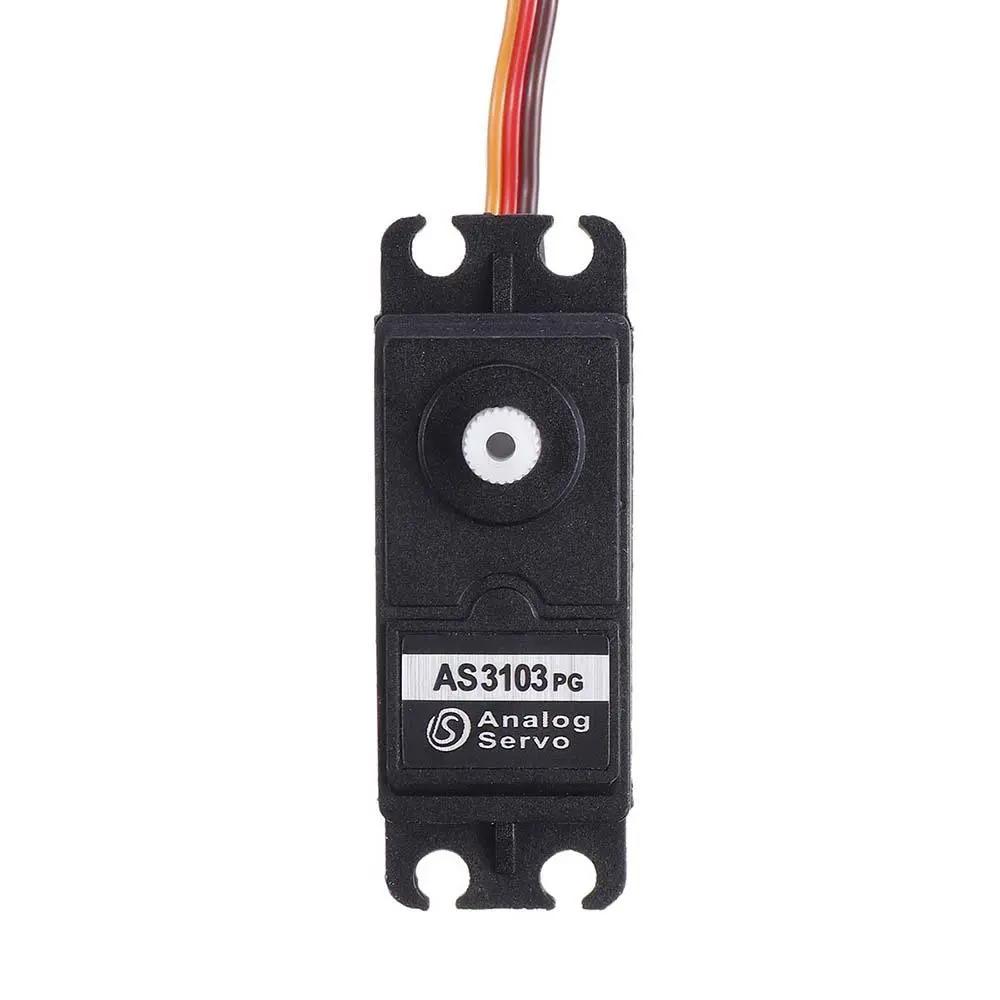

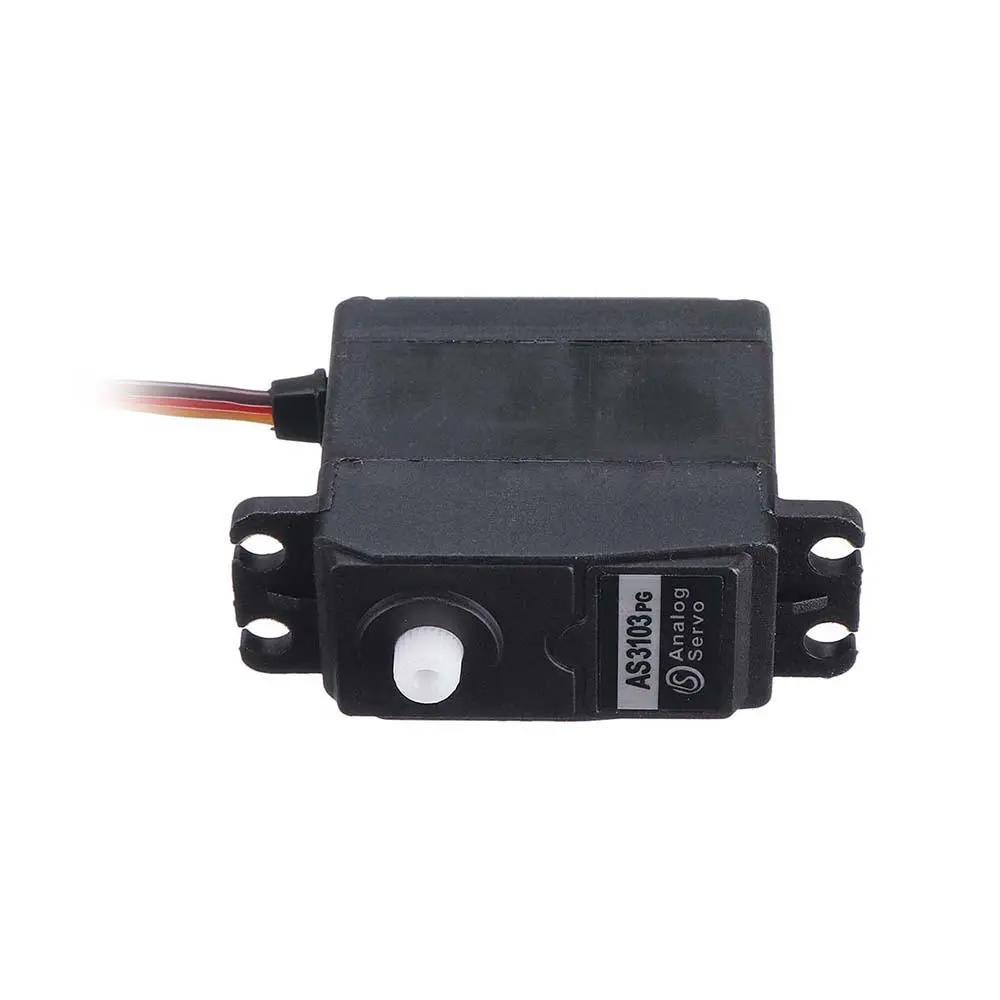

AS3103PG 5.5KG 360° Analog Servo For RC Robot RC Car

Specifications:

  • Item: AS3103PG 4.5KG Analog Servo
  • Operating Voltage: 4.8-6.0 DC Volts
  • Torque: 5kg.cm(4.8V), 5.5kg.cm(6V)
  • Speed: 0.19sec/60°(4.8V), 0.22sec/60°(6V)
  • Dead Brand: 5μs
  • Gear: Plastic

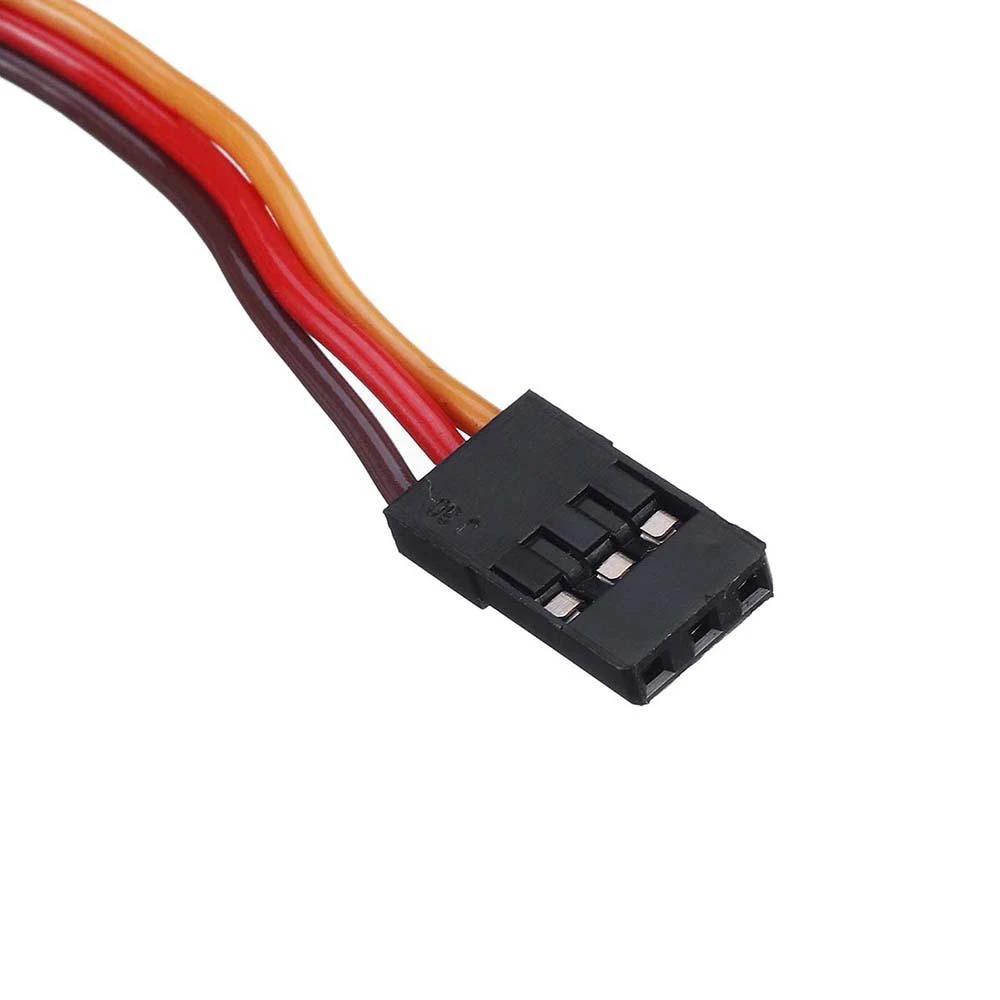

  • Wire: 120mm
SKU: RDNA-29.5

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹468.46 (Inc. GST)
₹397.00 (+18% GST Extra)

Only 1 left in stock

Only 1 left in stock

Compare
Add to wishlist
12 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Fast Heat Dissipation, High Torque, Strong Compatibility, And Sensitive Response High-Performance Programmable Digital Standard Steering Gear Can Be Widely Used In Robots, Mechanical Arms, and Remote Control Toys.

Control Specification

  • Control System PWM(Pulse width modification)
  • Pulse width range 500～2500µsec
  • Neutral position 1500µsec
  • Dead band width 3 µsec
  • Operating frequency 50-330Hz
  • Rotating direction Counterclockwise (when 500～2500 µsec)

Packing List:

1 x AS3103PG 5.5KG 360° Analog Servo For RC Robot RC Car
1 x Accessories with Servos
