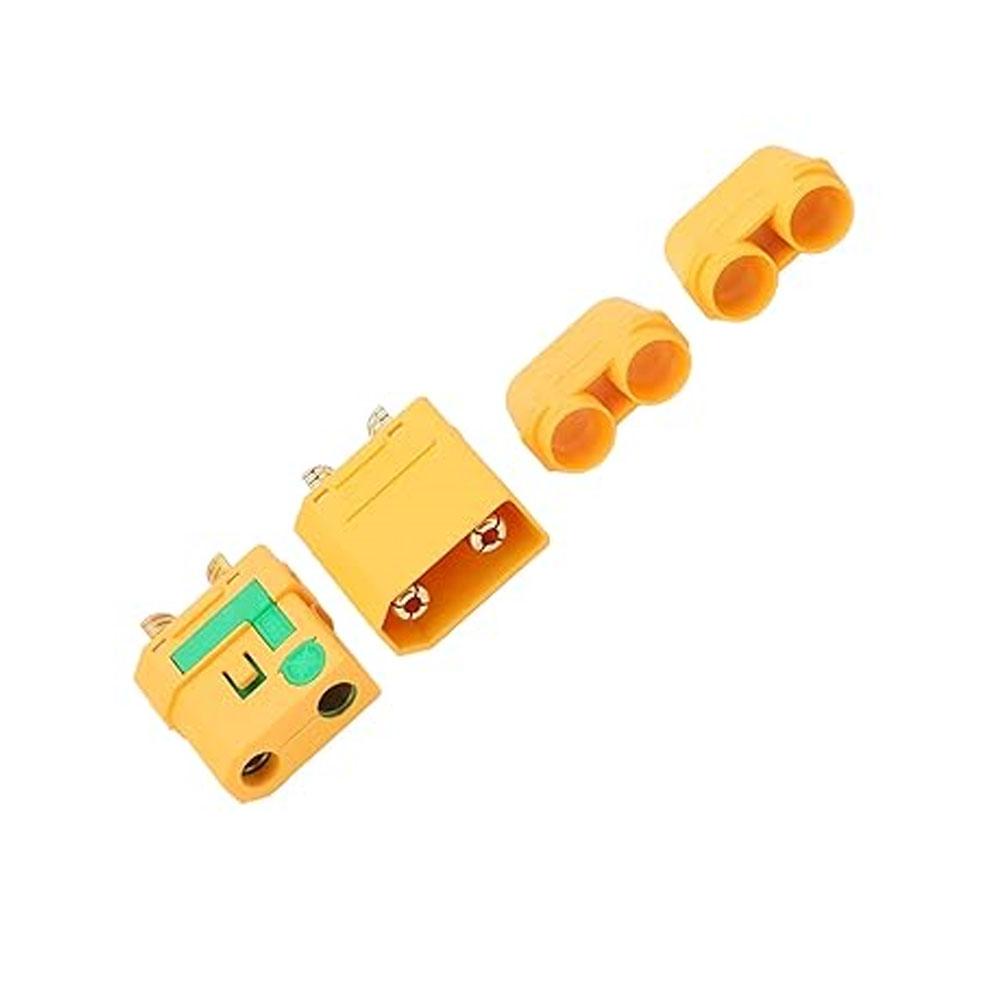

Amass XT90-S Anti-Spark Connector with Housing-Female

Specifications:

Anti-Spark Protection
Wire Insulation Material: Nylon
Housing shape provides protection against shorting and reverse polarity
Can accept up to 8AWG wires
Semicircular solder terminals make it easy to install wires
Able to sustain 90A+ continuous current

SKU: RDNA-GH38.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹225.81 (Inc. GST)
₹191.37 (+18% GST Extra)

In stock

Compare

Add to wishlist

19 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

These XT90-S connectors have a high-temp Nylon casing that houses the gold plated spring connectors which get placed into the injection mold during the manufacturing process. Since the housing is molded around the connectors it ensures that the connectors always stay aligned so that you can quickly and easily plug in and unplug. The XT90-S connectors provide a solid, high-amp connection – perfect for applications up to and beyond 90 amps!

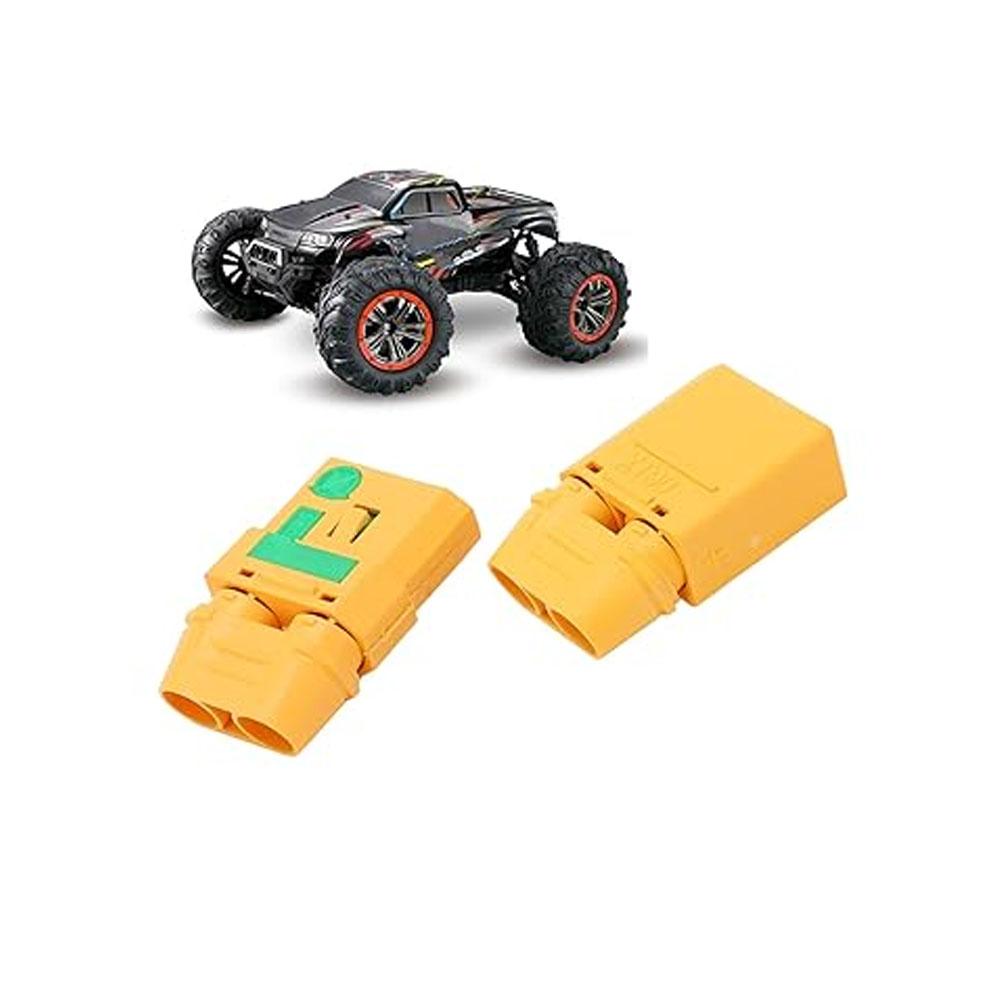

With the growing popularity of high voltage setups on R/C model helicopters, EDFs and airplanes, sparking battery connections are increasingly becoming the biggest enemy to your electronics. All the anti-spark systems in the market today require some sort of modification or DIY work before use.

Now, we have just the solution. XT90-S is based on the popular XT90 but now integrates an anti-spark system. With the XT90-S, no need to invest in a secondary anti-spark system (which provides an additional failure point to your system).

100% compatible with existing XT90. Comes with a soldering cover/Housing to protect the solder points.
