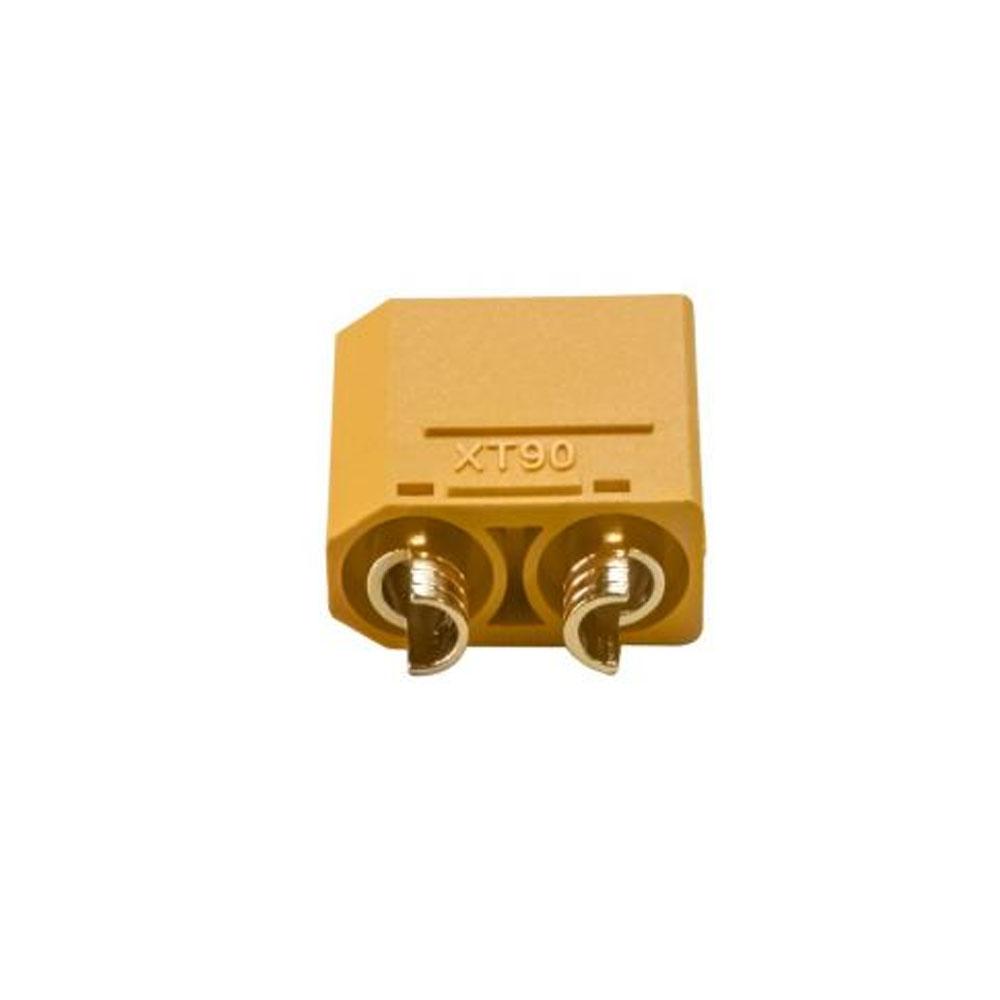

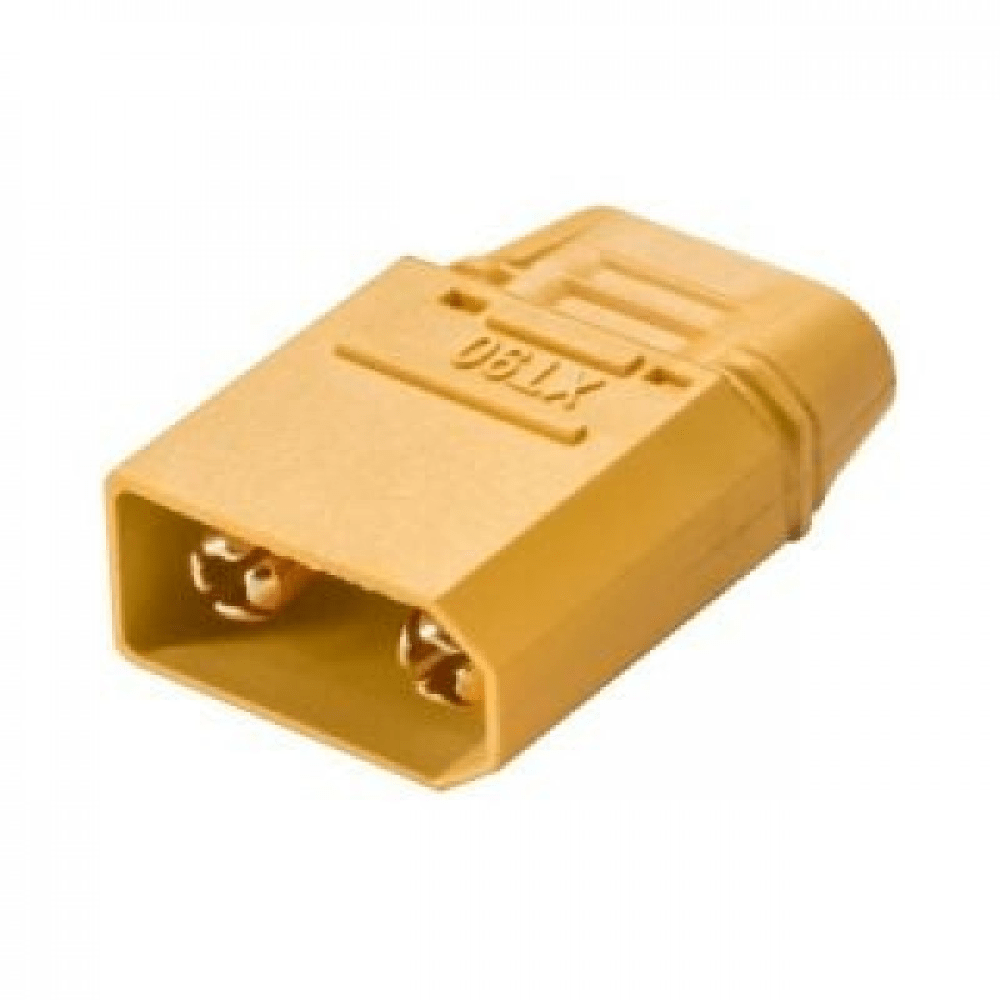

Amass XT90 Male Connector with Housing-1 pcs.

XT90 Male Connector with Housing is made from high-temp Nylon and gold plated spring connectors, both included in the injection mold at the time when forming the connector. The XT90 ensures a solid high-amp connection, perfect for applications up to and beyond 90A constant. The XT90 offers a tight fit, ensuring a solid connection for minimal resistance. This means that more power gets from your pack to your power system when compared to other plugs currently on the market. Don’t starve your high-amp power system, switch to XT90 connectors today!

XT90 connectors have a high-temp Nylon casing that houses the gold plated spring connectors which get placed into the injection mold during the manufacturing process. Since the housing is molded around the connectors it ensures that the connectors always stay aligned so that you can quickly and easily plug in and unplug. The XT90 connectors provide a solid, high-amp connection – perfect for applications up to and beyond 90 amps!

IMPORTANT: “These are not cheaply copied XT90 plugs. These original Nylon XT90 plugs, manufactured by AMASS, can handle over 90A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.”

Specifications and Features:

1. Metal connector size: 4.5mm
2. Housing shape provides protection against shorting and reverse polarity
3. Can accept up to 8AWG wires
4. Semicircular solder terminals make it easy to install wires
5. Able to sustain 90A+ continuous current

Package Includes:

1 x XT90 Male Connector with Housing
