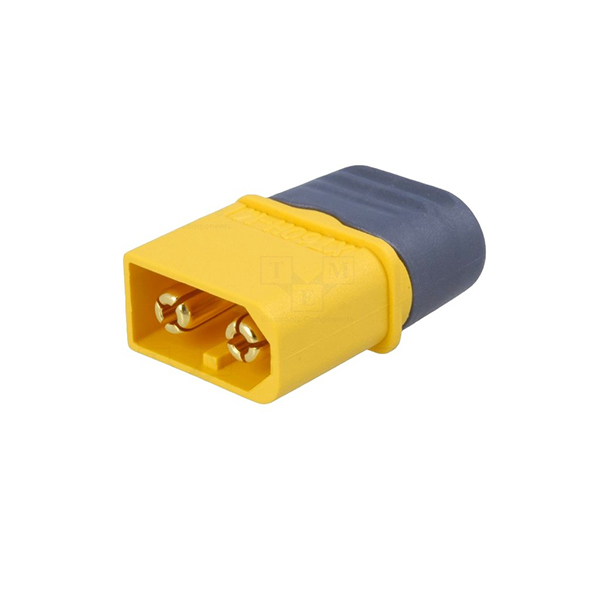

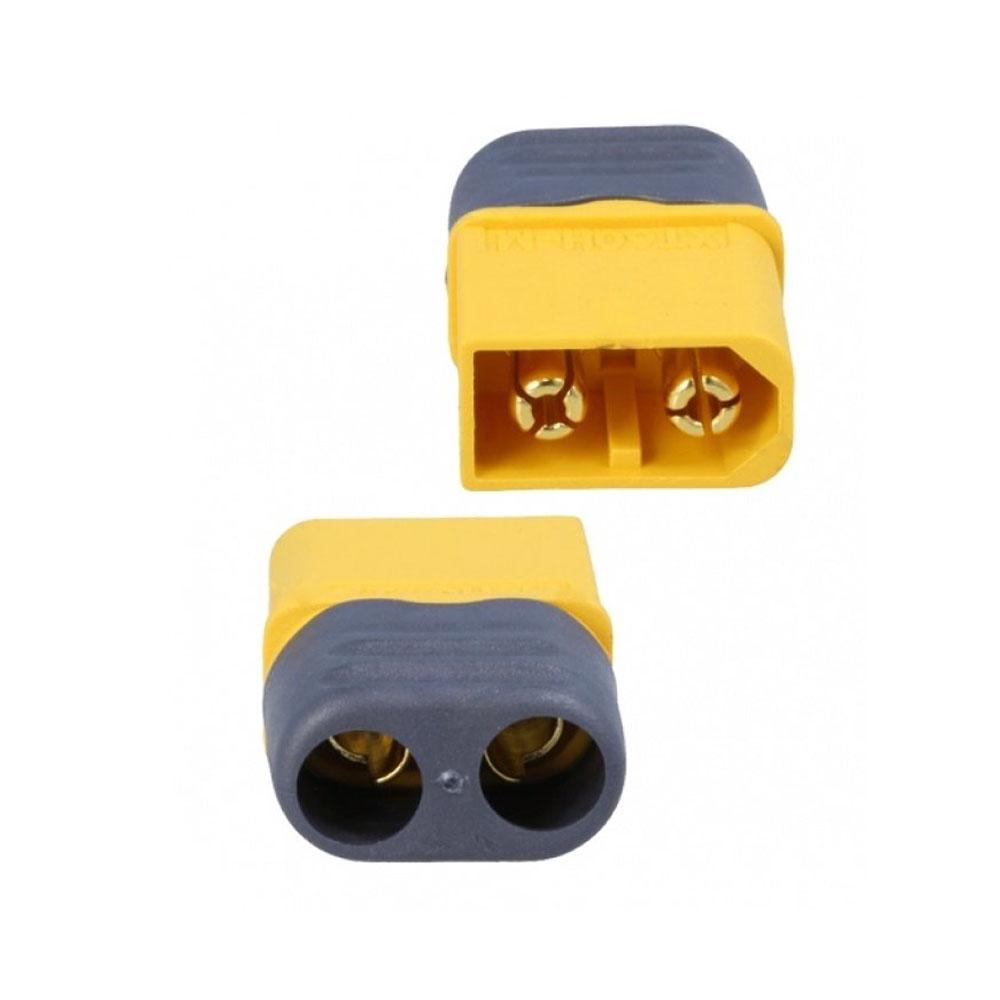

Amass XT60H Male Connector with Housing

Specifications :

  • Manufacturer: AMASS
  • Connector series: XT60H
  • Kind of connector: Male
  • Contact plating Gold flash
  • Color: Yellow-Gray
  • Current Rating: 60A
  • Operating Temperature -20…120°C
  • Compatible for Wire size up to 12AWG
SKU: RDNA-622.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

38.94 (Inc. GST)
33.00 (+18% GST Extra)

Available on backorder

Available on backorder

19 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The best battery connectors on the market just got better with the development of the XT60H.Like the original XT60H, this connector is made from high-temp nylon with gold plated connectors so the XT60H continues to provide an excellent high-amp connection for applications up to 65A. The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide the protection to the soldered points and make this connector little fancy and that’s why H letter is added in XT60.

The XT60H is completely compatible with original XT60 connectors so you can use them straight away.

IMPORTANT: “These are not cheap copied XT60H plugs. These original Nylon XT60H plugs, manufactured by AMASS, can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60H plugs.

Specifications and Features

  1. Mechanical mounting for cable
  2. Electrical mounting soldered
  3. Contact plating Gold flash
  4. Spatial Orientation Straight
  5. Contact Material: Brass
  6. Compatible for Wire size up to 12AWG

Package Includes:

1 x XT60H Connector with Housing- Male

Connector with Housing

Specification

Overview

Weight 0.005 kg
Dimensions 7.5 × 5.4 cm
