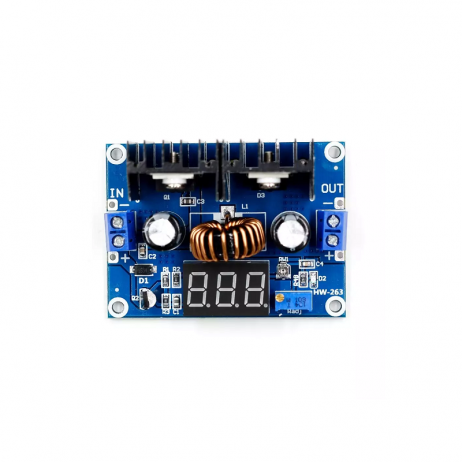

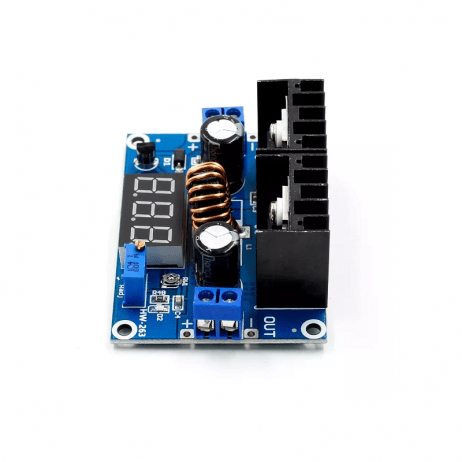

XH-M404 DC 4-40V 8A Voltage Regulator Module Digital PWM Adjustabl DC-DC Step Down Voltage Regulator DC XL4016E1

Specifications :

Input voltage: 4-40VDC,
Output voltage: (1.25-36V) continuously adjustable (recommended load debugging).
Efficiency: 94%
Onboard 7 segment display to monitor the voltage.
Output current: 8A(max)
Output Power: 200W (max)

SKU: RDNA-O2.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹349.00 (Inc. GST)
₹295.76 (+18% GST Extra)

In stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This XL4016E1 Step-Down Power Supply Module with voltage rating 4-40VDC to 1.25-36VDC.This module is rated for a maximum power of 200W. The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC.

Features:

Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
Input: IN+ input positive IN- input negative
Output: OUT+ output positive OUT- output negative
Static power consumption is only about 6mA.
Connection: Welding, plus pin can be directly soldered after the PCB.
Short circuit protection: current limiting, thermal protection, self-recovery.
Non-isolated step-down (BUCK) switching regulator.
Short circuit protection: Current limiting, self-recovery
Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
Non-synchronous rectification
