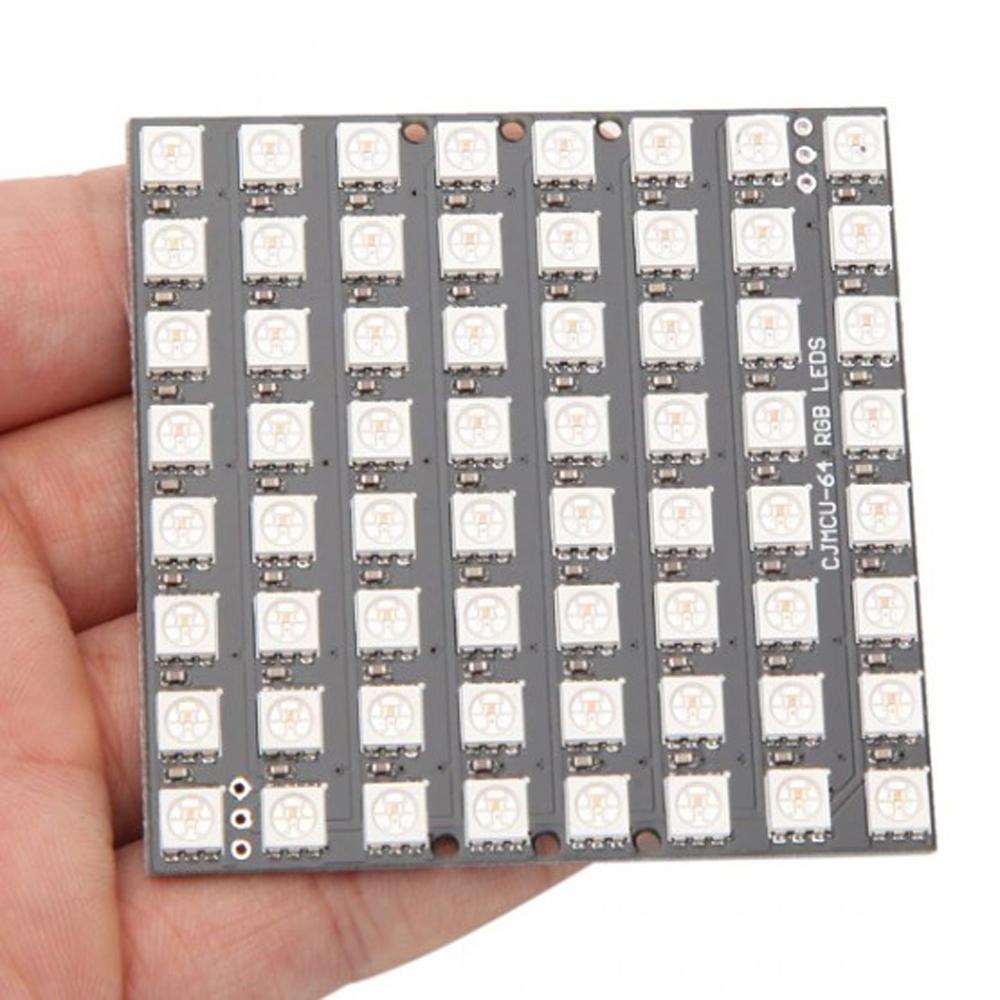

WS2812 CJMCU 8X8 64 Bit Neo Pixel RGB Led Driver Development Board

Specifications:

Dimensions : 66 x 66 x 3 mm.
Weight : 25 gm.
Supply Voltage : 5 VDC.
Interface : IO .
8 x 8 = 64 RGB.
Chip : WS2812b.

SKU: RDNA-WX23.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹366.98.Current price is: ₹286.98. (Inc. GST)
₹243.20 (+18% GST Extra)

In stock

Compare

Add to wishlist

17 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

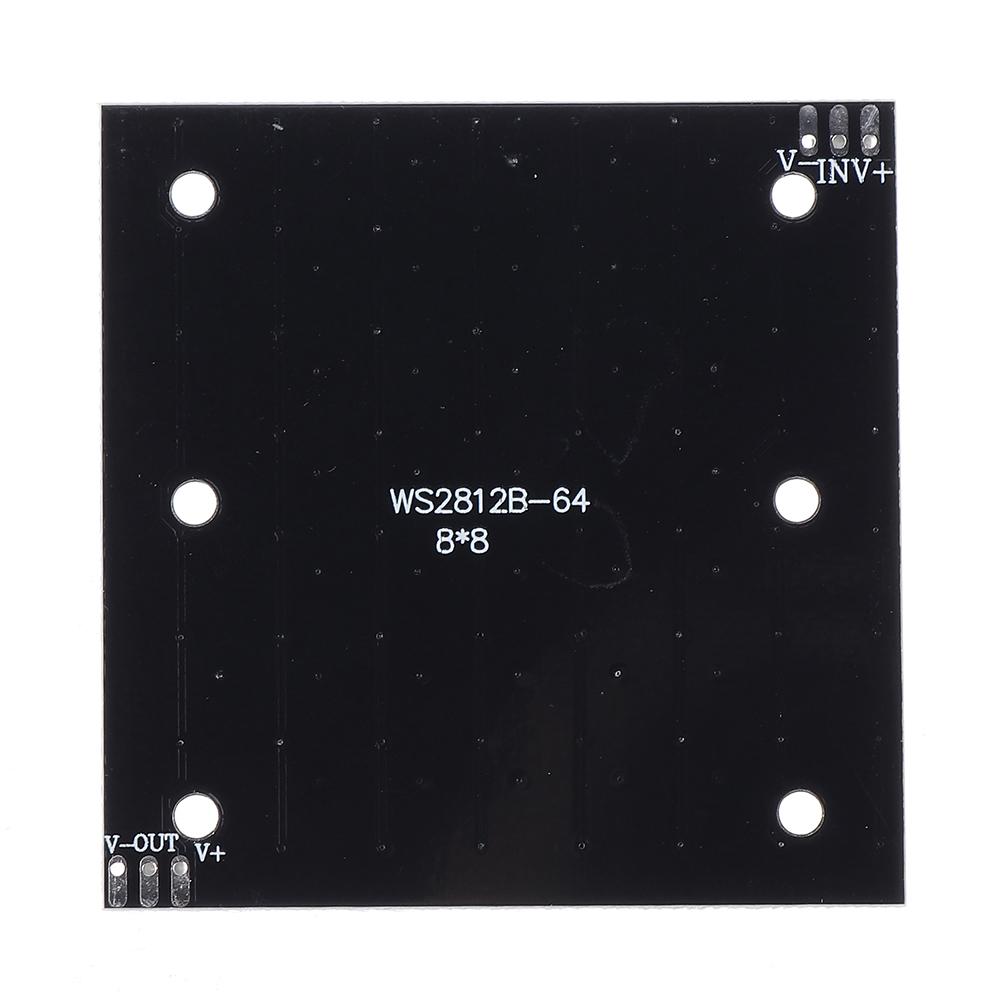

There are two 3-pin connection ports to the wiring board. Solder wires to the input port and provide 5VDC to the +5V and ground pins, then connect the DIN pin to your micro-controller and make a common ground from the 5V power supply to the micro-controller/Arduino.

Additionally, you can chain as many panels together as you’d like. For the second panel, connect the DIN connection to the first panel’s DOUT, connect the ground pins together and power with 5V. It should be noted that after four or more panels you may run low on RAM if you’re using an Arduino Uno and you may need a 5V 10A power supply for so many of these!

Every stick is equipped with a single data line with a very timing-specific protocol requiring a real-time micro-controller with an 8MHz or faster processor such as an AVR, Arduino, PIC etc. There are solder pads on the back for connecting wires or breadboard pins and two mounting holes for securing this board to many different surfaces.
